CB1S485

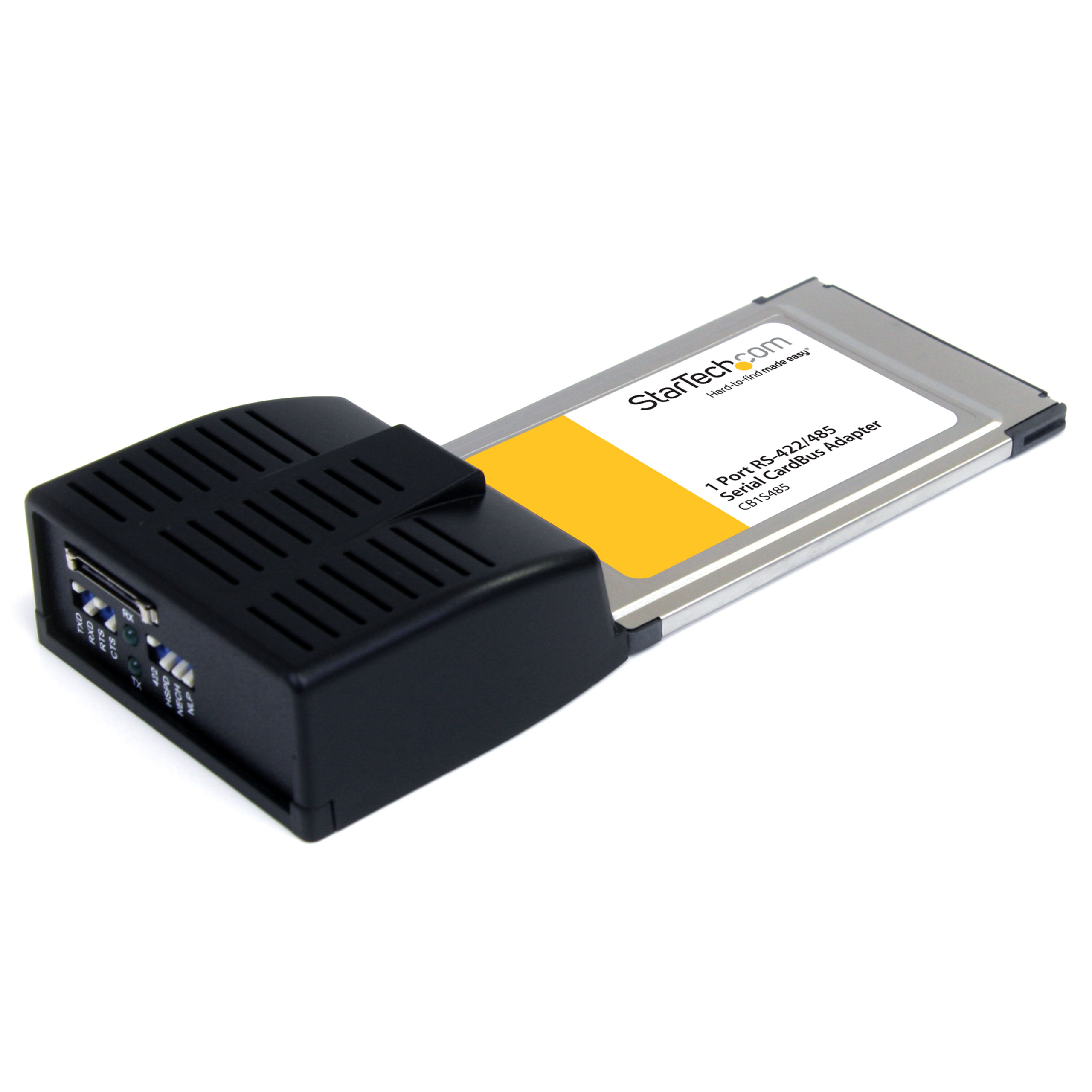

1 port Cardbus RS-422/485 Card w. DB9
Add an RS422/485 Serial port to your laptop computer via a CardBus expansion slot
Main Image
Product Images
Product Images
BOM Image
Product Name 1 port Cardbus RS-422/485 Card w. DB9 Product Number CB1S485 UPC 065030825283 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 1 Port CardBus RS422/485 Serial Card Product Title (Standard) StarTech.com 1 Port CardBus RS422/485 Serial Card Product Title (Long) 1 Port CardBus PCMCIA RS422 RS485 Serial Laptop Adapter Card Title Ingram (Part 1) 1 Port CardBus RS422 RS485 Seria Title Ingram (Part 2) l Laptop Adapter Card Website Product Headline Add an RS422/485 Serial port to your laptop computer via a CardBus expansion slot Bullet 1 RS-485 mode supports Auto Transceiver Turn Around (ATTA) Bullet 2 128-byte deep FIFO per transmitter and receiver Bullet 3 UART is 16C950 compatible to work with most serial devices Bullet 4 Supports RS-485 and RS-422 serial interfaces Bullet 5 Maximum data transfer rate up to 921kbps Marketing Copy Applications - Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
- Factory Automation
- For use in industrial environments with serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
Website Search Keyword - CardBus Adapter
- RS232
- RS485
- CardBus
Accessory Products - MC3MF
- MC6MF
- MXT100
- SCNM925FM
- SCNM9FF
- PCI2PCMCIA1
- PCI2PCMCIA1E
- DB92422
Related Products - CB2S485
- ICUSB232_4
- ICUSB232_2
- ICUSB232
- PCI2S485
Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 140 Product Width (mm) 60 Product Height (mm) 24 Product Weight (g) 120 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Linux

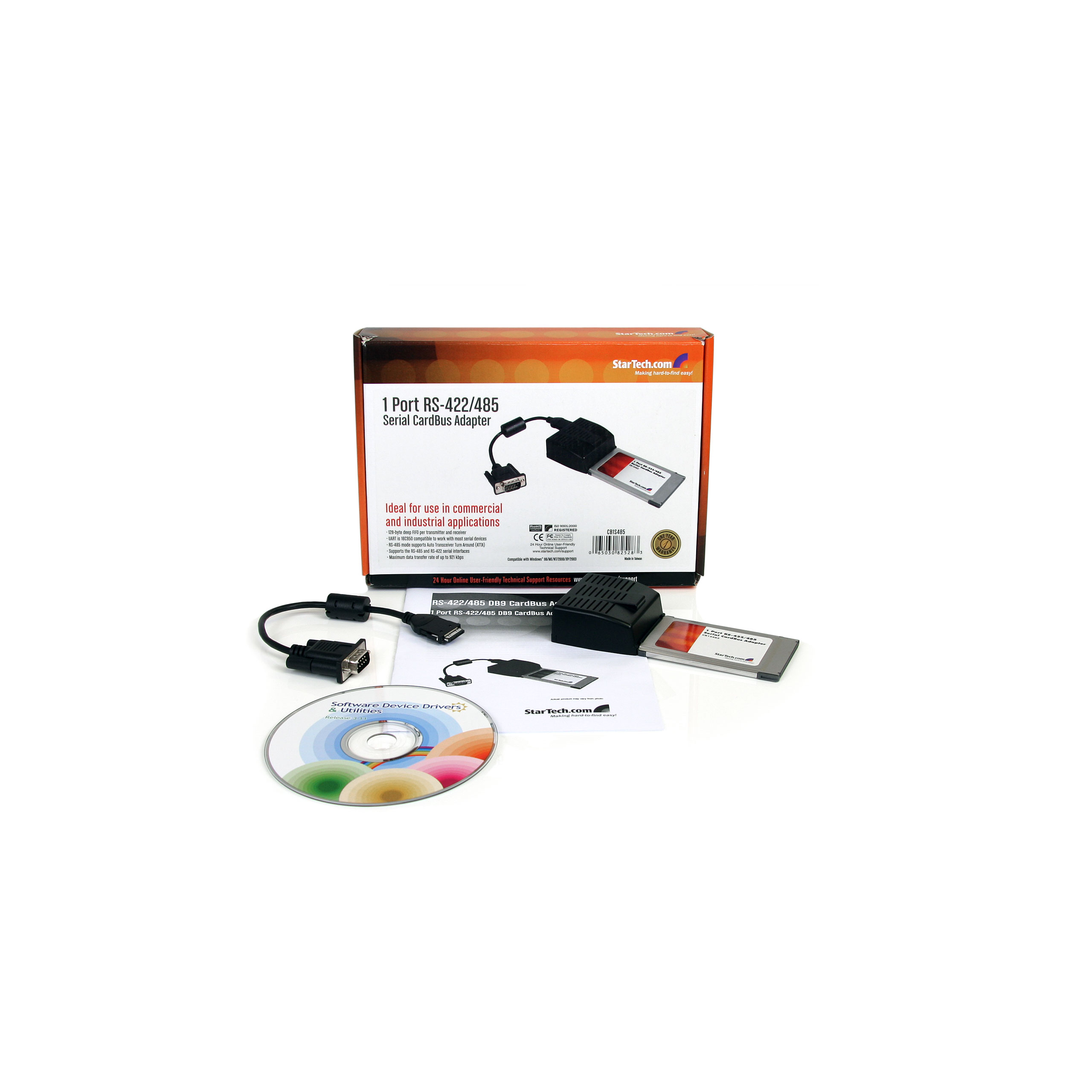

Supported Serial Protocol RS-422/485 Bus Type CardBus (PCMCIA) Chipset ID PLX/Oxford - OXmPCI952 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 500 Carton Height (mm) 505 Carton Quantity 50 Carton Weight Gross (g) 13700 Included in Package - 1 - Serial PCMCIA Card

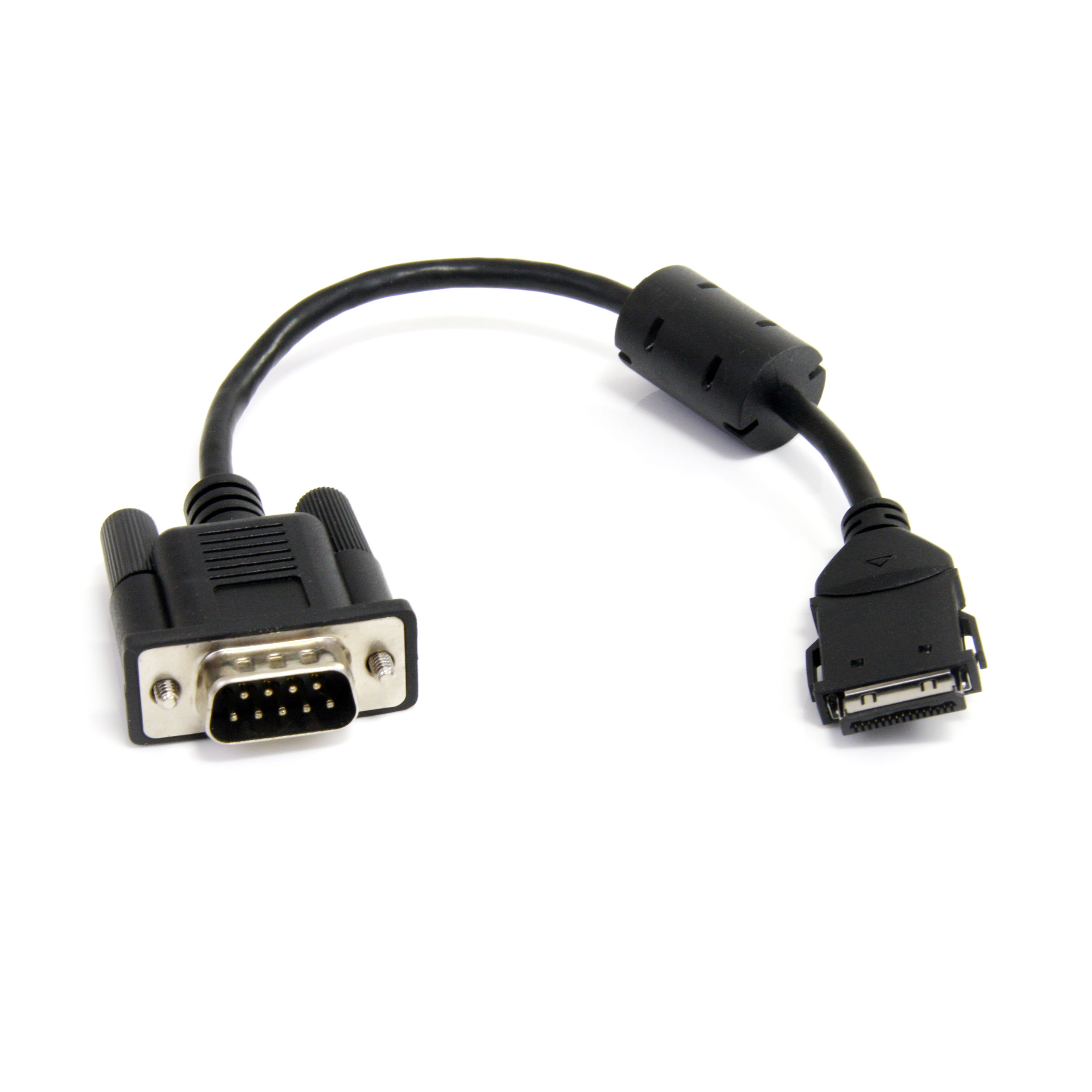

- 1 - Breakout Cable
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 43 Package Height (mm) 165 Package Width (mm) 230 Package Weight (g) 250 Packaging Description 1 Port CardBus (PCMCIA) RS422/485 Serial Card Packaging Description India 1 Port CardBus (PCMCIA) RS422/485 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 CardBus Slot Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
