Product Name 2 Port Cardbus 16C950 High Speed Serial Card Product Number CB2S950 UPC 065030824347 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port CardBus Serial PC Adapter Card Product Title (Standard) StarTech.com 2 Port 16950 Serial CardBus Adapter Product Title (Long) 2 Port CardBus RS232 Serial Laptop PC Adapter Card - 16950 Product Title (AMZ) 2 Port CardBus RS232 Serial Laptop PC Adapter Card - 16950 (CB2S950) Title Ingram (Part 1) 2 Port CardBus RS232 Laptop Seri Title Ingram (Part 2) al PC Adapter Card - 16950 Bullet 1 128-byte deep FIFO data buffer Bullet 2 High Performance 16C950 UART with maximum data transfer rate up to 921.6 Kbps Bullet 3 Offers 2 DB9 RS-232 ports to connect multiple devices to a notebook PC Marketing Copy Applications - Connect up to 2 RS-232 serial devices to a CardBus slot on your notebook.
- Works with serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters, and more.
Website Search Keyword - 2 Port ExpressCard
- Serial Breakout Cable
Accessory Products - AT925FF
- AT925FM
- AT925SFM
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- PCI2PCMCIA1
- SCNM925FM
- SCNM9FF
Related Products - EC1S950
- EC2S950
- CB4S950
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120 Product Width (mm) 60 Product Height (mm) 24 Product Weight (g) 250 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No FIFO 128 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8

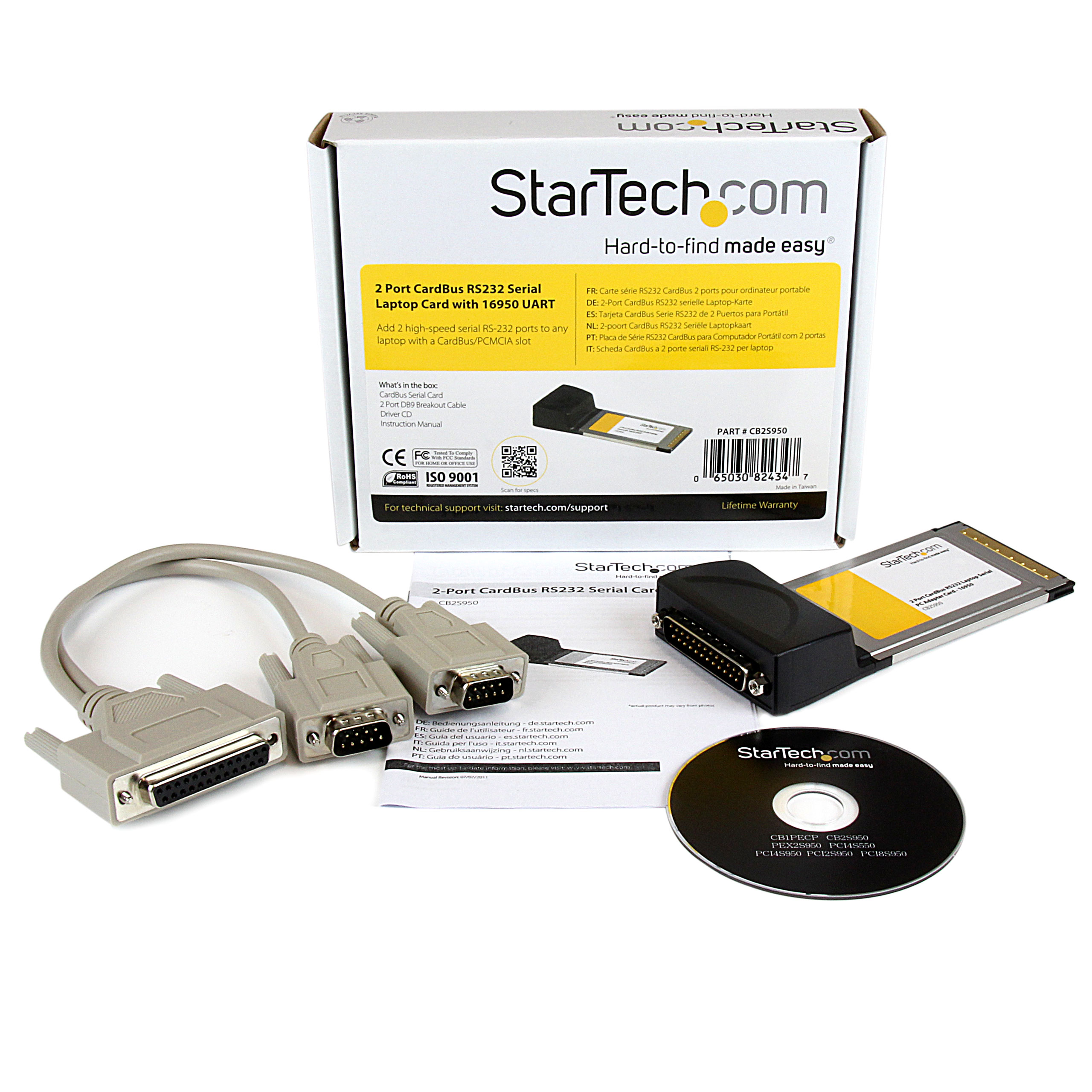

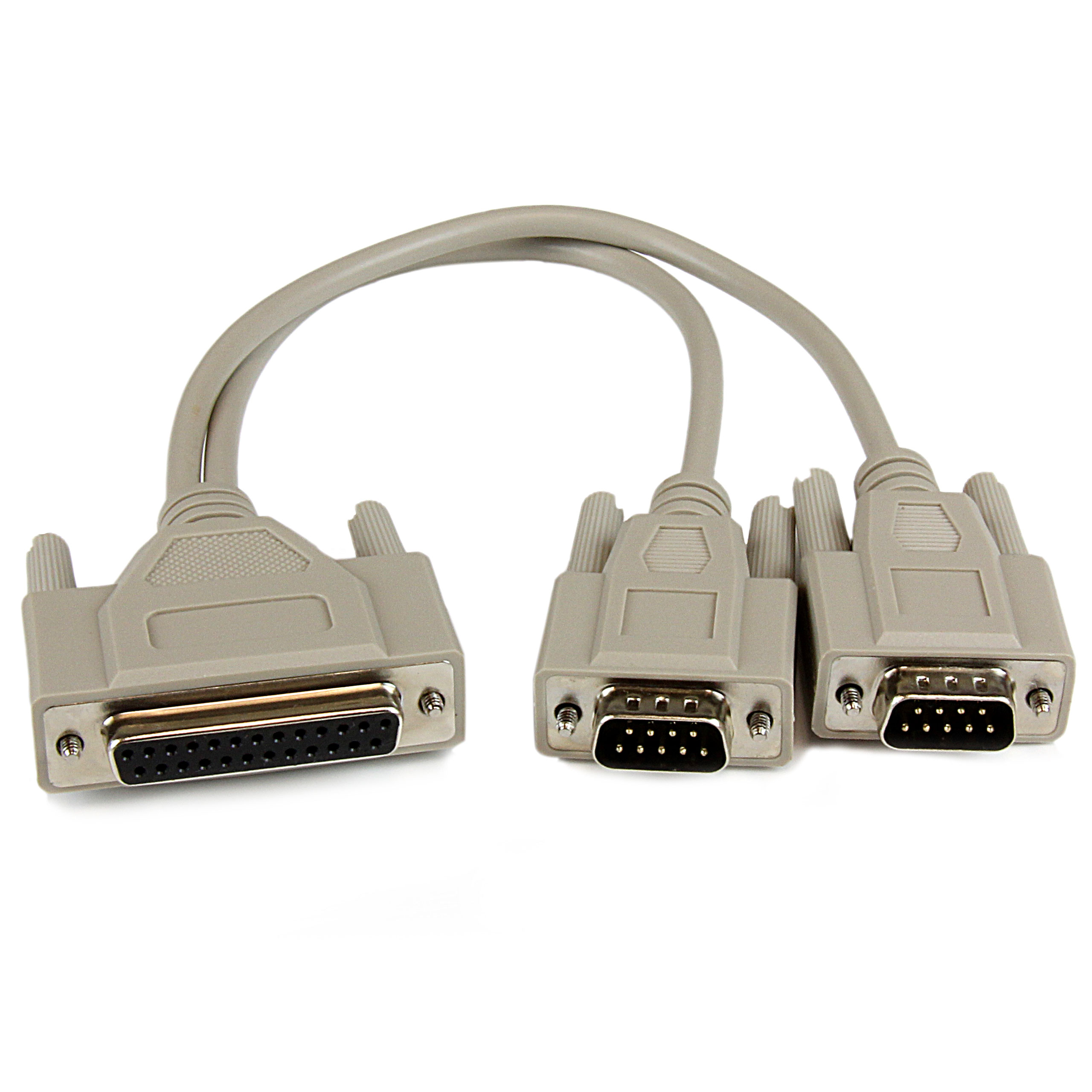

Supported Serial Protocol RS-232 Bus Type CardBus (PCMCIA) Chipset ID PLX/Oxford - OX16PCI952 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 500 Carton Height (mm) 505 Carton Quantity 50 Carton Weight Gross (g) 15200 Included in Package - 1 - 2 Port DB9 Breakout Cable
- 1 - CardBus Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 140 Package Height (mm) 38 Package Width (mm) 207 Package Weight (g) 280 Packaging Description 2 Port CardBus RS232 Serial Laptop Card Packaging Description India 2 Port CardBus RS232 Serial Laptop Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 CardBus Slot Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
