CB4S950

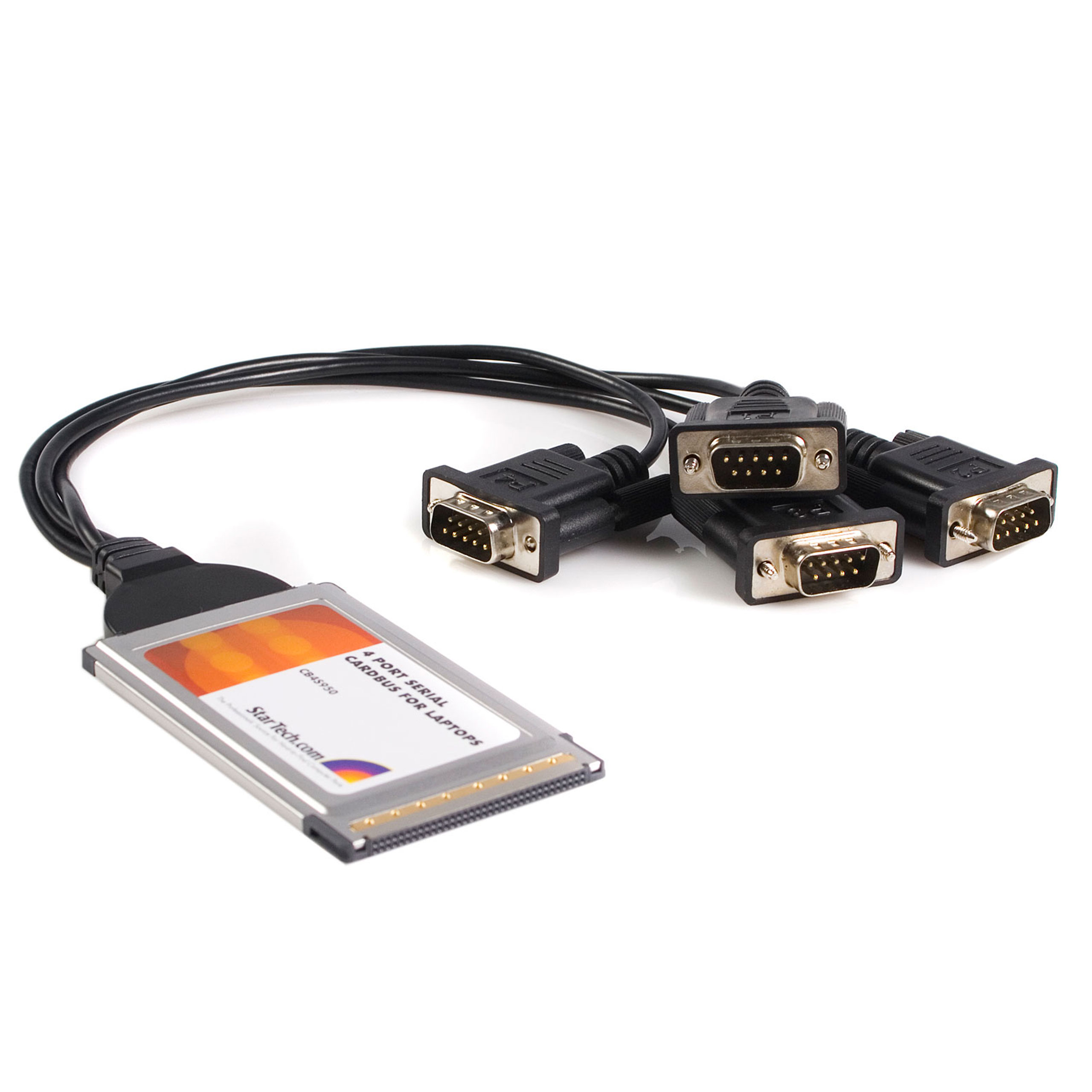

4 Port Cardbus 16950 Serial Card
Add four RS232 Serial ports to your laptop computer via a CardBus expansion slot
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port Cardbus 16950 Serial Card Product Number CB4S950 UPC 065030822992 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 4 Port CardBus Serial PC Adapter Card Product Title (Standard) StarTech.com 4 Port CardBus RS232 Serial Laptop PC Adapter Card - 16950 - CardBus - 4 x D-Sub (DB-9) Male RS-232 Serial Via Cable (Optional) - Hot-pluggable Product Title (Long) 4 Port CardBus RS232 Serial Laptop PC Adapter Card - 16950 Title Ingram (Part 1) 4 Port CardBus RS232 Laptop Seri Title Ingram (Part 2) al PC Adapter Card - 16950 Website Product Headline Add four RS232 Serial ports to your laptop computer via a CardBus expansion slot Bullet 1 Offers 4 DB9 RS-232 ports to connect multiple devices to a notebook PC Bullet 2 128-byte deep FIFO data buffer Bullet 3 High Performance 16C950 UART with maximum data transfer rate up to 921.6 kbps Marketing Copy Applications - Connect up to 4 RS-232 serial devices to a CardBus slot on your notebook
- Works with serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters, and more
Website Search Keyword - 4 Port ExpressCard
- Serial Breakout Cable
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- PCI2PCMCIA1
Related Products - EC1S950
- EC2S950
Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Storage Temperature -40°C to 75°C (-40°F to 167°F) TAA Compliant No FIFO 128 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Windows Vista
- Windows XP
- Windows 2000
- Windows ME
- Windows 98

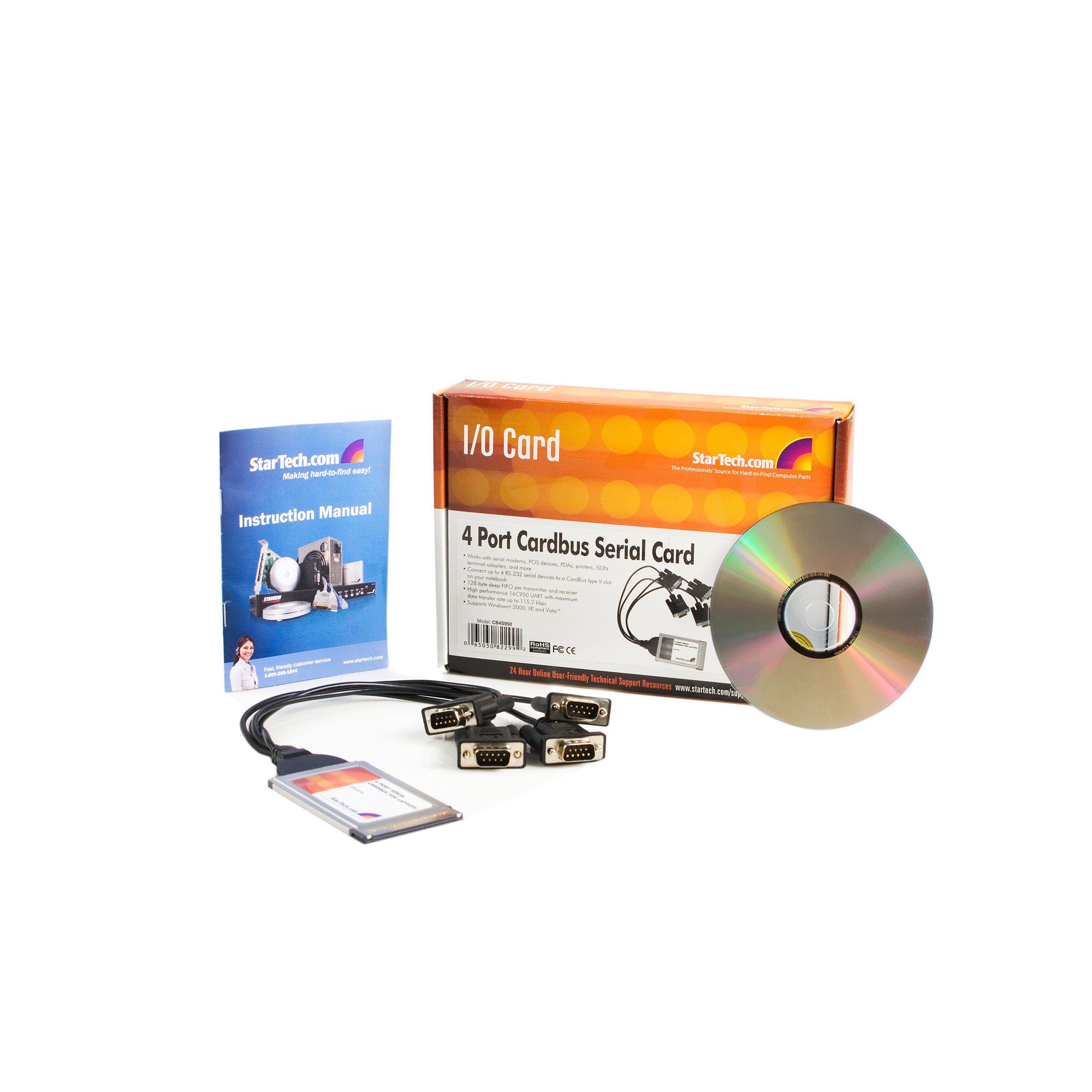

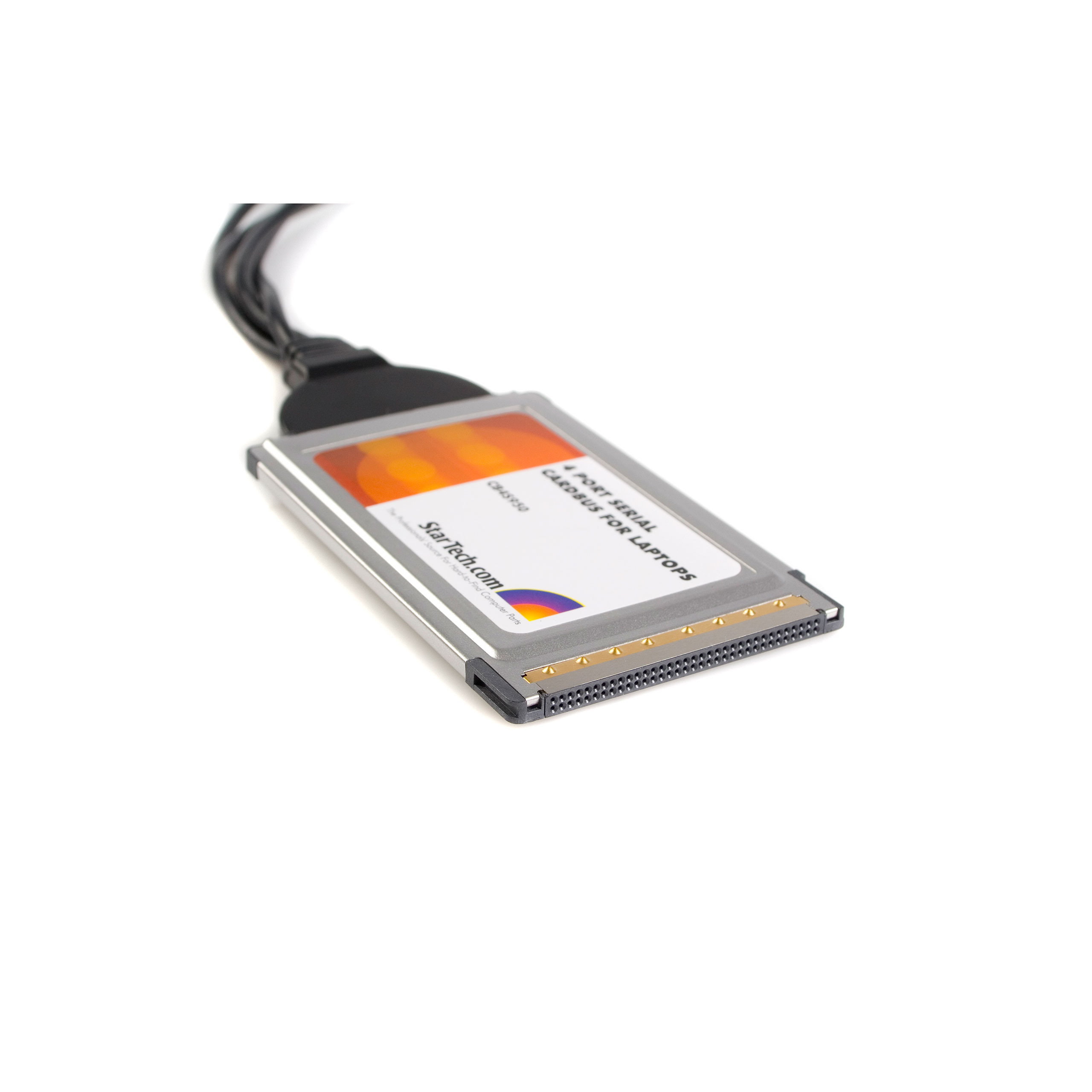

Supported Serial Protocol RS-232 Bus Type CardBus (PCMCIA) Chipset ID PLX/Oxford - OX16PCI954 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 515 Carton Height (mm) 404 Carton Quantity 50 Carton Weight Gross (g) 10200 Included in Package - 1 - Cardbus Serial Card

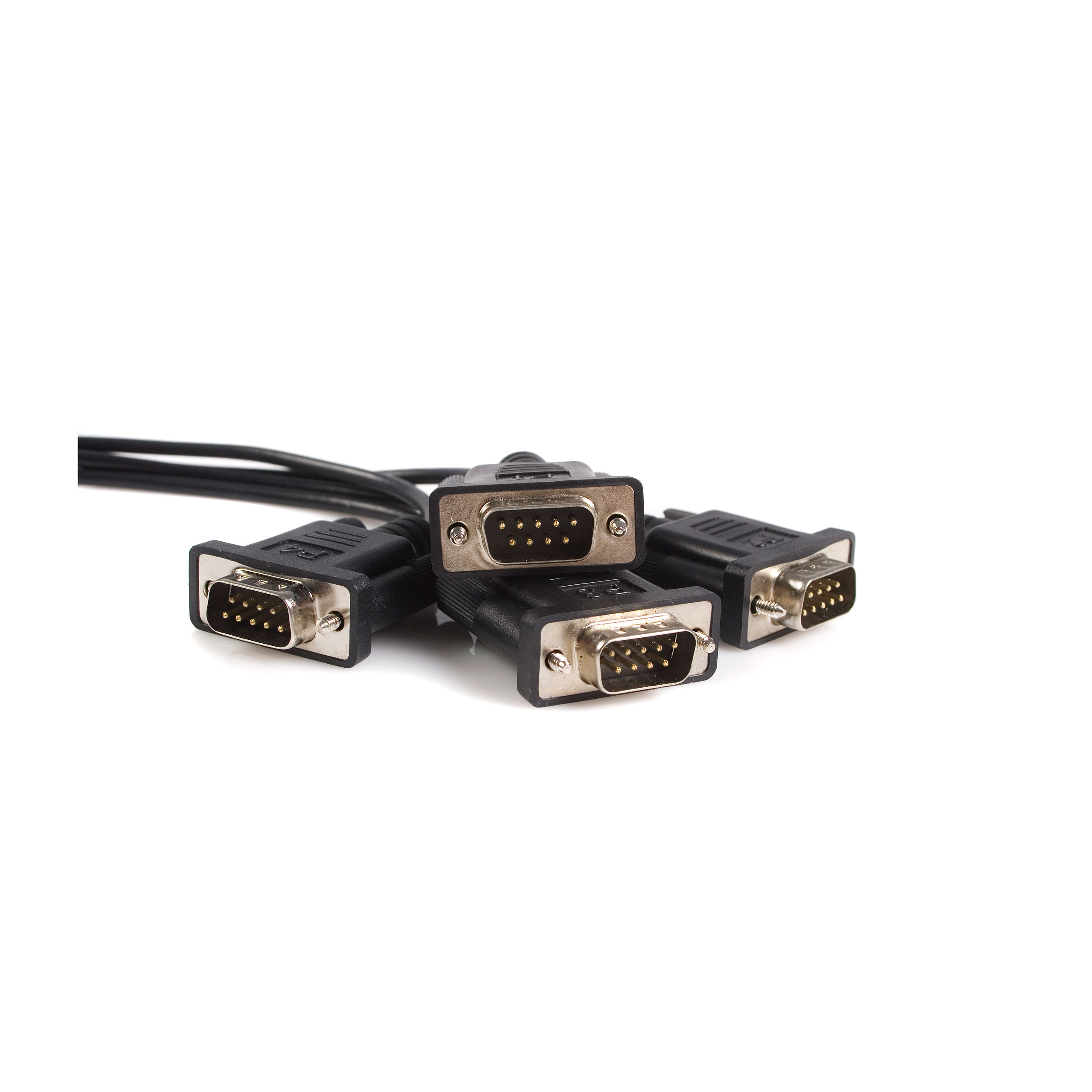

- 1 - 4 Port DB9 Break-out Cable
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 42 Package Height (mm) 160 Package Width (mm) 228 Package Weight (g) 300 Packaging Description 4 Port CardBus (PCMCIA) RS232 Serial Card Packaging Description India 4 Port CardBus (PCMCIA) RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 CardBus Slot Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Rafal Gwozdz
