CB511WB
Main Image

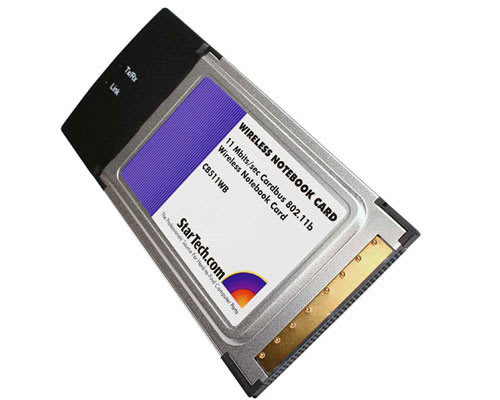

Product Name 11 Mbps Cardbus 802.11b Notebook Card Product Number CB511WB UPC 065030796798 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Product Title (Long) Cardbus PCMCIA 802.11b Wireless Laptop Adapter Card Bullet 1 High data transfer rate up to 11 Mbits/sec Bullet 2 Communication range of up to 100 meters (328 feet) for true mobile freedom Bullet 3 Automatic fallback data rate increases data security and reliability Bullet 4 Dynamically shifts between 11, 5.5, 2 and 1 Mbits/sec network speed based on signal strength Bullet 5 Easy plug and play installation for quick setup Marketing Copy Applications - Reliable, secure wireless network connection for notebook users
- Lets you extend networks into boardrooms, meeting rooms and anywhere where your Ethernet cable is not installed
- Schools and educational institutions can share wireless connections in classrooms without the need for cables
- Ideal for home user, SOHO, enterprises and training facilities
Website Search Keyword PCMCIA Accessory Products - WLANREF
- PCI2PCMCIA1
- PCI2PCMCIA2
Operating Temperature 0 ~ 55 Storage Temperature -20 ~ 70 TAA Compliant No General Specifications - Interface Bus Type: Cardbus Compatible PCMCIA Type II
- Compliant Standards: IEEE 802.11b
- Radio Technology: Direct Sequence Spread Spectrum (DSSS)
- Modulation: CCK@11/5.5Mbps, QPSK@2Mbps & BPSK@1Mbps
- Security: 64/128-bit WEP Encryption
- Frequency: 2.4 GHz
- Antenna: Two integrated antenna
- Channels: 1-11 for USA and Canada
- LED Indicators: Link Activity & Transmission Status
- Data Transfer Rate: Up to 11 Mbits/sec
- Supported bit rates: 11, 5.5, 2 & 1 Mbps
- Data Range in Closed Space: 25m @ 11 Mbps & 100M @ 5.5Mbps or lower
- Bit Error Rate: 1E-5 @ -83dBm
- Receiver Sensitivity: -80dBm/Min
- Environmental Specification:
- Drivers: Windows 98/ 98 SE/ ME/ 2000/ XP & Linux 6.X
- Enclosure: Metal
- Certification: FCC Class B, ETSI 300.328 and CE EMC-EEC
- Output Power: 16dBm - 18dBm (39.81 mW to 63.09mW)
OS Compatibility - Windows 98
- Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
Bus Type CardBus (PCMCIA) Industry Standards IEEE 802.11b LED Indicators - 1 - Link Activity
- 1 - Transmission Status
Carton Depth (mm) 510 Carton Height (mm) 348 Carton Quantity 40 Carton Weight Gross (g) 11200 Package Depth (mm) 49 Package Height (mm) 148 Package Width (mm) 219 Package Weight (g) 250 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
