Main Image
CBCON1716IGB

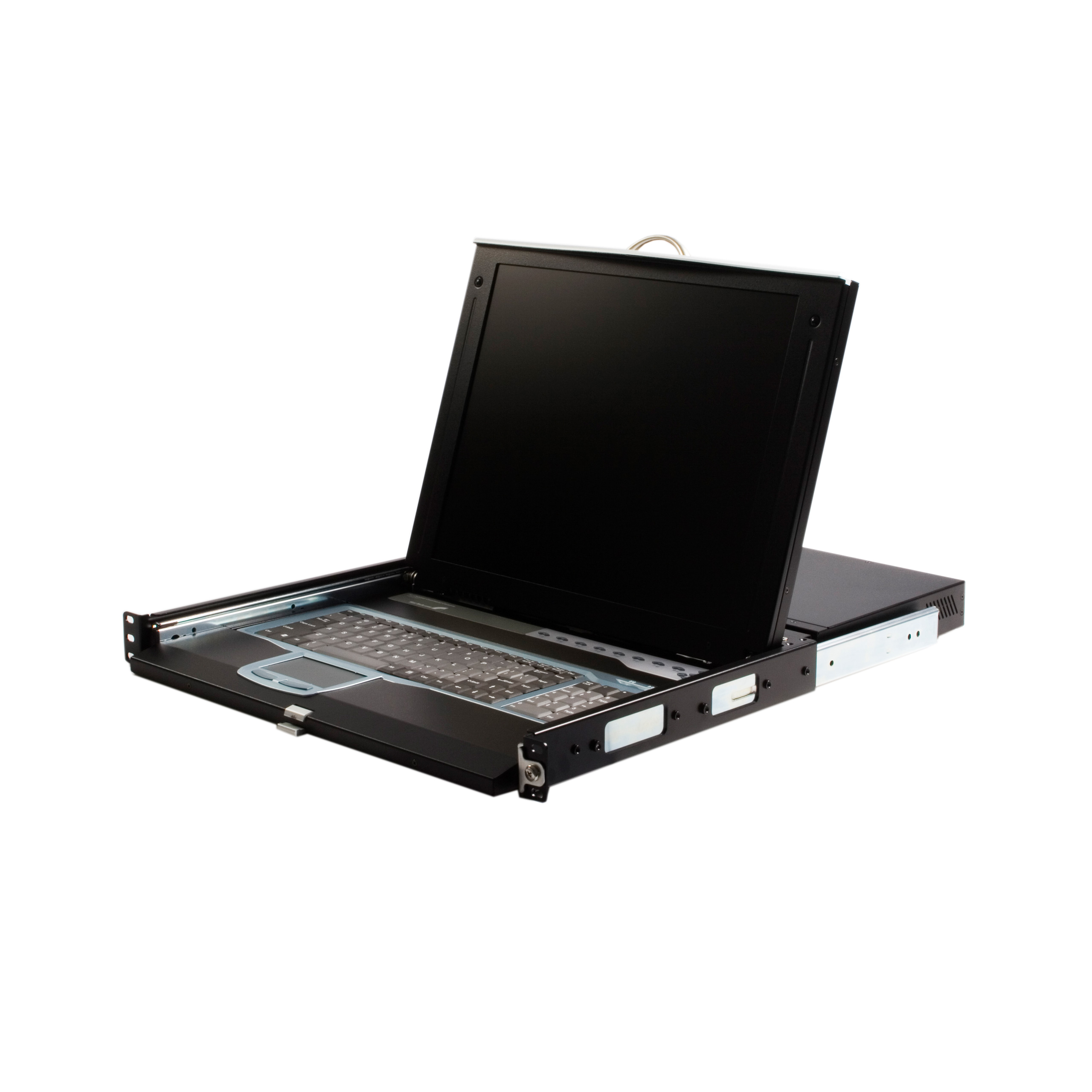

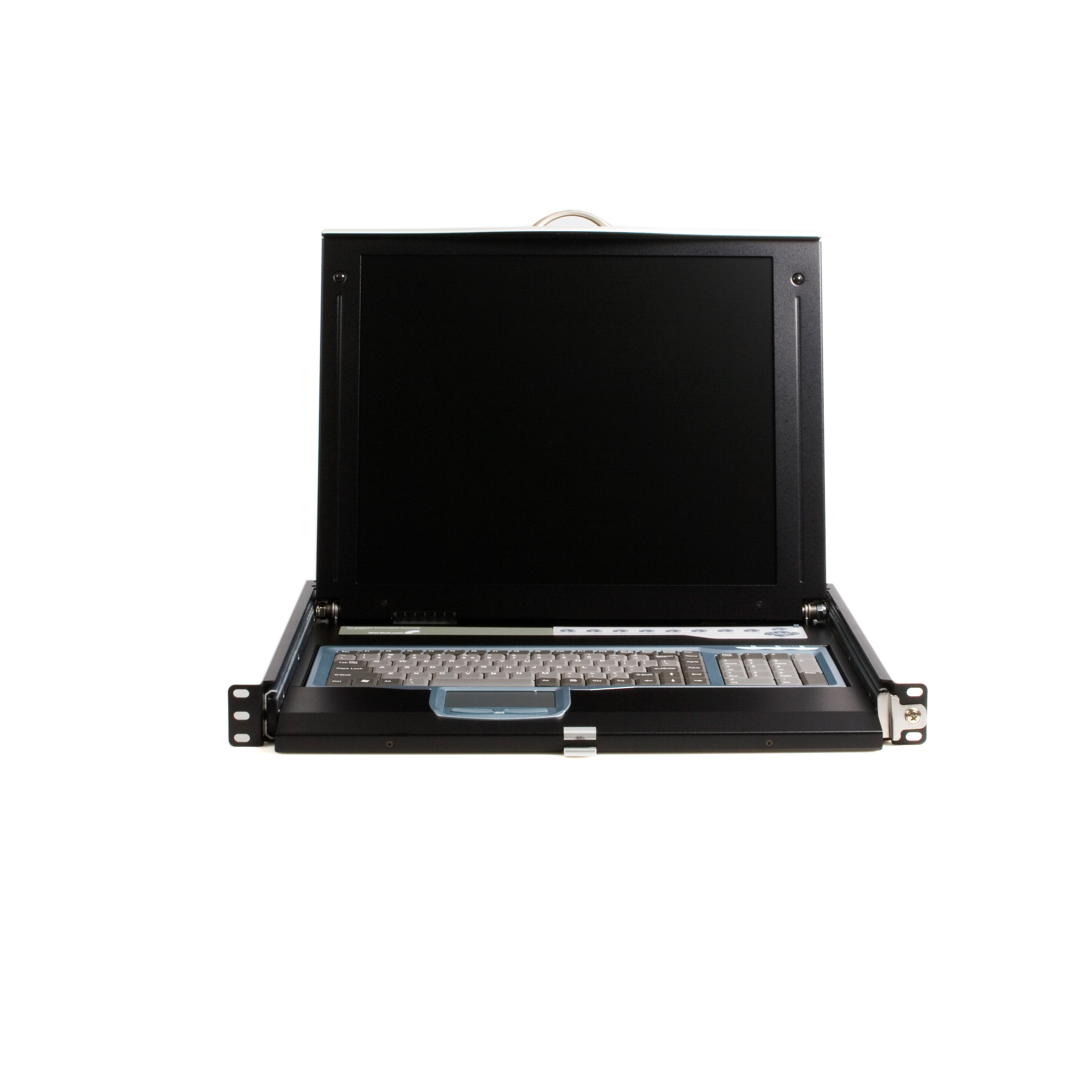

17 inch Rackmount LCD Console with 16 Port IP KVM
Control 16 servers or KVM switches remotely over an IP network with this rack mountable LCD console
Main Image
Product Images
Product Images
Product Name 17 inch Rackmount LCD Console with 16 Port IP KVM Product Number CBCON1716IGB UPC 065030833035 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 17 Rackmount LCD Console 16 Port IP KVM Product Title (Standard) 1U 17" Rackmount LCD Console with 16 Port IP KVM Product Title (Long) 1U 17" Rackmount LCD Console with Integrated 16 Port IP KVM Switch Title Ingram (Part 1) 1U 17" Rackmount LCD Console wit Title Ingram (Part 2) h 16 Port IP KVM Switch Website Product Headline Control 16 servers or KVM switches remotely over an IP network with this rack mountable LCD console Bullet 1 "Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining Bullet 2 Access to the web console is user ID and SSL password secure. The Remote Server Management over IP card supports 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption. Bullet 3 Allows remote hardware restarts and the ability to power the host computer on and off, if the host computer you are managing supports IPMI (Intelligent Platform Management Interface) Bullet 4 Completely operating system independent. No software or drivers required Bullet 5 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems Marketing Copy Applications - Centralized remote management of servers
- Datacenter computer control
- Improving the internal space efficiency of existing cabinets
Special Notes Accessory Products - PCM815SHNA
- RPORT
Related Products - 1UCABCONS17
- RACKCONS1708
- RACKCONS1916
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Heavy Duty Steel TAA Compliant No KVM IP Control Yes Maximum Analog Resolutions 1280 x 1024 Maximum Number of Users 1 Local, 4 Remote On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 17" Front Door Key Lock No Industry Standards VESA DPMS, VESA DDC 1/2B Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 628 Carton Height (mm) 202 Carton Quantity 1 Carton Weight Gross (g) 18700 Included in Package - 1 - Cabinet console
- 1 - Power adapter
- 2 - Power Cords (UK/EU)
- 2 - Rack mount brackets

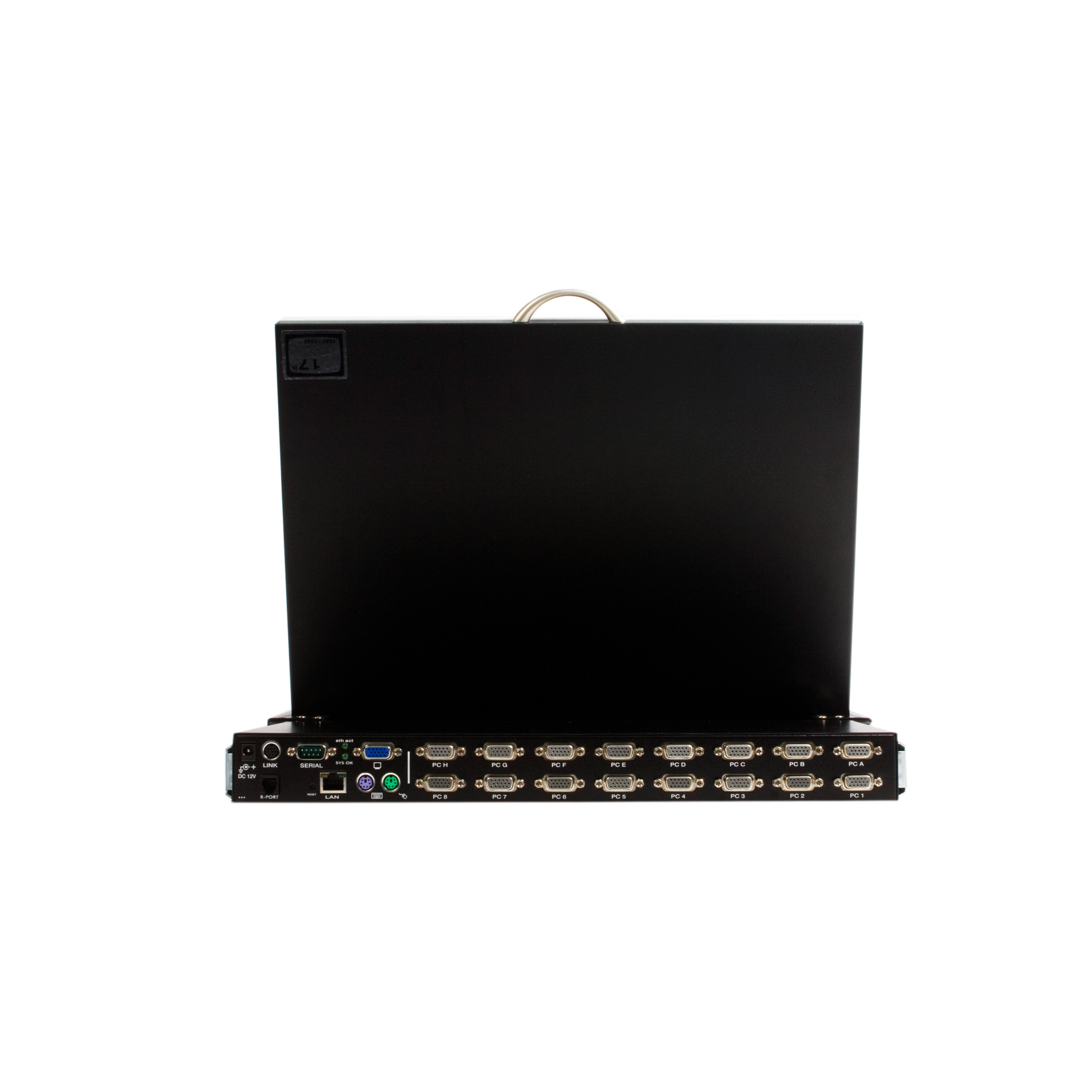

Package Depth (mm) 628 Package Height (mm) 202 Package Width (mm) 550 Package Weight (g) 17500 Packaging Description 1U 17" LCD Rack Console w/ 16 Port IP KVM Packaging Description India 1U 17" LCD Rack Console w/ 16 Port IP KVM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
