CBCON1716IR
Main Image
Product Images
Product Images
BOM Image
Product Name Refurbished 17" Rackmount LCD Console with 16 Port IP KVM Product Number CBCON1716IR UPC 065030844987 Lifecycle status Discontinued Warranty Refurbished 90 Days Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) Refurbished 1U 17" Rackmount LCD Console with 16 Port IP KVM Switch Bullet 1 Web-based control allows client access using a standard browser - eliminating licensing costs and simplifying usage Bullet 2 High resolution 17” Active Matrix Color TFT LCD monitor, displays up to 1280 x 1024 pixels Bullet 3 Users can reboot the system, access the BIOS, and have full control over the keyboard and mouse - as if they are on site Bullet 4 Access to the web console is user ID and SSL password secure. The Remote Server Management over IP card supports 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption. Bullet 5 Allows remote hardware restarts and the ability to power the host computer on and off, if the host computer you are managing supports IPMI (Intelligent Platform Management Interface) Marketing Copy Applications - Datacenter computer control
- Centralized remote management of servers
- Improving the internal space efficiency of existing cabinets
Special Notes Accessory Products - RPORT
- PCM815SHNA
- SV1631HD
- SV1631DUSB
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- RJ45PATCH10
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
Related Products - 1UCABCONS17
- RACKCONS1708
- RACKCONS1916
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Heavy Duty Steel Product Length (mm) 0.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 0.000 TAA Compliant Yes KVM IP Control Yes Maximum Analog Resolutions 1280x1024 Maximum Number of Users 1 Local, 4 Remote MTBF (hours) 445,400 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 17" Front Door Key Lock No Industry Standards VESA DDC 1/2B, VESA DPMS compliant Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 1 Carton Weight Gross (g) 18700 Included in Package - 1 - Cabinet console

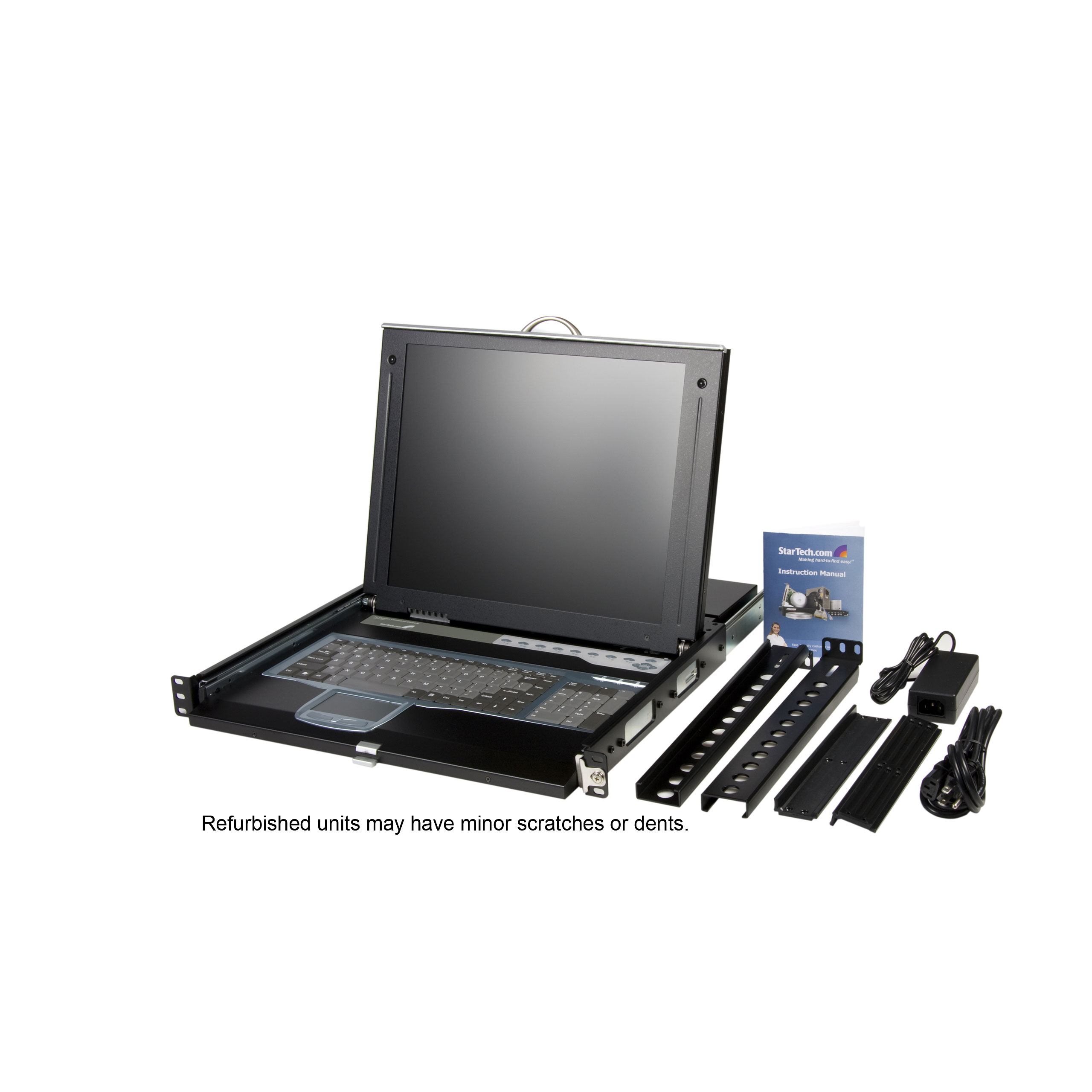

- 1 - Power adapter
- 1 - Power plug
- 2 - Rack mount brackets
Package Depth (mm) 628 Package Height (mm) 202 Package Width (mm) 550 Package Weight (g) 17500 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
