CC1M-40G-USB-CABLE

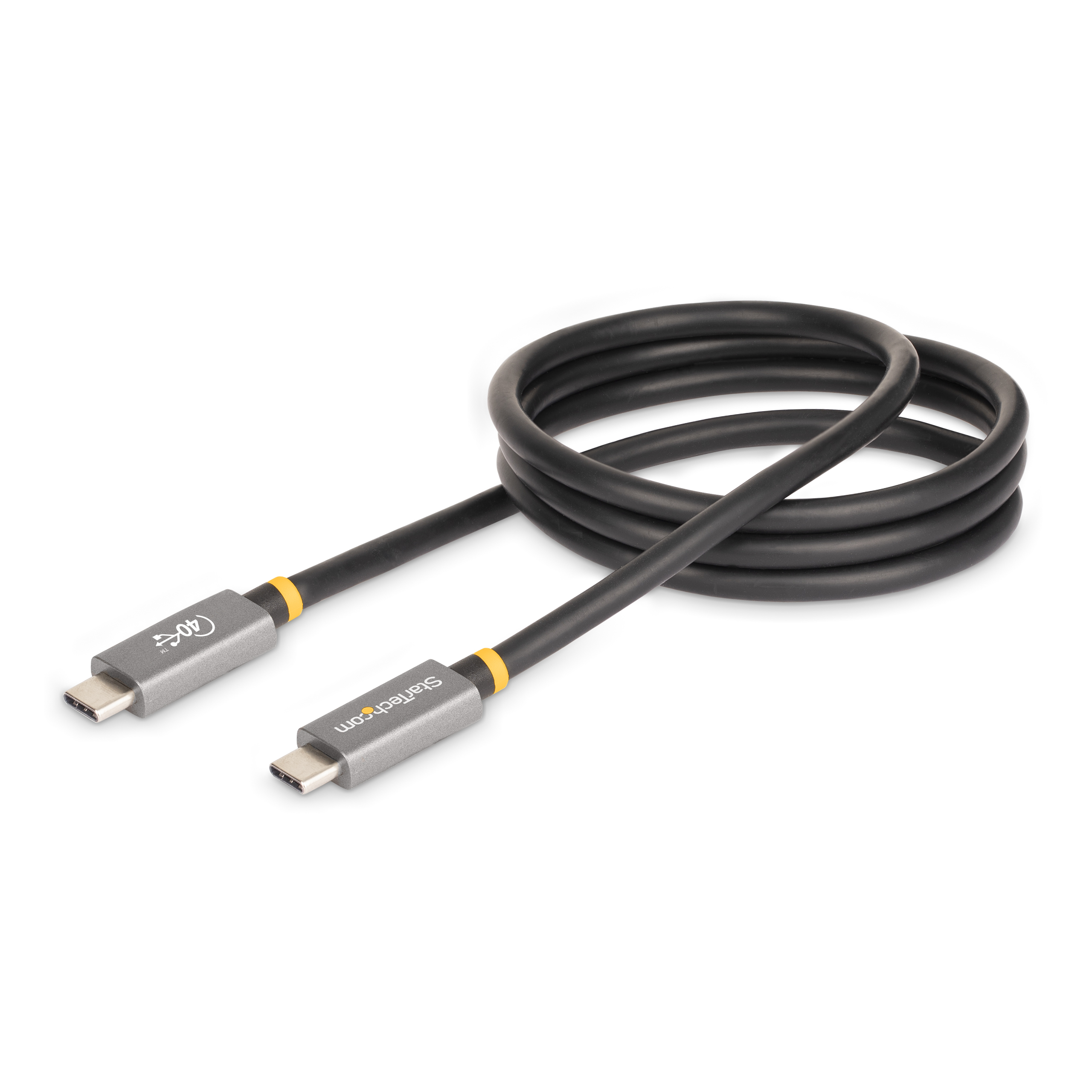

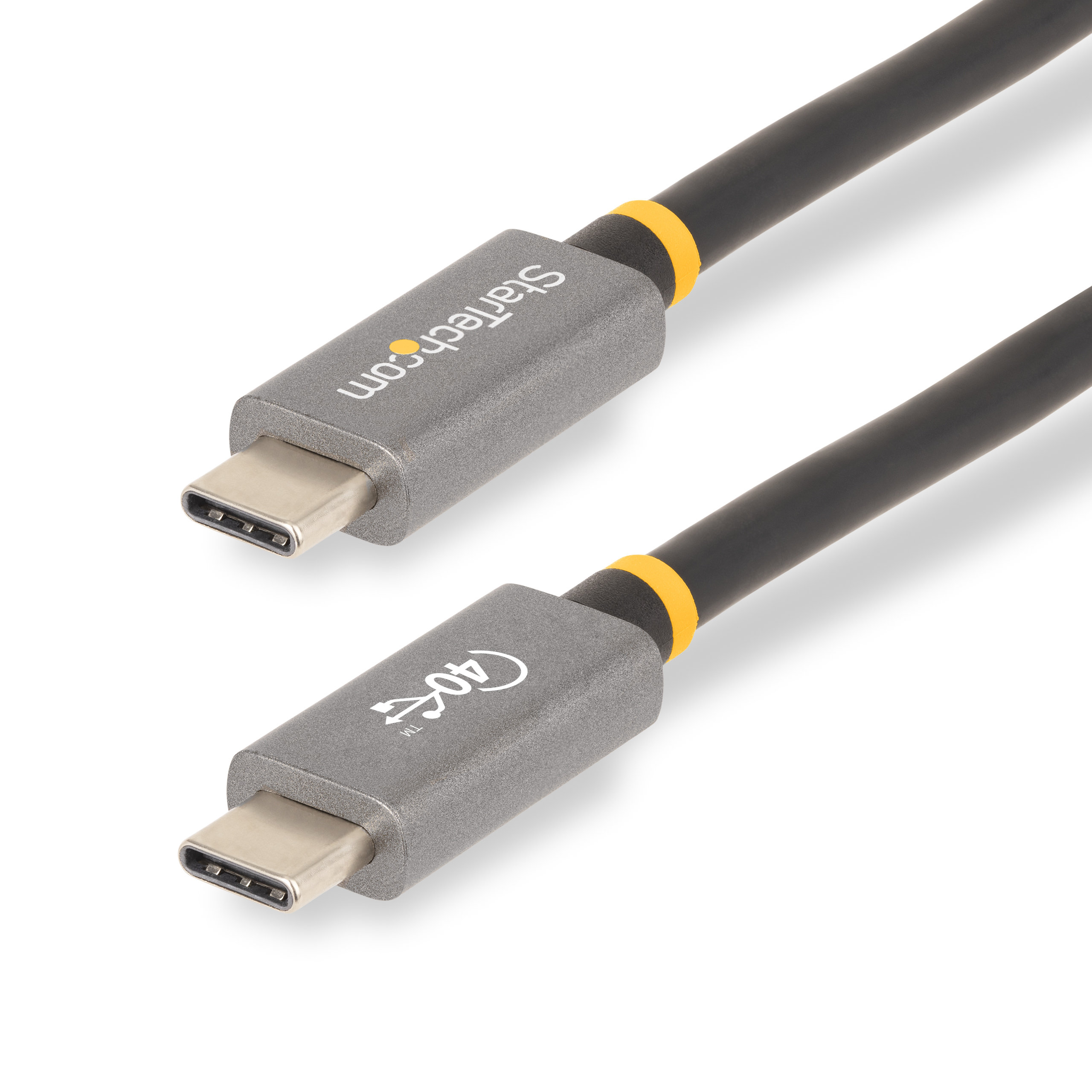

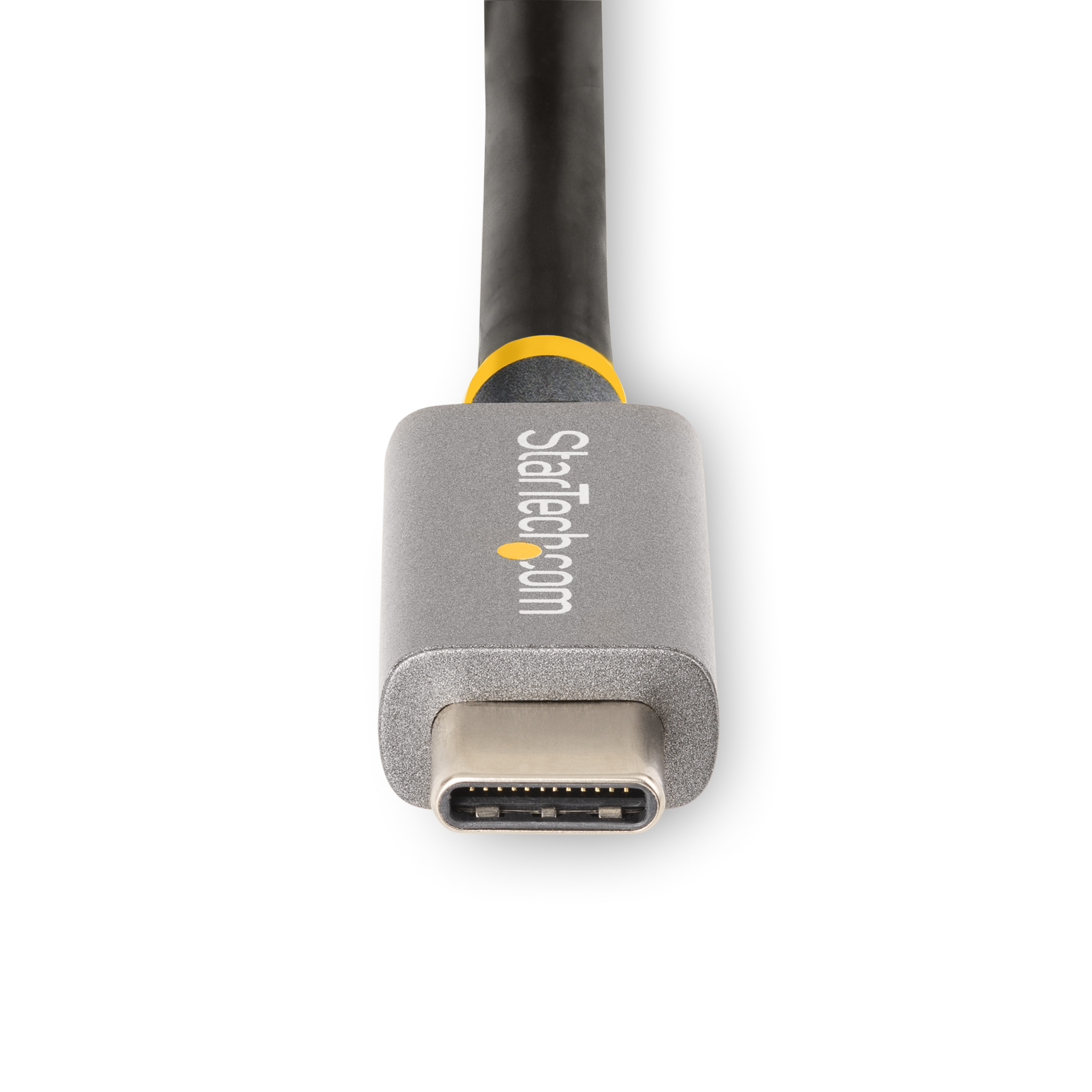

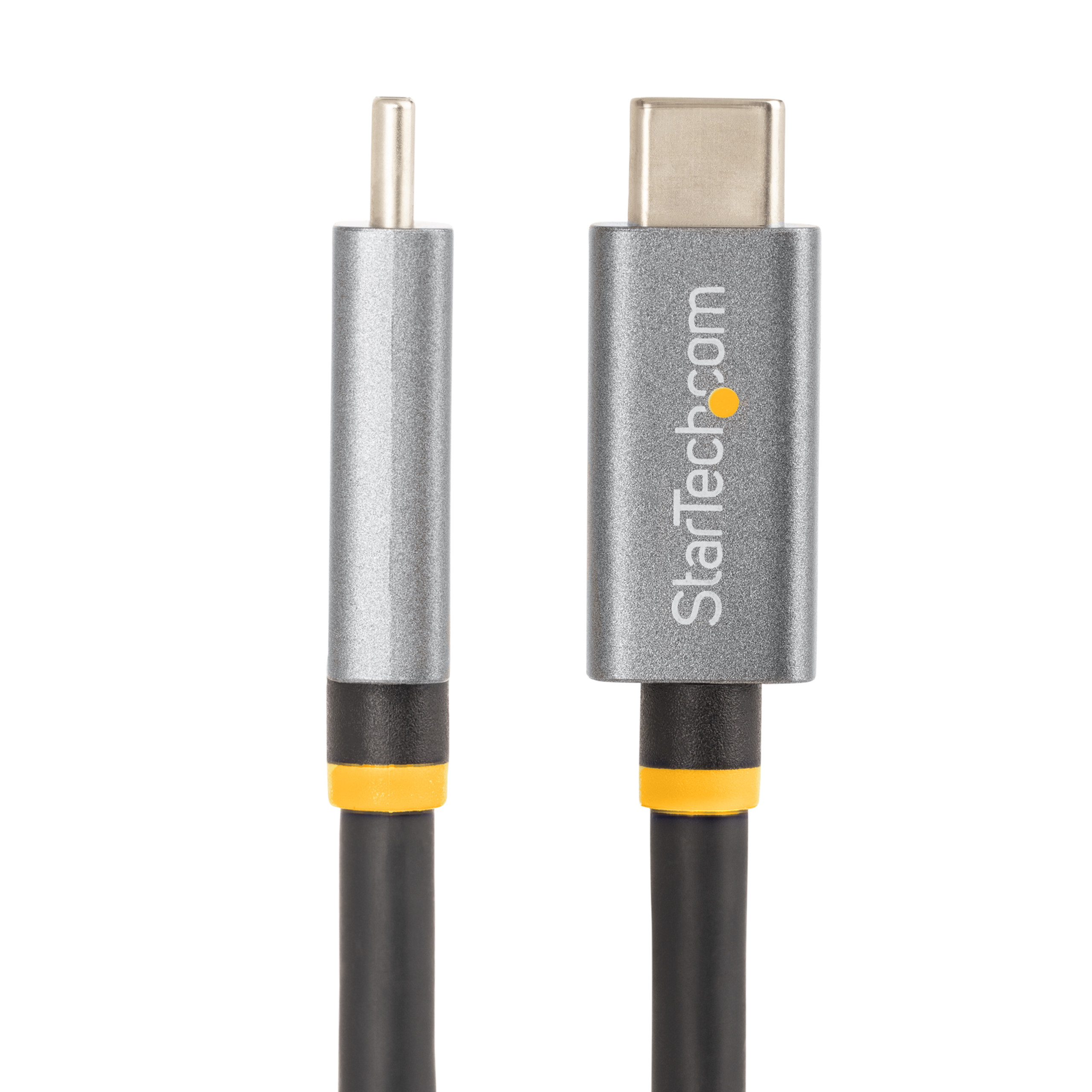

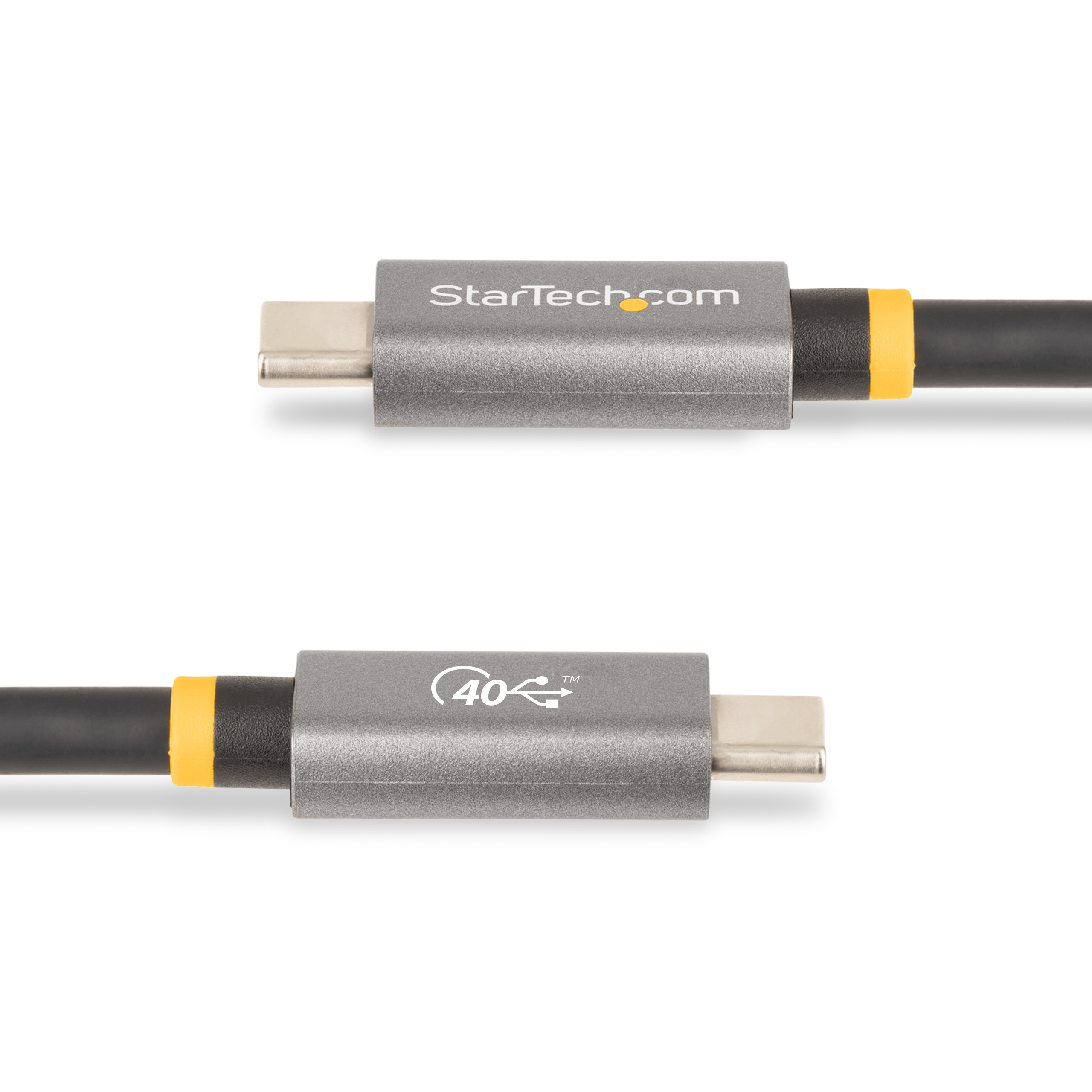

USB 4 C to C Cable - USB-IF Certified - 1m, VBL
Connect to USB4-enabled devices, using this USB-IF certified USB-C cable
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Application Images
Application Images
Application Images
Application Images
Application Images
Application Images
Video Link YouTube
Product Name USB 4 C to C Cable - USB-IF Certified - 1m, VBL Product Number CC1M-40G-USB-CABLE UPC 065030897068 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - 40Gbps USB4 Family USB4 40Gbps Coaxial Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) USB4 Cable USB-C Product Title (Short) 3ft USB4 Cable, USB-IF Certified USB-C Product Title (Medium) 3ft (1m) USB4 Cable, USB-IF Certified USB-C Cable, 40 Gbps, 8K, 100W, USB C to C Product Title (Standard) 3.3ft (1m) USB4 Cable 40Gbps, 100W (5A) PD, 8K 120Hz/4K 240Hz DP Alt Mode, USB-IF Certified USB-C Cord, Thunderbolt Compat. Product Title (Long) 3ft (1m) USB4 Cable 40Gbps, 100W (5A) Power Delivery, 8K 120Hz / 4K 240Hz DP Alt Mode, USB-IF Certified USB-C Cable - Thunderbolt Compatible Product Title (AMZ) 3.3ft (1m) USB4 Cable 40Gbps, 100W (5A) PD, 8K 120Hz/4K 240Hz DP Alt Mode, USB-IF Certified, Thunderbolt Compat. Title Ingram (Part 1) 3ft USB4 Cable USB-IF Certified Title Ingram (Part 2) Thunderbolt 4/3 over USB Type-C Website Product Headline Connect to USB4-enabled devices, using this USB-IF certified USB-C cable Bullet 1 HIGH PERFORMANCE: 3.3ft/1m USB4 cable supports 40 Gbps, 4K/8K video, and 100W power; USB Type-C connectors offer universal compatibility with USB-C and Thunderbolt 4/3 laptops, docking stations, UHD monitors, and portable USB-C devices Bullet 2 USB-IF CERTIFIED: USB4 cable is USB-IF certified with E-Marker chip, for reliable and consistent Power Delivery output to USB-C hosts and devices; Supports DisplayPort 2.1 with DSC; Compliant with PCIe 3.0 for external PCIe chassis/storage Bullet 3 QUALITY CONSTRUCTION: Nickel-plated connectors with robust strain reliefs for durability; Coaxial wire with Mylar shield for enhanced EMI protection; TPE cable jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant Bullet 4 APPLICATIONS: Enable connectivity & charging across compatible USB, Thunderbolt 4/3, & DP Alt Mode devices; Ideal for high speed data transfers or docks; Dock and charge a USB-C laptop over a single connection; Works w/Apple M1/M2/M3 Pro/Max MacBooks Bullet 5 SPECS: 3.3ft (1m); USB4 (40 Gbps); Backward Compatible with USB 3.2/3.0/2.0; DisplayPort 2.1 DP Alt Mode w/DSC/HDR/HBR3; Up to 8K 120Hz, 4K 240Hz; PCIe 3.0 (32 Gbps); 100W PD; 30/34 AWG; Cable Outer Diam.: 0.19in (4.95mm) Bullets (Compact) 3.3ft USB-IF Certified USB4 cable supports 40Gbps - DisplayPort 1.4 video w/ DSC up to 8K 120Hz / 4K 240Hz - 100W PD charging - Certified E-marker firmware for reliability - Ideal for USB-C / Thunderbolt laptops, docks, monitors, and external storage Bullets (Consolidated) - 3.3ft/1m USB-IF Certified USB4 cable supports 40 Gbps 8K video and 100W Power Delivery charging for versatile compatibility with USB C or Thunderbolt devices - USB-IF Certified w/ E-Marker chip for reliability; TPE jacket w/Nickel-plated connectors and durable strain reliefs - Ideal for USB-C and Thunderbolt laptops docks monitors and high-speed storage - Dock and charge a laptop over a single connection - 40 Gbps; USB4/3.2/3.0/2.0; 8K 120Hz / 4K 240Hz; DisplayPort 1.4 with DSC; 100W PD 3.0 Marketing Copy Marketing Copy (No HTML) Applications - Transfer data at 40 Gbps speeds and 100W of power over a USB4 connection

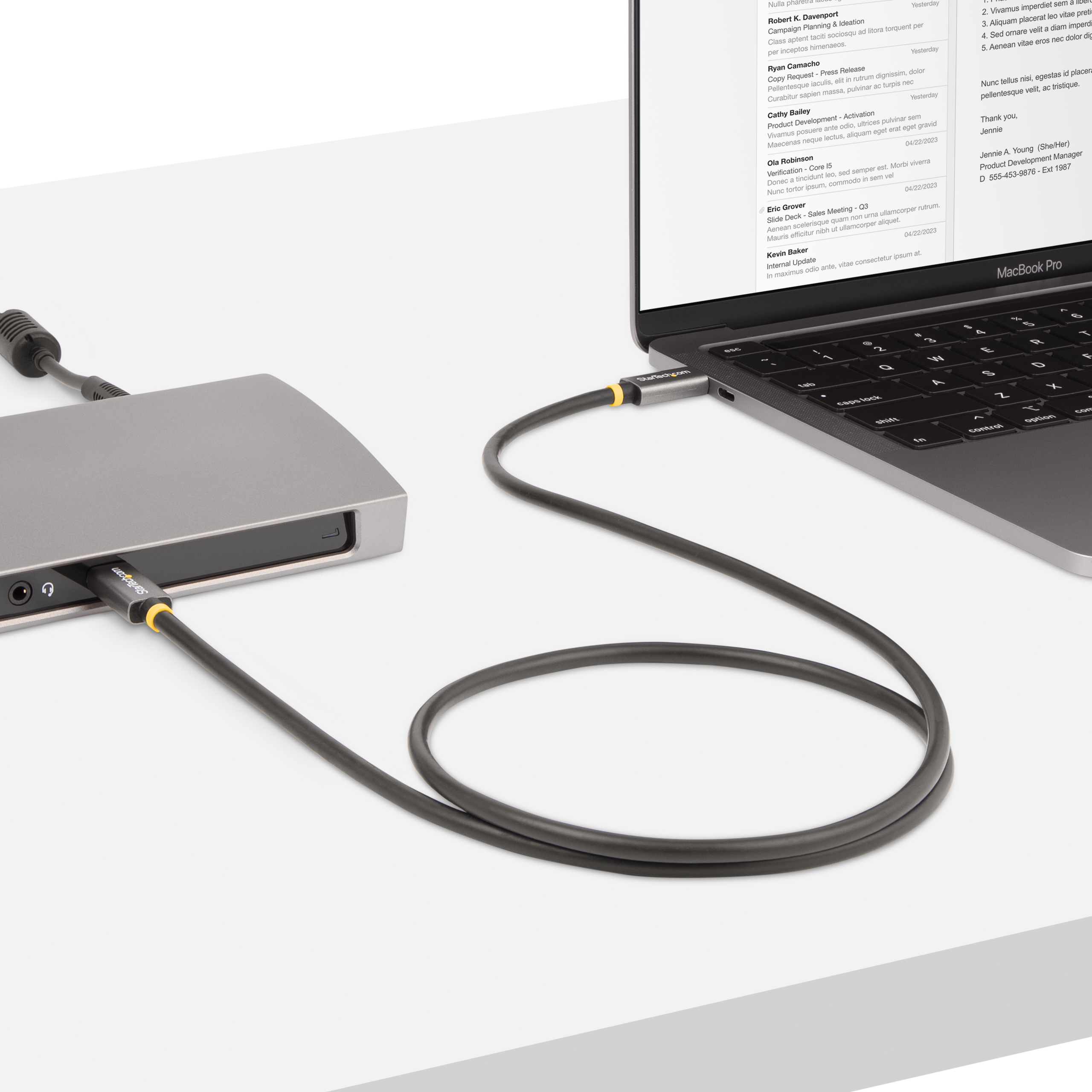

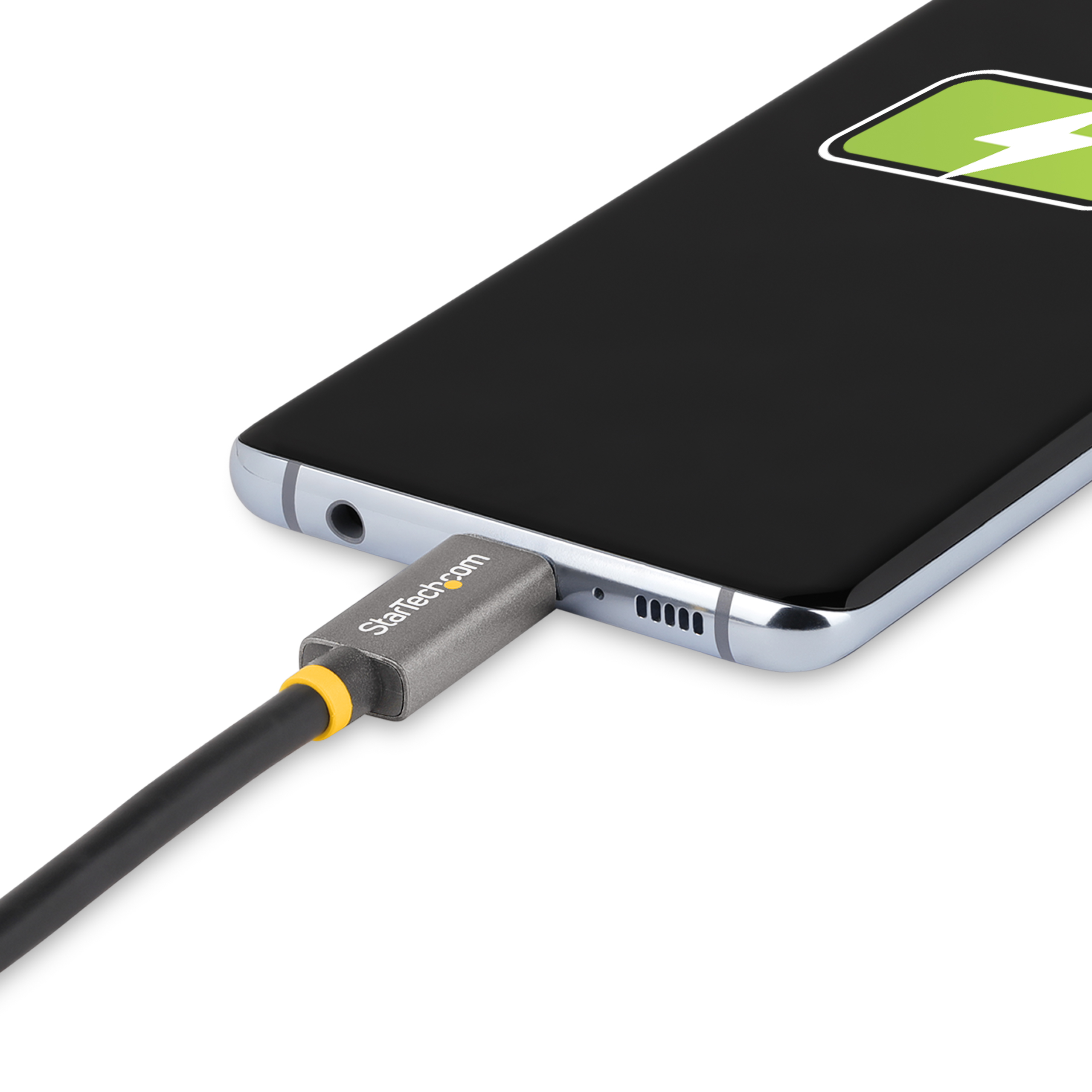

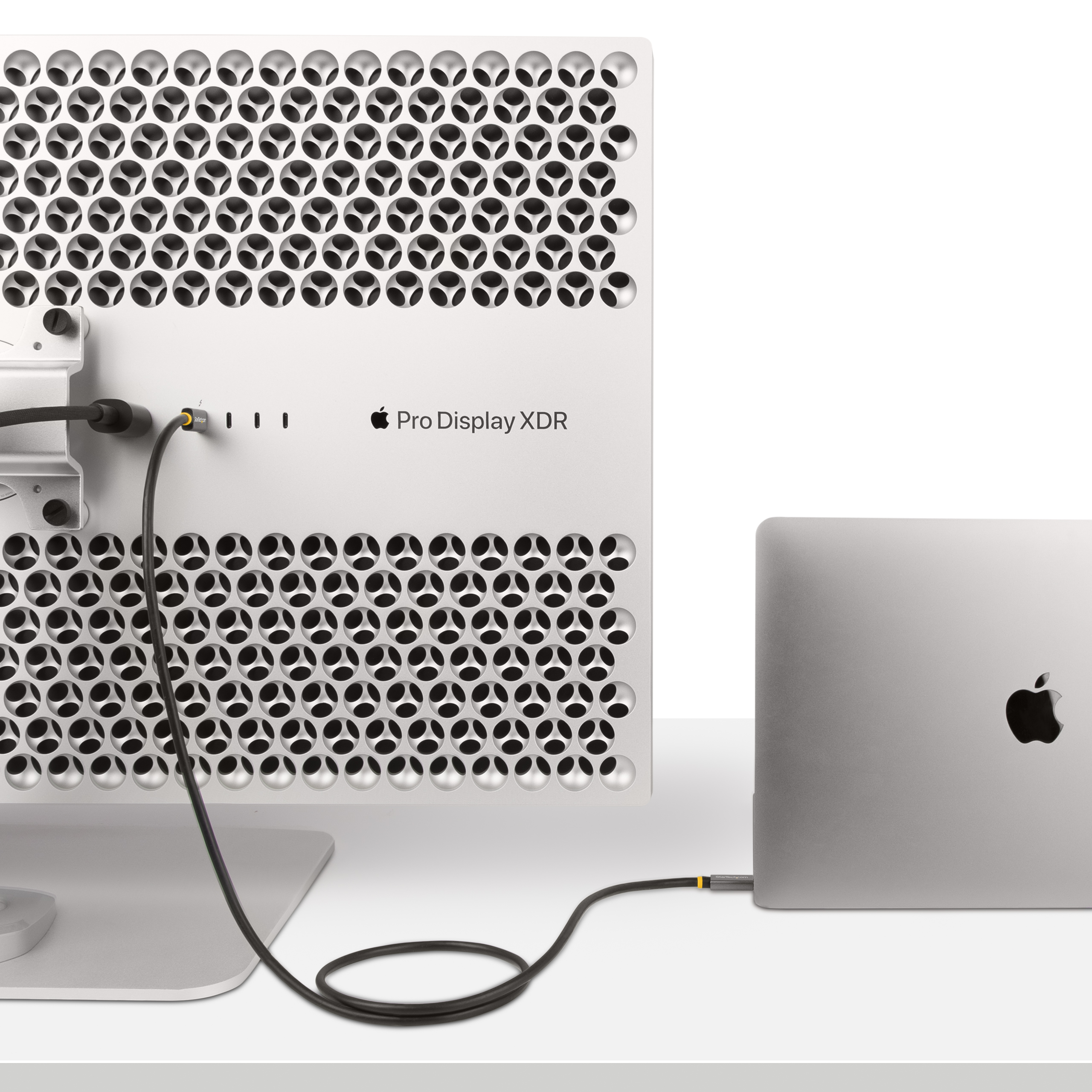

- Power and charge USB4/USB-C, Thunderbolt 4, and Thunderbolt 3 devices

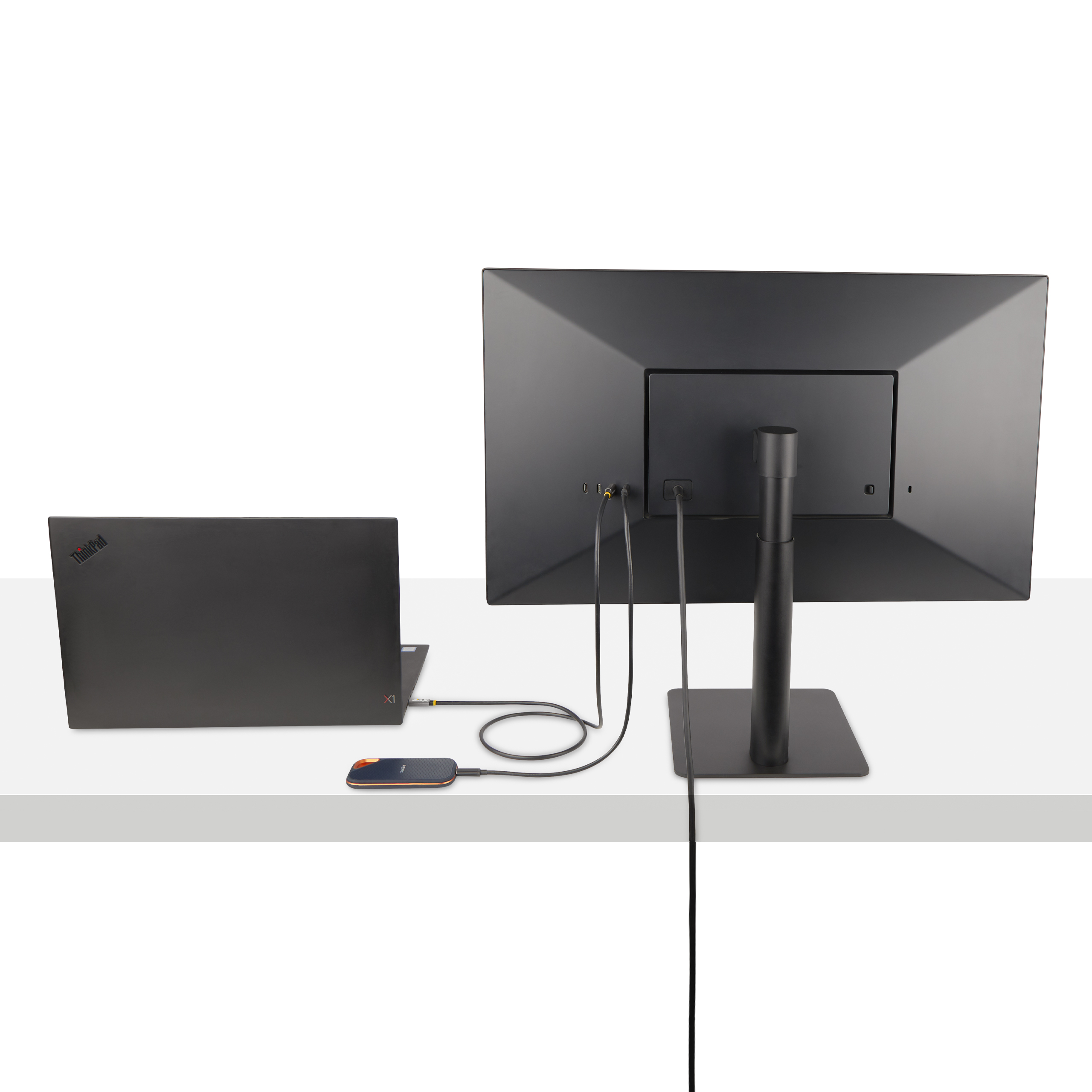

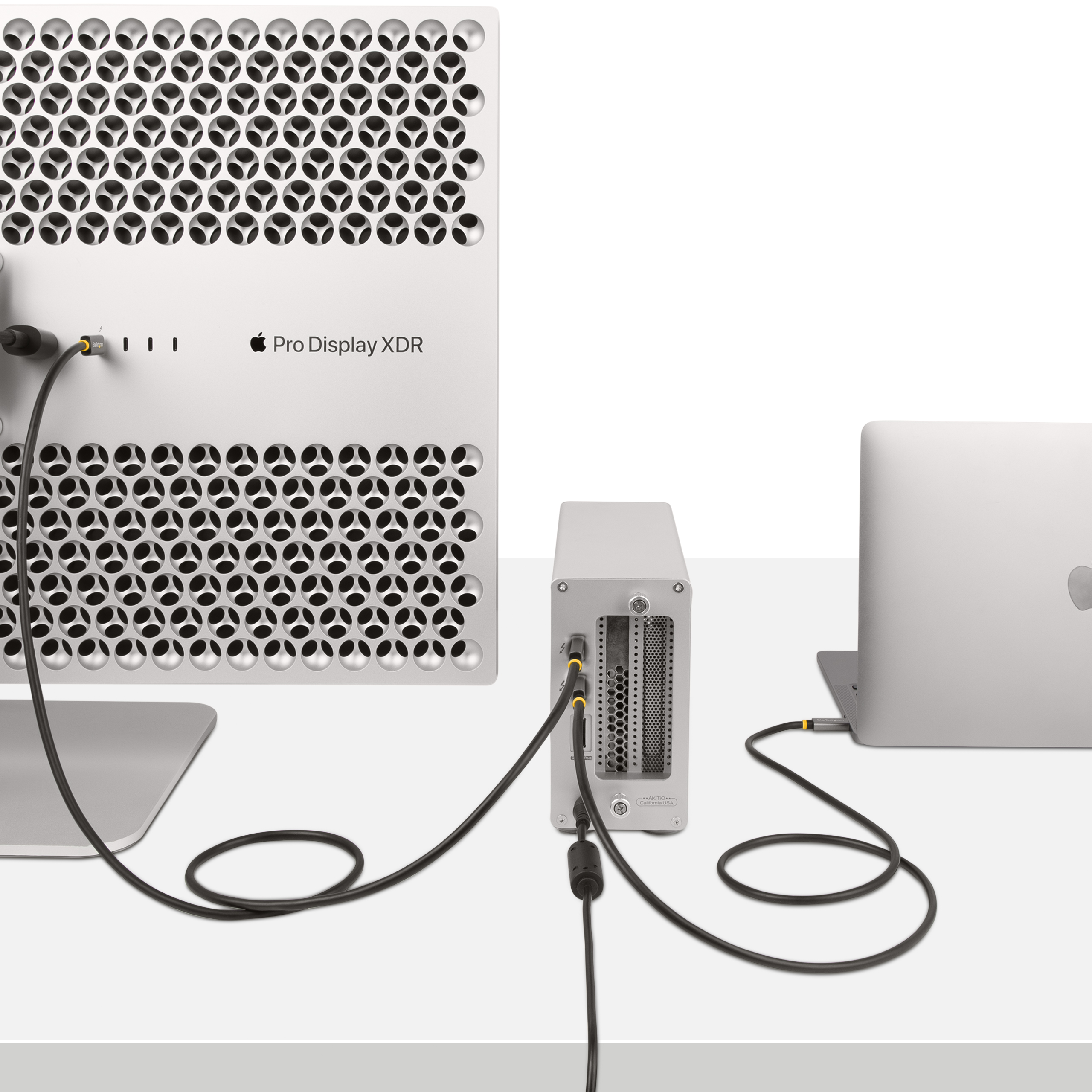

- Connect to an external USB-C networking device or PCIe chassis/storage
Website Search Keyword - USB4 Cable
- USB-C Cable
- Laptop Charging Cable
- Apple M3 MacBook Cable
- Apple M3 Max
Certification USB-IF Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Accessory Products - TB4CDOCK
- TB3CDK2DH
- TB3DK2DHV
- TB310G2
Related Products - TBLT34MM50CM
- TBLT3MM1M
- TBLT3MM2M
- TBLT34MM50CW
- TBLT3MM1MW
- TBLT3MM2MW
- TBLT3MM1MA
- TBLT4MM1M
- TBLT4MM50CM

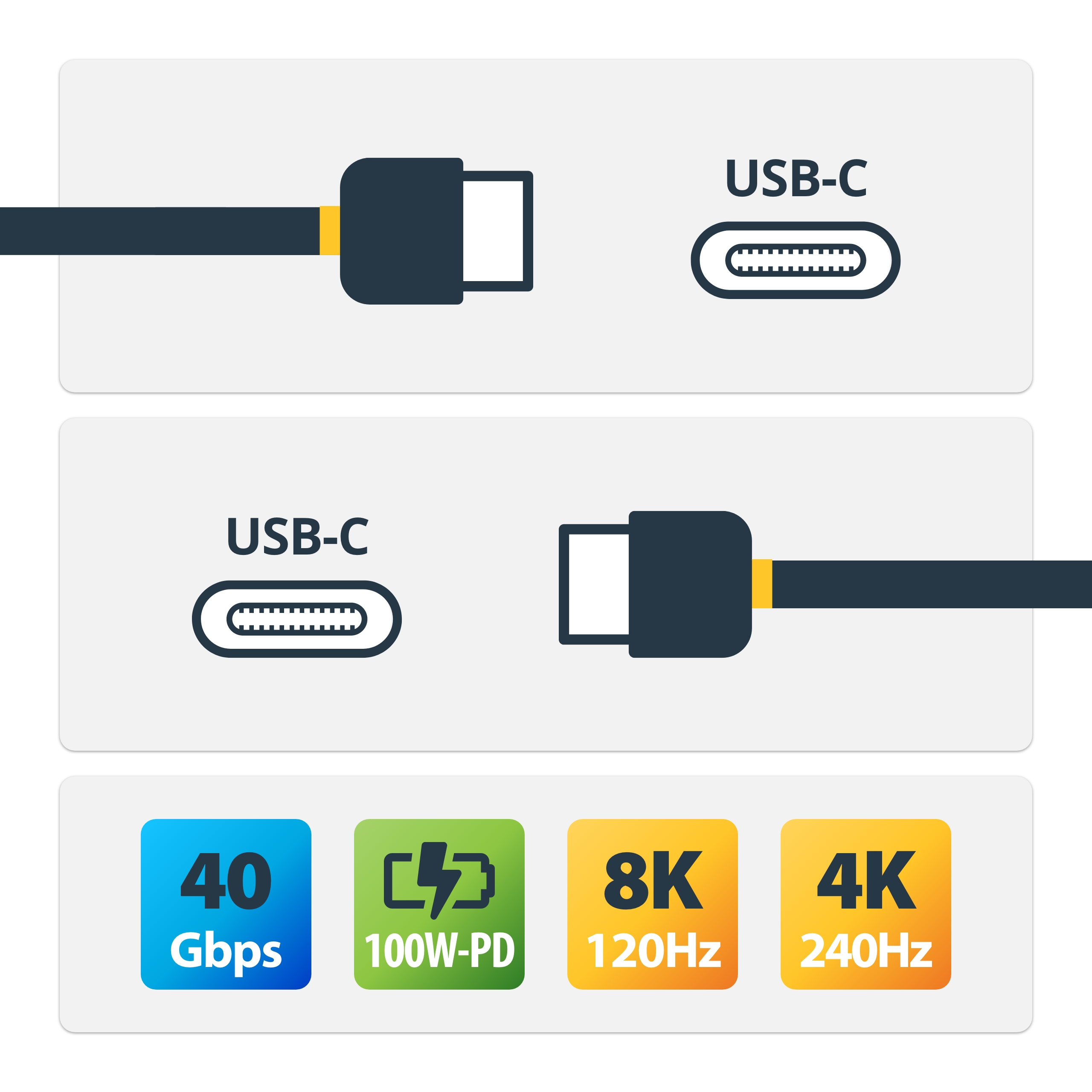

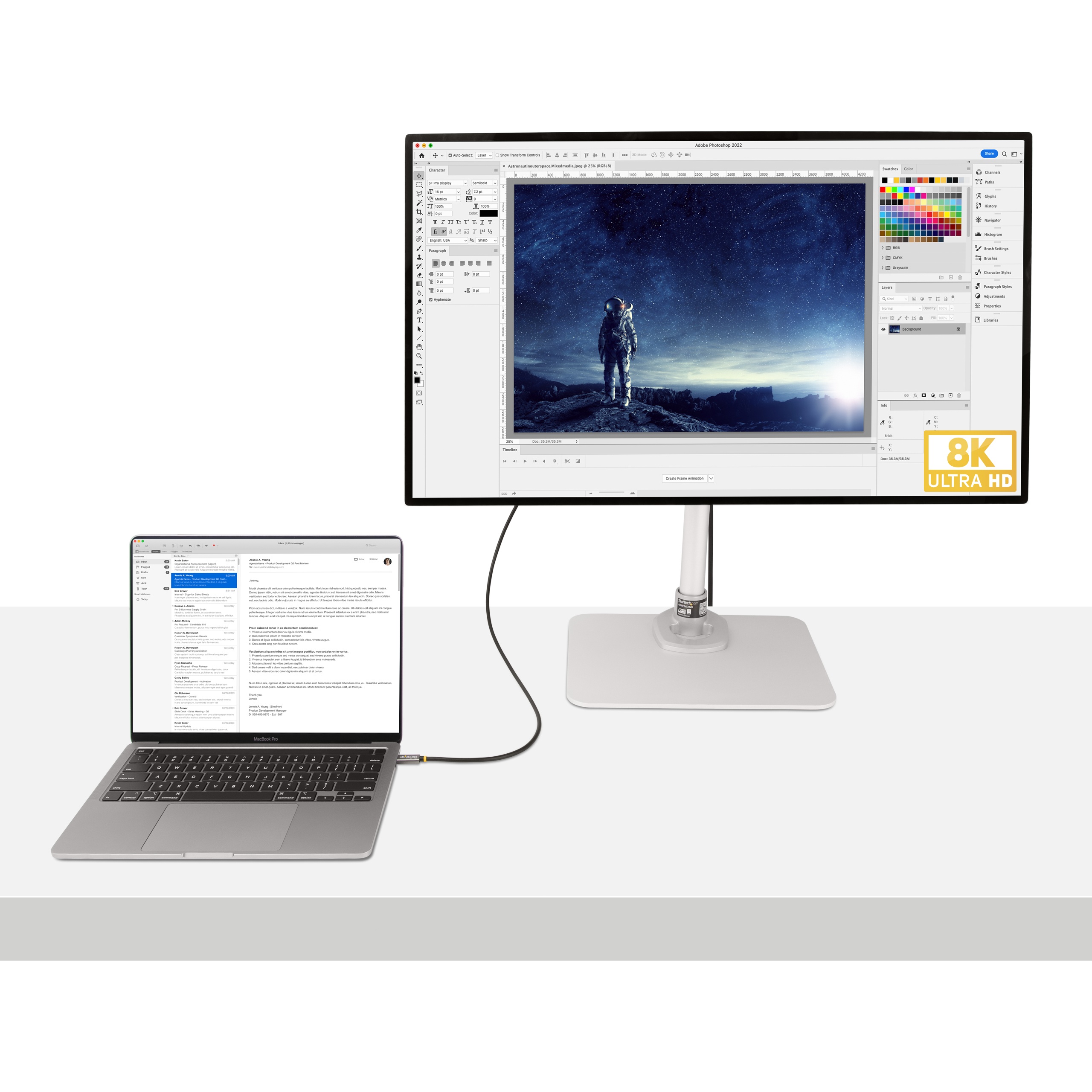

Power Delivery 100W Cable Length (mm) 1000 Cable OD 4.95 Color Black Connector Style Straight Humidity 5% ~ 90% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 1000.000 Product Width (mm) 12.200 Product Height (mm) 6.400 Product Weight (g) 53.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Wire Gauge 34 AWG Maximum Cable Length (mm) 1000 Maximum Data Transfer Rate 40 Gbps Maximum Digital Resolutions 8K 120Hz USB Speed USB4 (40Gbps) USB Type and Rate - USB4 (40Gbps)
- USB 10Gbps
- USB 5Gbps
- USB 3.0 (5Gbps)
- USB 2.0 (480Mbps)
- Thunderbolt 4 (40Gbps)
- Thunderbolt 3 (40Gbps)
Video Support Yes Active or Passive Adapter Passive Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Overlap Aluminium-Mylar Foil Connector Plating Nickel Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 517 Carton Height (mm) 226 Carton Quantity 180 Carton Weight Gross (g) 11582 Included in Package 1 - USB4 Cable Included In Package for Label 1 - USB4 Cable Package Depth (mm) 126 Package Height (mm) 14 Package Width (mm) 187 Package Quantity 1 Package Weight (g) 58 Packaging Description 1m USB4™ Cable - USB-IF Certified USB-C Packaging Description India 1m USB4™ Cable - USB-IF Certified USB-C Sub-Carton Depth (mm) 206 Sub-Carton Height (mm) 85 Sub-Carton Width (mm) 142 Sub-Carton Weight (g) 586 Connector 1 USB-C (40Gbps, 100W PD Input) Connector 1 (Quantity) 1 Connector 2 USB-C (40Gbps, 100W PD Input) Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Veronica Ye Amazon Visual Content Level Bronze Application Photos Uploaded Artwork Due Date 2022-07-14 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2023-07-28 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology - USB4 (40Gbps)
- USB-C
- Power Delivery
Priority New Product New Technology (USB 4.0) Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2023-01-01 Target Production Release 2023-05-01 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
