CC1M40GUSB4TPW

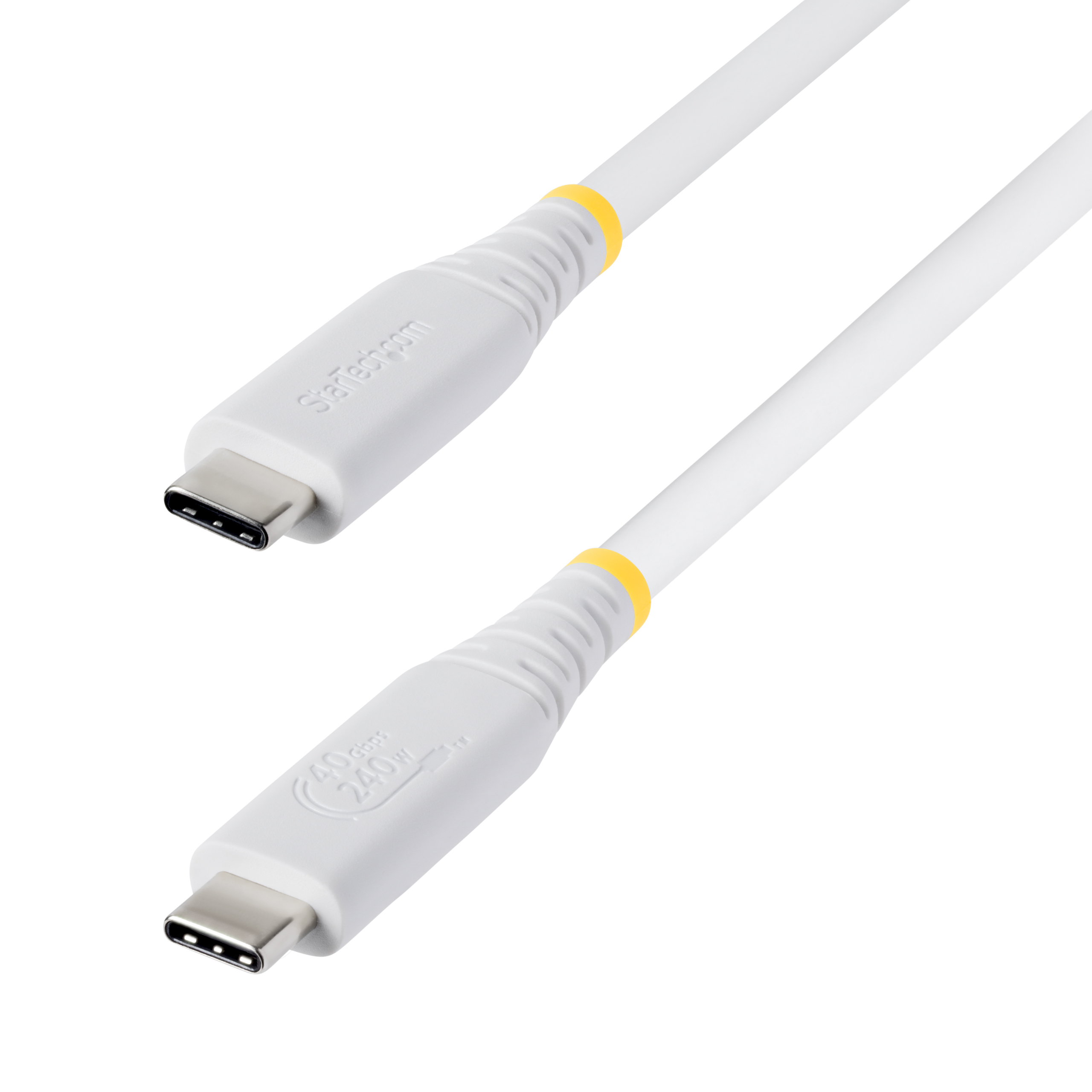

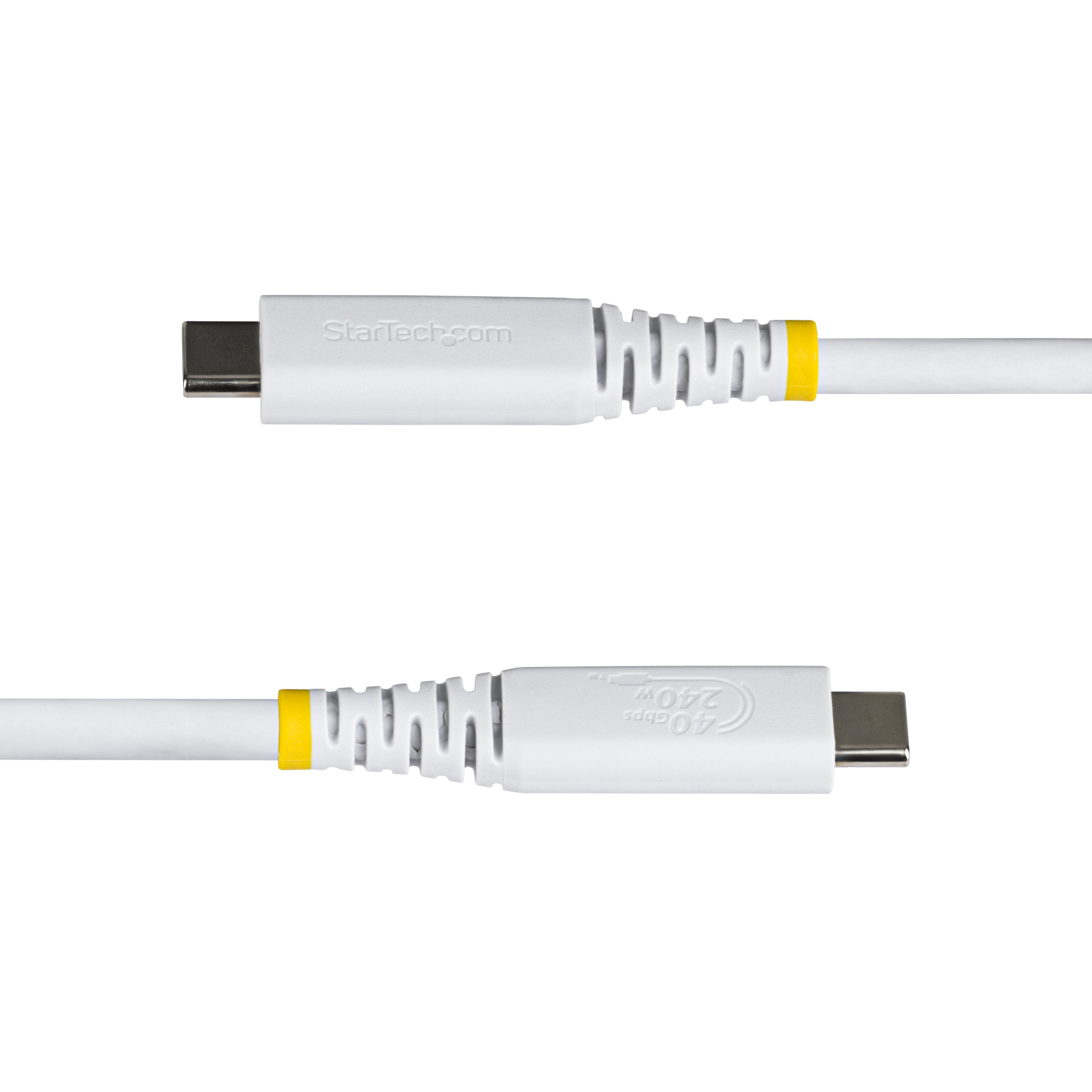

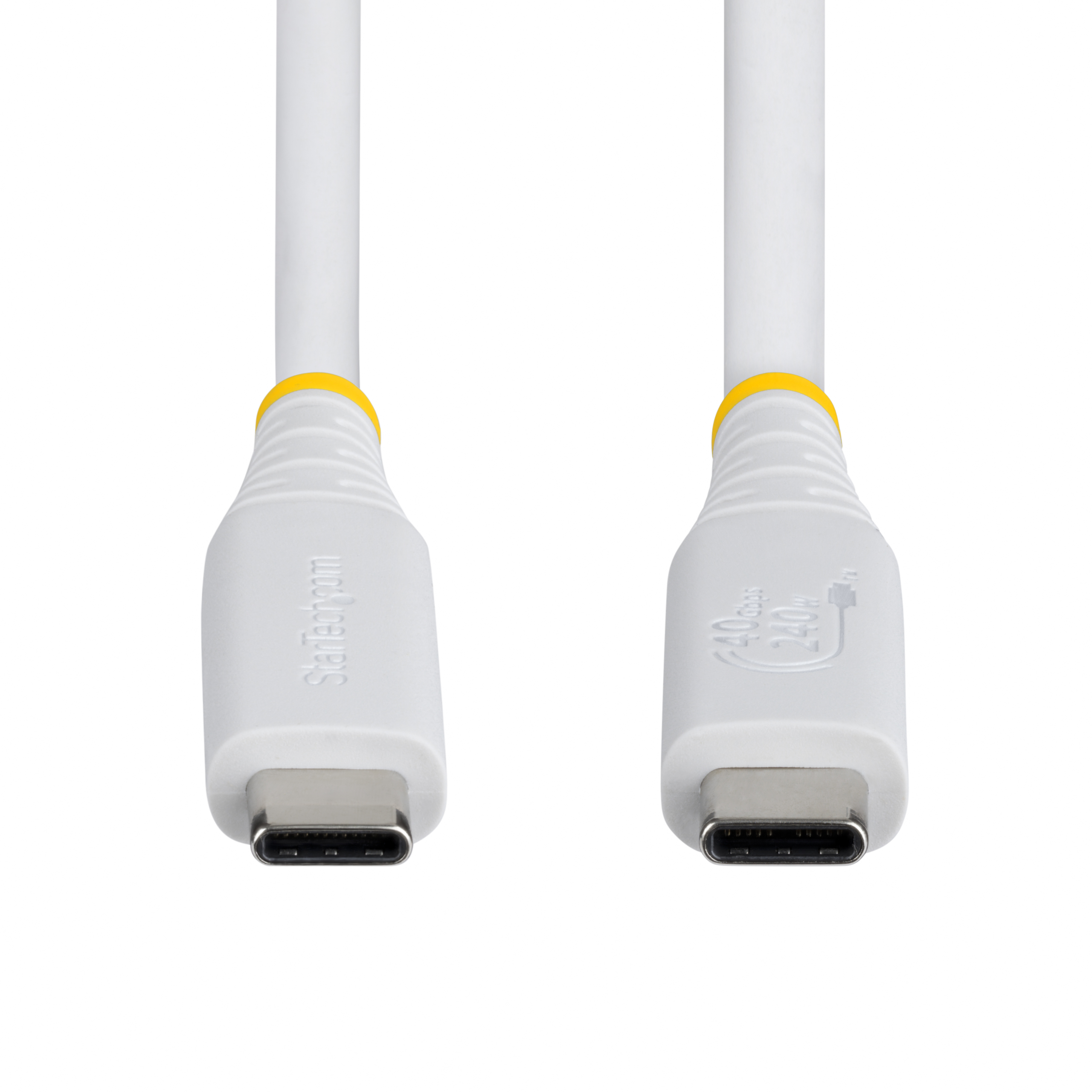

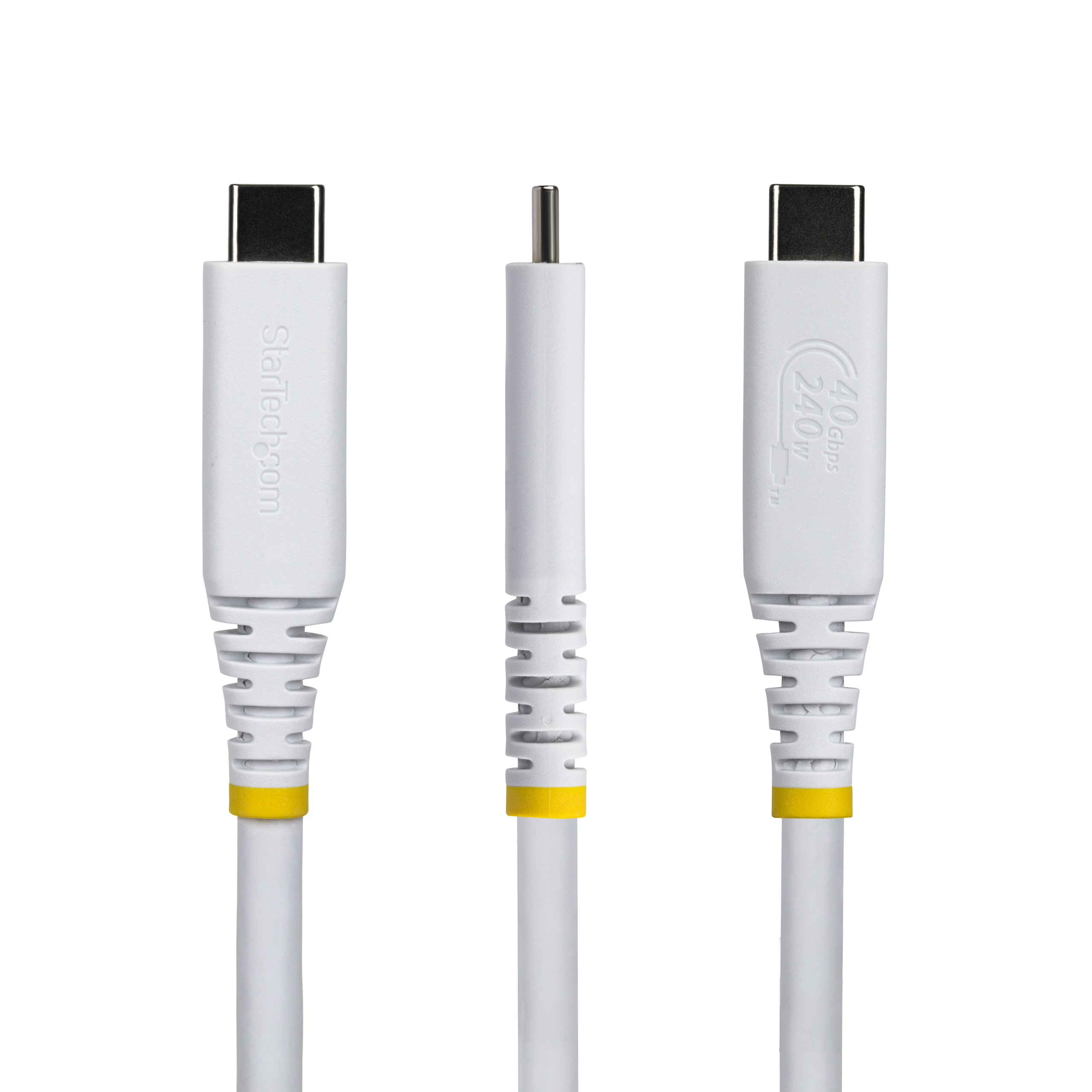

USB4 Gen2 40Gbps Twisted Pair Passive Cable, 1m - White
Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices
Main Image
Product Images
Product Images
Product Images
Product Name USB4 Gen2 40Gbps Twisted Pair Passive Cable, 1m - White Product Number CC1M40GUSB4TPW UPC 065030921503 Lifecycle status Pending Warranty Lifetime Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - 40Gbps USB4 Family USB4 40Gbps Twisted Pair Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX184X Product Title (Ultra-Short) White USB4 Cable Product Title (Short) 1m USB4 Cable, USB-IF Certified USB-C Product Title (Medium) 1m (3.3ft) USB4 Cable, 40Gbps, USB-IF Certified USB-C Cable, 8K, 240W, White Product Title (Standard) 1m (3.3ft) USB4 Cable, 40Gbps, USB-IF Certified USB-C Cable, 240W, 8K 60Hz/4K 240Hz DP2.1, Thunderbolt 4 Compatible, White Product Title (Long) 1m (3ft) USB4 Cable, 40Gbps, USB-IF Certified USB-C Cable, 240W PD, 8K 60Hz/4K 240Hz DP2.1 DP40, TPE Jacket, Thunderbolt 4 Compatible - White USB-C Cord Product Title (AMZ) 1m (3ft) USB4 Cable, 40Gbps, USB-IF Certified USB-C Cable, 240W, 8K 60Hz/4K 240Hz DP2.1, Thunderbolt 4 Compatible, White Title Ingram (Part 1) 1m USB4 Cable, White, USB-IF Title Ingram (Part 2) Certified 8K60/DP2.1/240W/40Gbps Website Product Headline Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 1m/3.3ft USB-IF Certified USB4 cable supports 40Gbps; DisplayPort 2.1 video w/ DSC up to 8K 60Hz / 4K 240Hz; 240W PD 3.1 charging; Certified E-marker firmware; Ideal for USB-C and Thunderbolt laptops, docks, monitors, and external storage Bullets (Consolidated) - 1m/3.3ft Certified USB4 cable supports 40 Gbps 8K video and 240W Extended Power Range (EPR) PD 3.1 charging - Ideal for high power USB-C and Thunderbolt laptops including Apple M-series Pro/Max Macbook - USB-IF Certified w/E-Marker for safety and reliability; Use connector markings to identify specs at-a-glance; TPE jacket w/Nickel-plated connectors - Suitable for USB-C, Thunderbolt laptops/docks/monitors/high-speed storage - USB 40Gbps; 8K 60Hz/4K 240Hz; DisplayPort 2.1 w/DSC; 240W PD 3.1 Marketing Copy Marketing Copy (No HTML) Applications - Designed for seamless operation with USB-C or Thunderbolt 4 docking stations
- Drive sharp 8K 60Hz video or support dual 4K 120Hz UHD displays with DSC
- Transfer data at 40 Gbps speeds and 240W of power over a USB4 connection
- Power and charge USB4/USB-C, and Thunderbolt devices
Website Search Keyword - USB4 Cable
- USB-C Cable
- Laptop Charging Cable
- Apple M3 MacBook Cable
- Apple M3 Max
- 18in USB C Cable
- 0.5m USB-C Cable
Certification USB-IF Required Marketing Compliance Marks - FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages)
- USB-IF - Specification - Global - USB4 Gen3 40Gbps 240W EPR Cable
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Related Products - CC18IN40GUSB4TP
- CC50CM40GUSB4TP
- CC3FT40GUSB4TP
- CC18IN40GUSB4TPW
- CC3FT40GUSB4TPW
- CC6FT40GUSB4GEN3
- CC2M40GUSB4GEN3
Input Current 5A Power Delivery 240W Cable Length (mm) 1000 Cable OD 5.2 Color White Connector Style Straight Humidity 40 - 65% RH Material Santoprene - Thermoplastic Rubber (TPE) Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 1013.3 Product Width (mm) 12.3 Product Height (mm) 6.4 Product Weight (g) 53 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Wire Gauge 30/32 AWG Audio Specifications DisplayPort - 32 Channel Audio DisplayPort Version DP 2.1 - DP40 (UHBR10) HDR Support HDR10+ Maximum Data Transfer Rate 40 Gbps Maximum Digital Resolutions 8K 60Hz Supported Protocols USB Speed USB4 (40Gbps) USB Type and Rate USB4 (40Gbps) Active or Passive Adapter Passive Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Copper Foil with Braid Conductors Twisted Pair Connector Plating Nickel Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Carton Depth (mm) 457 Carton Height (mm) 228 Carton Quantity 210 Carton Weight Gross (g) 14320 Included in Package 1 - USB4 Cable - 40Gbps Package Depth (mm) 200 Package Height (mm) 160 Package Width (mm) 160 Package Weight (g) 61.5 Packaging Description 1m USB4 Cable, 40Gbps, 240W PD, USB-IF Certified - White Packaging Description India 1m USB4 Cable, 40Gbps, 240W PD, USB-IF Certified - White Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (40Gbps, 100W PD Input) Connector 1 (Quantity) 1 Connector 2 USB-C (40Gbps, 100W PD Input) Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Veronica Ye Amazon Only SKU No Amazon Visual Content Level Gold Apple Compatibility Apple Compatible Application Photos Required Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment NPI is twisted pair Comparable SKU 2 Comment NA Digital Content Due Date 2026-03-18 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK Primary Technology - USB4 (40Gbps)
- USB-C
Priority New Product High Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-04-18 Target Production Release 2025-07-30 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
