Main Image
CC2M20GUSB4TPW

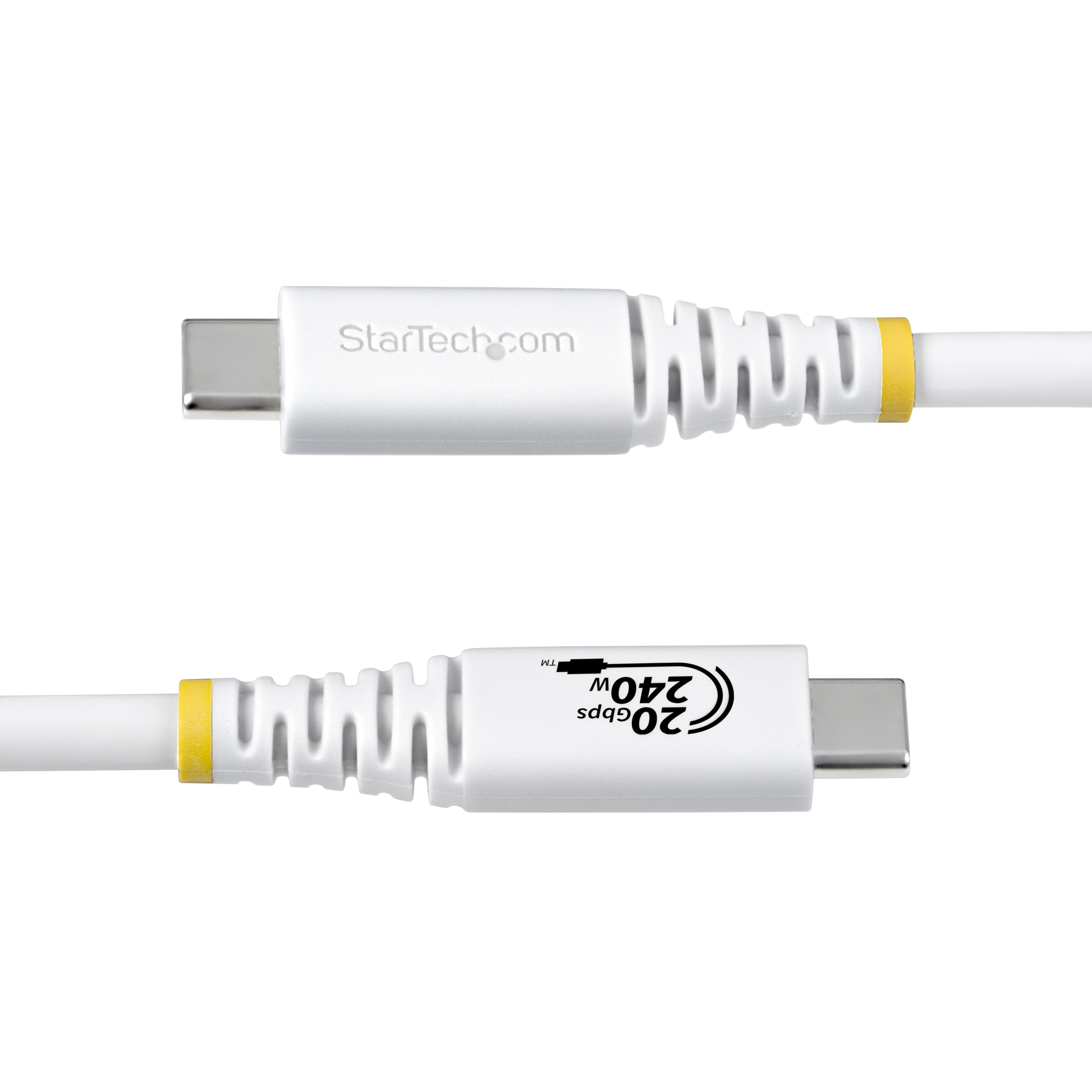

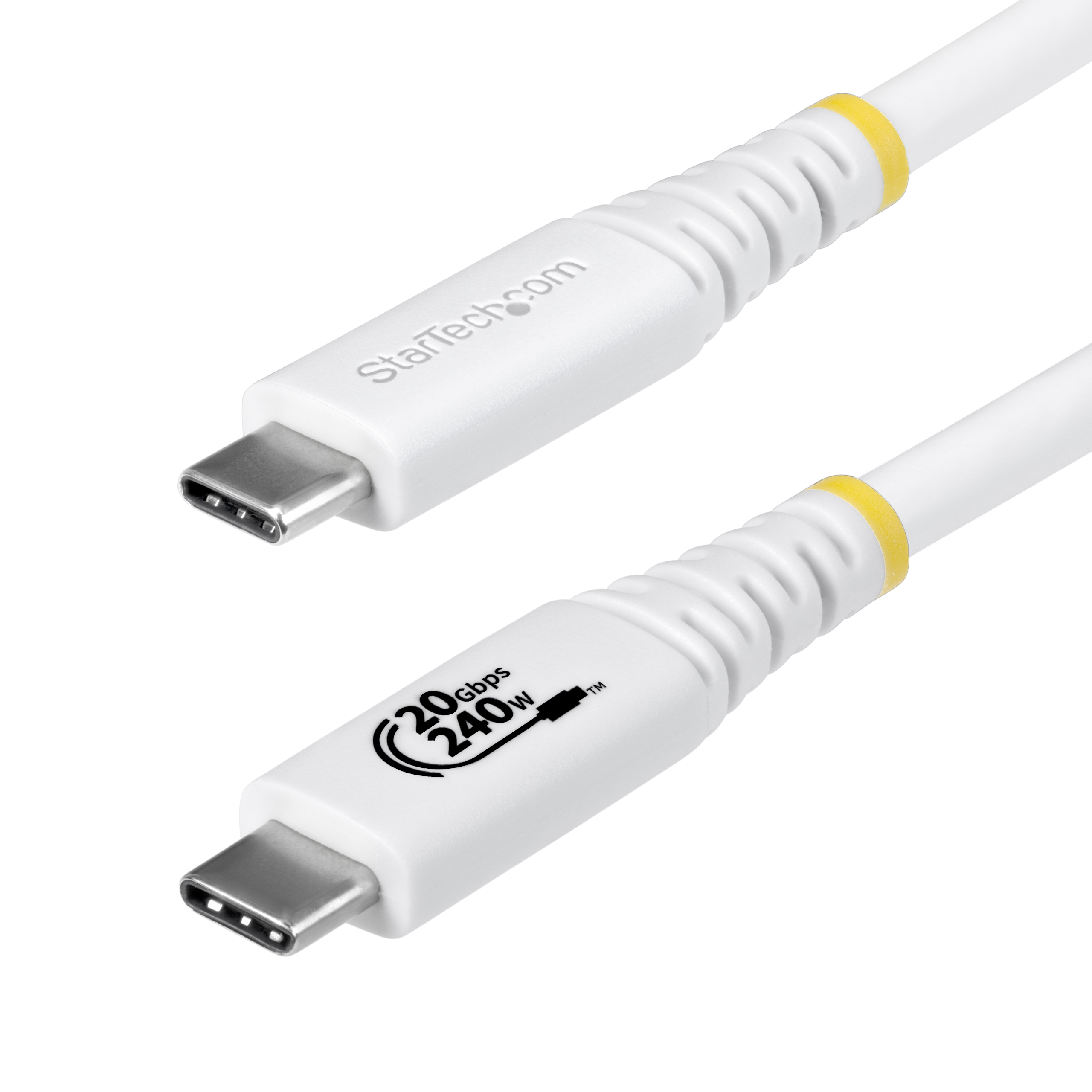

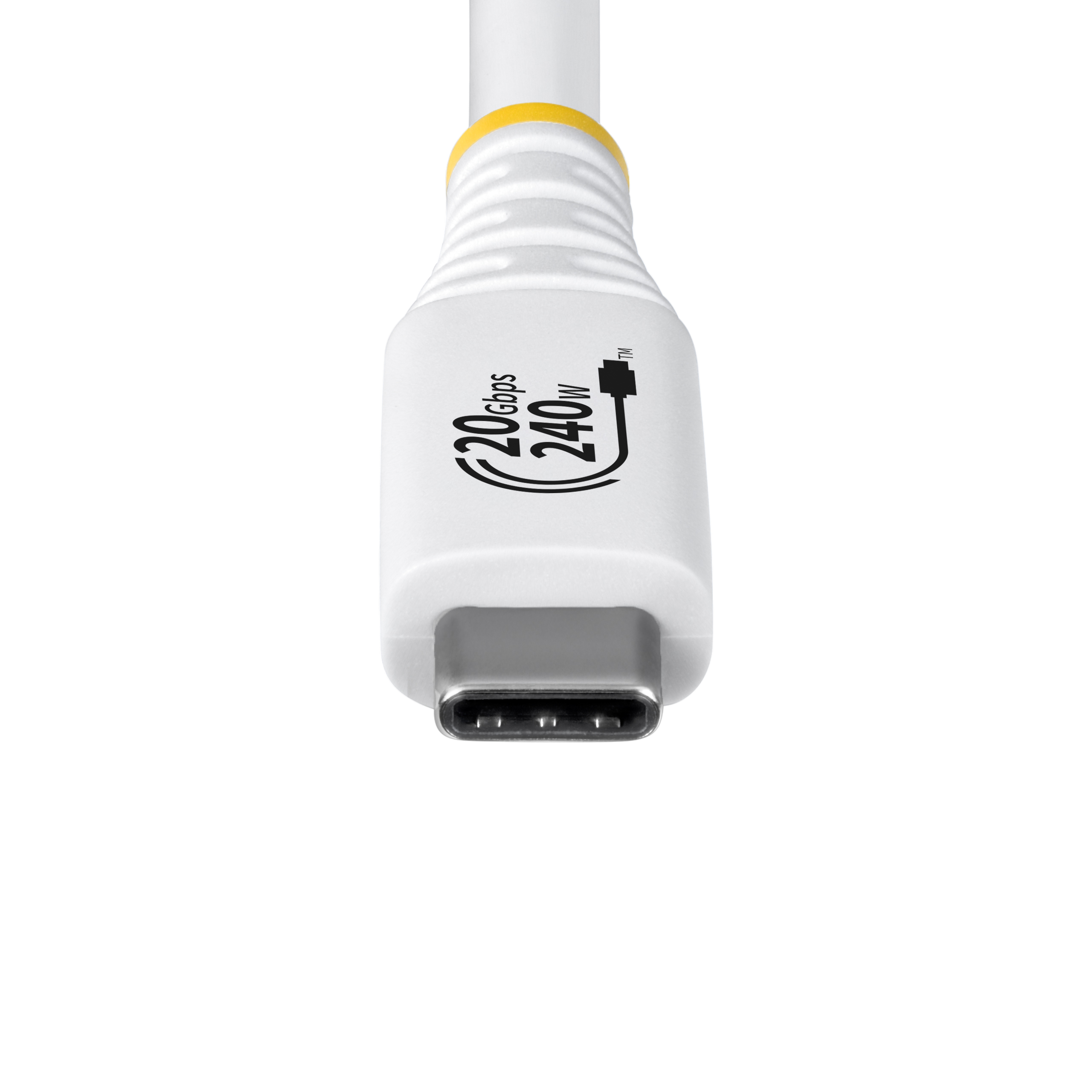

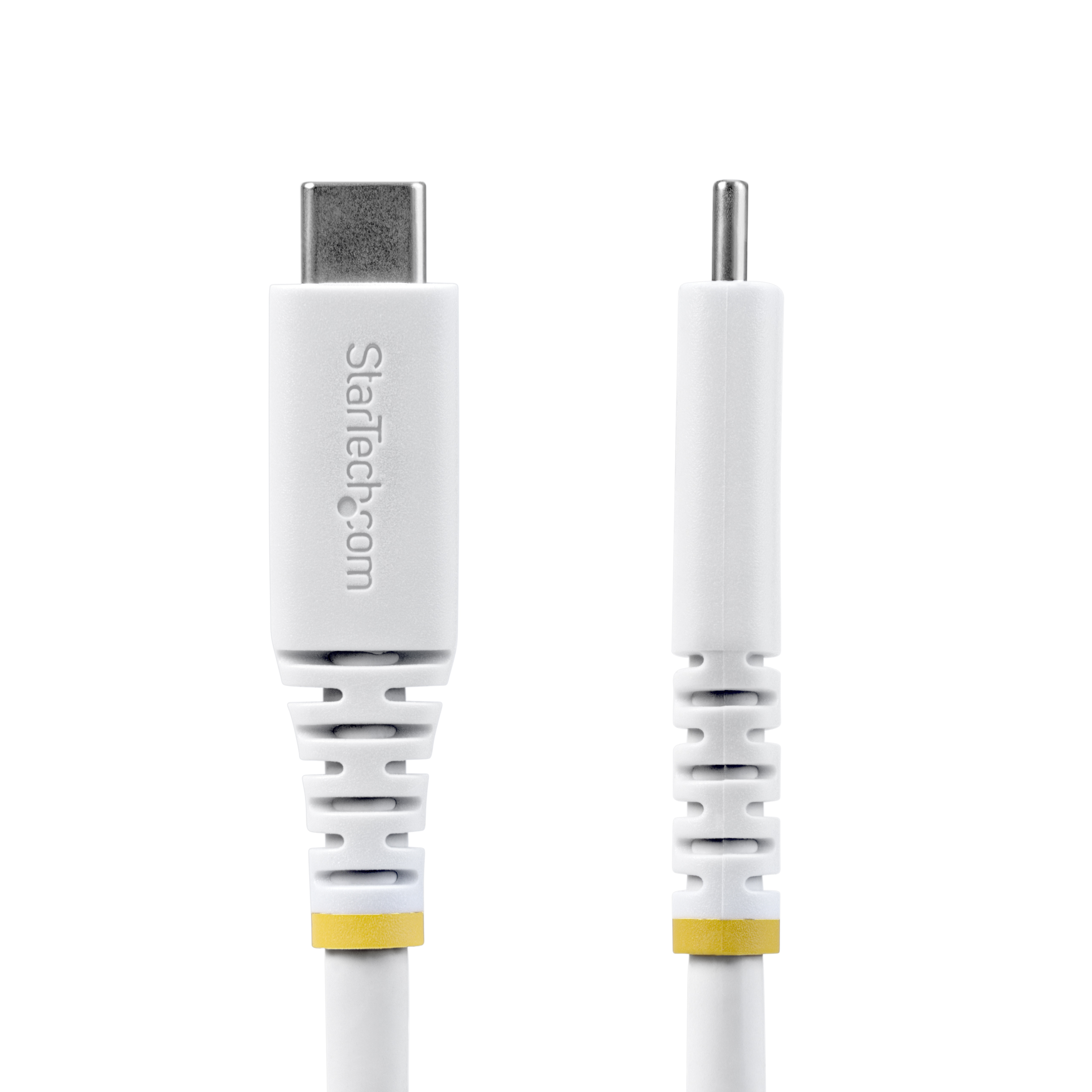

USB4 Gen2 20Gbps Twisted Pair Passive Cable, 2m - White
Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB4 Gen2 20Gbps Twisted Pair Passive Cable, 2m - White Product Number CC2M20GUSB4TPW UPC 065030921497 Lifecycle status Pending Warranty Lifetime Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - 20Gbps USB4 Family USB4 20Gbps Twisted Pair Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) White USB4 Cable Product Title (Short) 2m USB4 Cable, USB-IF Certified USB-C Product Title (Medium) 2m (6.6ft) USB4 Cable, 20Gbps, USB-IF Certified USB-C Cable, 4K 120Hz, 240W, White Product Title (Standard) 2m (6.6ft) USB4 Cable, 20Gbps, USB-IF Certified USB-C Cable, 240W PD EPR, 4K 120Hz DP 2.1, TPE Jacket, White USB-C Cord Product Title (Long) 2m (6ft) USB4 Cable, 20Gbps, USB-IF Certified USB-C Cable, 240W PD EPR, 4K 120Hz DP 2.1, TPE Jacket, White USB-C Cord Product Title (AMZ) 2m (6.6ft) USB4 Cable, 20Gbps, USB-IF Certified USB-C Cable, 240W PD EPR, 4K 120Hz DP 2.1, TPE Jacket, White USB-C Cord Title Ingram (Part 1) 2m USB4 Cable, White, USB-IF Title Ingram (Part 2) Certified 4K120/DP2.1/240W/20Gbps Website Product Headline Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 2m/6.6ft USB-IF Certified USB4 cable supports 20Gbps; DisplayPort 2.1 video w/ DSC up to 4K 120Hz; 240W PD EPR; Quick ID USB4 spec markings on connectors; Certified E-marker firmware; Ideal for USB-C laptops, docks, monitors, and external storage Bullets (Consolidated) - 2m/6.6ft Certified USB4 cable supports 20 Gbps 4K 120Hz video and 240W PD EPR charging - Ideal for high power USB-C laptops including Apple M-series Pro/Max Macbook - USB-IF Certified w/E-Marker for safety and reliability; Use connector markings to identify specs at-a-glance; Flexible TPE jacket w/Nickel-plated connectors - Suitable for USB-C docks/monitors/high-speed storage - USB 20Gbps; 4K 120Hz; DisplayPort 2.1 w/DSC; 240W PD Marketing Copy Marketing Copy (No HTML) Applications - Designed for seamless operation with USB-C docking stations and external devices
- Drive sharp 4K 120Hz video or support dual 4K 60Hz UHD displays
- Transfer data at 20 Gbps speeds and 240W of power over a USB4 connection
- Power and charge USB4/USB-C, and Thunderbolt devices
Certification USB-IF Required Marketing Compliance Marks - USB-IF - Specification - Global - USB4 Gen2 20Gbps 240W Cable
- FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages)
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Non-Corrugated Fiberboard
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Related Products - CC10FT20GUSB4CX
- CC2M20GUSB4TP
- CC6FT20GUSB4TP
- CC10FT20GUSB4CXW
- CC6FT20GUSB4TPW
Input Current 3A Power Delivery 240W Cable Length (mm) 2000 Cable OD 5.1 Color White Connector Style Straight Humidity 40 - 65% RH Material Santoprene - Thermoplastic Rubber (TPE) Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 2013.3 Product Width (mm) 12.75 Product Height (mm) 6.9 Product Weight (g) 98 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Wire Gauge 23/31 AWG Audio Specifications DisplayPort - 32 Channel Audio DisplayPort Version DP 1.4 (HBR3) HDR Support HDR10 Maximum Data Transfer Rate 20 Gbps Maximum Digital Resolutions 4K 120Hz Supported Protocols USB Speed USB4 (20Gbps) USB Type and Rate USB4 (20Gbps) Active or Passive Adapter Passive Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Aluminum-Mylar Foil with Braid Conductors Twisted Pair Connector Plating Nickel Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Carton Depth (mm) 540 Carton Height (mm) 215 Carton Quantity 80 Carton Weight Gross (g) 12880 Included in Package 1 - USB4 Cable - 20Gbps Number of Sub-Cartons 8 Package Depth (mm) 80 Package Height (mm) 30 Package Width (mm) 230 Package Weight (g) 111 Packaging Description 2m USB4 Cable, 20Gbps, 240W PD, USB-IF Certified - White Packaging Description India 2m USB4 Cable, 20Gbps, 240W PD, USB-IF Certified - White Sub-Carton Depth (mm) 260 Sub-Carton Height (mm) 95 Sub-Carton Width (mm) 240 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1510 Connector 1 USB-C (20Gbps, 65W) Connector 1 (Quantity) 1 Connector 2 USB-C (20Gbps, 65W) Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Veronica Ye Amazon Visual Content Level Gold Apple Compatibility Apple Compatible Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment NPI is twisted pair, length difference Comparable SKU 2 Comment NA Digital Content Due Date 2025-11-05 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention CCxy20GUSB4TPy ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,PL,SE,SG,UK Primary Technology - USB4 (40Gbps)
- USB-C
Priority New Product High Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2025-03-07 Target Production Release 2025-07-18 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
