Main Image
CDP2DP141MBD

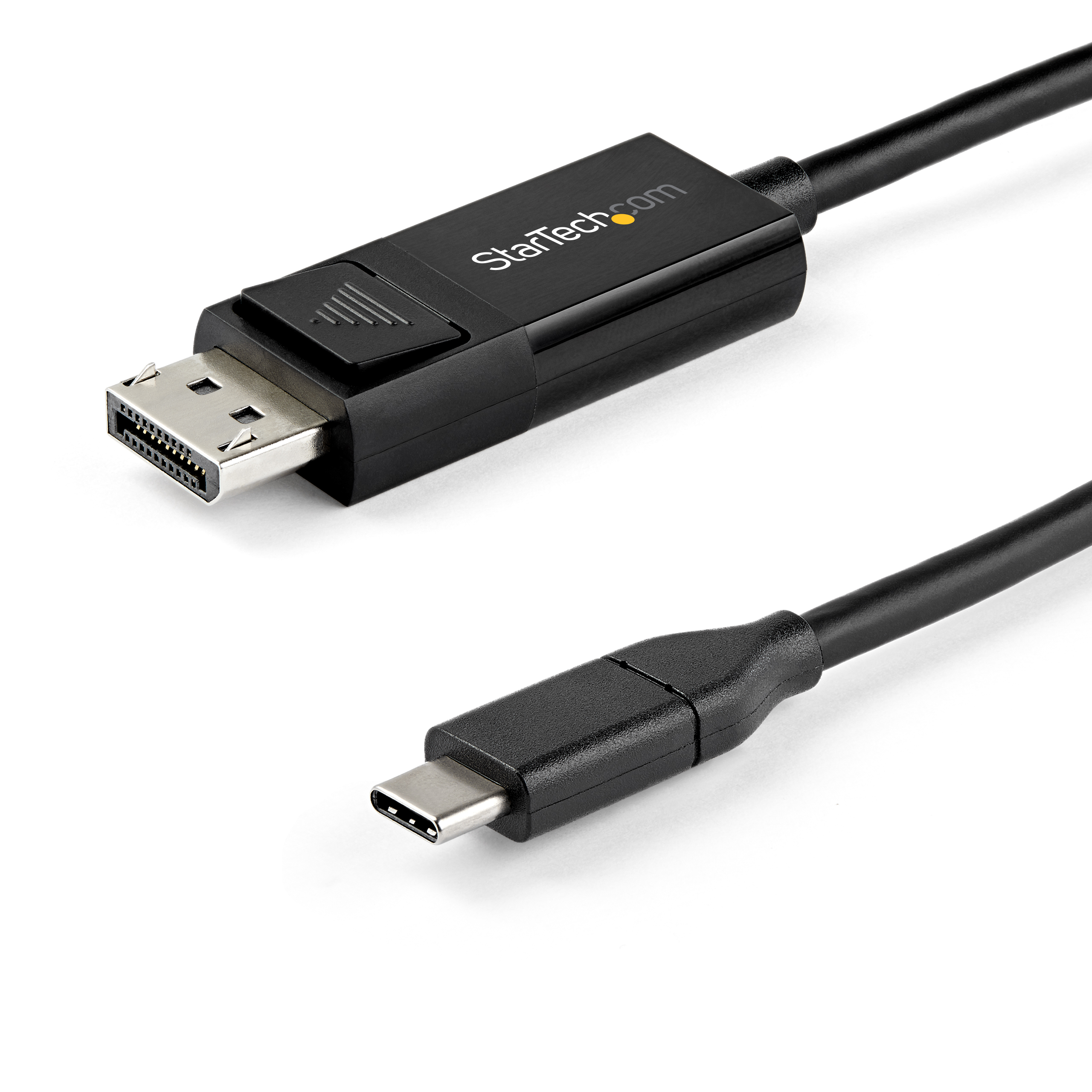

USB C to DP 1 4 Bi Directional Adapter Cable 1m
USB Type-C™ Adapter Cable | 8K 60Hz | Thunderbolt 3™ | HBR3
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB C to DP 1 4 Bi Directional Adapter Cable 1m Product Number CDP2DP141MBD UPC 065030887939 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to DP - 8K HDR Family USBC to DP 1.4 Bi-Directional Adapter Cables, DP Alt Mode, 8K60 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) USB C to DP Cable 8K Product Title (Short) 3ft USB C to DisplayPort 1.4 Cable 8K/4K Product Title (Medium) 3.3 ft. (1 m) USB C to DisplayPort 1.4 Cable - Bidirectional - 8K 60Hz - HBR3 Product Title (Standard) 3ft (1m) USB C to DisplayPort 1.4 Cable 8K 60Hz/4K - Reversible DP to USB-C or USB-C to DP Video Adapter Cable HBR3/HDR/DSC Product Title (Long) 3.3ft (1m) USB C to DisplayPort 1.4 Cable 8K 60Hz/4K - Bidirectional DP to USB-C or USB-C to DP Reversible Video Adapter Cable -HBR3/HDR/DSC - USB Type-C/Thunderbolt Monitor Cable Product Title (AMZ) 3ft (1m) USB C to DisplayPort 1.4 Cable, 8K 60Hz, Bidirectional DP USB-C Video Adapter Cable for Windows, Apple M1 M2 M3 M4, USB4 Thunderbolt Compatible Title Ingram (Part 1) 3.3 ft. USB C to DisplayPort Title Ingram (Part 2) 1.4 Cable - Bidirectional - 8K 60Hz Website Product Headline USB Type-C™ Adapter Cable | 8K 60Hz | Thunderbolt 3™ | HBR3 Bullet 1 HIGH PERFORMANCE: 3.3ft/1m reversible USB-C to DisplayPort 1.4 cable or DP to USB-C cable supports 8K 60Hz/4K 120Hz/HDR/DisplayHDR/ HBR3/Display Stream Compression (DSC)/HDCP 2.2/1.4; DisplayPort to USB-C bidirectional cord; Thunderbolt compatible Bullet 2 REVERSIBLE CABLE: When connecting a USB-C computer to a DisplayPort monitor, the computer must support USB-C DisplayPort Alternative mode (DP alt-mode); When connecting a DisplayPort computer to a USB-C monitor, the monitor must have its own power supply Bullet 3 IMAGE QUALITY: This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables; The amplifier also increases the max. supported DP cable length compared to other brands Bullet 4 DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB-C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors; NOTE: Does not support portable displays / monitors that do not have an independent power supply Bullet 5 INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection; NOTE: It is recommended to connect the USB-C connector first Bullets (Compact) Reversible USB C to DisplayPort 1.4 cable (USB-C DP Alt Mode laptop to monitor) or DP 1.4 to USB-C display cable - Bidirectional video adapter cable 8K 60Hz/4K 120Hz/HBR3/HDR/DSC/HDCP 2.2/1.4 - Works w/ TB3/USB Type-C/DP device/monitor - Driverless Bullets (Consolidated) 3.3ft bidirectional USB C to DisplayPort 1.4 cable (USB-C laptop to monitor) or DP 1.4 to USB-C cable (DP host to USB-C display) - Supports 8K 60Hz/4K 120Hz/HBR3/DisplayHDR/HDR/DSC/HDCP 2.2 and 1.4/1080p - Unique signal booster ensures reliable performance even with lower-quality or longer cables | For USB Type-C DP Alt Mode/Thunderbolt 3 laptops like Lenovo/Dell/HP/Surface Chromebooks and MacBooks - Not Compatible with Surface Dock 2 | Driverless setup/latching DP connector Marketing Copy Marketing Copy (No HTML) Applications - Stream 8K video to a DisplayPort 1.4 screen or monitor
- Ultimate accessory for early adopters of 8K technology
- Deliver eye-catching presentations while you’re on the go
- Perfect for creative professionals
Website Search Keyword - 8k displayport cable
- display port to usb cable
- displayport 1.4 cable
- displayport 8k
- displayport to usb-c cable
- dp to type c
- dp to usb c cable
- type c cord
- usb 3.1 type c to displayport cable
- usb c display cable
- usb c to display port cable
- usb c to displayport 1.4 cable
- usb c to displayport adapter cable
- usb c to displayport cable
- usb c to dp cable
- usb c video cable
- usb type c bidirectional
- USB Type C to DisplayPort cable
- usb type c to dp cable
- usb-c dp alt mode cable
- usb-c to displayport cable
- usb-c to displayport cables
- usb-c to dp cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements - Your USB-C device must support DisplayPort Alt Mode to work with this cable
- To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
- This cable is not compatible with the Surface Dock 2
Accessory Products - DPEXT6L
- DPPNLFM3
- DPEXTAA6IN
- MDP2DPMF6IN
- GCMDP2DPMF
Related Products - CDP2DP141MB
- CDP2DPMM6B
- CDP2DPMM1MB
- CDP2DP
- CDP2DPW
- MSTCDP122DP
- MSTCDP123DP
- CDP2HDUCPW
- CDP2HD4K60W
- CDP2HDMM2MB
- CDP2HD
- CDP2HDW
- CDP2HDMM1MB
- CDP2VGAMM1MB
- CDP2DVIMM1MB
- CDP2HD4K60
- CDP2VGA
- CDP2VGAMM2MB
- CDP2VGAW
- CDP2DP1MBD
- CDP2DP2MBD
- CDP2DP142MBD
Constrained SKU Alternatives (Limited Stock) - CDP2DPMM6B
- CDP2DP142MBD
Power Delivery No PD Pass-Through Color Black Humidity 10%-85% RH Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 970.000 Product Width (mm) 22 Product Height (mm) 10 Product Weight (g) 46 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Bandwidth HBR3 HDR Support Yes Maximum Digital Resolutions Maximum Supported Resolution 8K 60Hz (DSC) OS Compatibility OS Independent Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input - USB-C
- DisplayPort - 1.4
AV Output - DisplayPort
- USB-C
Chipset ID - Chrontel - CH7213C-BF
- Texas Instruments - TUSB544
- VIA Labs - VL170
Converter Type Cable Adapters Host Connection Port USB-C Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 326 Carton Height (mm) 210 Carton Quantity 100 Carton Weight Gross (g) 5994 Included in Package 1 - 1 m USB-C to DisplayPort 1.4 Bi-Directional Adapter Cable Included In Package for Label 1 - 1 M USB-C To Displayport 1.4 Bi-Directional Converter Cable Number of Sub-Cartons 10 Package Depth (mm) 125 Package Height (mm) 23 Package Width (mm) 109 Package Quantity 1 Package Weight (g) 52 Packaging Description USB-C to DP 1.4 Bi-Directional Cable - 8K - 1 m Packaging Description India USB-C to DP 1.4 Bi-Directional Cable - 8K - 1 m Sub-Carton Depth (mm) 156 Sub-Carton Height (mm) 59 Sub-Carton Width (mm) 267 Sub-Carton Quantity 10 Sub-Carton Weight (g) 528 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 USB-C (Thunderbolt 40Gbps) Connector 2 (Quantity) 1 Connector 3 DisplayPort Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-10-31 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2019-11-28 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2019-10-15 Target Production Release 2019-10-31 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle Latest
