CDP2DP146B

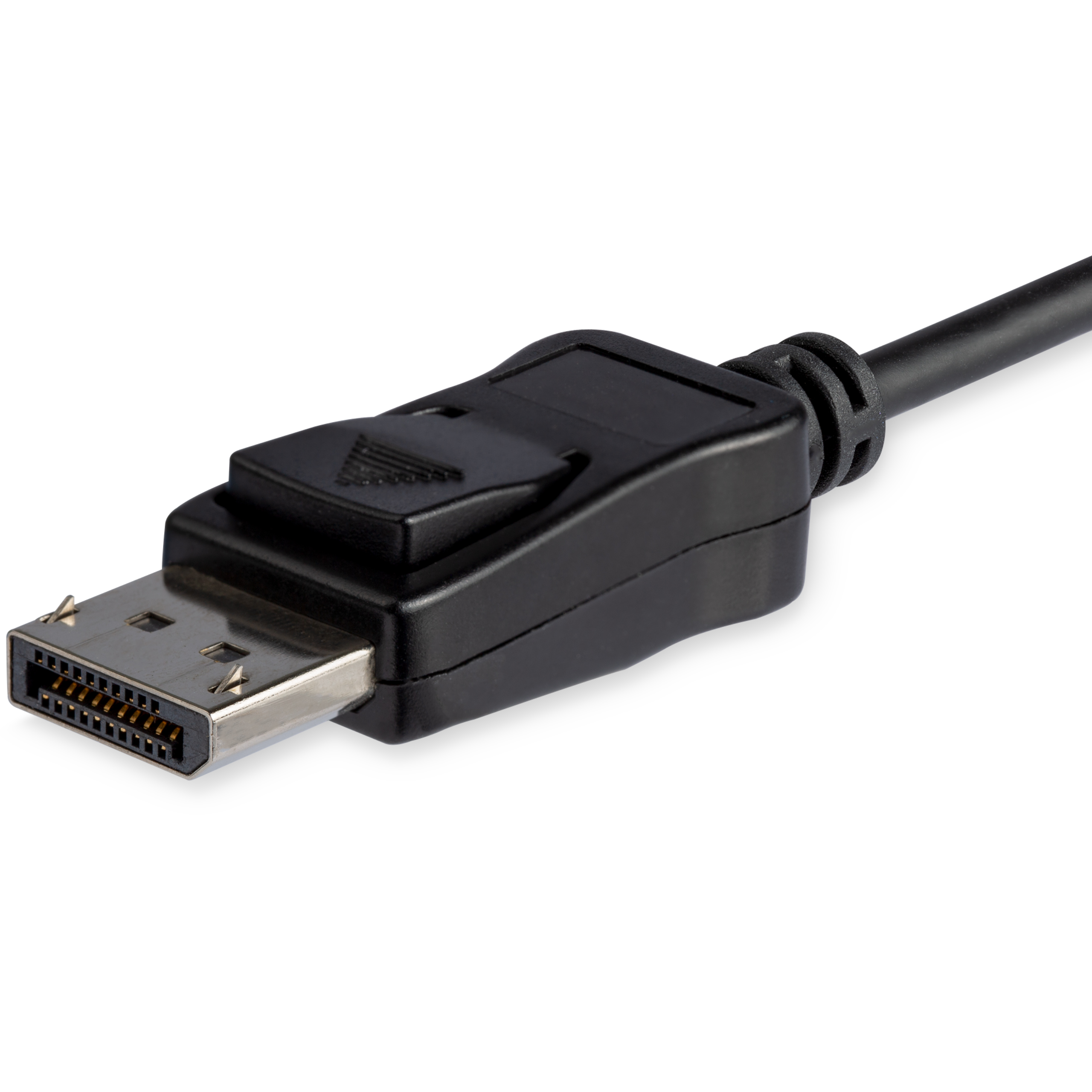

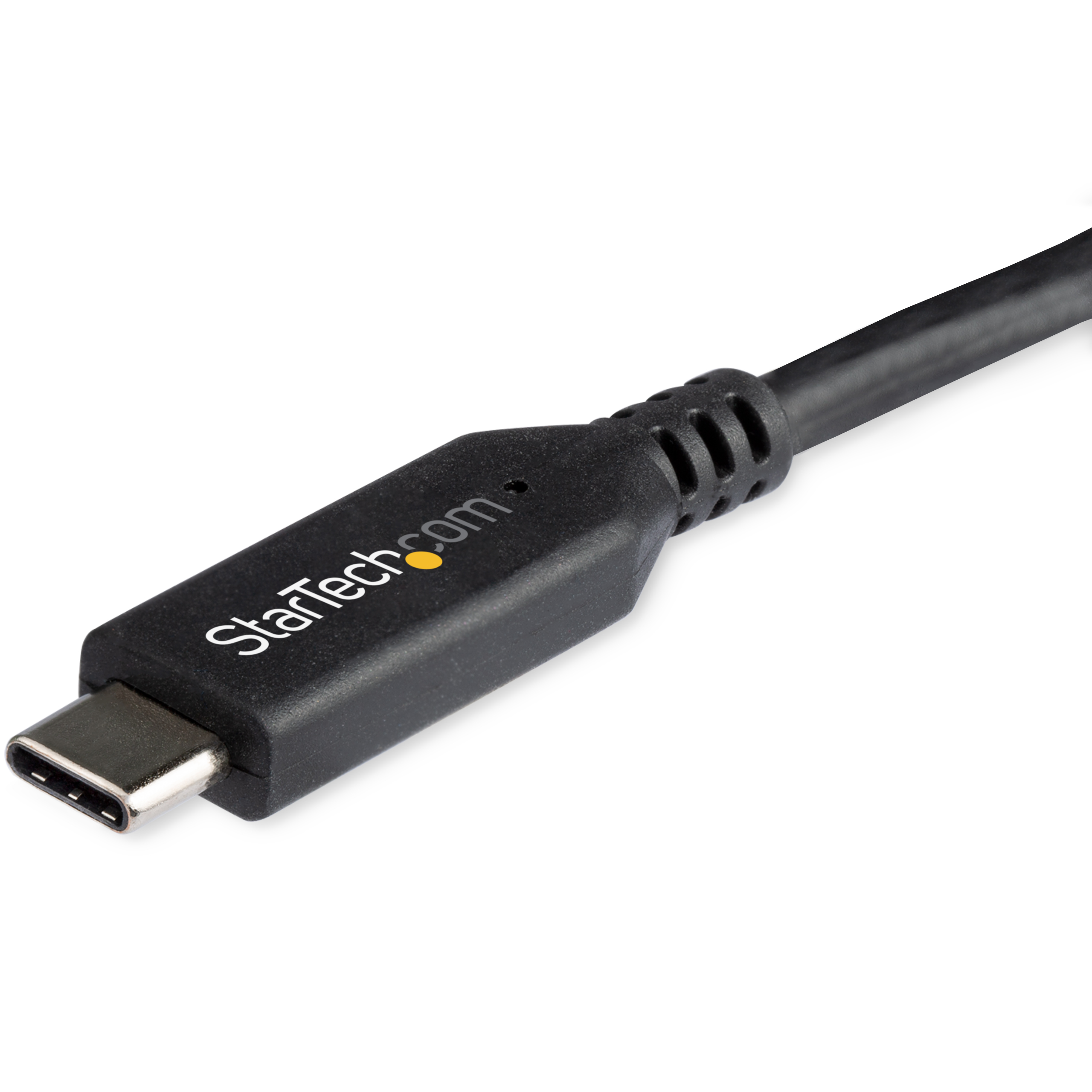

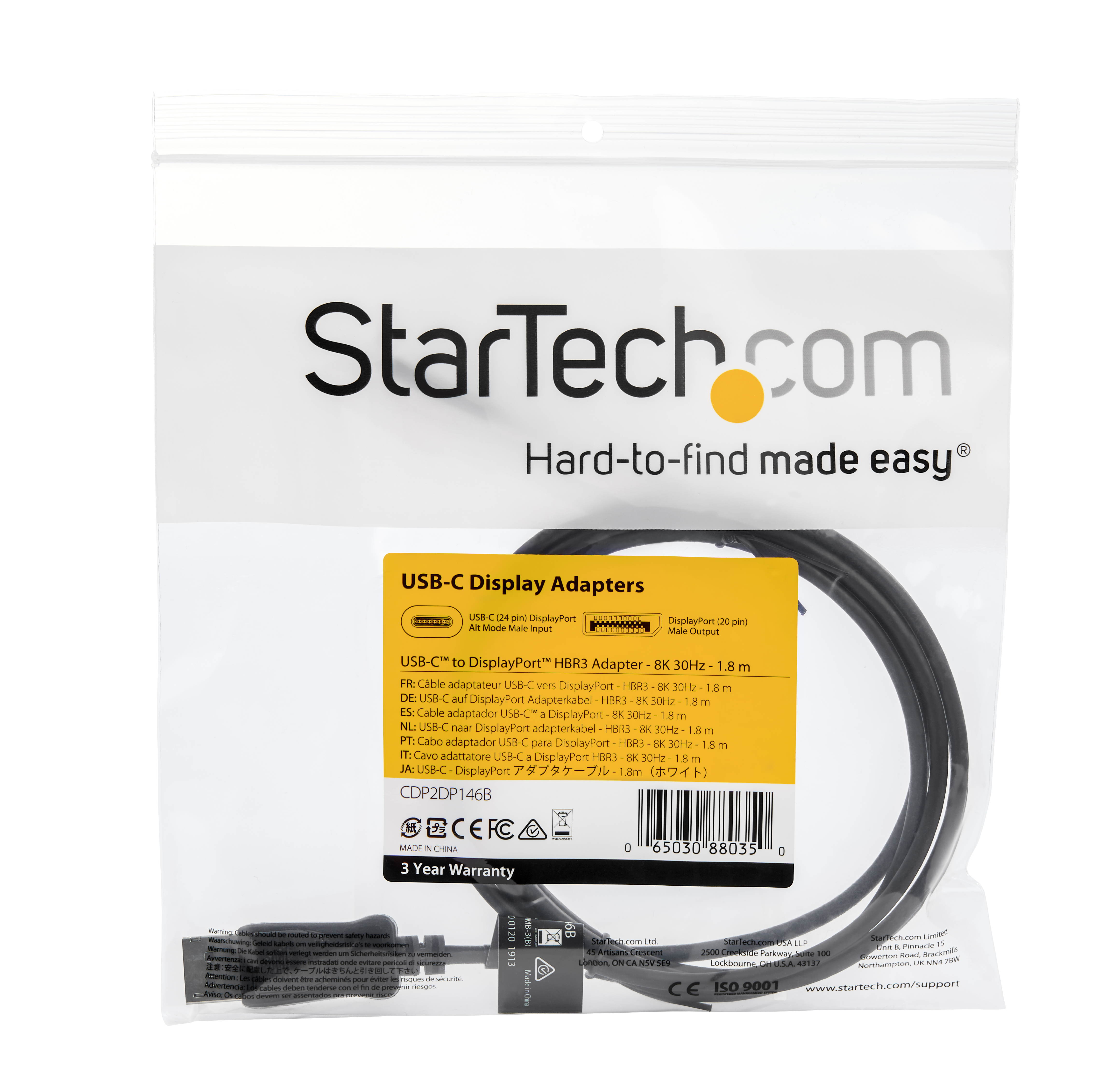

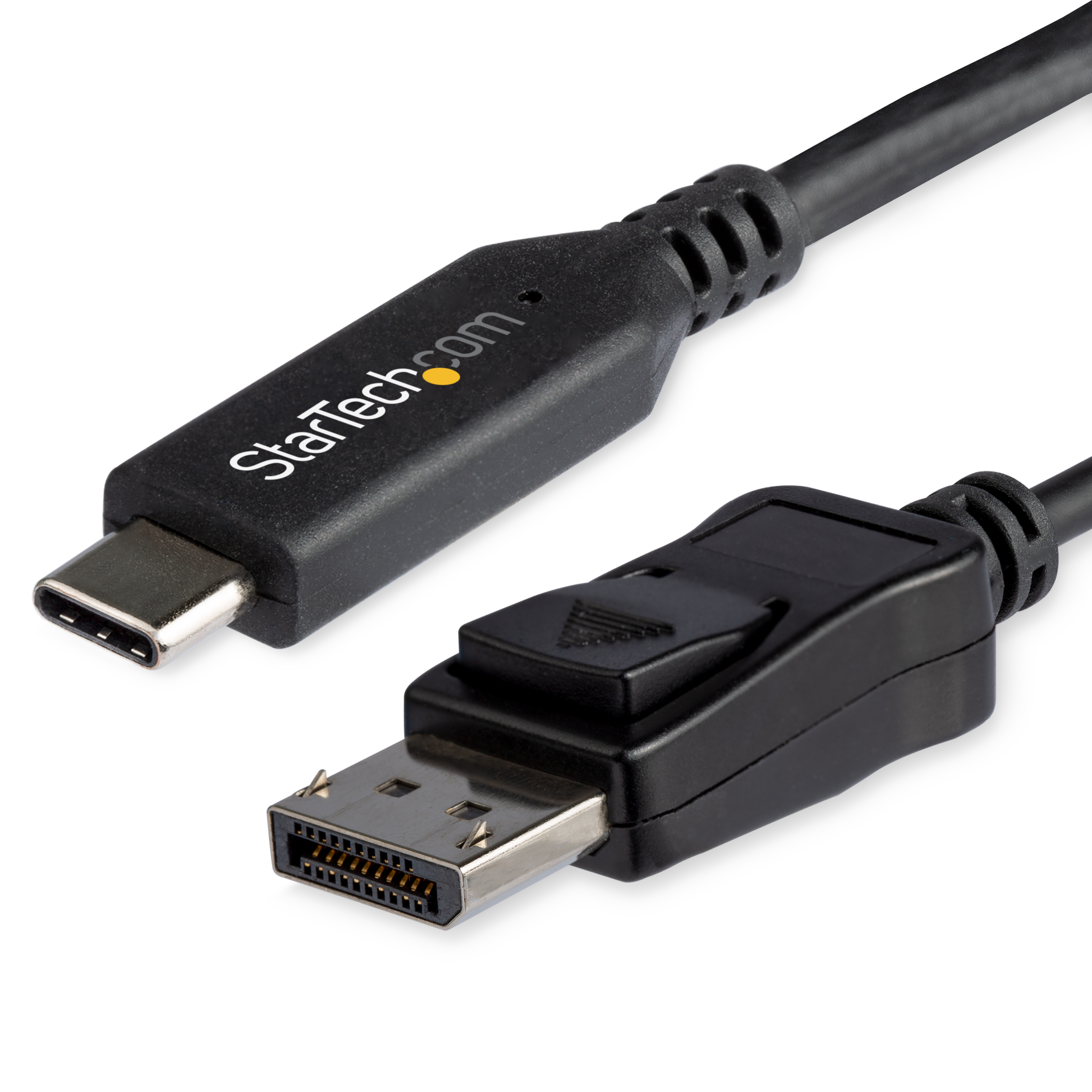

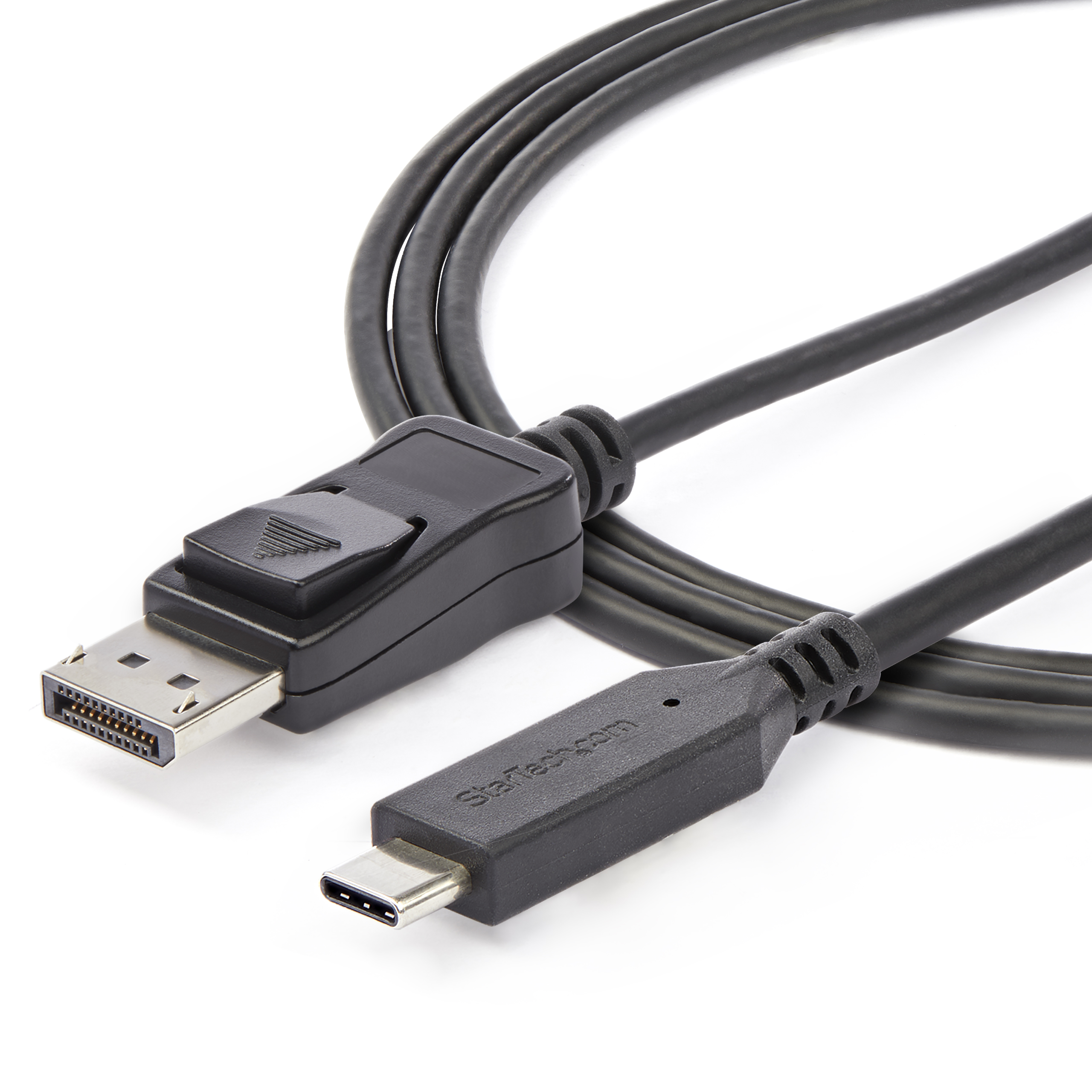

USB C to DP 1 4 cable HBR3 1 8m
USB-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible | HBR3
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB C to DP 1 4 cable HBR3 1 8m Product Number CDP2DP146B UPC 065030880350 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to DP - 8K HDR Family USBC to DP 1.4 Adapter Cables, DP Alt Mode, 8K60 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) USB C to DP Cable 8K Product Title (Short) 6ft USB C to DisplayPort 1.4 Cable 8K/4K Product Title (Medium) 6 ft (1.8 m) - USB C to DisplayPort 1.4 Cable - 8K - HBR3 Product Title (Standard) 6ft/1.8m USB C to Displayport 1.4 Cable Adapter - 4K/5K/8K USB Type C to DP 1.4 Monitor Video Converter Cable - HDR/HBR3/DSC Product Title (Long) 6ft (1.8m) USB C to DisplayPort 1.4 Cable - 4K/5K/8K USB Type-C to DP 1.4 Alt Mode Video Adapter Converter - HBR3/HDR/DSC - 8K 60Hz DP Monitor Cable for USB-C/Thunderbolt Product Title (AMZ) 6ft/1.8m USB C to DisplayPort 1.4 Cable - 4K/5K/8K USB Type-C to DP 1.4 Alt Mode Video Adapter Converter - HBR3/HDR/DSC - 8K 60Hz DP Monitor Cable for USB-C/Thunderbolt 3 (CDP2DP146B) Title Ingram (Part 1) 6' USB C to DP 1.4 Cable Title Ingram (Part 2) 8K - HBR3 DisplayPort Adapter Cable Website Product Headline USB-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible | HBR3 Bullet 1 HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (32.4Gbps) adapter cable compatible w/ HDR/DisplayHDR, HBR3, Display Stream Compression (DSC), HDCP 2.2/1.4; 8K 60Hz (7680x4320), 5K 60Hz, 4K 120Hz & 1080p Bullet 2 EXPERIENCE 8K: USB C to DisplayPort 1.4 cable was tested w/ 8K monitors, displays & compliance test hardware/software for optimal performance & color depth for high res imaging & content creators Bullet 3 INTEGRATED VIDEO ADAPTER CABLE: This USB-C to DP cable minimizes signal loss & potential failure points with a latching DP connector, level 4 Air/Contact ESD immunity/protection & EMI shielding Bullet 4 TESTED & VERIFIED: With USB-C DP Alt Mode & Thunderbolt 3 devices like Lenovo ThinkPad X1 Carbon/Extreme, Dell XPS, HP EliteBook/ZBook, TB3 Apple M1/M2/M3 Pro/Max MacBook / MacBook Air, iPad Pro, Surface Laptop 3/Pro 7 Bullet 5 COMPATIBILITY: This 6' USB Type-C to DisplayPort converter cable requires no software/drivers & is backward compatible with DisplayPort 1.2; works w/ Windows, MacOS, Linux, iPadOS, Chrome OS, Android Bullets (Compact) USB-C to DisplayPort 1.4 cable with HDR/DisplayHDR/HBR3/DSC/HDCP 2.2/1.4; 8K 60Hz/4K 120Hz/1080p - USB-C to DP adapter cable tested for 8K performance – USB-C DP Alt Mode/TB3 devices - Driverless setup (Windows/MacOS/iPadOS/Linux/Chrome OS/Android) Bullets (Consolidated) USB-C to DisplayPort 1.4 (32.4Gbps) cable w/ HDR/DisplayHDR/HBR3/DSC/HDCP 2.2/1.4; 8K 60Hz/4K 120Hz/1080p - USB C to DisplayPort 1.4 cable tested w/ 8K monitors/displays + compliance test hardware/software - USB-C to DP video adapter cable w/ latching DP connector/Level 4 ESD protection/EMI shielding - USB Type-C DP Alt Mode/Thunderbolt 3 devices like Lenovo ThinkPad/Dell XPS/HP/MacBook Pro/iPad Pro/Surface - Driverless setup and works w/ Windows/MacOS/iPadOS/Linux/Chrome OS/Android Marketing Copy Marketing Copy (No HTML) Applications - Stream 8K video to a DisplayPort 1.4 screen or monitor
- Deliver eye-catching presentations while you’re on the go
- Ultimate accessory for early adopters of 8K technology
- Perfect for creative professionals
Website Search Keyword - 4k display adapter
- 4k displayport cable
- 8k displayport
- 8k displayport cable
- DisplayPort 1.4
- displayport 1.4 8k
- displayport 4k
- displayport 8k 60Hz
- displayport 8k cable
- displayport cable 8k
- displayport monitor adapter
- displayport monitor cable
- DP 1.4
- dp adapter
- dp cable adapter
- dp monitor adapter
- dp to usb c
- DP1.4
- type c displayport
- usb 3.1 type c to displayport cable
- usb c display cable
- usb c displayport
- usb c displayport adapter
- usb c displayport cable
- usb c dp
- usb c monitor cable
- usb c port to displayport
- usb c to 4k monitor
- usb c to displayport
- usb c to displayport 1.4
- usb c to displayport 1.4 cable
- usb c to displayport 4k
- usb c to displayport 4k 60hz
- usb c to displayport 4k 60hz cable
- usb c to displayport 5k
- usb c to displayport adapter
- usb c to displayport adapter cable
- USB C to DisplayPort cable
- usb c to displayport cable 4k 60hz
- usb c to displayport converter
- usb c to dp
- usb c to dp 1.4
- usb c to dp adapter
- usb c to dp cable
- usb c video adapter
- usb c video cable
- usb to dp
- usb type c to displayport
- usb type c to displayport adapter
- USB Type C to DisplayPort cable
- usb type c to dp
- usb type c to dp adapter
- USB-C to DisplayPort
- usb-c to dp
- U444-006-HDR4BE
- U444-006-DP8SE
- apple
- apple M3
- M3 Pro
- M3 Max
- Apple M3 Pro
- Apple M3 Max
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
System and Cable Requirements - Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
- To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
Accessory Products - DPEXT6L
- DPPNLFM3
- DPEXTAA6IN
- MDP2DPMF6IN
- GCMDP2DPMF
Related Products - CDP2DP141MB
- CDP2DPMM6B
- CDP2DPMM1MB
- CDP2DP
- CDP2DPW
- MSTCDP122DP
- MSTCDP123DP
- CDP2HDUCPW
- CDP2HD4K60W
- CDP2HDMM2MB
- CDP2HD
- CDP2HDW
- CDP2HDMM1MB
- CDP2VGAMM1MB
- CDP2DVIMM1MB
- CDP2HD4K60
- CDP2VGA
- CDP2VGAMM2MB
- CDP2VGAW
Power Delivery No PD Pass-Through Color Black Humidity 80%-90%RH Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 1800.000 Product Width (mm) 20.000 Product Height (mm) 12.500 Product Weight (g) 55.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications DisplayPort - 7.1 Channel Audio Bandwidth HBR3 HDR Support Yes Maximum Supported Resolution 8K 60Hz (DSC) OS Compatibility OS Independent Supported Resolutions DisplayPort: 7680x4320 (8K) / 60Hz Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active AV Input USB-C AV Output DisplayPort - 1.4 Chipset ID STM32F072CBY6TR Converter Type Cable Adapters Host Connection Port USB-C Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 507 Carton Height (mm) 232 Carton Quantity 60 Carton Weight Gross (g) 5150 Included in Package 1 - USB-C to DisplayPort Adapter Included In Package for Label 1 - USB-C to DisplayPort Converter Number of Sub-Cartons 6 Package Depth (mm) 157 Package Height (mm) 27 Package Width (mm) 181 Package Quantity 1 Package Weight (g) 48 Packaging Description USB-C to DisplayPort Cable - HBR3 - 8K 60Hz - 1.8 m Packaging Description India 1.8m USB-C to DisplayPort Cable - HBR3 - 8K 60Hz Sub-Carton Depth (mm) 227 Sub-Carton Height (mm) 81 Sub-Carton Width (mm) 244 Sub-Carton Quantity 10 Sub-Carton Weight (g) 658 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-03-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2019-02-08 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2019-01-04 Target Production Release 2019-04-18 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle Mainstream
