CDP2DP2MBD-VAMZ

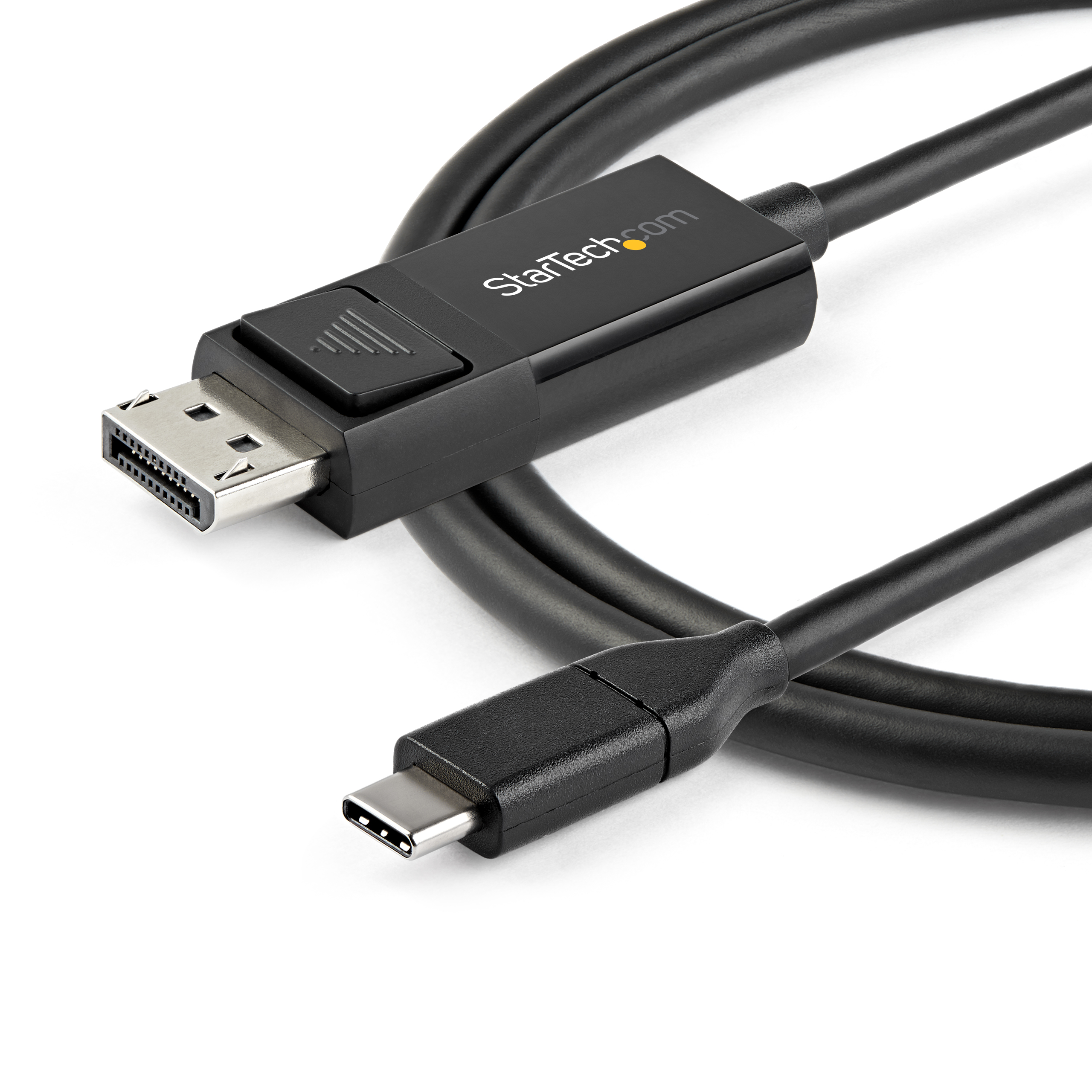

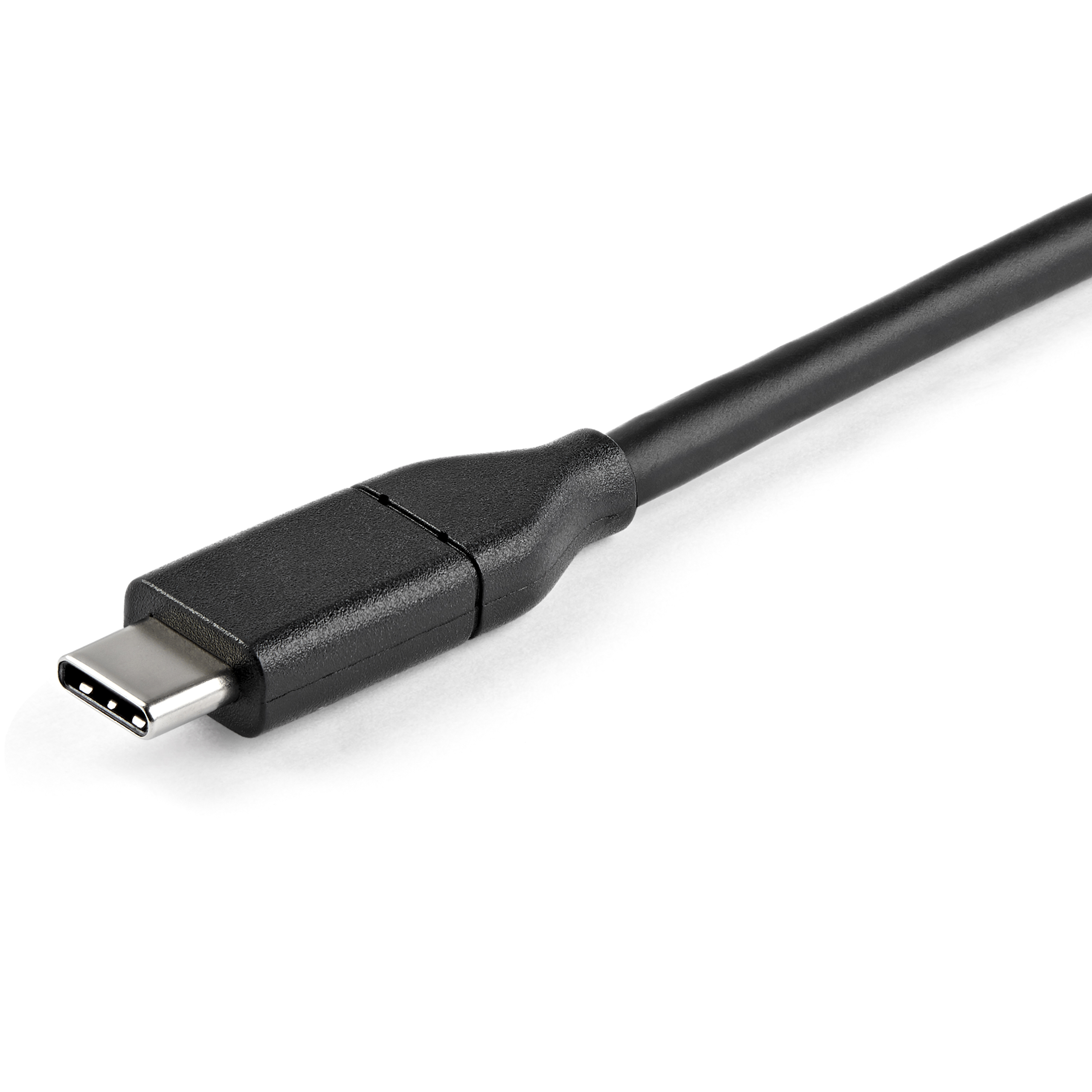

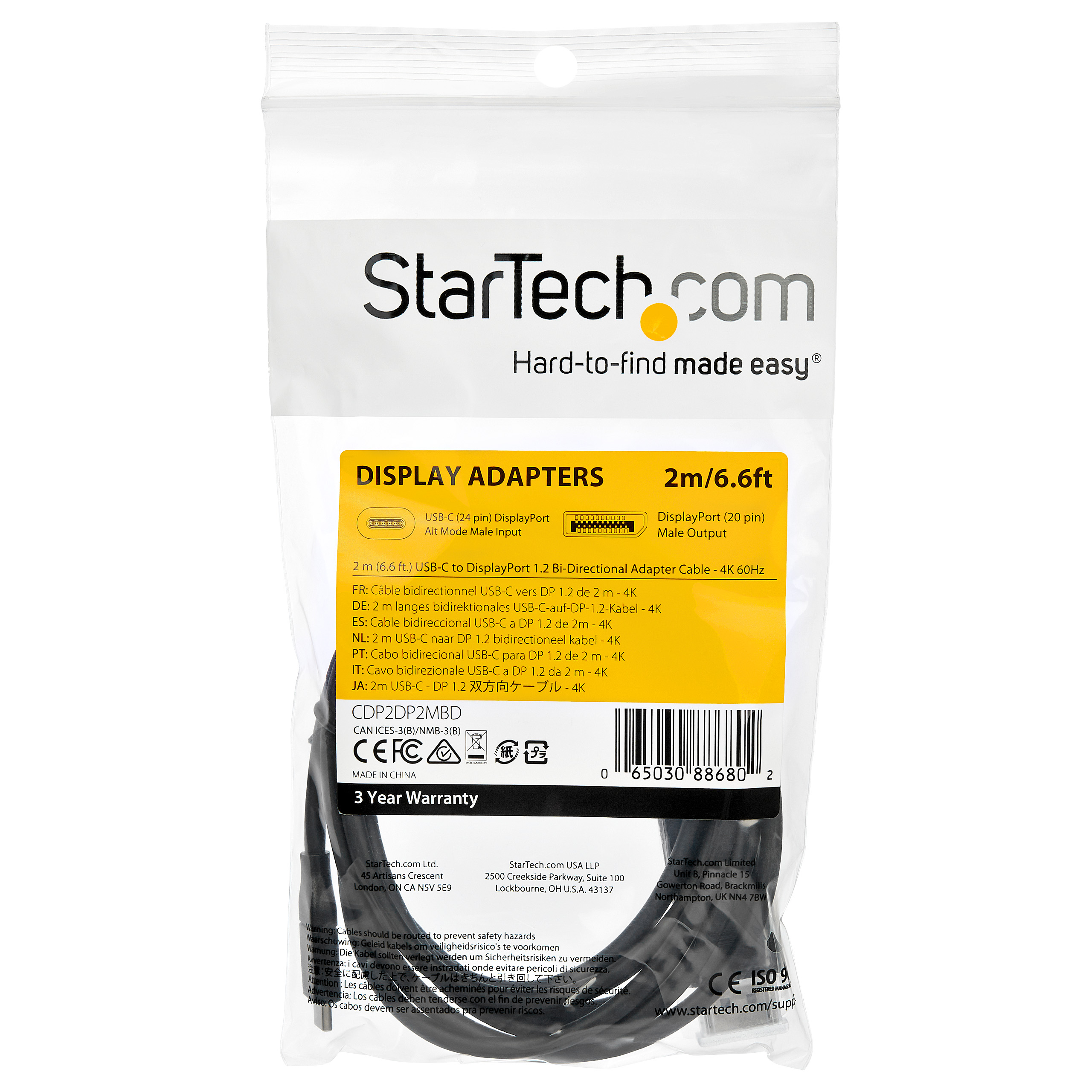

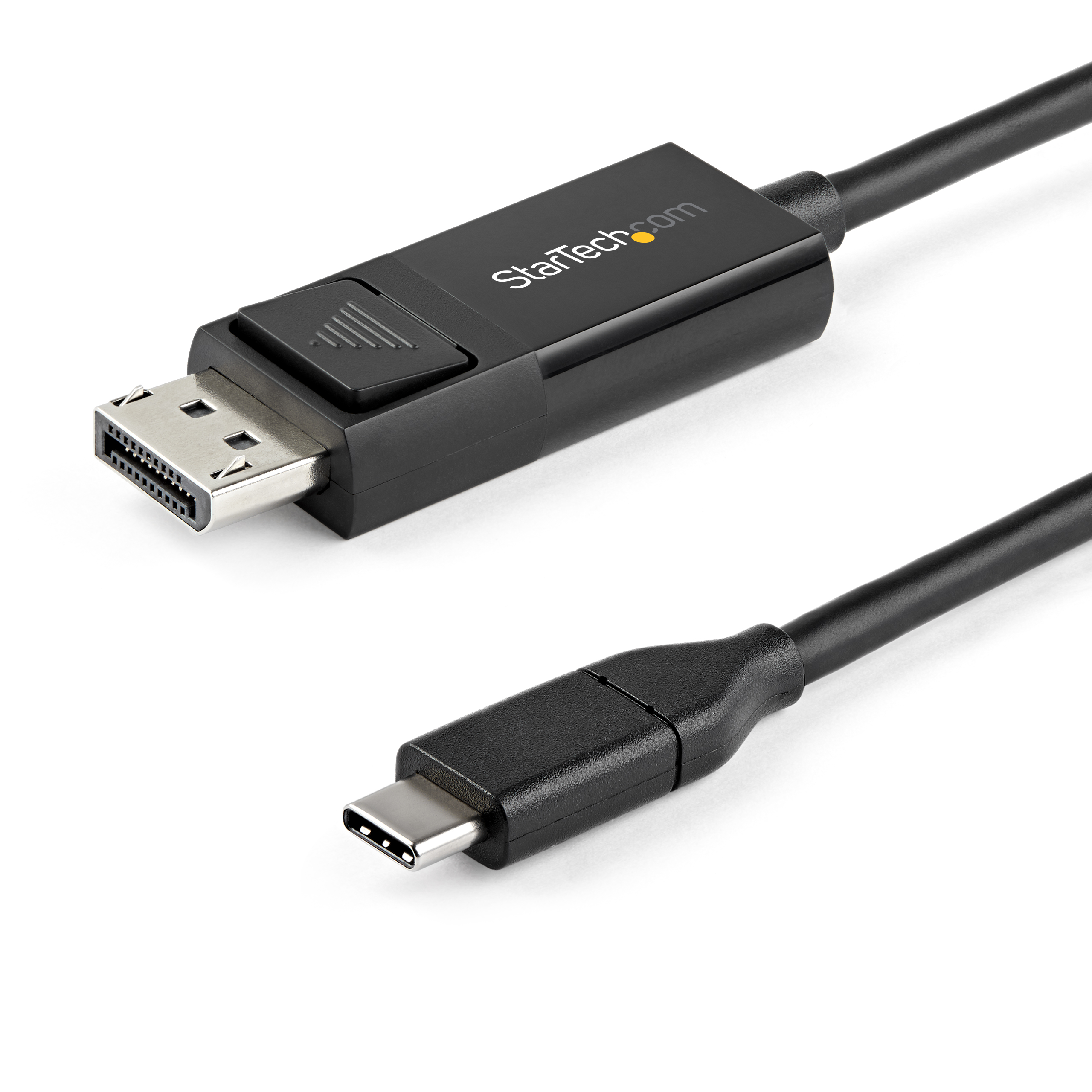

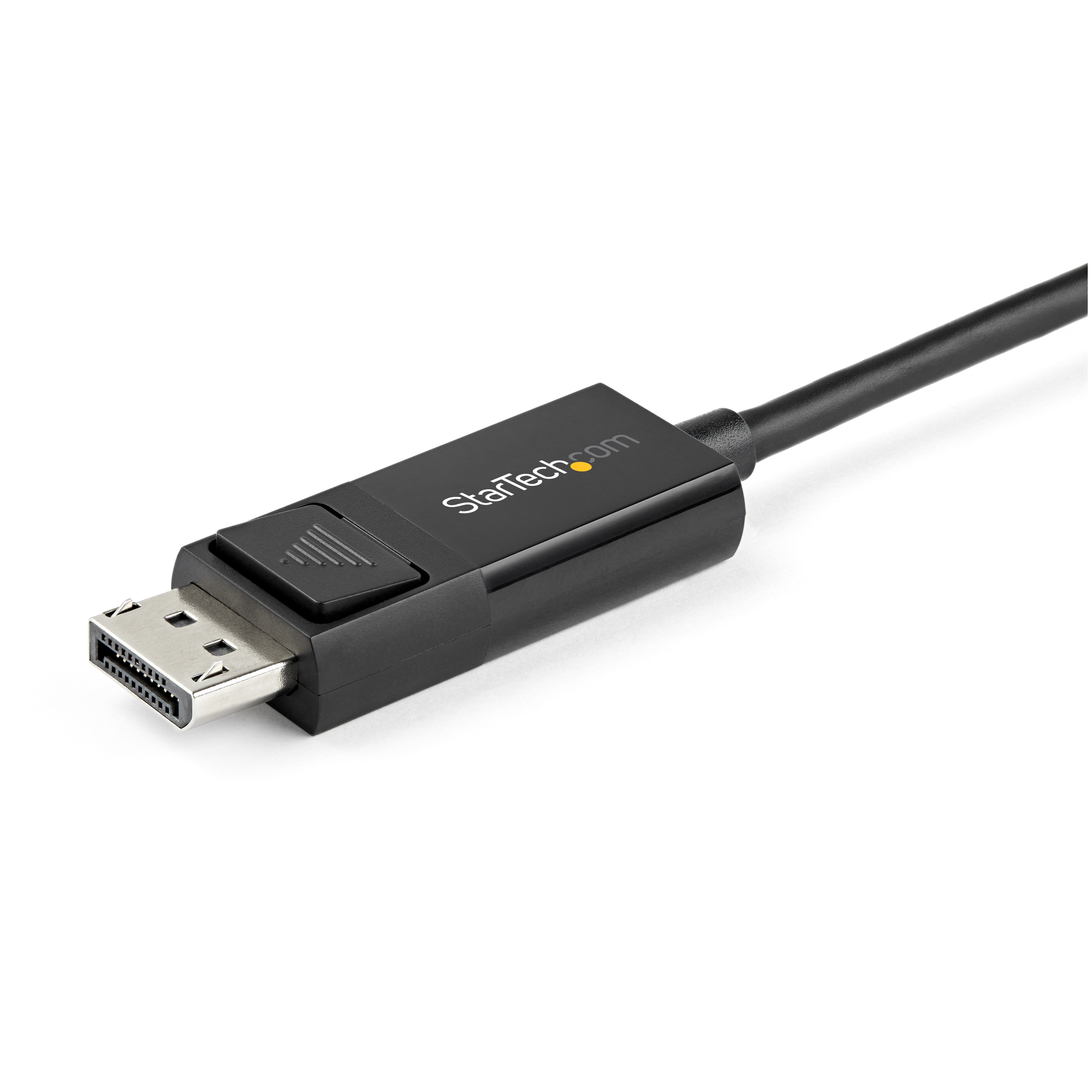

2m USB-C to DP 1.2 Bi-Directional Cable - 4K
USB Type-C™ Adapter Cable | 4K 60Hz | Thunderbolt 3™
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2m USB-C to DP 1.2 Bi-Directional Cable - 4K Product Number CDP2DP2MBD-VAMZ UPC 065030910736 Lifecycle status Active Warranty 3 Years Weighted Opportunity 0 Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to DP Family USBC to DP 1.2 Bi-Directional Vending Cables, DP Alt Mode, 4K60 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (AMZ) 6.6ft (2m) USB C to DisplayPort 1.2 Cable 4K HDR/HBR2, Bidirectional DP/USB-C, Reversible Video Adapter Cable Website Product Headline USB Type-C™ Adapter Cable | 4K 60Hz | Thunderbolt 3™ Bullet 1 HIGH PERFORMANCE: 6.6ft/2m Reversible USB-C to DisplayPort 1.2 (21.6Gbps) cable or DP to USB-C cable supports 4K 60Hz/HBR2/HDR/HDCP 2.2/1.4 | 1080p & Thunderbolt 3 compatible Bullet 2 REVERSIBLE CABLE: This DisplayPort to USB C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display Bullet 3 DP OR USB-C DP ALT MODE HOST COMPATIBLE: USB-C video cable for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Pro, TB3 MacBook Pro/Air, HP EliteBook/Spectre/ZBook Bullet 4 DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors from LG, Dell UltraSharp, Acer, Asus Pro Art Bullet 5 INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection Bullets (Consolidated) - 6.6ft/2m bidirectional USB C to DisplayPort 1.2 cable (USB-C laptop to monitor) or DP 1.2 to USB-C cable (DP host to USB-C display) - Supports 4K 60Hz/HBR2/HDR/HDCP 2.2 and 1.4/1080p - Works w/ Dell XPS Precision Latitude/Lenovo ThinkPad X1 Carbon/Extreme/Surface Laptop 3 Surface Pro/TB3 MacBook ProAir/HP EliteBook Spectre ZBook - Compatible w/ DP and USB Type-C (DP Alt Mode)/Thunderbolt 3 devices - Integrated DP/USB-C video adapter cable supports driverless setup/latching DP connector Marketing Copy Marketing Copy (No HTML) Applications - Ideal for home, office or hot-desk applications
- Perfect accessory for creative professionals
- Deliver enriched presentations on the go
- Stream, view and edit 4K video
Required Marketing Compliance Marks FSC - Environmental - Canada / United States - FSC Mix Packaging (North America Bilingual EN FR Only) Required Regulatory Compliance Marks - EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes Maximum performance is dependent upon the specifications of your video source and destination System and Cable Requirements Your USB-C device must support DisplayPort Alt Mode to work with this cable Related Products CDP2DP2MBD Color Black Humidity 10%-85% RH Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 2038.000 Product Width (mm) 21.600 Product Height (mm) 11.000 Product Weight (g) 78.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No HDR Support Yes Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility OS Independent Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input - USB-C
- DisplayPort - 1.2
AV Output - DisplayPort
- USB-C
Chipset ID - Chrontel - CH7213C-BF
- VIA Labs - VL170
Converter Type Cable Adapters Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 470 Carton Height (mm) 120 Carton Quantity 60 Carton Weight Gross (g) 7360 Included in Package 1 - 2 m USB-C to DisplayPort 1.2 Bi-Directional Adapter Cable Package Depth (mm) 110 Package Height (mm) 190 Package Width (mm) 19 Package Weight (g) 111 Packaging Description 2m USB-C to DP 1.2 Bi-Directional Cable - 4K Packaging Description India 2m USB-C to DP 1.2 Bi-Directional Cable - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Amazon Only SKU Yes Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2024-11-01 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2024-08-07 Target Production Release 2024-08-14 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Designed for Vending Machine
