Main Image
CDP2DPEC

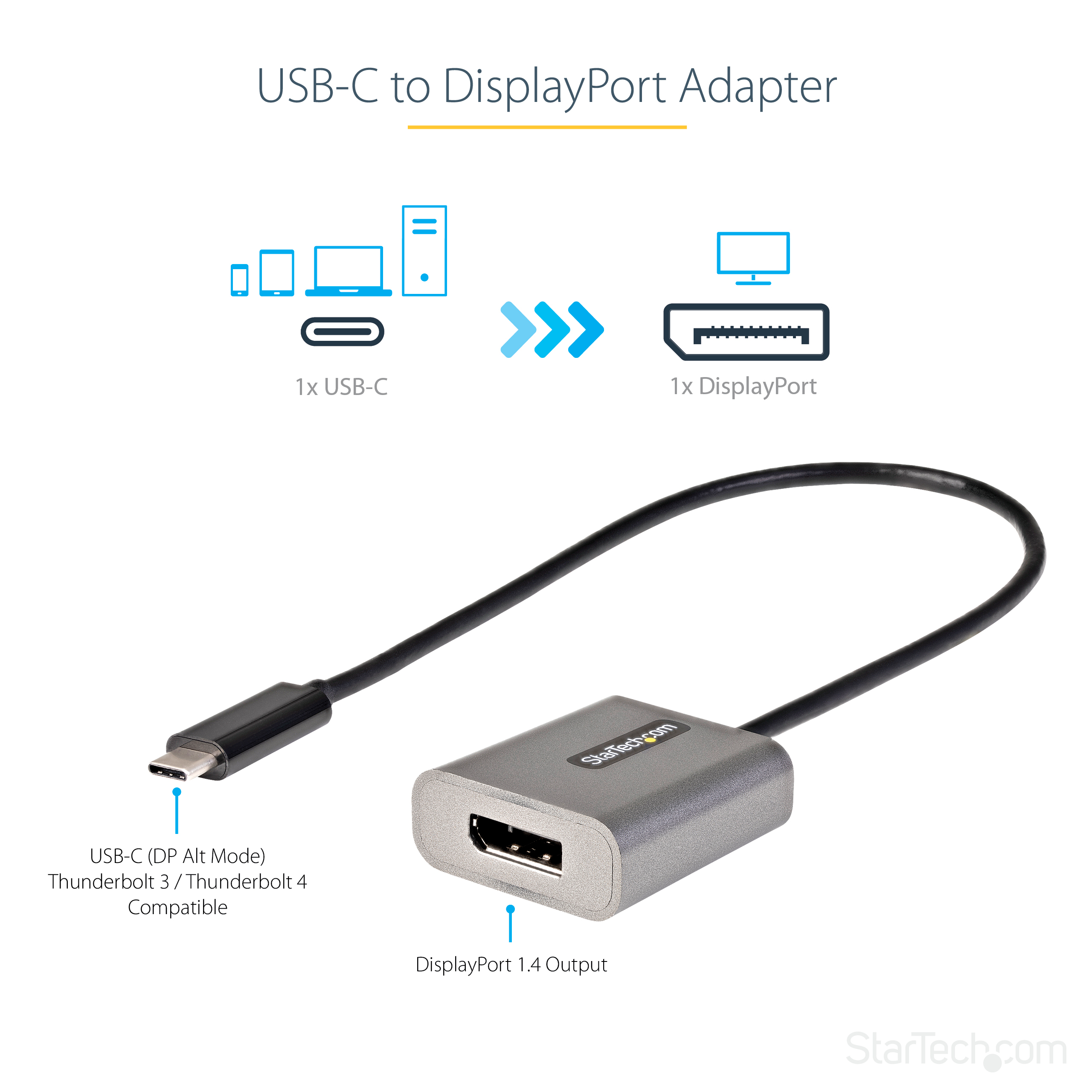

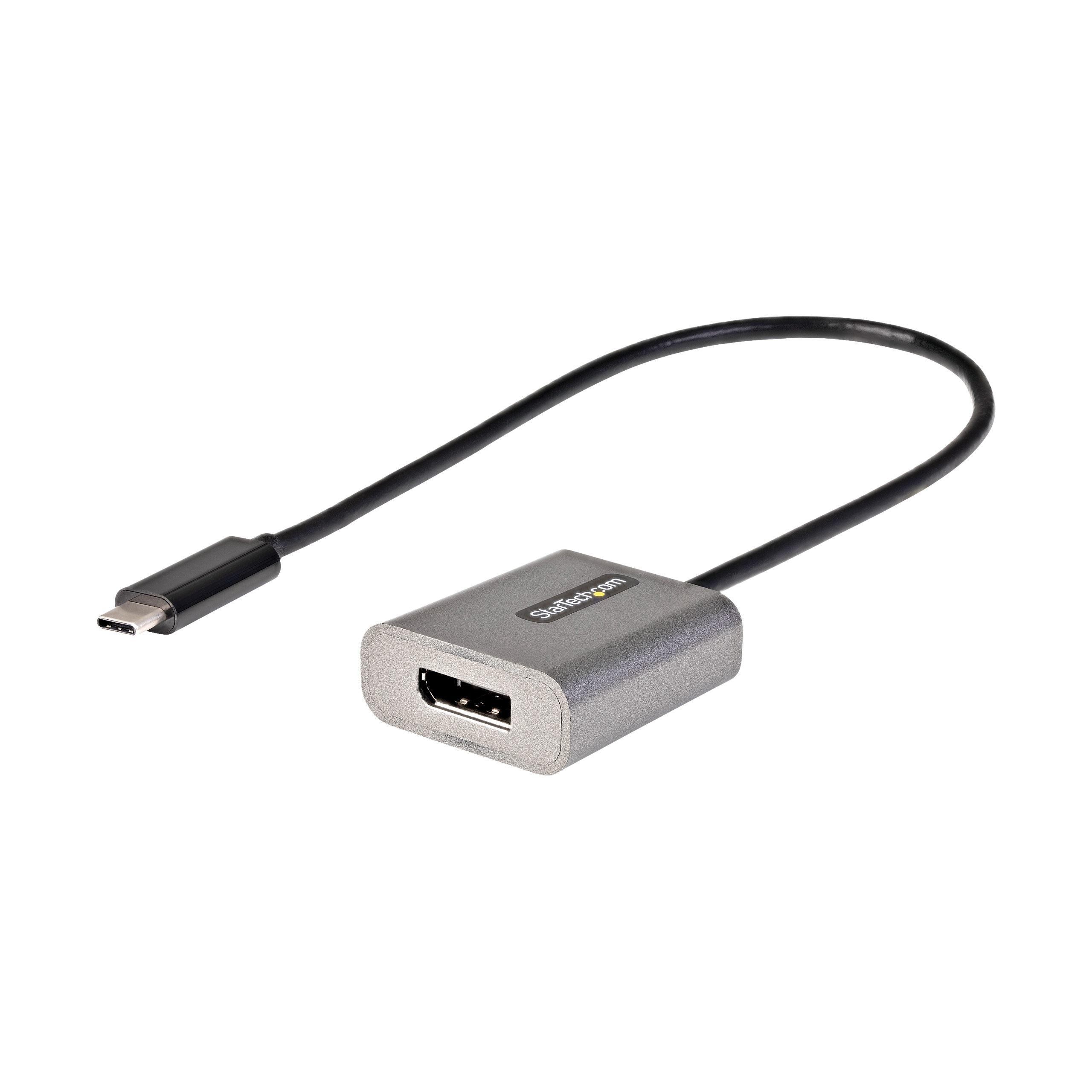

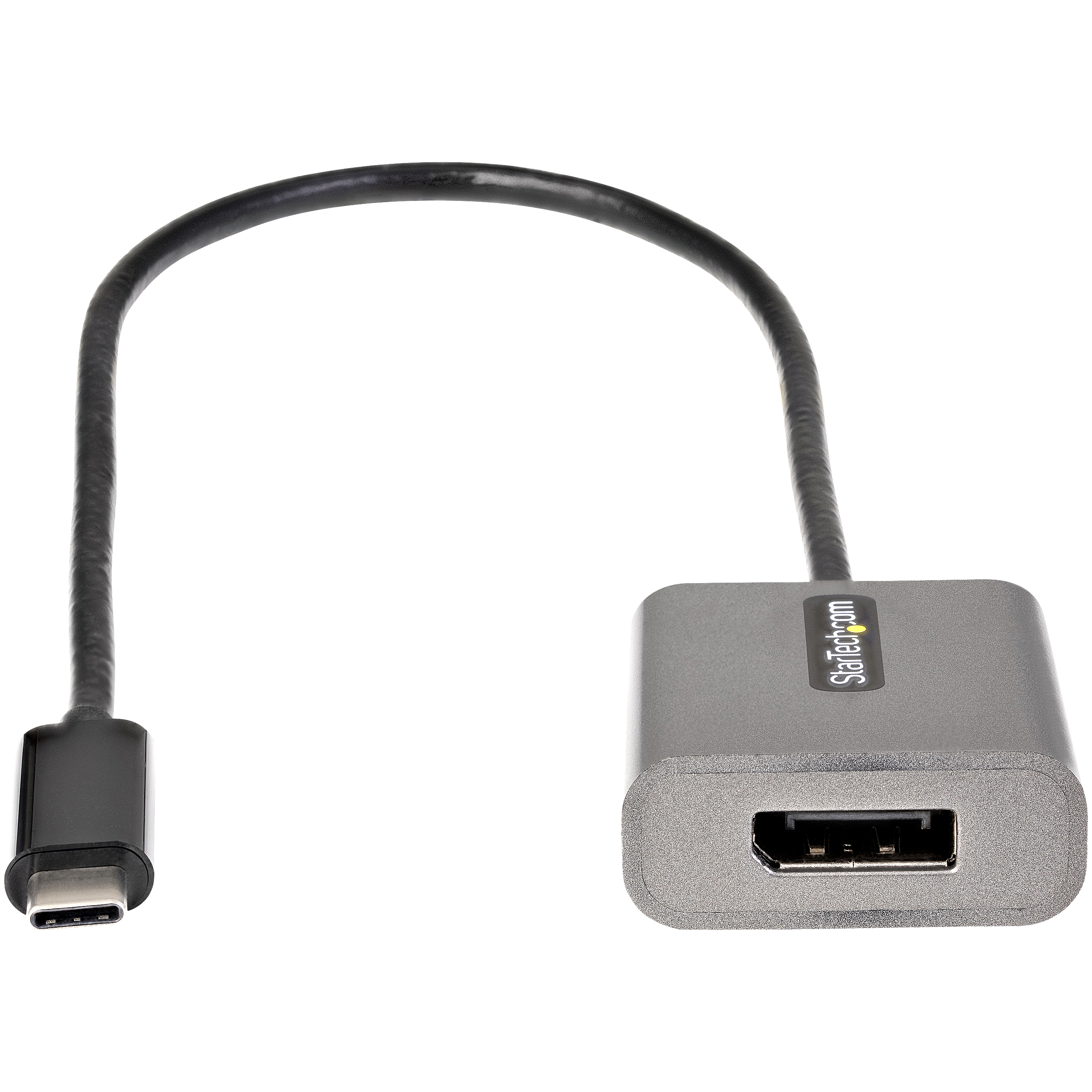

USB-C to DisplayPort Converter - Extended Cable
Extended Cable | DP 1.4 | HBR3 | Thunderbolt 3 Compatible
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Name USB-C to DisplayPort Converter - Extended Cable Product Number CDP2DPEC UPC 065030888851 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to DP - 8K HDR Family USBC to DP 1.4 Adapters, DP Alt Mode, 8K60 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) USB C to DP Adapter Product Title (Short) USB C to DisplayPort Adapter USBC to DP Product Title (Medium) USB C to DisplayPort Adapter - 8K/4K 60Hz USB-C to DP Adapter Dongle 12" Cable Product Title (Standard) USB C to DisplayPort Adapter, 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter, DSC, USB Type-C to DP Video Converter, w/12" Cable Product Title (Long) USB C to DisplayPort Adapter - 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter Dongle - USB Type-C to DP Monitor Video Converter - Works w/Thunderbolt 3 - w/12" Long Attached Cable Product Title (AMZ) USB C to DisplayPort Adapter, 8K/4K 60Hz USB-C to DisplayPort 1.4 Dongle, USB Type-C to DP Monitor Video Converter, Works w/TB3 - 12" Attached Cable, Upgraded Version of CDP2DP (CDP2DPEC) Title Ingram (Part 1) USB C to DisplayPort Adapter Title Ingram (Part 2) 8K/4K 60Hz Video - 12" Cable Website Product Headline Extended Cable | DP 1.4 | HBR3 | Thunderbolt 3 Compatible Bullet 1 HIGH PERFORMANCE: USB C to DisplayPort 1.4 adapter connects a single DP display supporting up to 8K 60Hz with DSC (8K 30Hz without DSC) & 4K 60Hz UHD (3840x2160) | DP Alt Mode | HBR3 | 32.4Gbps | 2ch Audio | HDCP 2.2/1.4 | Backward compatible w/ 1080p Bullet 2 EXTRA LONG CABLE: USB-C to DisplayPort display adapter with 12" (30cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro & laptops on risers stands | Compact, portable design Bullet 3 DEVICE COMPATIBILITY: Works w/ Dell XPS, Precision, Latitude, Lenovo ThinkPad X1 Carbon, Extreme, Surface Laptop 3, Pro 7, MacBook Pro/Air (Intel Processor & M1 Chip), HP EliteBook, Chromebook | Requires Intel 11th Gen w/DSC (or later) for DP 1.4 8K 60Hz Bullet 4 DISPLAY COMPATIBILITY: USBC to DP external video adapter/converter has been tested for peak performance at 8K/4K 60Hz on a range of DP monitors incl. brands like Dell UltraSharp, Samsung, Asus ProArt, Acer & LG | Supports ultrawide displays (3440x1440) Bullet 5 EASY TO USE: USB-C to DP adapter dongle supports driverless setup and is OS independent; Works w/any USB Type-C (DisplayPort over USB-C) or Thunderbolt 3 (TB3) device | Recommend using a StarTech.com DisplayPort 1.4 cable (DP14MM2M) to support DSC 8K 60Hz Bullets (Compact) USB-C to DisplayPort adapter dongle (DP 1.4) with DSC/HBR3/HDCP 2.2/1.4; 8K 60Hz/4K 60Hz/1080p video - USB C display adapter w/ 12in cable - Tested w/ range of 8K/4K DP monitors - Works w/ USB Type-C (DP Alt Mode)/Thunderbolt 3 devices - Driverless Bullets (Consolidated) USB C to DisplayPort 1.4 adapter dongle supports 8K 60Hz (7680x4320) w/ DSC or 4K 60Hz video without | DP Alt Mode HBR3 | 2ch Audio | HDCP 2.2/1.4 | Works w/1080p - USB-C to DP display adapter converter w/12" cable - Works w/ USB Type-C + Thunderbolt 3 devices like Dell XPS Precision/Lenovo ThinkPad/Surface Laptop 3/MacBook Pro Air (Intel and M1)/HP EliteBook| Requires Intel 11th Gen w/DSC (or later) for DP 1.4 8K 60Hz - USBC to DP adapter tested w/ Dell/Samsung/Asus monitors - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Connect to virtually any 8K or 4K DisplayPort monitor when you're in the office or traveling
- Connect your USB-C equipped tablet or smartphone to a larger display
Website Search Keyword - 4k display adapter
- 4k displayport adapter
- displayport adapter
- displayport over usb type c adapter
- dp 4k
- dp adapter
- DP Alt Mode
- tb3 to displayport
- tb3 to dp adapter
- thunderbolt 3 to displayport adapter
- thunderbolt 3 to dp adapter
- type c display adapter
- type c displayport
- type c displayport adapter
- type c to dp adapter
- type c video adapter
- Type-C to dp adapter
- usb 3.1 type c to displayport
- usb c adapter
- usb c display adapter
- usb c displayport
- usb c displayport dongle
- usb c dongle displayport
- usb c dp alt mode adapter
- usb c male to displayport female
- usb c monitor adapter
- usb c to displayport
- usb c to displayport 1.2
- usb c to displayport 1.2 adapter
- usb c to displayport 1.4
- usb c to displayport 1.4 adapter
- usb c to displayport 4k 60hz
- USB C to DisplayPort adapter
- usb c to displayport converter
- usb c to displayport dongle
- usb c to dp
- usb c to dp adapter
- usb c to thunderbolt adapter
- usb c video adapter
- usb type c displayport
- usb type c dp
- usb type c to displayport
- usb type c to displayport 4k 60hz
- usb type c to displayport adapter
- usb type c to dp
- usb type c to thunderbolt 2 adapter
- usb type c to thunderbolt adapter
- usb type c with displayport
- USB Type-C to dp adapter
- USB-C to DisplayPort
- USB-C to DisplayPort Adapter
- usb-c to dp
- USB-C to dp adapter
- U444-06N-DP-AM
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark

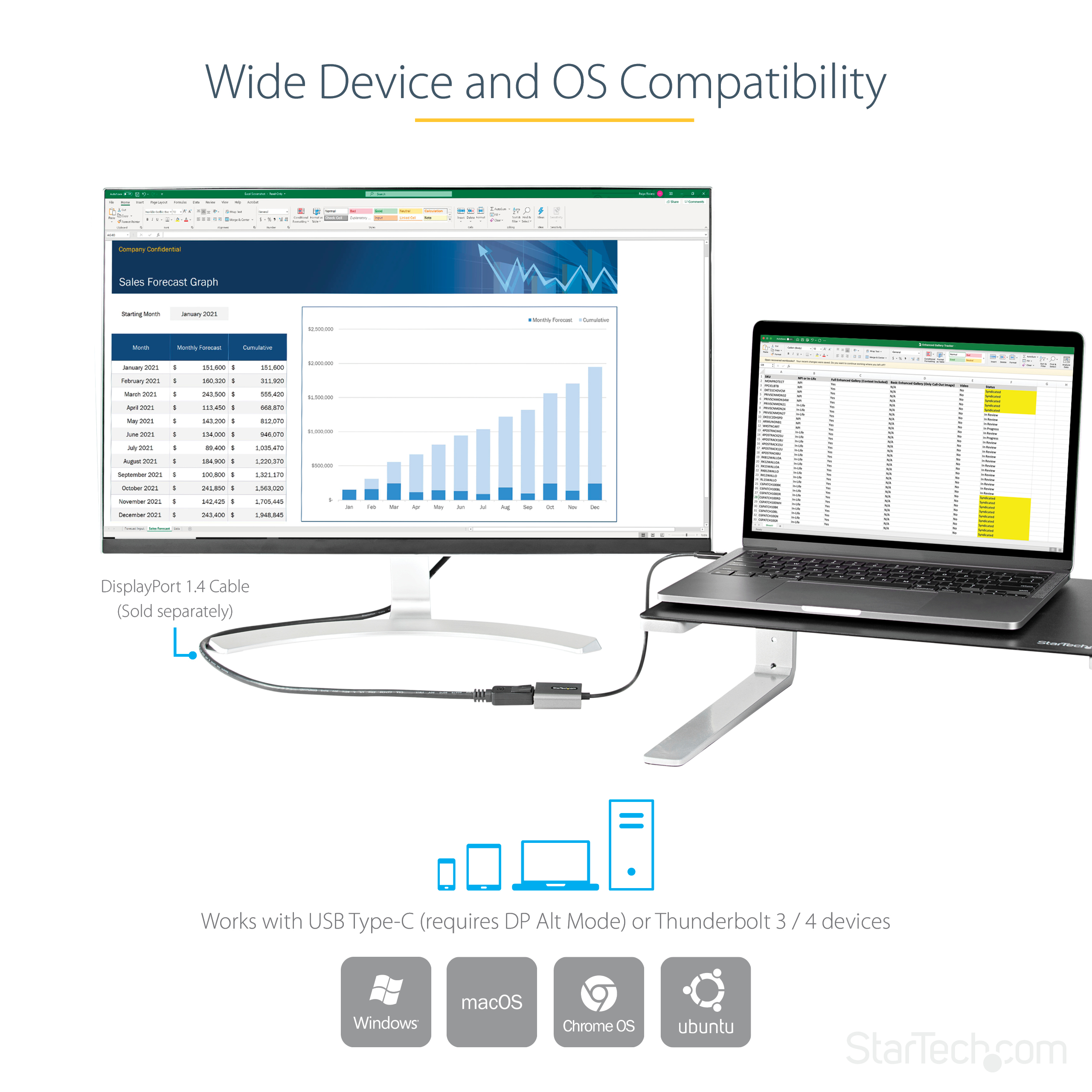

System and Cable Requirements Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. Accessory Products - MDP2DPMM6
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT3L
- DISPLPORT1L
- DP14MM1M
- DP14MM2M
- DP14MM3M
Related Products - CDP2HD
- CDP2HDW
- CDP2VGA
- CDP2VGAW
- CDP2MDPEC
- CDP2DVIEC
- CDP2VGAEC

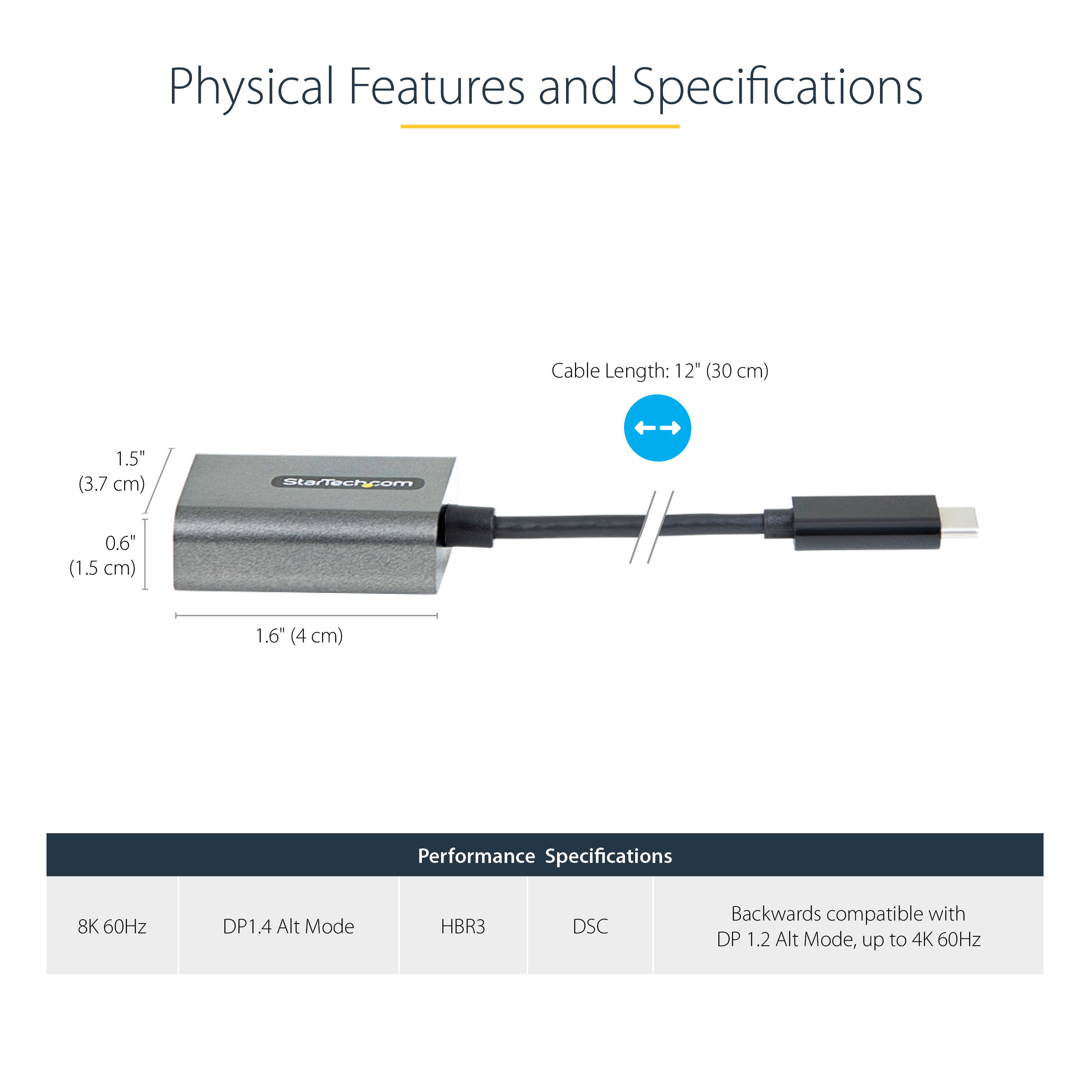

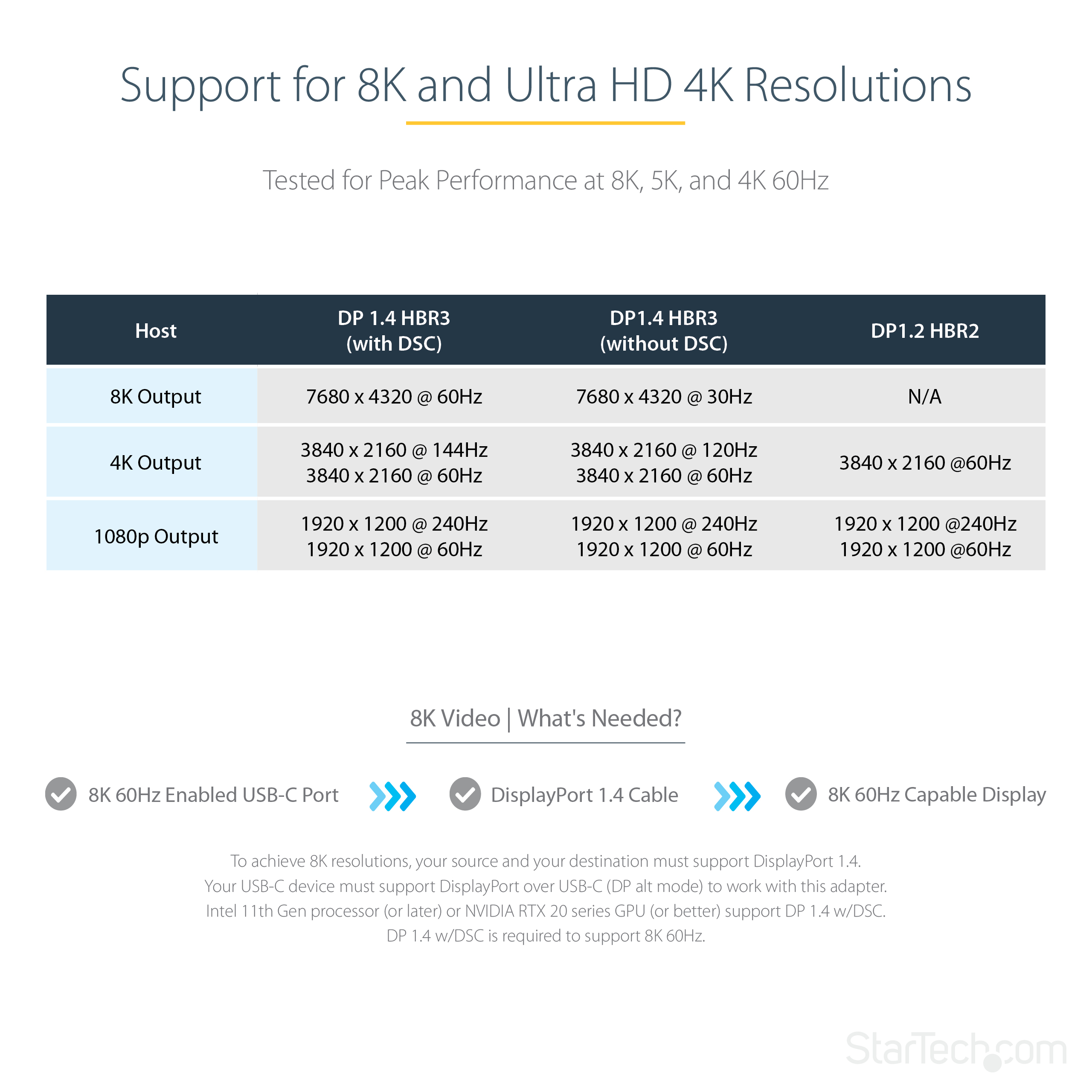

Constrained SKU Alternatives (Limited Stock) CDP2DPFC Power Delivery No PD Pass-Through Cable Length (mm) 312 Color Gray Humidity 10%-85% RH Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 390.000 Product Width (mm) 38.000 Product Height (mm) 15.000 Product Weight (g) 26.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications DisplayPort - 2 Channel Audio HDR Support No Maximum Cable Distance To Display 2000 Maximum Supported Resolution 8K 60Hz (DSC) OS Compatibility OS Independent Supported Resolutions DisplayPort: 7680x4320 (8K) / 60Hz Video Output Port DisplayPort Wide Screen Supported Yes Chipset ID VL103 Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 330 Carton Height (mm) 220 Carton Quantity 200 Carton Weight Gross (g) 6890 Included in Package 1 - USB-C to DisplayPort Adapter Included In Package for Label 1 - USB-C to DisplayPort Converter Number of Sub-Cartons 20 Package Depth (mm) 125 Package Height (mm) 24 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 30 Packaging Description USB-C to DisplayPort Adapter - Ext. Cable Packaging Description India USB-C to DisplayPort Converter - Extended Cable Sub-Carton Depth (mm) 176 Sub-Carton Height (mm) 72 Sub-Carton Width (mm) 215 Sub-Carton Quantity 10 Sub-Carton Weight (g) 306 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2021-01-28 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2021-07-07 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product 2 Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2021-01-31 Target Production Release 2021-01-21 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle Mainstream
