CDP2DVIEC

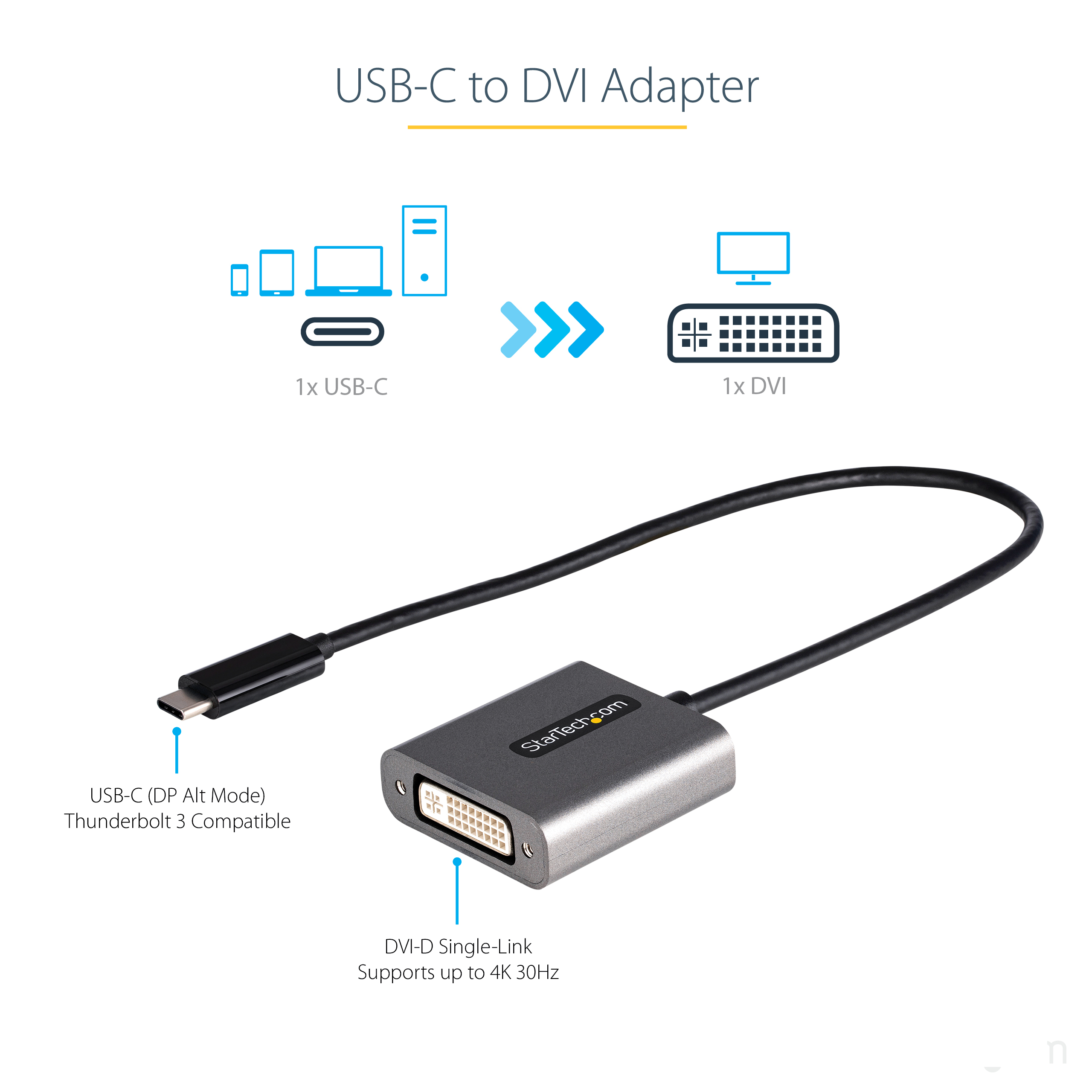

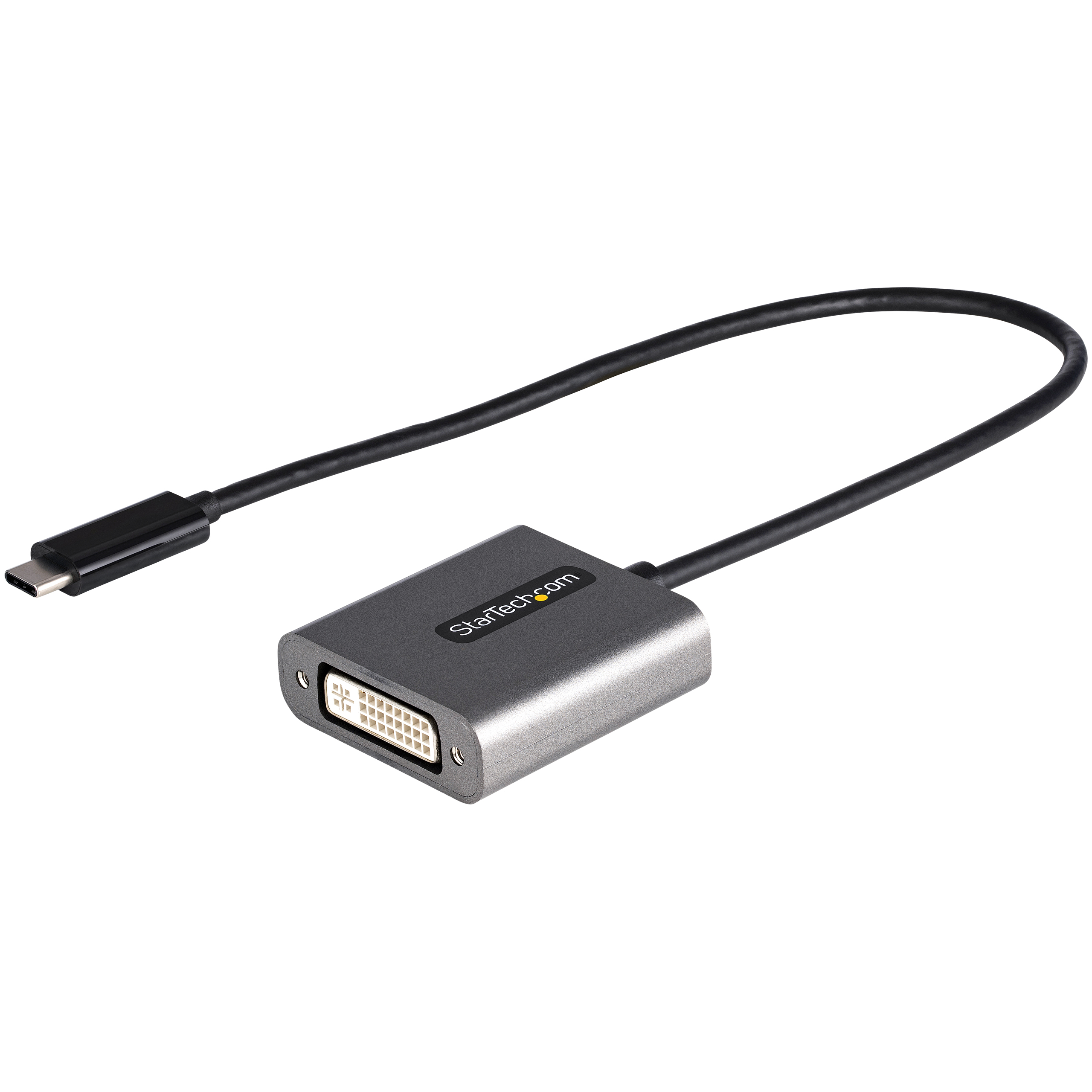

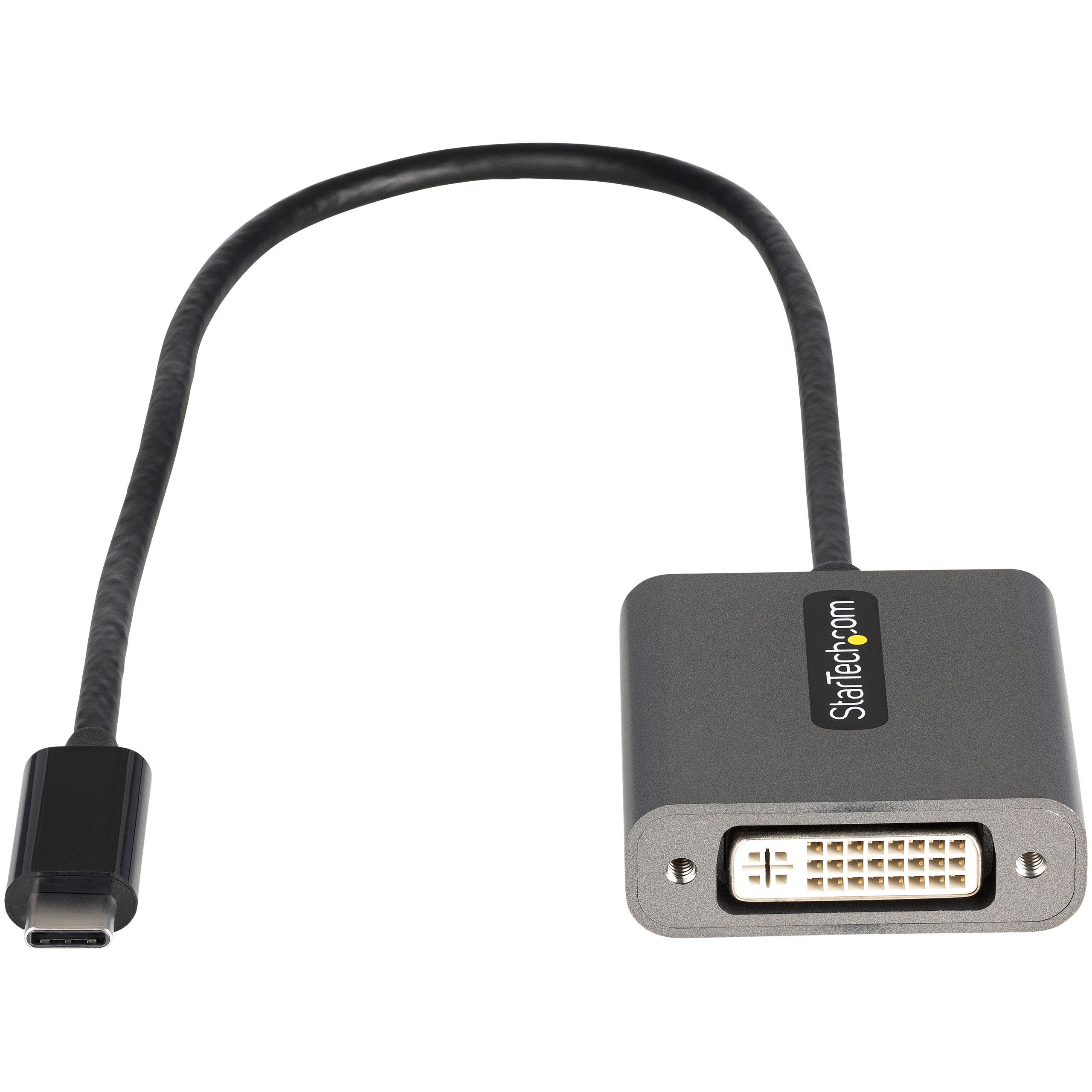

USB-C to DVI Adapter - Extended Cable
Extended Cable | 1920x1200p | Thunderbolt 3 Compatible
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Name USB-C to DVI Adapter - Extended Cable Product Number CDP2DVIEC UPC 065030888820 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to DVI Family USBC to DVI Adapters, DP Alt Mode, 1920 x 1200 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) USB C to DVI Adapter Product Title (Short) USB C to DVI Adapter - 12in Cable Product Title (Medium) USB C to DVI Adapter - 1920x1200p USB-C to DVI-D Dongle for DVI Display/Monitor Product Title (Standard) USB C to DVI Adapter, 1920x1200p, USB Type-C to DVI-D Adapter Dongle, USB-C to DVI Display/Monitor Video Converter, 12" Cable Product Title (Long) USB C to DVI Adapter - 1920x1200p USB-C to DVI-D Adapter Dongle - USB Type C to DVI Display/Monitor - Video Converter - Thunderbolt 3 Compatible - 12" Long Attached Cable - Upgraded Version of CDP2DVI Product Title (AMZ) USB C to DVI Adapter - 1920x1200 USB Type C to DVI-D Display/Monitor Video Converter, USB-C Dongle, Thunderbolt 3 Compatible, 12" Attached Cable - Upgraded Version of CDP2DVI (CDP2DVIEC) Title Ingram (Part 1) USB C to DVI Adapter 1920x1200p Title Ingram (Part 2) with 12" Long Attached Cable Website Product Headline Extended Cable | 1920x1200p | Thunderbolt 3 Compatible Bullet 1 PERFORMANCE: An upgrade to CDP2DVI, this USB-C to DVI adapter connects a DVI-D Single-Link (Digital only) display supporting up to 4K 30Hz (on monitors with HDMI clock rate support over DVI) - Works with 1920x1200p & 1080p - Thunderbolt 3 Compatible Bullet 2 EXTRA LONG CABLE: USB Type-C to DVI adapter dongle with 12" (30cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro & laptops on risers stands - Compact, portable design Bullet 3 DEVICE COMPATIBILITY: USB C to DVI-D adapter works with Dell XPS, Precision & Latitude, Lenovo ThinkPad X1 Carbon & Extreme, Surface Laptop 3 & Pro 7 (& up), MacBook Pro/Air (Intel Processor & M1 Chip), HP EliteBook & ZBook & Chromebook Bullet 4 DISPLAY COMPATIBILITY: USB C to DVI external video adapter tested for peak performance at 1920x1200p with DVI monitors and projectors including brands like Dell, LG, Asus, Acer, BenQ, HP, Samsung, NEC & Phillips Bullet 5 EASY TO USE: USBC to DVI converter supports driverless setup and is OS independent - Works with any USB Type-C (DisplayPort over USB-C) or Thunderbolt 3 (TB3) device - Connector is DVI-I, but only a digital signal (DVI-D) passes through Bullets (Compact) USB-C to DVI-D adapter/converter single-link (DVI-I connector digital only) - 4K 30Hz (on monitors/displays with HDMI clock rate support over DVI)/1080p video - 12in long cable - Works with USB Type-C/TB 3 - Upgrade version of CDP2DVI Bullets (Consolidated) USB-C to DVI adapter dongle (DVI-D Single-Link) supports 4K 30Hz (on monitors w/ HDMI clock rate support over DVI) | Works w/1920x1200p and 1080p - 12" attached cable - Works w/USB Type-C and Thunderbolt 3 hosts | Dell XPS Precision/Lenovo ThinkPad/Surface Laptop 3 Pro 7/MacBook Pro Air (Intel and M1)/HP EliteBook - Tested w/displays/projectors incl Dell/LG/Asus/BenQ/Samsung - DVI-I (digital signal only) connector - New Upgraded CDP2DVI USB C to DVI converter with 12" cable for extended reach Marketing Copy Marketing Copy (No HTML) Applications - Keep the adapter with you while traveling, to connect to any DVI monitor or projector you come across
- Connect your USB-C equipped tablet or smartphone to a larger display
Website Search Keyword - converter
- dual link dvi adapter
- dvi dual link adapter
- dvi usb adapter
- dvi usb cable
- dvi-d adapter
- dvi-d to usb
- thunderbolt 3 to DVI adapter
- type c to dvi
- usb c display adapter
- usb c to dvi adapter
- usb c to dvi converter
- usb c to dvi d adapter
- usb c to dvi i
- usb c to dvi monitor
- usb to dual dvi adapter
- usb to dvi display adapter
- usb to dvi-d
- usb to dvi-d adapter
- usb type c to dvi adapter
- usb-c video adapter
- usb-to-dvi monitor adapter
- U444-06N-DVIBAM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements - Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
- Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
- This adapter is not compatible for use with the Apple Cinema Display.
Accessory Products - DVIIDMM10
- DVIIDMM15
- DVIIDMM20
- DVIIDMM6
- DVIISMM6
Related Products - CDP2DPEC
- CDP2MDPEC
- CDP2VGAEC

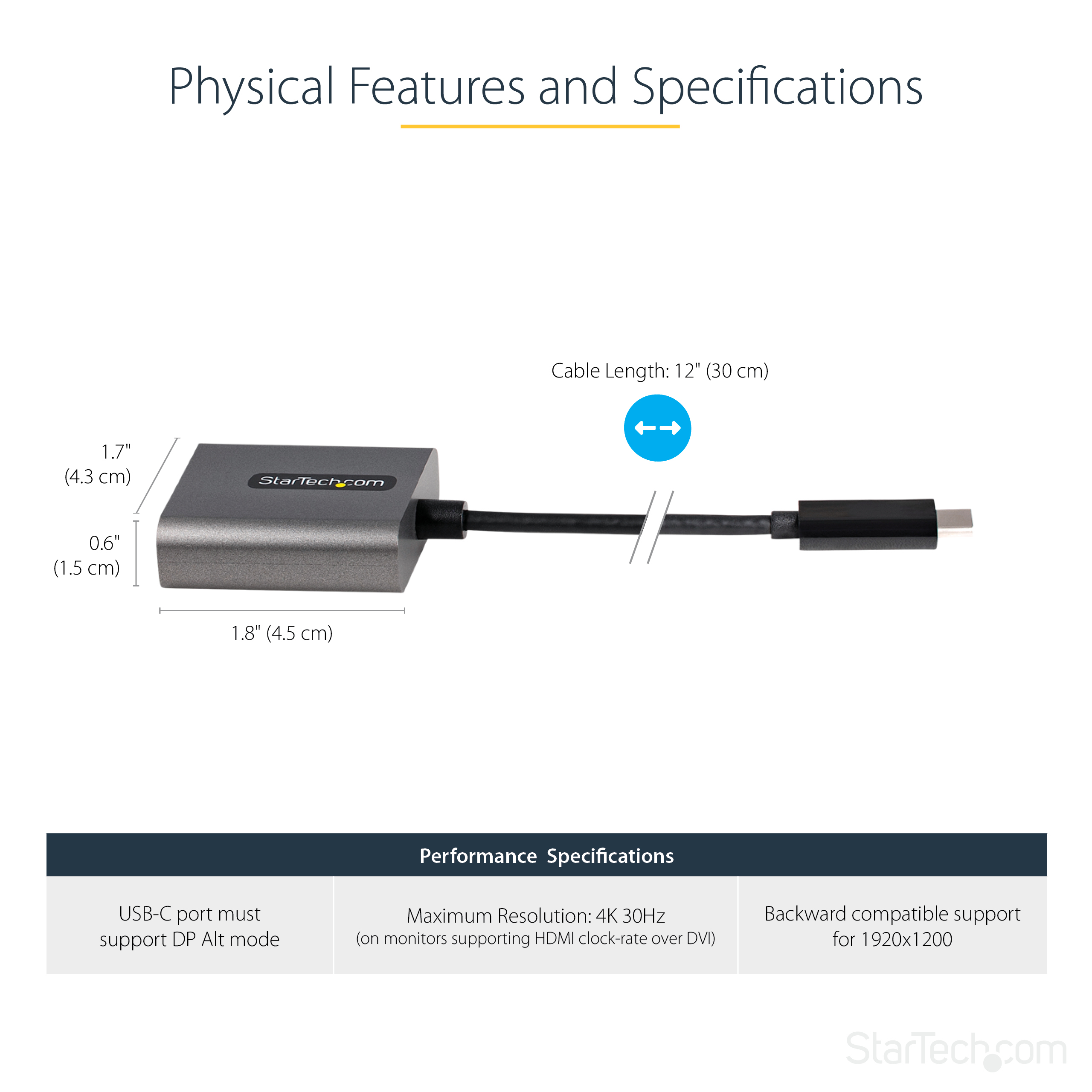

Power Delivery No PD Pass-Through Cable Length (mm) 295 Color Black Humidity 10%-85%RH Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 380.000 Product Width (mm) 43.000 Product Height (mm) 15.000 Product Weight (g) 33.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support General Specifications HDR Support No Maximum Supported Resolution 1080p OS Compatibility OS Independent Supported Resolutions DVI: 1920x1200 / 60Hz Video Output Port DVI Wide Screen Supported Yes AV Input USB-C AV Output DVI-I (Digital Only) - Single-Link Chipset ID Converter Type Adapters Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 320 Carton Height (mm) 210 Carton Quantity 200 Carton Weight Gross (g) 8400 Included in Package 1 - USB-C to DVI Adapter Included In Package for Label 1 - USB-C To DVI Converter Package Depth (mm) 124 Package Height (mm) 19 Package Width (mm) 177 Package Quantity 1 Package Weight (g) 42 Packaging Description USB-C to DVI Adapter - Ext. Cable Packaging Description India USB-C to DVI Converter - Ext. Cable Sub-Carton Depth (mm) 168 Sub-Carton Height (mm) 75 Sub-Carton Width (mm) 229 Sub-Carton Weight (g) 382 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2021-01-21 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2021-05-20 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology USB-C Priority New Product 2 Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2021-01-14 Target Production Release 2021-01-21 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Video Uploaded
