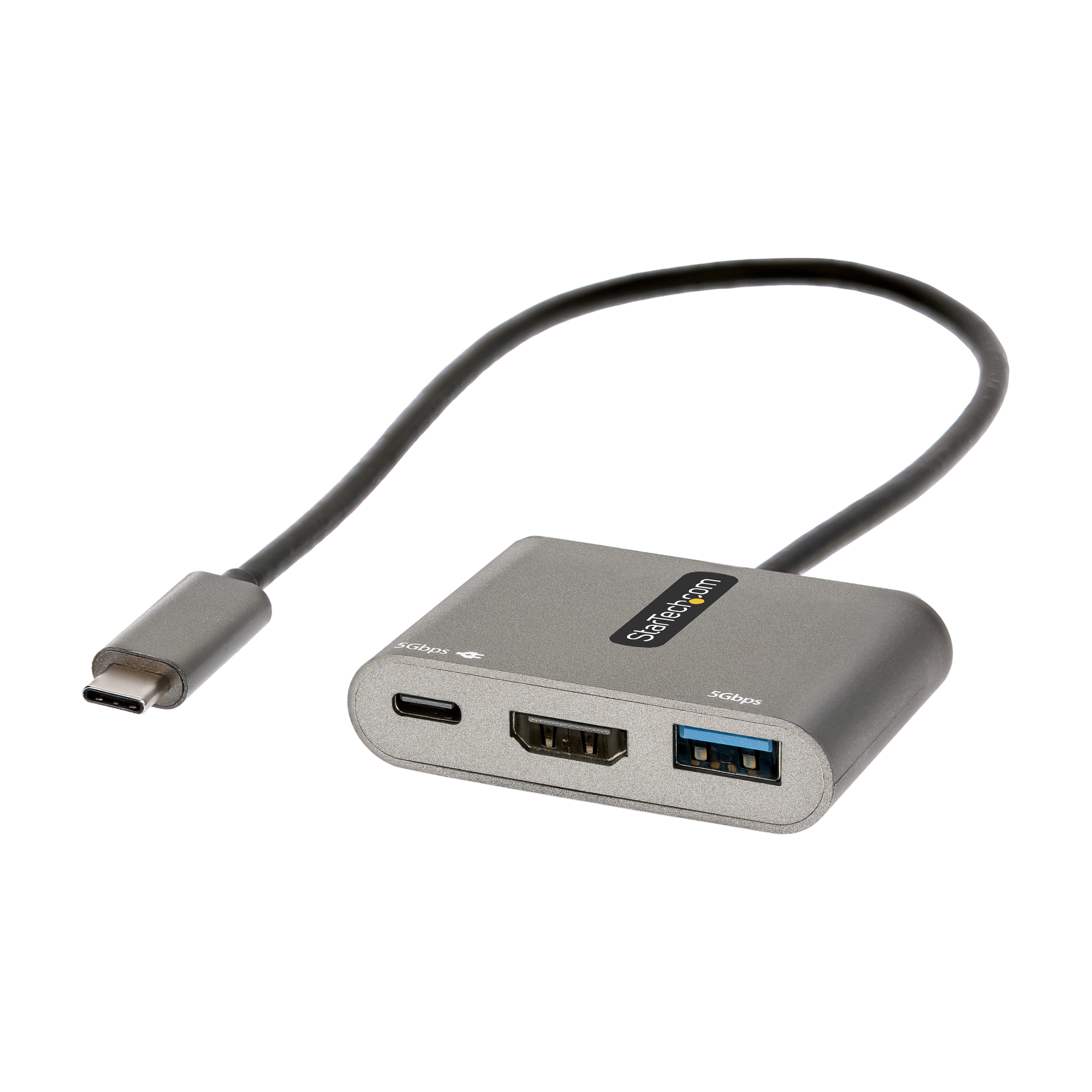

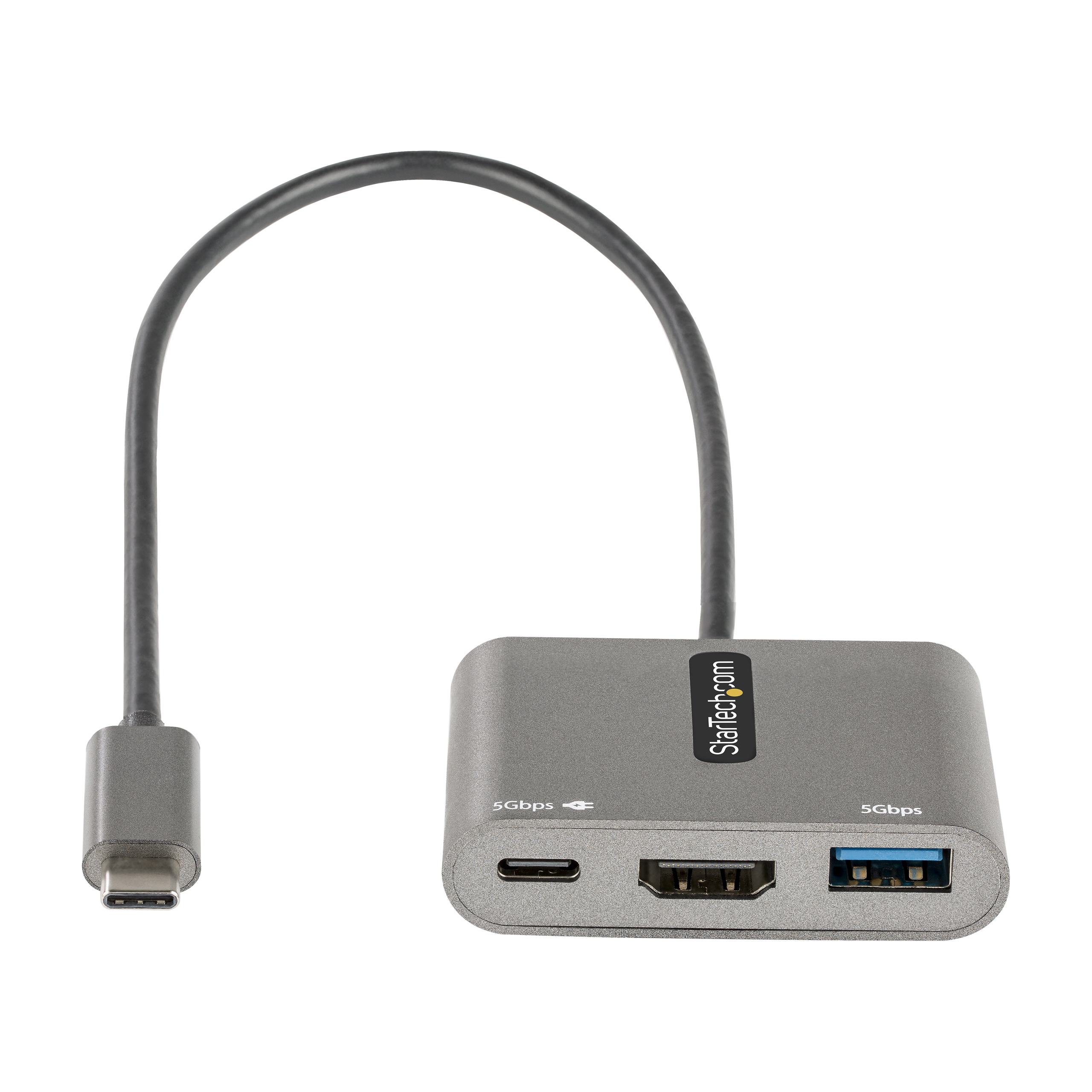

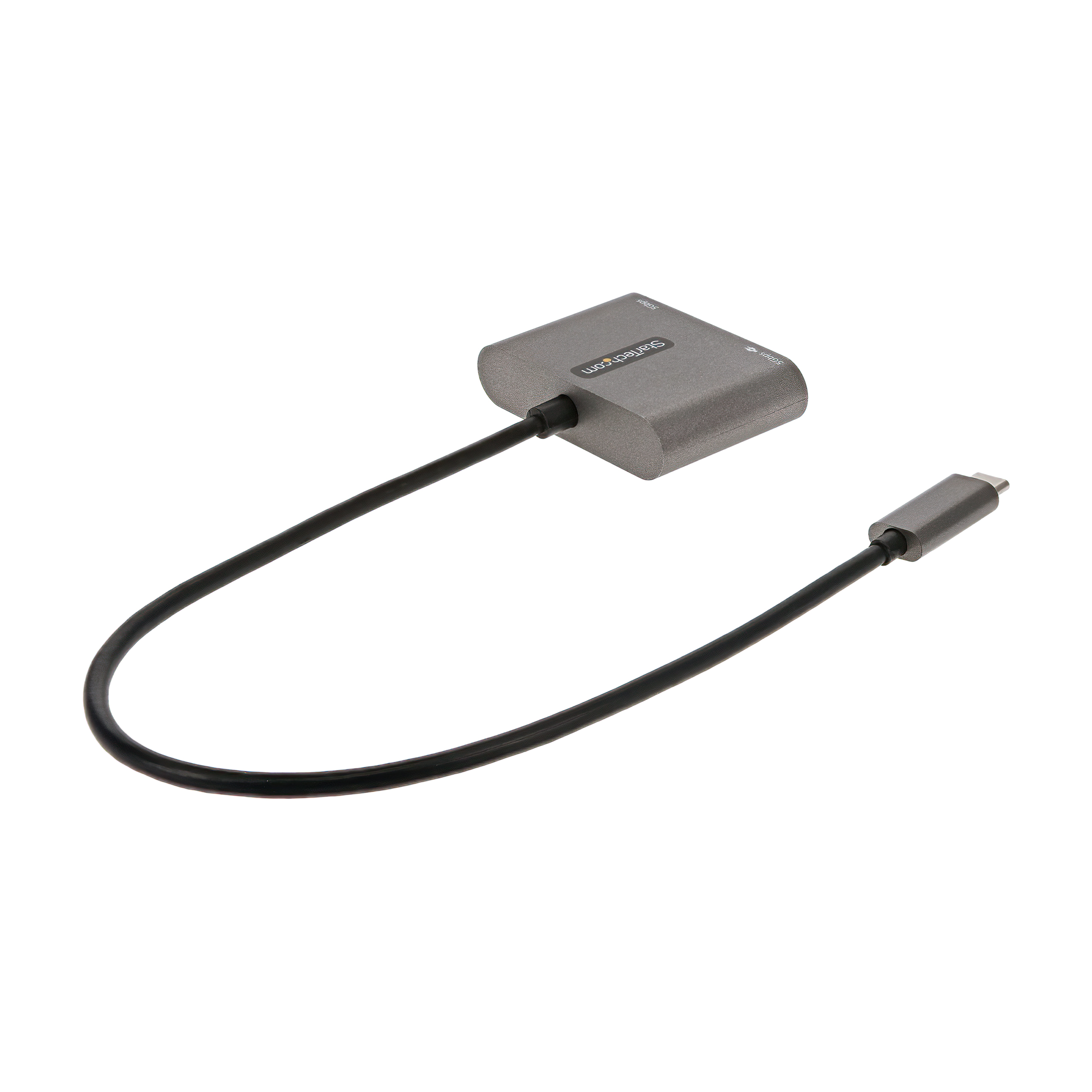

USB-C 4K HDMI Multiport - USB-A - PD

Main Image

Enhanced Images

Product Images

Product Images

Video Link YouTube

Product Name	USB-C 4K HDMI Multiport - USB-A - PD
Product Number	CDP2HDUACP2
UPC	065030892520
Lifecycle status	Active
Warranty	3 Years
Taxonomy	Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports
Category Level 1	Multiport Adapters
Category Level 2	USB-C Multiport Adapters
Category Level 3	USB-C Multiport Adapters - 5Gbps
Family	USB-C Multiport Adapters - 5Gbps - Single Video - <6 ports
Country of Origin Europe & Japan	Vietnam
Country of Origin North America	Vietnam
Country of Origin History (1)	Vietnam
Country of Origin Revision (1)	XXXXXX190X

Software https://images.salsify.com/raw/upload/s--inyjXstA--/a64ec667f59c1e59ea56d57ded0503c352e12820.html

Product Title (Ultra-Short)	Multiport Adapter
Product Title (Short)	USB C Multiport Adapter, PD, HDMI 4K
Product Title (Medium)	USB C Multiport Adapter, USB-C to HDMI 4K, PD 3.0, USB 3.0 Hub, Docking Station
Product Title (Standard)	USB C Multiport Adapter, USB-C to HDMI 4K, 100W PD Pass-Through, USB 3.0 Hub 5Gbps (1xC/1xA), USB-C Mini Dock/Travel Dock
Product Title (Long)	USB C Multiport Adapter, USB-C to HDMI 4K Video, 100W PD Pass-Through, USB 3.0 Hub 5Gbps (1xType-C/1xA), USB-C Mini Dock, USB-C Travel Dock, Portable Laptop Docking Station
Product Title (AMZ)	USB C Multiport Adapter, USB-C to HDMI 4K Video, 100W PD Pass-Through, USB 3.0 Hub 5Gbps (1xType-C/1xA), USB-C Mini Dock, USB-C Travel Dock, Portable Laptop Docking Station (CDP2HDUACP2)
Title Ingram (Part 1)	USB C Multiport Adapter, USB-C
Title Ingram (Part 2)	to HDMI 4K, PD 3.0, USB 3.0 Hub
Website Product Headline	USB-C™ Video Adapter \| 13 in. (34 cm) Attached Cable \| Mac \| Windows® \| Chrome \| Linux \| Android \| 4K 30Hz \| Thunderbolt™ 3/4 Compatible
Bullet 1	3-IN-1 MULTIPORT ADAPTER: USB C mini docking station with HDMI 4K 30Hz output, USB-A (USB 3.1 Gen 1 5Gbps & BC 1.2 charging), 1x USB-C (5Gbps Data + 100W Power Delivery 3.0); Works w/ HDMI ultra-wide monitors/displays (3440x1440)
Bullet 2	EXTRA LONG CABLE: USB-C adapter with 13in (34cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro (7+) and laptops on riser stands \| Compact, portable design for on-the-go use with travel accessories
Bullet 3	RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through w/ 8W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 92W for laptop charging
Bullet 4	WIDE DEVICE COMPATIBILITY: Compatible with USB-C laptops, tablets, phones ultrabooks & Chromebooks, plus Thunderbolt 3 & 4 laptops like MacBook Pro/Air, HP EliteBook, Dell XPS/Latitude, Lenovo Thinkpad X1 & Surface Laptop 3/Book 3
Bullet 5	EASY DEPLOYMENT: USB Type-C multiport adapter hub w/ automatic driver installation & supports Windows, macOS, Chrome OS, Linux and Android; Auto driver setup
Bullets (Compact)	USB C multiport travel adapter w/HDMI 4K 30Hz video - 13in cable - USB-A 5Gbps/USB-C for PD charging - Mini dock hub w/100W PD 3.0 - USB Type-C laptop power adapter or bus power docking station - TB3/4 Compatible - Windows/Mac/Chrome/iPad/Android OS
Bullets (Consolidated)	USB C multiport adapter w/HDMI 4K 30Hz video - 1x USB-A 3.2 Gen 1 5Gbps (BC 1.2) \| 1x USB-C (5Gbps Data or 100W PD) - 100W Power Delivery 3.0 Passthrough (8W for dock/92W charging) w/USB Type-C laptop power adapter or bus power - Portable/travel USB C mini docking station for USB-C tablets/phones/ultrabooks/laptops incl l Chromebooks/MacBook/EliteBook/Dell XPS/Latitude/Lenovo - TB3/TB4 compatible - Windows/Mac/Chrome/iPad/Android - Upgraded Version of CDP2VGA with 13" cable for extended reach
Marketing Copy
Marketing Copy (No HTML)
Applications	Fits easily into your laptop bag, making it ideal for on-the-go use as a travel accessory Provides a high-resolution 4K screen to maximize your productivity when multi-tasking using an HDMI desktop monitor Connect to an HDMI projector or TV in a boardroom or other meeting space, to deliver presentations on a shared screen
Website Search Keyword	4K HDMI adapter apple accessories apple usb c dell adapter dell mini dock usb c dell usb c adapter dell usb c dock Dell usb c mini dock Dell usb c multiport adapter Dell usb c travel dock dell xps 13 accessories hdmi adapter hdmi port HP usb c multiport adapter laptop docking station macbook adapter usb-c macbook pro accessories macbook pro adapter macbook pro dongle macbook pro hdmi adapter macbook pro mini dock macbook pro multiport adapter macbook pro usb c adapter macbook pro usb c multiport adapter macbook usb c adapter MacBook usb c multiport adapter mini usb c dock mobile laptop docking station multi port adapter portable docking station portable docking station for laptop travel dock travel docking station for laptops usb c accessories for macbook usb c adapter usb c adapter with charging usb c dock usb c docking station usb c dongle usb c hdmi adapter usb c hdmi multiport adapter usb c hub usb c mini dock usb c mini docking station usb c multiport usb c multiport adapter usb c multiport adapter with hdmi usb c to 4k hdmi usb c to 4k hdmi adapter usb c to hdmi usb c to hdmi 4k adapter usb c to hdmi adapter 4k usb c to hdmi and usb usb c to hdmi and usb adapter usb c to hdmi multiport adapter usb c to usb usb c to usb 3.0 hub usb c to usb adapter usb c to usb hub usb c travel dock usb c video adapter usb port expander usb type c adapter usb type c docking station usb type c laptop dock usb type c mini dock usb type c multiport adapter usb type c to hdmi adapter USB Type-C to hdmi adapter usb video adapter usb-c dock usb-c hdmi USB-C to hdmi adapter usb-c to usb usb-c to usb 3.0 usb-c to usb adapter usb-c to usb-a cable matters usb c to hdmi plugable usb c mini laptop docking station thunderbolt 3 usb c adapter usb c thunderbolt adapter

Required Regulatory Compliance Marks

RCM - EMC/EMI - Australia/New Zealand - RCM Mark
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device

Special Notes

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
USB 3.0 is also known as USB 3.1 Gen 1, and 3.2 Gen 1; this connectivity standard offers speeds up to 5Gbps.

System and Cable Requirements

A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery and DP alt mode).
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).

Accessory Products	HDMM1 HDMM3 HDMMV3M HDMM8 HDMM10 HDMM12 HDMM15 UUSBHAUB1 UUSBHAUB3 UUSBHAUB6 UUSBHAUB10 WCH1C WCH1CEU WCH1CUK RUSB2CC1MB RUSB2CC2MB RUSB2AC1MB RUSB2AC2MB RUSBLTMM1MB RUSBLTMM2MB RUSBLTMM1M RUSBLTMM2M HDMMV2M HDMMV1M
Related Products	CDP2HDUACPW DKT30CHVW DKT30CHV CDP2HDUACP DKT30CHD DKT30CHPDW DKT30CDVPD DKT30CHPD DKT30CSDHPD MST30C2DPPD DKT30CSDHPD3

Power Consumption (In Watts) 8W
Power Delivery 100W
Power Source Bus Powered and Host USB-C Power Adapter

Cable Length (mm)	340
Color	Gray
Humidity	10~85% RH (Non-condensing)
Material	Plastic
Operating Temperature	0°C to 45°C (32°F to 113°F)
Product Length (mm)	60.000
Product Width (mm)	40.000
Product Height (mm)	14.000
Product Weight (g)	33
Storage Temperature	-10°C to 70°C (14°F to 158°F)
TAA Compliant	No

Downstream Maximum Data Transfer Rate	USB 3.2 Gen 1 (5Gbps)
Maximum Data Transfer Rate	5 Gbps (USB 3.0)
Maximum Digital Resolutions
Maximum Supported Resolution	4K 30Hz (3840x2160)
OS Compatibility	OS Independent
StarTech.com Connectivity Tools	MAC Address Changer USB Event Monitoring Windows Layout Wi-Fi Auto Switch
USB Speed	USB 3.2 Gen 1 (5Gbps)
USB Type and Rate	USB 3.0 (5Gbps)
Video Output Port	HDMI
Video Transport Technology	USB-C (DP Alt-Mode)

Bus Type	USB-C
Chipset ID	VIA/VLI - VL817 VIA/VLI - VL103 Parade - PS176
Host Connection Port	USB-C
Industry Standards	USB 3.0 - Backward compatible with USB 2.0 and 1.1 HDMI 1.4
Laptop Dock 4K Support	Yes
Laptop Dock Number of Displays	1
Number of Displays	1
Other Ports	USB-A BC 1.2 Fast Charge

Carton Depth (mm)	330
Carton Height (mm)	310
Carton Quantity	60
Carton Weight Gross (g)	6000
Included in Package	1 - USB-C Multiport Adapter
Included In Package for Label	1 - USB-C Multiport Converter
Package Depth (mm)	174
Package Height (mm)	32
Package Width (mm)	144
Package Quantity	1
Package Weight (g)	84
Packaging Description	USB-C 4K HDMI Multiport Adapter - USB-A - PD
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Amazon Merchandising Manager	Veronica Ye
Artwork Due Date	2021-04-15
Buying Center - AV & Collaboration	Yes
Buying Center - Data Center	No
Buying Center - End User Compute	Yes
Buying Center - Networking & Edge	No
Digital Content Due Date	2021-07-23
Enhanced Gallery Designer	Rob Selenis
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
ID Label Silkscreened or a Label	Silkscreened label - requires dieline showing location
Launch Markets (concatenated)	AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US
Primary Technology	HDMI 1.4 / 1080p or 4K 30Hz Power Delivery
Product Development Specialist	Abhinav Pathak
Product Information Creation Specialist (PICS)	Dan Dagenais
Product Manager	Natalie Goodale
Product Performance Specialist	John Mardinly
Product Photographer	Caleigh Le Grand
Target Development Completion Date	2021-03-08
Target Production Release	2021-04-06
Tech Lead	Sam Raskas
Technical Writer	Brian Chan
Technology Lifecycle	Mainstream

Power Consumption (In Watts)	8W
Power Delivery	100W
Power Source	Bus Powered and Host USB-C Power Adapter
