CDP2MDPMM6B

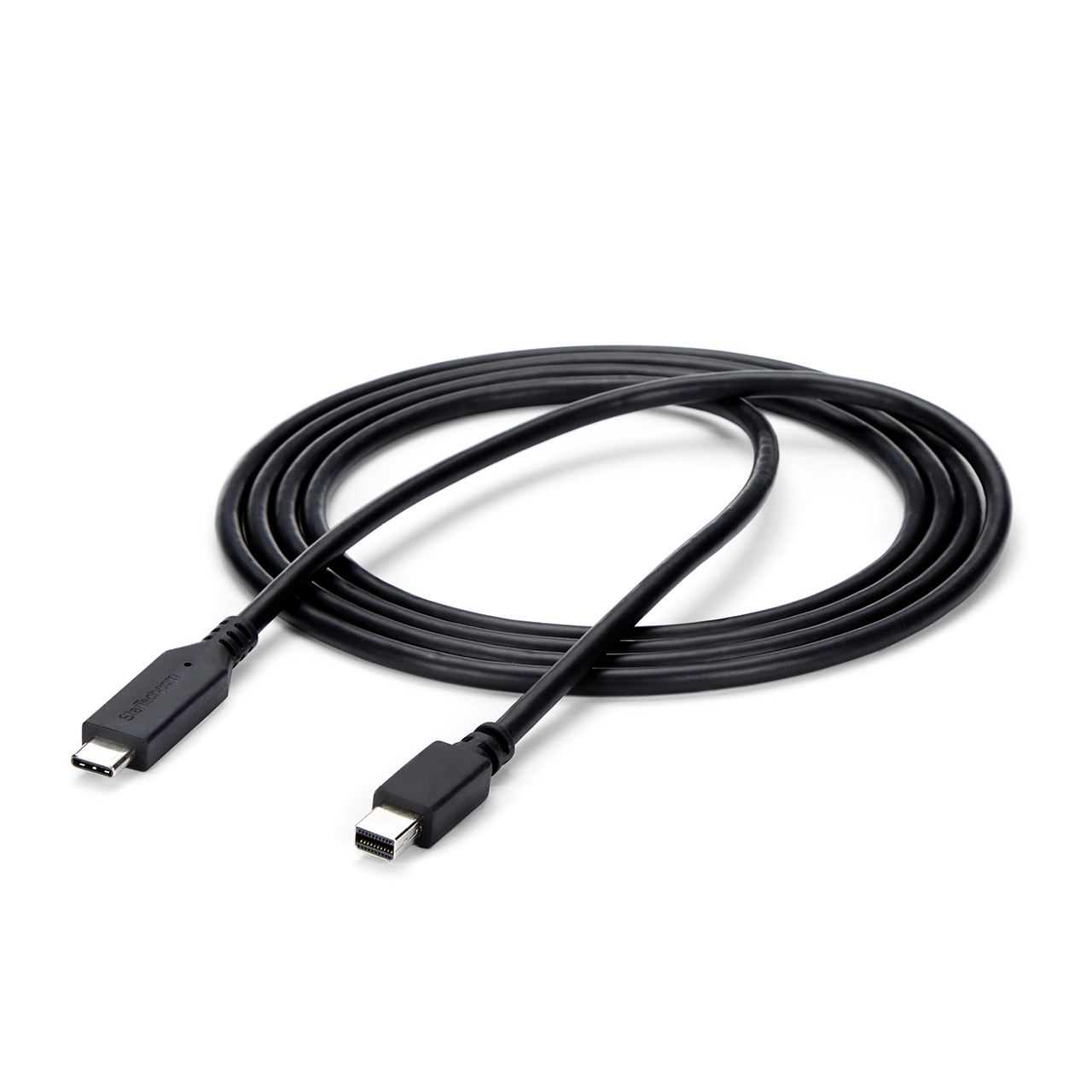

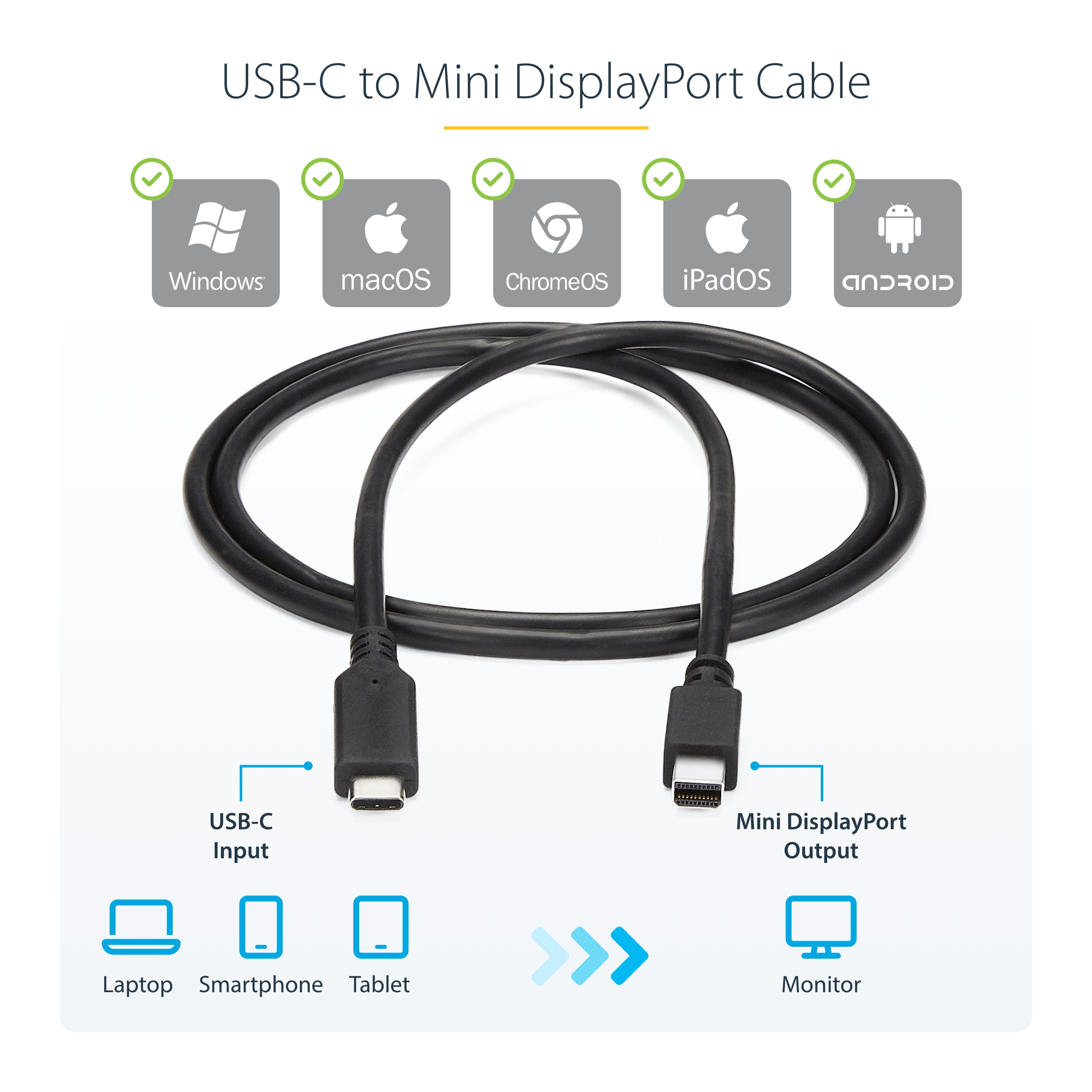

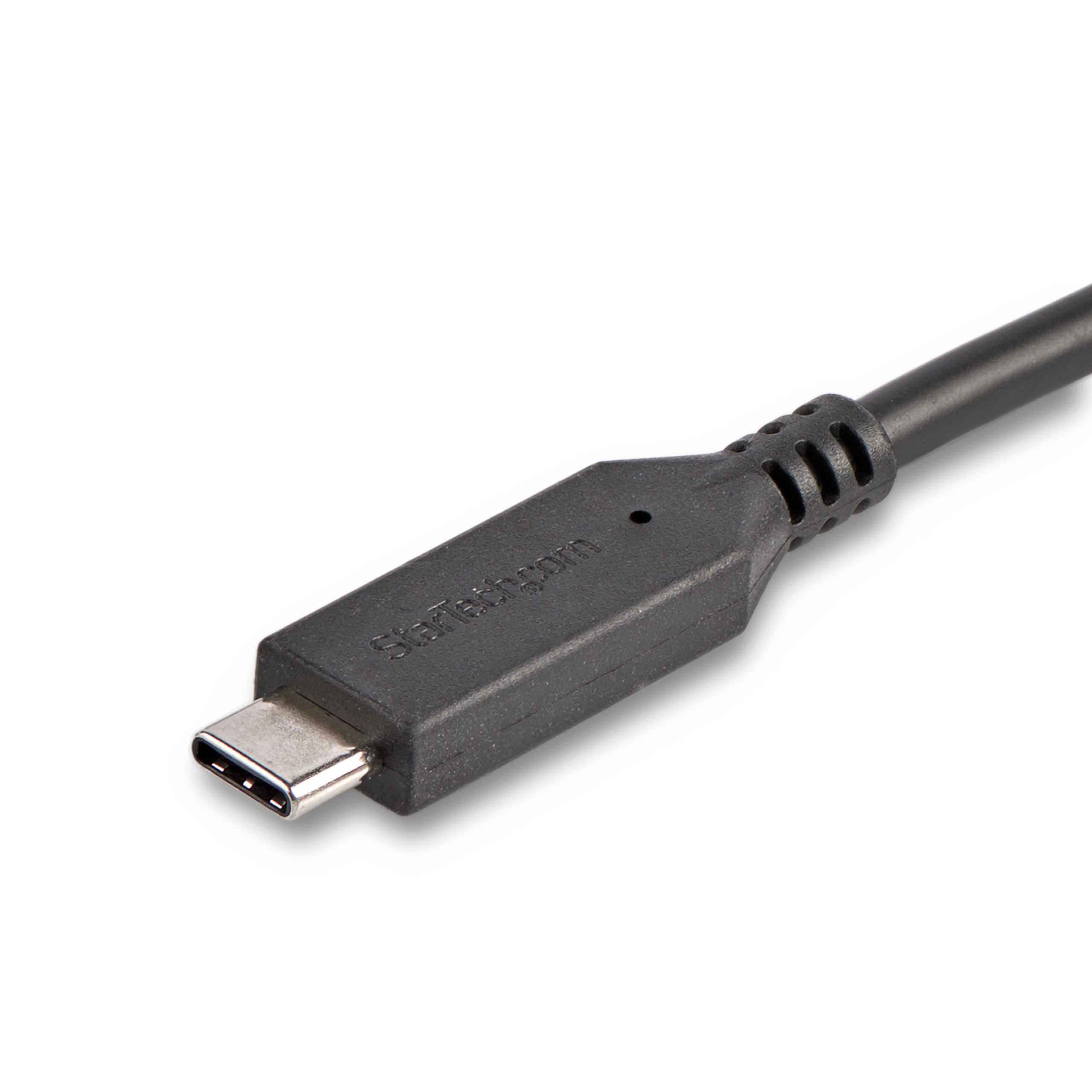

USB C to mDP cable 1 8m
Mini DP Adapter Cable | Thunderbolt™ 3 Compatible | USB 3.1 Type-C™
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB C to mDP cable 1 8m Product Number CDP2MDPMM6B UPC 065030878722 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C to DP Family USBC to mDP 1.2 Adapter Cables, DP Alt Mode, 4K60 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) USBC to mDP Cable 4K Product Title (Short) Adapter Cable - USB-C to mDP - 4K 60Hz Product Title (Medium) 6 ft. (1.8 m) USB-C to Mini DisplayPort Cable - 4K 60Hz - Black - mDP Adapter Product Title (Standard) 6 ft. / 1.8 m USB-C to Mini DisplayPort Cable - 4K 60Hz - Black - USB 3.1 Type-C to Mini DP Adapter Cable - mDP Cable Product Title (Long) 6ft (1.8m) USB-C to Mini DisplayPort Cable - 4K 60Hz - Black Product Title (AMZ) 6ft / 2m USB-C to Mini DisplayPort Cable - 4K 60Hz - Black - USB 3.1 Type C to mDP Adapter (CDP2MDPMM6B) Title Ingram (Part 1) USB-C to Mini DisplayPort Cable Title Ingram (Part 2) 6 ft / 1.8 m - USB C to mDP - 4K Website Product Headline Mini DP Adapter Cable | Thunderbolt™ 3 Compatible | USB 3.1 Type-C™ Bullet 1 ADAPTER AND CABLE IN ONE: This USB-C to Mini DP cable lets you connect your Thunderbolt 3, Thunderbolt 4 or USB-C computer to a Mini DisplayPort (mDP) monitor with just one cable Bullet 2 THUNDERBOLT 3 AND USB-C COMPATIBLE: USB-C to mDP cable works with Thunderbolt 3 / 4 computers and USB Type-C ports supporting video; Please check with your computer manufacturer to confirm video over USB-C (DP Alt mode) support Bullet 3 NOTE: This is not a Thunderbolt cable, not reversible and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; This cable connects a USB-C or Thunderbolt 3/4 laptop to a monitor with Mini-DisplayPort Bullet 4 4K 60HZ RESOLUTION: USB-C to Mini DisplayPort Cable Adapter delivers UHD picture quality with support for video resolutions up to 4K 60Hz; It's also backwards compatible with 1080p monitors or displays Bullet 5 HASSLE-FREE SETUP: This USB Type-C to Mini DP adapter cable supports plug-and-play installation on both Windows and Mac computers; No driver installation required Bullets (Compact) USB-C to Mini DisplayPort cable and adapter in one - USBC to mDP cable supports resolutions up to 4K 60Hz - Black cable matches your black USBC Ultrabook or laptop - mDP cable works with Thunderbolt 3 ports and USB C ports that support DP Alt Mode Bullets (Consolidated) 6 ft./1.8 m USB-C to Mini DisplayPort adapter and cable in-one avoids the hassle of a bulky adapters for clutter free installation - USB 3.1 Type C to Mini DP adapter cable supports UHD resolutions up to 4K 60Hz - Mini DP adapter cable works with Thunderbolt 3 ports and USB 3.1 Type-C ports that support DP Alt Mode - Mini DP cable features reversible USB C port for hassle-free installation - Black 6 foot/1.8 meter mDP adapter cable matches your black USBC Ultrabook or laptop Marketing Copy Marketing Copy (No HTML) Applications - Connect your MacBook or USB-C device to an mDP monitor
- Experience crisp visuals with support for 4K 60Hz
- Ideal for home office or hot desk environments
- Deliver enriched presentations on the go
Website Search Keyword - usb 3.1 type c to mini dp adapter cable
- usb c to mdp
- usb c to mini displayport
- usb c to mini displayport cable
- usb c to mini dp
- usb c to mini dp cable
- USB Type C to Mini DisplayPort
- usb type c to mini displayport cable
- USB-C to Mini DisplayPort
- USB-C to Mini DisplayPort Cable
- U444-006-MDP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device

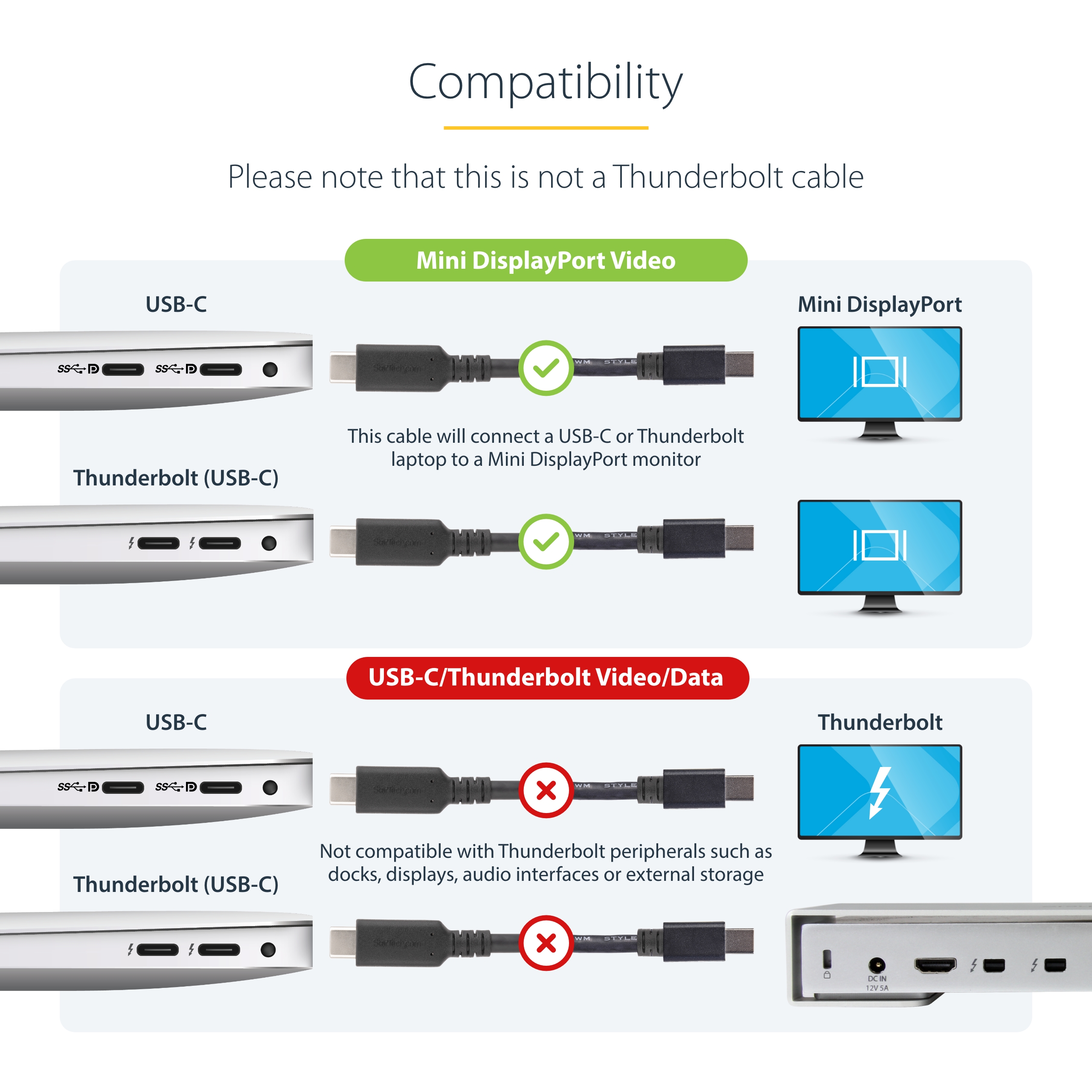

Special Notes Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. Related Products - CDP2DPMM3MW
- CDP2DPMM6B
- CDP2HDMM1MB
- CDP2HDMM2MB
- CDP2VGAMM1MB
- CDP2VGAMM2MB
- CDP2HD4K60
- CDP2HD
- CDP2HDW
- CDP2VGA
- CDP2VGAW
- CDP2DPMM1MW
- CDP2DPMM6W
- CDP2MDP
Power Delivery No PD Pass-Through Cable Length (mm) 1830 Color Black Humidity 25%-60%RH Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 200.000 Product Width (mm) 10.000 Product Height (mm) 7.000 Product Weight (g) 52.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications DisplayPort - 5.1 Channel Audio HDR Support No Maximum Digital Resolutions 3840x2160 @ 60 Hz Maximum Supported Resolution 4K 60Hz (3840x2160) Supported Resolutions 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840x2160 (Ultra HD 4K) Video Output Port Mini DisplayPort Wide Screen Supported Yes AV Input USB-C AV Output Mini DisplayPort - 1.2 Chipset ID STMicroelectronics - STM32F072CBU6 Converter Type Cable Adapters Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 511 Carton Height (mm) 233 Carton Quantity 60 Carton Weight Gross (g) 4688 Included in Package 1 - USB-C to Mini DisplayPort cable Included In Package for Label 1 - USB-C To Mini Displayport Cable Number of Sub-Cartons 6 Package Depth (mm) 198 Package Height (mm) 17 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 62 Packaging Description USB-C™ to Mini DisplayPort Adapter Cable - 1.8 m Packaging Description India USB-C™ to Mini DisplayPort Converter Cable - 1.8 m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 624 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 Mini DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-11-22 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-12-15 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-11-02 Target Production Release 2017-11-24 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Mainstream
