4-in-1 Video Converter - USB C to VGA DVI HDMI mDP
USB Type-C™ to VGA DVI HDMI or mDP Travel Adapter | Wrap-Around Cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 4-in-1 Video Converter - USB C to VGA DVI HDMI mDP Product Number CDPVGDVHDMDP UPC 065030863094 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 USB-C Travel Adapters Family USBC to Multiport Display Adapters, DP Alt Mode, 4K60 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) 4-in-1 USB-C Adapter Product Title (Short) USB C to HDMI/VGA/mDP/DVI Video Adapter Product Title (Medium) USB-C Multiport Video Adapter - 4-in-1 USB-C Video Adapter - Silver - 4K 30Hz Product Title (Standard) USB C Multiport Video Adapter 4K/1080p - USB Type C to HDMI, VGA, DVI or Mini DisplayPort Monitor Adapter - Silver Aluminum Product Title (Long) USB C Multiport Video Adapter with HDMI, VGA, Mini DisplayPort or DVI - USB Type C Monitor Adapter to HDMI 1.4 or mDP 1.2 (4K) - VGA or DVI (1080p) - Silver Aluminum Product Title (AMZ) USB C Multiport Video Adapter with HDMI, VGA, Mini DisplayPort or DVI - USB Type C Monitor Adapter to HDMI 1.4 or mDP 1.2 (4K) - VGA or DVI (1080p) - Silver Aluminum (CDPVGDVHDMDP) Title Ingram (Part 1) USB-C Multiport Video Adapter Title Ingram (Part 2) - USBC/HDMI/VGA/DVI/mDP - Silver Website Product Headline USB Type-C™ to VGA DVI HDMI or mDP Travel Adapter | Wrap-Around Cable Bullet 1 4-IN-1 MULTIPORT USB-C VIDEO ADAPTER: USB-C DP Alt Mode to any one of HDMI 1.4 (4K 30Hz & 7.1ch audio), mDP 1.2 (4K 60Hz & 2ch audio), VGA or DVI (1080p), HDCP 2.2/1.4, Thunderbolt 3 compatible Bullet 2 TOUGH & PORTABLE: Durable aluminum Silver enclosure with a magnetically-secured hideaway cable wrap for on-the-go users in the office, at home, boardrooms, and classrooms Bullet 3 COMPATIBILITY: USB-C display adapter for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface 3, HP EliteBook/Spectre/ZBook, Chromebooks, TB3 MacBook Pro/Air [Note: The VGA output does not work with M1 based MacBook hosts] Bullet 4 TESTED & VERIFIED: USB Type-C adapter tested @ 4K mini DisplayPort (60Hz)/HDMI (30Hz) or 1080p VGA/DVI with TV, monitor & projector brands like Dell, Asus, Acer, LG, Samsung, Sharp, Sony, Epson Bullet 5 EASY TO USE: Supporting a driverless plug-and-play setup, this adapter is fully compatible with multiple OS platforms: Windows / macOS / Linux / Chrome OS Bullets (Compact) 4-in-1 USB Type C multiport video adapter to one 4K HDMI (30Hz)/mini DisplayPort (60Hz) or 1080p VGA/DVI monitor/display / HDCP 2.2/1.4 / Thunderbolt 3 Compatible - Silver Aluminum - Works w/ Dell Lenovo Surface MacBook HP Chromebook - No Drivers Bullets (Consolidated) 4-in-1 multiport USB-C video adapter to any one of HDMI 1.4 (4K 30Hz) or Mini DisplayPort 1.2 (4K 60Hz) | VGA or DVI (1080p) | HDCP 2.2/1.4 - Portable and durable aluminum Silver housing w/ magnetic hideaway cable - For USB Type C/Thunderbolt 3 laptops like Dell XPS Precision Latitude/Lenovo ThinkPad X1 Carbon Extreme/Surface Laptop 3 Book 3/MacBook Pro Air/HP EliteBook Spectre ZBook/Chromebooks - Tested w/ range of displays/monitors/projectors - No Drivers Windows macOS Linux Chrome OS Marketing Copy Marketing Copy (No HTML) Applications - Connect to virtually any display while traveling
- Connect your BYOD MacBook to a VGA, DVI, HDMI or mDP display at work or school
- Connect a secondary VGA, DVI, HDMI or mDP monitor to your MacBook
Website Search Keyword - 4-in-1 Apple Travel A/V Adapter
- 4-in-1 Travel A/V Adapter
- 4k
- Apple Macbook 2015
- Apple Travel A/V Adapter
- dvi
- hdmi
- home office
- Macbook 2015
- mini displayport
- travel
- Travel A/V Adapter
- usb c
- usb c to dvi
- usb c to hdmi
- usb c to mdp
- usb c to mdp vga dvi hdmi
- usb c to mdp vga dvi hdmi adapter
- usb c to mdp vga dvi hdmi converter
- usb c to mini displayport
- usb c to vga
- usb type c
- usb type c to mdp vga dvi hdmi
- usb type c to mdp vga dvi hdmi adapter
- usb type c to mdp vga dvi hdmi converter
- vga
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - Maximum Cable Distance to Display refers to digital video. VGA distance capabilities are dependent upon the quality of your cabling
- The VGA output does not work with M1, M1 PRO, and M1 MAX MacBook hosts
System and Cable Requirements Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- HDMM25
- DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- DVIDDMM25
- MDP2DPMM3
- MDP2DPMM6
- MDP2DPMM10
- MDP2DPMM1MW
- MDP2DPMM2MW
- MDP2DPMM3MW
- MDP2DPMM4M
- MDISPLPORT3
- MDISPLPORT6
- MDPMM1MW
- MDPMM2MW
- MDPMM3MW
Related Products - MDPVGDVHD4K
- MDP2VGDVHD
- MDP2DPDVHD
- MDP2VGDVHDW
- MDP2HDVGA
- MDP2HDVGAW
- DP2VGDVHD
- DP2HDVGA
- CDPVDHDMDPSG
- CDPVDHDMDPRG
Power Delivery No PD Pass-Through Cable Length (mm) 110 Color Silver Humidity 40%-50%RH Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 105 Product Width (mm) 55 Product Height (mm) 15 Product Weight (g) 108 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications - HDMI - 7.1 Channel Audio
- VGA - No Audio Support
- Mini DisplayPort - 5.1 Channel Audio
- DVI - No Audio Support

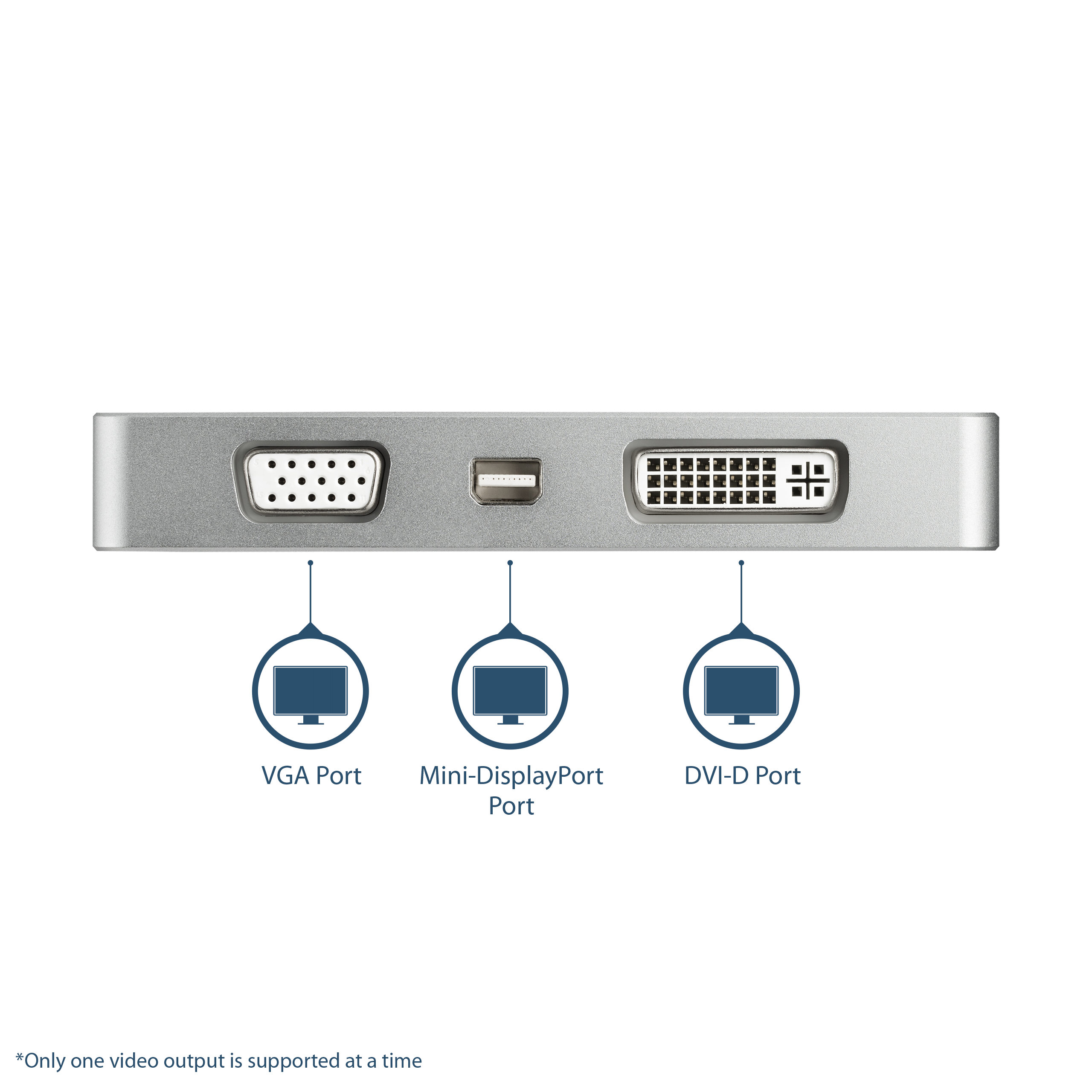

General Specifications Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. HDR Support No Maximum Analog Resolutions 1920 x 1200 @ 60Hz Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 3840 x 2160 @ 30Hz Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 654,111 hours OS Compatibility OS Independent Supported Resolutions Video Output Port - DVI
- HDMI
- Mini DisplayPort
- VGA
Wide Screen Supported Yes Active or Passive Adapter Active AV Input USB-C AV Output - DVI-I (Digital Only) - Single-Link
- VGA
- Mini DisplayPort - 1.2
- HDMI - 1.4
Chipset ID Converter Type Travel A/V Adapters Host Connection Port USB-C Number of Displays 1 Carton Depth (mm) 481 Carton Height (mm) 443 Carton Quantity 70 Carton Weight Gross (g) 13448 Included in Package 1 - travel A/V adapter Included In Package for Label 1 - Travel A/V Converter Package Depth (mm) 145 Package Height (mm) 32 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 174 Packaging Description 4-in-1 Travel A/V Adapter for Computers with USB-C™ - 4K Packaging Description India 4-in-1 Travel A/V Converter for Computers with USB-C™ - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 Mini DisplayPort Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 DVI-D Dual-Link (25-Pin) Connector 4 (Quantity) 1 Connector 5 HDMI Connector 5 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-02-26 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-05-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2016-04-01 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Mainstream
