CEILING24
Main Image

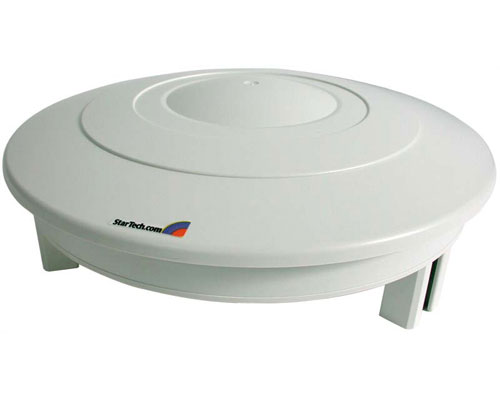

Product Name 6dBi Ceiling Mounted 2.4 GHz WLAN Indoor Product Number CEILING24 UPC 065030803793 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 6dBi Ceiling mounted 2.4 GHz WLAN indoor antenna Bullet 1 Indoor Omni-directional wall mount antenna with 6dBi Gain Bullet 2 Works with all 802.11b and 802.11g wireless devices Bullet 3 Designed for 2.4 GHz radio frequency Bullet 4 Comes complete with mounting brackets and antenna cable Bullet 5 Easy installation and setup Marketing Copy Give your wireless network a boost! StarTech.com’s CEILING24 is an omni-directional ceiling mount antenna that instantly expands wireless network coverage for your 802.11b and 802.11g devices. It’s perfect for extending roaming range for wireless users on different floors. Ideal for office buildings, schools, campus buildings, warehouses and hotels. The High-Gain 2.4 GHz antenna mounts easily to a ceiling, wall, cabinet, or glass surface. Includes antenna cable and mounting brackets for quick set up. Boost productivity and efficiency by making your wireless network more accessible with the CEILING24. Backed by StarTech.com’s 2 year warranty and FREE LIFETIME tech support. Applications - Ideal for classrooms, campus buildings, conference rooms, factory, warehouse and hotels
- Works with StarTech.com’s Wireless Router, Access Point and Network Cards
- Antenna can easily be mounted on a wall, ceiling, glass or a cabinet
Color Beige Product Width (mm) 220 Product Height (mm) 65 Product Weight (g) 140 TAA Compliant No General Specifications - Gain: 6dBi
- Frequency: 2.4~2.5 GHz
- Direction: Omni
- Beamwidth: 360 H-plane & 70 E-plane
- VSWR across Band: 1.5 Max
- Impedance: 50 ohm
- Polarization: Vertical and Linear
- Radome: ABS (UV Resistant)
- Connector: RP-SMA (female)
- Dimension: 220 x 65 mm
- Weight: 140grams
Impedance (Ohm) 50 Ohm Carton Depth (mm) 260 Carton Height (mm) 260 Carton Quantity 8 Carton Weight Gross (g) 6000 Package Depth (mm) 76 Package Height (mm) 218 Package Width (mm) 234 Package Weight (g) 600 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
