CF2IDE18

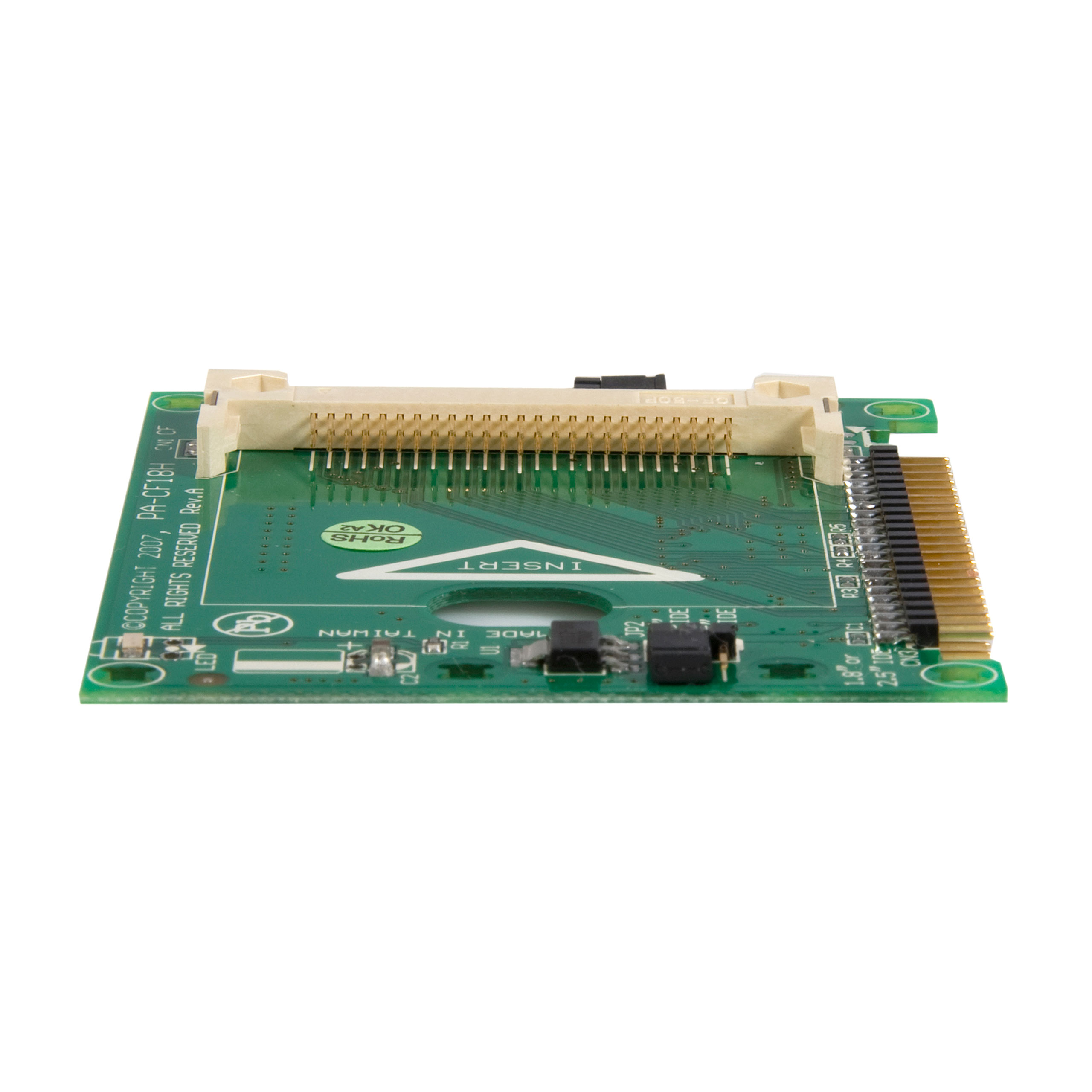

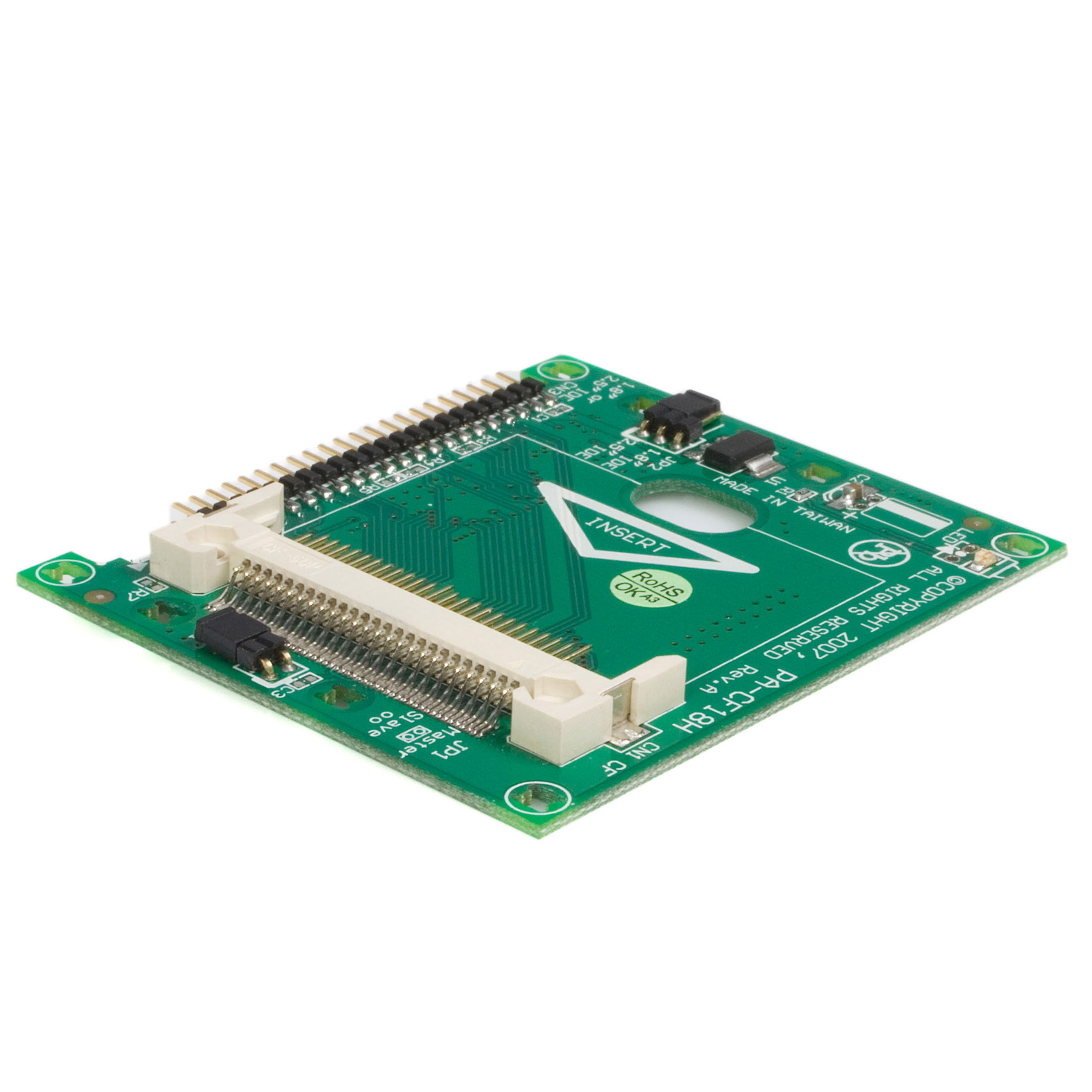

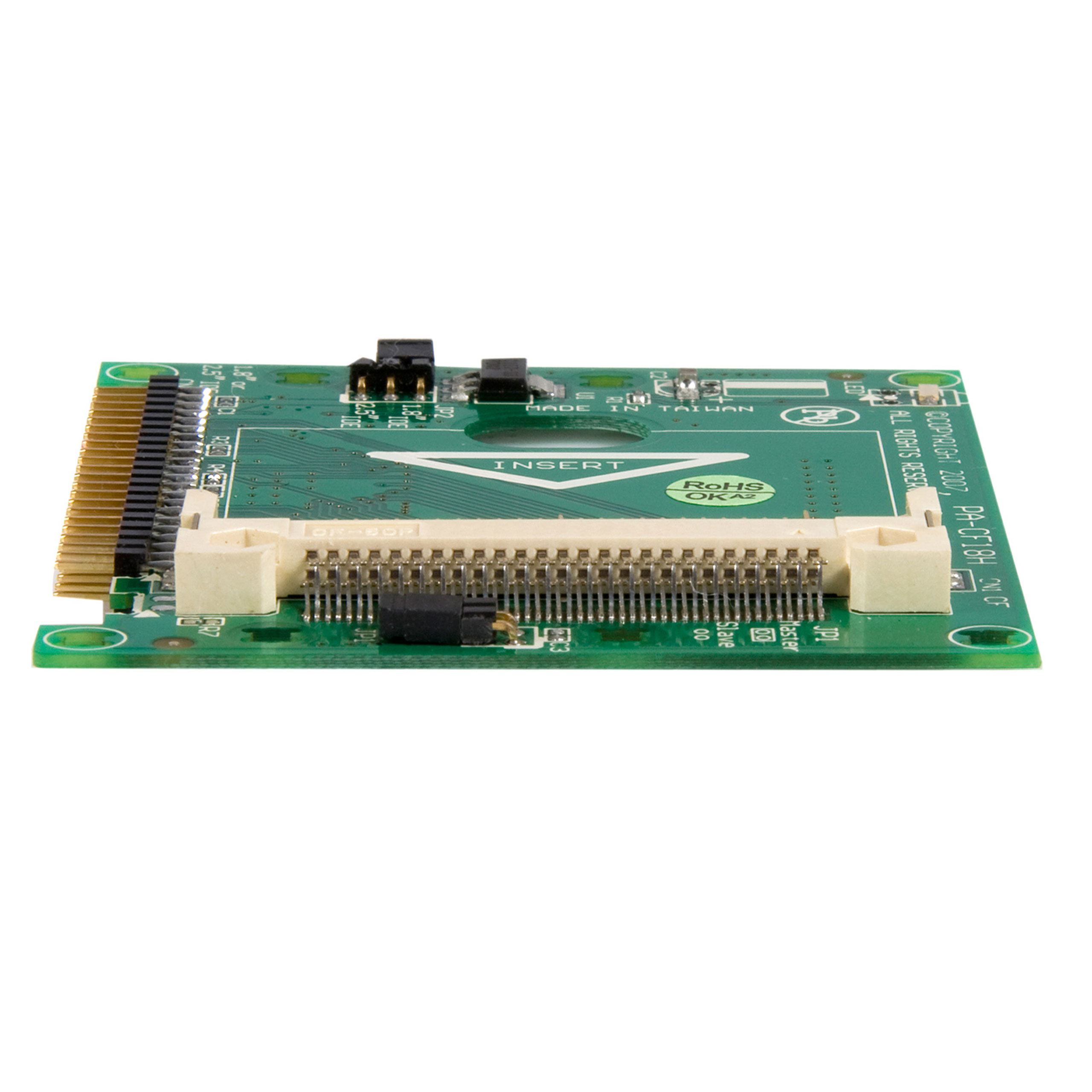

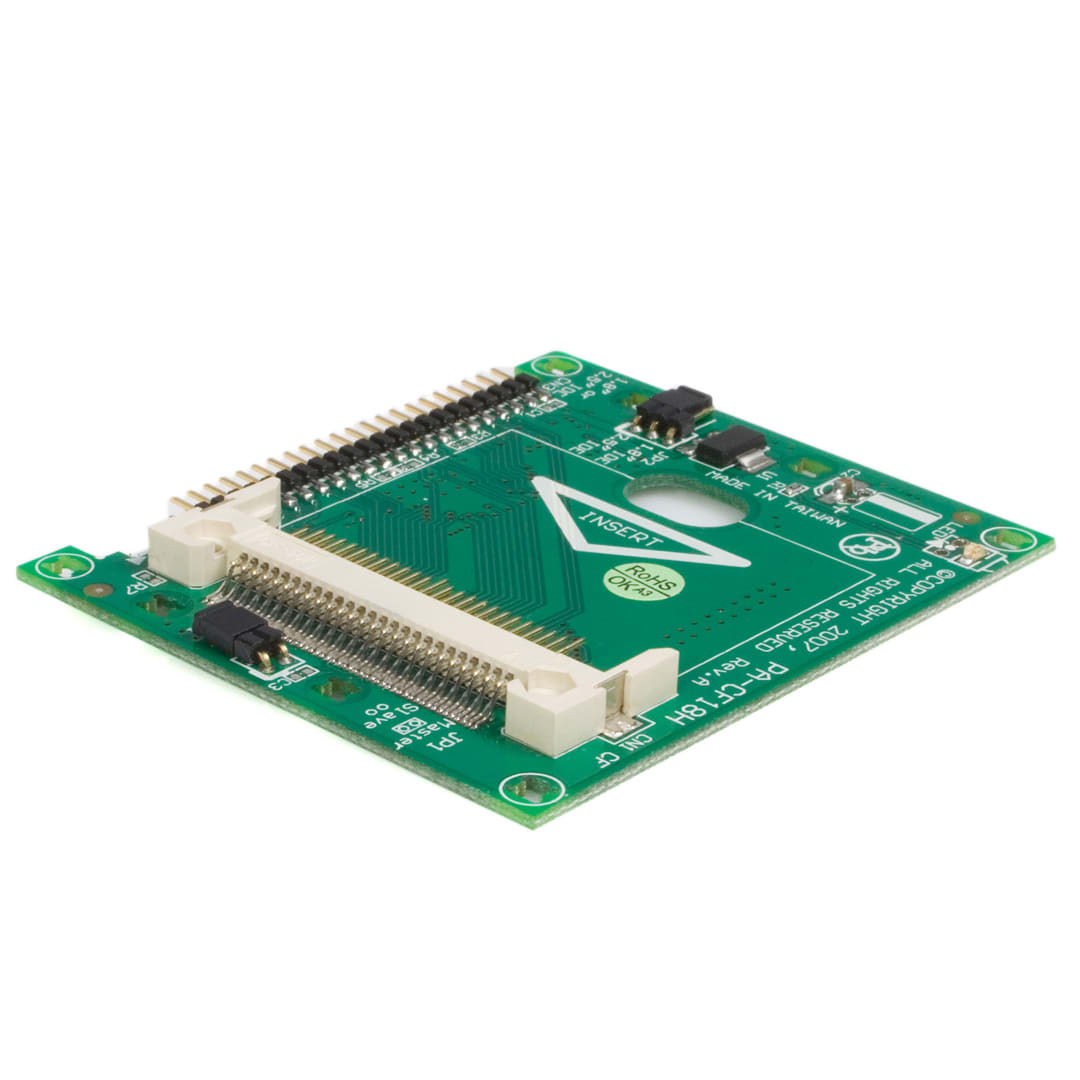

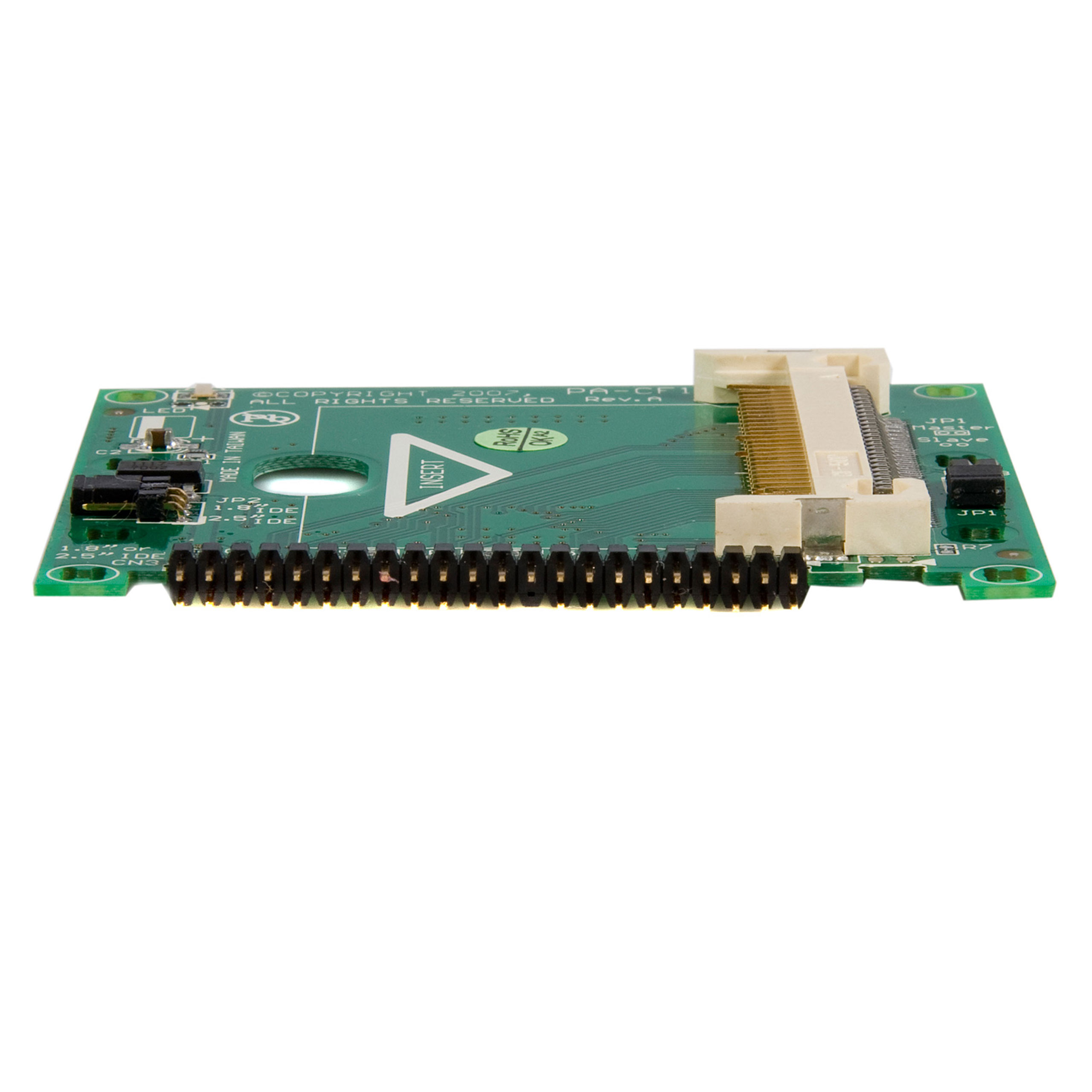

1.8" IDE to Compact Flash (CF) Adapter
Convert a CompactFlash card into a 1.8in IDE SSD
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1.8" IDE to Compact Flash (CF) Adapter Product Number CF2IDE18 UPC 065030828055 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 1.8in IDE to Single CF SSD Adapter Card Product Title (Standard) StarTech.com 1.8" IDE to Compact Flash (CF) Adapter card - CompactFlash Card adapter - IDE Product Title (Long) 1.8in IDE to Single Compact Flash SSD Adapter Card Title Ingram (Part 1) 1.8in IDE to Single Compact Flas Title Ingram (Part 2) h SSD Adapter Card Website Product Headline Convert a CompactFlash card into a 1.8in IDE SSD Bullet 1 Compact Flash (CF) can be used as a 1.8" Hitachi or a 2.5" IDE adapter Bullet 2 Compatible with CF I/II, Micro Drive Bullet 3 A true IDE interface Bullet 4 All-in-one on board solution takes care of conversion. No software/drivers or cables required Bullet 5 LED's to indicate activity Marketing Copy Applications - Ideal for system builders and testers requiring a convenient way to swap drives and operating systems
- Use a compact flash card as a bootable IDE hard drive
Website Search Keyword - IDE 44-PIN to Compact Flash
- CF
- 1.8"
- IDE
- ssd
- solid state
- solid state drives
- solid state flash drives
Special Notes Does not support Hot-Swapping Related Products - IDE442CF
- IDE441CF
- IDE2CFINT
- 35BAYCF2IDE
- SAT2CF
- IDE1810U2Z
- ZIF2IDE35
- ZIF2CF

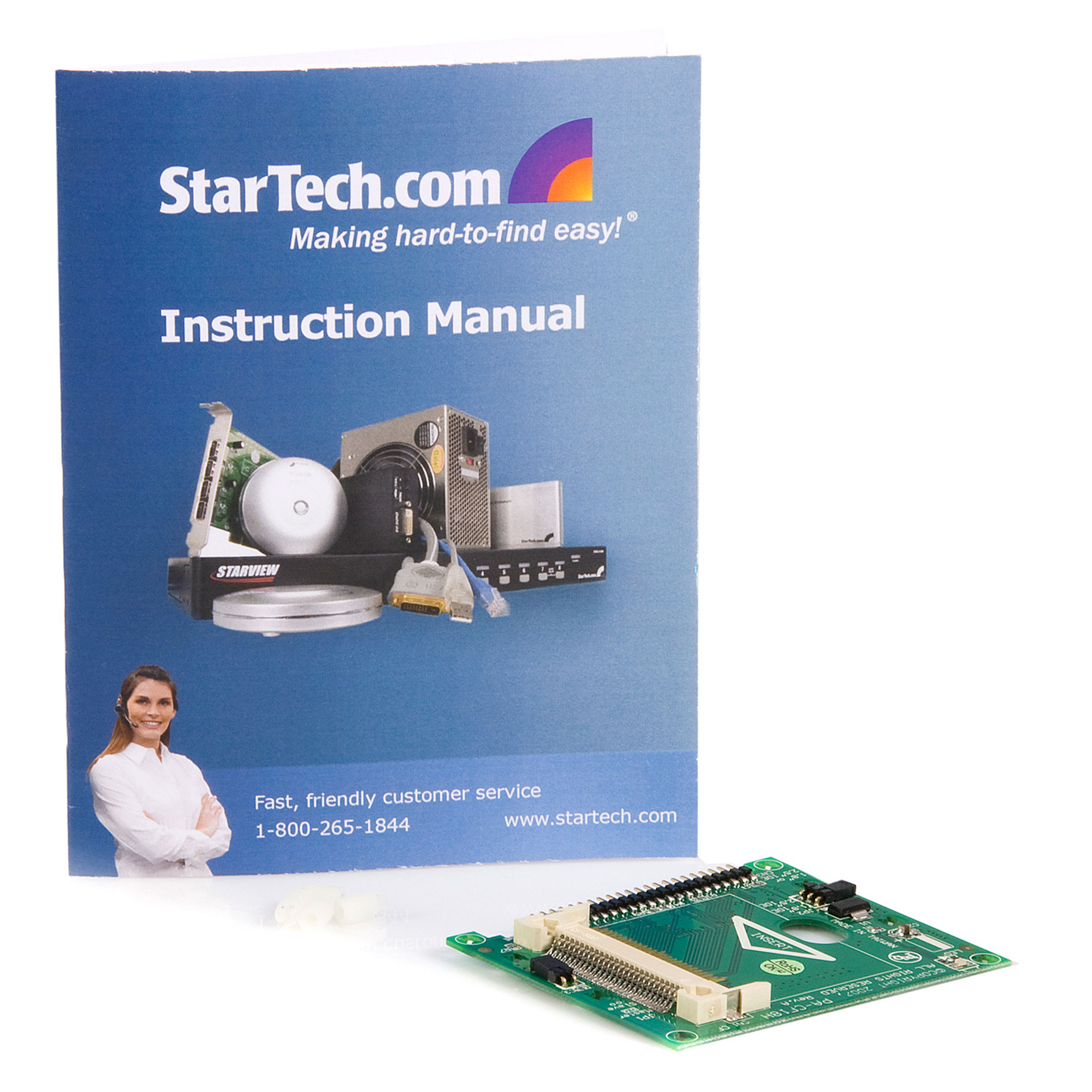

Humidity Max 95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 60 Product Width (mm) 70 Product Height (mm) 7 Product Weight (g) 21 TAA Compliant No Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 16200 Included in Package - 1 - IDE to Compact Flash Adapter
- 1 - Instruction Manual
- 4 - Plastic Standoff
Package Depth (mm) 28 Package Height (mm) 138 Package Width (mm) 176 Package Weight (g) 150 Packaging Description CompactFlash to 1.8in IDE SSD Adapter Packaging Description India CompactFlash to 1.8in IDE SSD Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA 2.5in (ATA/133, Power) Connector 1 (Quantity) 1 Connector 2 CompactFlash Slot Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
