CFAST2SAT25
CFast to SATA Adapter Converter
Convert your CFast card into a 2.5in SATA drive for faster data transfer
Main Image
Product Images
Product Images
BOM Image
Product Name CFast to SATA Adapter Converter Product Number CFAST2SAT25 UPC 065030861212 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Family CFast to SATA Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) CFast/SATA Adapter Product Title (Short) CFast Card to SATA Converter Product Title (Medium) CFast Card to SATA Adapter with 2.5" Housing - Supports SATA III (6 Gbps) Product Title (Standard) CFast Card to SATA Adapter with 2.5" Housing, Supports SATA III (6 Gbps), TAA Product Title (Long) CFast Card to SATA Adapter with 2.5" Housing - TAA Product Title (AMZ) CFast Card to SATA Adapter with 2.5" Housing - Supports SATA III (6 Gbps) - CFast Memory Card Converter - OS Independent , TAA (CFAST2SAT25) Title Ingram (Part 1) CFast card to SATA converter - Title Ingram (Part 2) supports SATA III (up to 6 Gbps) Website Product Headline Convert your CFast card into a 2.5in SATA drive for faster data transfer Bullet 1 Make your CFast card work like a 2.5in SATA SSD Bullet 2 Supports SATA III with data transfer speeds of up to 6 Gbps Bullet 3 SATA and power combo connector (7 + 15 pin) - same as a 2.5" SATA hard drive Bullet 4 Standard 2.5" housing alllows the converted card to be installed into a laptop Bullet 5 OS independent, with no drivers or software installation required Bullets (Compact) Convert your CFast card into a 2.5" SATA drive for faster data transfer - CFast card to SATA adapter converter with 2.5" housing - Transfer data from CFast card to PC through SATA - Supports SATA III (6 Gbps) - OS independent Bullets (Consolidated) Convert your CFast card into a 2.5" SATA drive for faster data transfer - CFast to SATA converter/CFast memory card adapter/CFast card to SATA adapter converter - Transfer data from your CFast card to your PC through SATA - Supports SATA III (up to 6 Gbps) - Offload data from DSLR cameras and camcorders or transfer graphic files - 2.5" protective housing allows the converted card to be installed into a laptop - OS Independent Marketing Copy Applications - Access and recover data from a CFAST card quickly through SATA
- Offload data from high-end digital cameras and camcorders, or to transfer graphic design files and videos
Website Search Keyword - CFast Card to SATA Converter
- CFast Memory Card Converter
- CFast Memory Card Adapter
- CFast to SATA adapter
- CFast memory card adapter
- CFAST Card to SATA III Adapter
- CFAST Adapter
- CFAST Converter
- Memory card adapter
- Memory card converter
- DSLR memory card converter
- DSLR memory card adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - SATA18RA1
- LSATA12
- LSATA6
- SATA18LA1
- SATA24
- SATA36
- LSATARND18R1
- LSATARND6R1
- SATA24RA1
- LSATARND12R1
- LSATA12RA1
- SATA12LA1
Related Products - SAT2CF
- IDE2CF
Input Voltage 5V DC Output Voltage (V) 5 DC Color Black & Silver Humidity 5%~95% RH Material Steel and Plastic Operating Temperature 0°C to 75°C (32°F to 167°F) Primary Material Steel Product Length (mm) 99 Product Width (mm) 69 Product Height (mm) 9.9 Product Weight (g) 54 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Insertion Rating 10,000 Maximum Data Transfer Rate 6 Gbps Memory Media Type CFast (I/II Card) MTBF (hours) 50,000 OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types CFAST 2.0, 1.0 Interface/Bridge SATA Number of Drives 1 Supported Drive Height(s) - 3.3mm
- 5mm

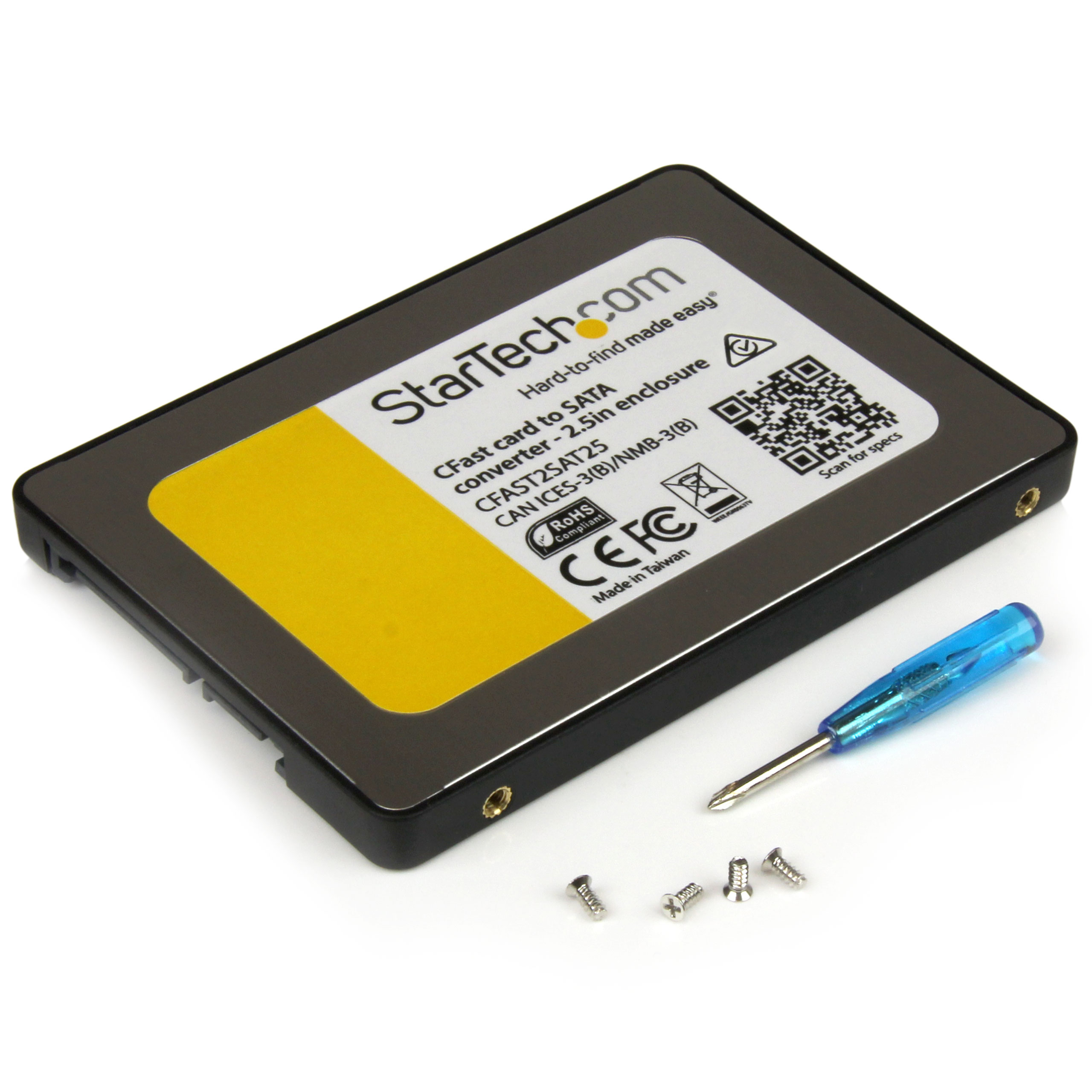

Carton Depth (mm) 480 Carton Height (mm) 330 Carton Quantity 100 Carton Weight Gross (g) 12034 Included in Package - 1 - CFast card to SATA converter
- 1 - Assembly screw kit
- 1 - Quick install guide
Package Depth (mm) 131 Package Height (mm) 33 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 106 Packaging Description CFast card to SATA converter - 2.5in Enclosure Packaging Description India CFast card to SATA converter - 2.5in Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 CFast Slot (7-Pin + 17-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-02-23 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-02-20 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
