CK4-D116C
16-Port SH Secure Pro DVI-I KVM w/ audio and CAC
Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Quick-Start Guide
Video Link YouTube
Product Name 16-Port SH Secure Pro DVI-I KVM w/ audio and CAC Product Number CK4-D116C UPC 735816833268 Lifecycle status Pending Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Secure Enterprise KVMs Family Sekuryx Secure KVM Country of Origin Europe & Japan United States Country of Origin North America United States Country of Origin History (1) United States Country of Origin Revision (1) XXXXXX183X Product Title (Ultra-Short) Secure 16-Port KVM Product Title (Short) Secure 16-Port KVM Switch, DVI, NIAP Product Title (Medium) Secure 16-Port KVM Switch, DVI, NIAP 4.0, Metal Housing, CAC, USA Built Product Title (Standard) Secure 16-Port KVM Switch, DVI, NIAP 4.0, Metal Housing, CAC Port, Made in the USA Product Title (Long) Secure 16-Port KVM Switch, DVI, NIAP 4.0 Desktop KVM, Metal Housing, CAC Port, Made in the USA Product Title (AMZ) Secure 16-Port KVM Switch, DVI, NIAP 4.0, Metal Housing, CAC, Made in the USA Title Ingram (Part 1) Secure 16-Port DVI KVM Switch, Title Ingram (Part 2) NIAP 4.0, CAC, US Built Website Product Headline Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Securely control sixteen DVI desktops or servers from one mouse, keyboard, and a 2560x1600 60Hz monitor; NIAP 4.0 Certified prevents data leaks, isolates systems, and has no internal memory; CAC port; Anti-tamper switches; TAA, Built in the USA Bullets (Consolidated) Securely control sixteen DVI desktops or servers from one mouse/keyboard and 2560x1600 60Hz monitor - Status LEDs for user console ports / CAC port / port selection - NIAP 4.0 Certified prevents data leaks / isolates systems / has no internal memory or storage - Dedicated and Configurable Common Access Card Port enabling secure smart card login - Anti-Tamper switches detect physical intrusion attempts which disable all functionality and trigger visual and audible alerts - TAA, Built in the USA Marketing Copy Marketing Copy (No HTML) Applications - Securely manage classified and unclassified systems from a single console while maintaining strict NIAP-approved data isolation
- Provides a trusted access point for administrators working in government, defense, or regulated enterprises
Website Search Keyword - CK4-D116C
- Sekuryx
- secure kvm switch
- secure kvm
- kvm switch
- kvm
- niap
- niap approved
- desktop kvm switch
Required Regulatory Compliance Marks RCM - EMC/EMI - Australia/New Zealand - RCM Mark Special Notes - CAC Administration and Security Tool is only supported on Windows XP, 7, 8, 10, and 11.
- The keyboard and mouse ports do not support wireless keyboards, mice, or any other USB devices or peripherals
Related Products - CK4-HP102C
- CK4-HP202C
- CK4-HP104C
- CK4-P204C
- CK4-P108C
- CK4-P208C
- CK4-D108C
- CK4-P202
- CK4-P204

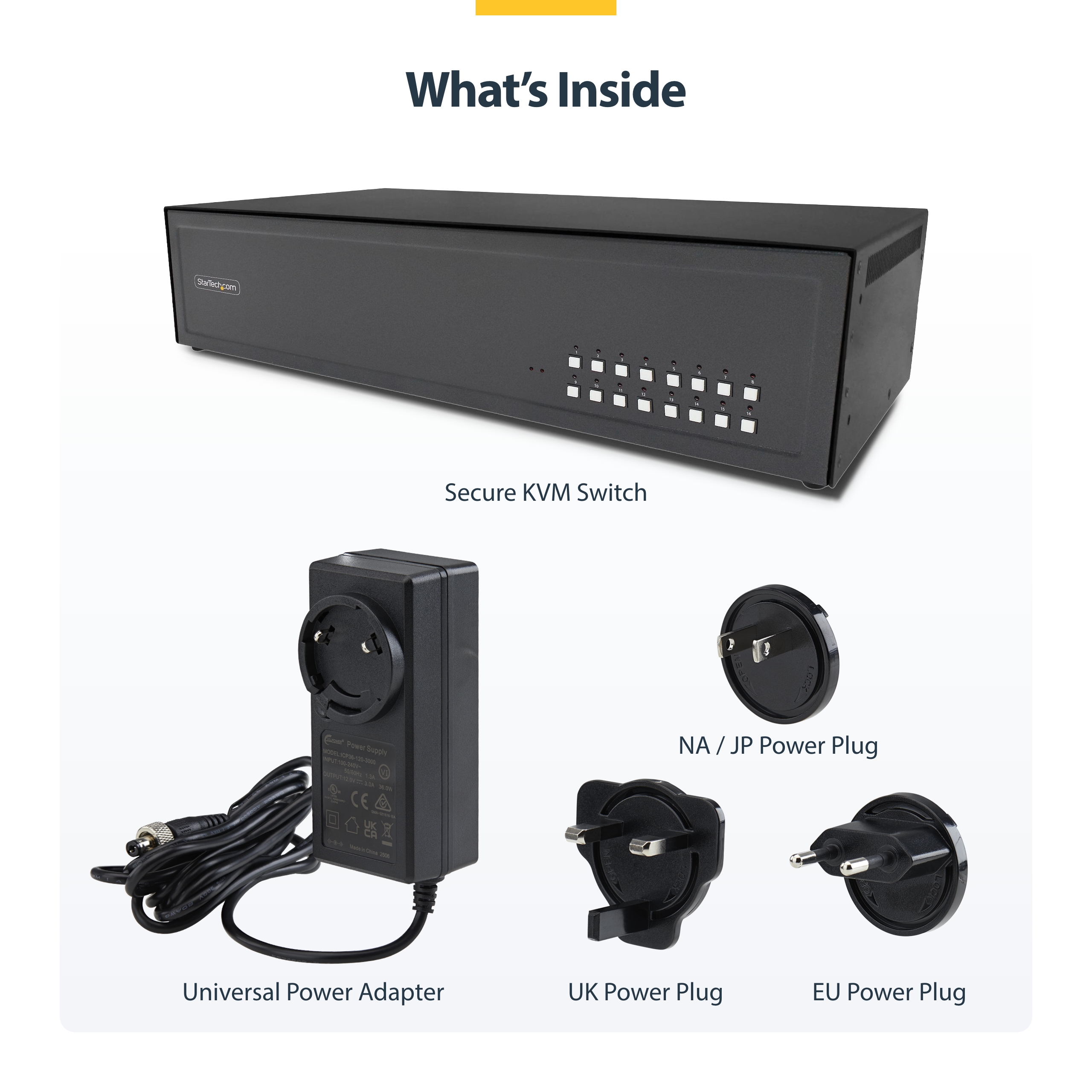

Color Black Humidity 0% ~ 80% RH (non-condensing) Material Metal Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 431 Product Width (mm) 220 Product Height (mm) 69 Product Weight (g) 3130 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant Yes Audio Specifications Analog Stereo - 2 Channel Audio Hot-Key Selection No KVM IP Control No Maximum Cable Length (mm) 6000 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button Audio Yes Cables Included No CAC Support Yes Cascadable No LED Indicators Number of KVM Ports 16 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable No Regulatory Approvals Supported Platforms USB Included in Package - 1 - Secure KVM Switch
- 1 - Universal Power Adapter
- 1 - Product Documentation
Packaging Description Secure 16-Port KVM Switch, NIAP, DVI, CAC, Made in USA -Sekuryx Packaging Description India Secure 16-Port KVM Switch, NIAP, DVI, CAC, Made in USA -Sekuryx Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 3 Connector 2 DVI-I Single-Link (23-Pin) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Host Connector 1 DVI-I Single-Link (23-Pin) Host Connector 1 (Quantity) 16 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 16 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 32 Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU No Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment Exactly the same Comparable SKU 2 Comment N/A Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,NL,PL,SE,UK,US Priority New Product Critical Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-11-07 Target Production Release 2025-11-14 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
