CK4-PM204C

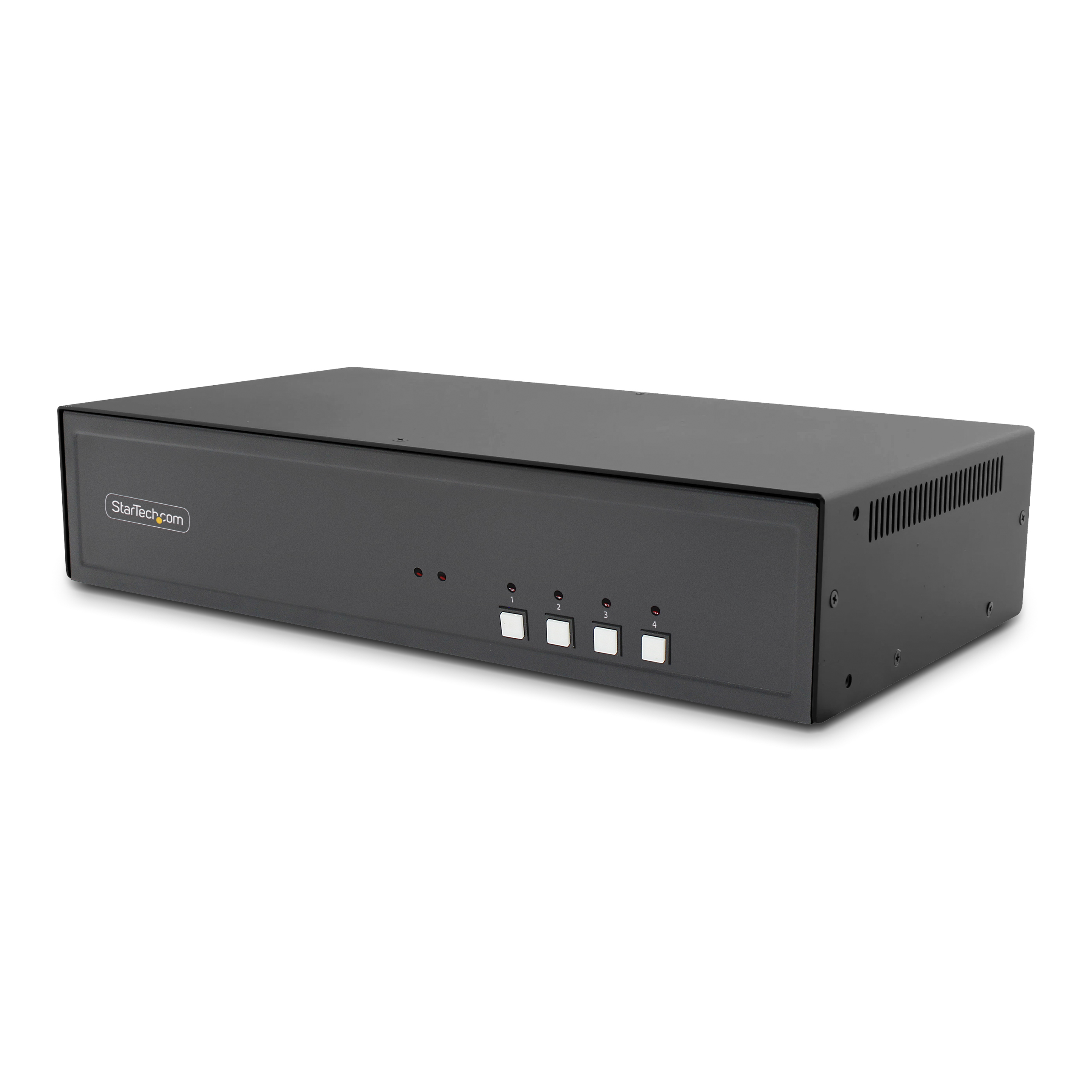

4-Port DH DP to 2xHDMI Secure KVM w/audio and CAC

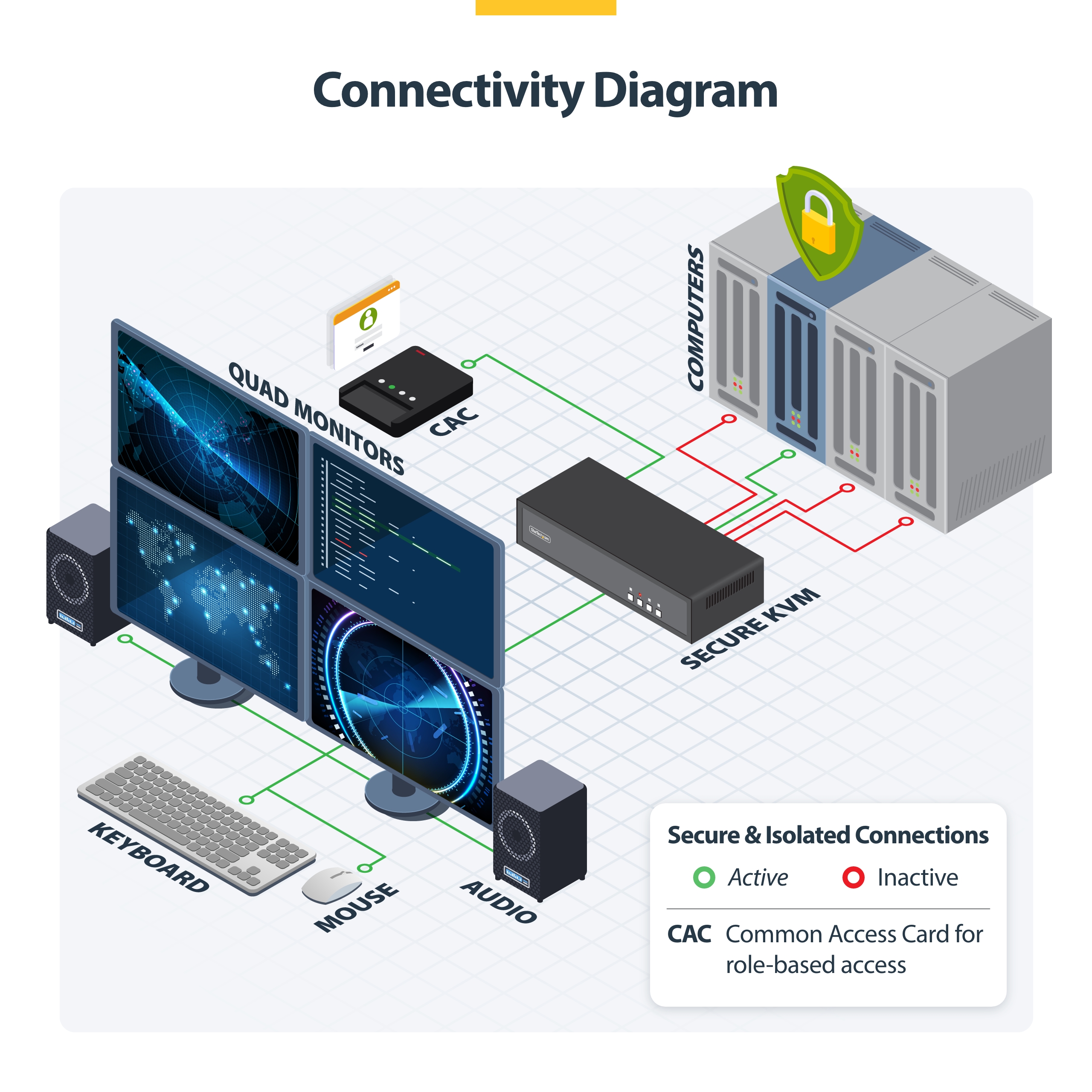

Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Quick-Start Guide
Video Link YouTube
Product Name 4-Port DH DP to 2xHDMI Secure KVM w/audio and CAC Product Number CK4-PM204C UPC 735816853631 Lifecycle status Pending Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 Secure Desktop KVM Family Sekuryx Secure KVM Country of Origin Europe & Japan United States Country of Origin North America United States Country of Origin History (1) United States Country of Origin Revision (1) XXXXXX183X Product Title (Ultra-Short) Secure 4-Port KVM Product Title (Short) Secure 4-Port KVM Switch, MST, NIAP Product Title (Medium) Secure 4-Port Quad-Monitor KVM Switch, 2x DP to 4x HDMI, NIAP, CAC, USA Built Product Title (Standard) Secure 4-Port Quad-Monitor KVM Switch, 2x DP In to 4x HDMI Out, 4K 60Hz, NIAP 4.0, CAC, Metal Housing, Made in the USA Product Title (Long) Secure 4-Port Quad-Monitor KVM Switch, 2x DisplayPort In to 4x HDMI Out, 4K 60Hz, NIAP 4.0 Desktop KVM, CAC, Metal Housing, Made in the USA Product Title (AMZ) Secure 4-Port Quad-Monitor KVM Switch, 2x DisplayPort In to 4x HDMI Out, 4K 60Hz, NIAP 4.0 Desktop KVM, CAC, Metal Housing, Made in the USA Title Ingram (Part 1) Secure 4-Port Quad-Monitor KVM, Title Ingram (Part 2) NIAP 4.0, CAC, MST, US Built Website Product Headline Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Securely control four DisplayPort desktops or servers from one mouse, keyboard, and four 4K 60Hz HDMI monitors; NIAP 4.0 Certified prevents data leaks, isolates systems, and has no internal memory; CAC port; Anti-tamper switches; Built in the USA Bullets (Consolidated) - Securely control four DP desktops or servers from one mouse / keyboard and four 4K 60Hz HDMI monitors - Status LEDs for user console ports / CAC port / port selection - NIAP 4.0 Certified prevents data leaks / isolates systems / has no internal memory or storage - Dedicated and Configurable Common Access Card Port enabling secure smart card login - Anti-Tamper switches detect physical intrusion attempts which disable all functionality and trigger visual and audible alerts - Built in the USA Marketing Copy Marketing Copy (No HTML) Applications - Securely manage classified and unclassified systems from a single console while maintaining strict NIAP-approved data isolation
- Provides a trusted access point for administrators working in government, defense, or regulated enterprises
Website Search Keyword - CK4-PM204C
- Sekuryx
- secure kvm switch
- secure kvm
- kvm switch
- kvm
- niap
- niap approved
- desktop kvm switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - CAC Administration and Security Tool is only supported on Windows XP, 7, 8, 10, and 11.
- The keyboard and mouse ports do not support wireless keyboards, mice, or any other USB devices or peripherals
Accessory Products - SKDP2DPMMKVM03-TAA
- SKDPMMKVM10-TAA
Related Products - CK4-HP102C
- CK4-HP202C
- CK4-HP104C
- CK4-P204C
- CK4-P108C
- CK4-P208C
- CK4-D108C
- CK4-P202
- CK4-P204

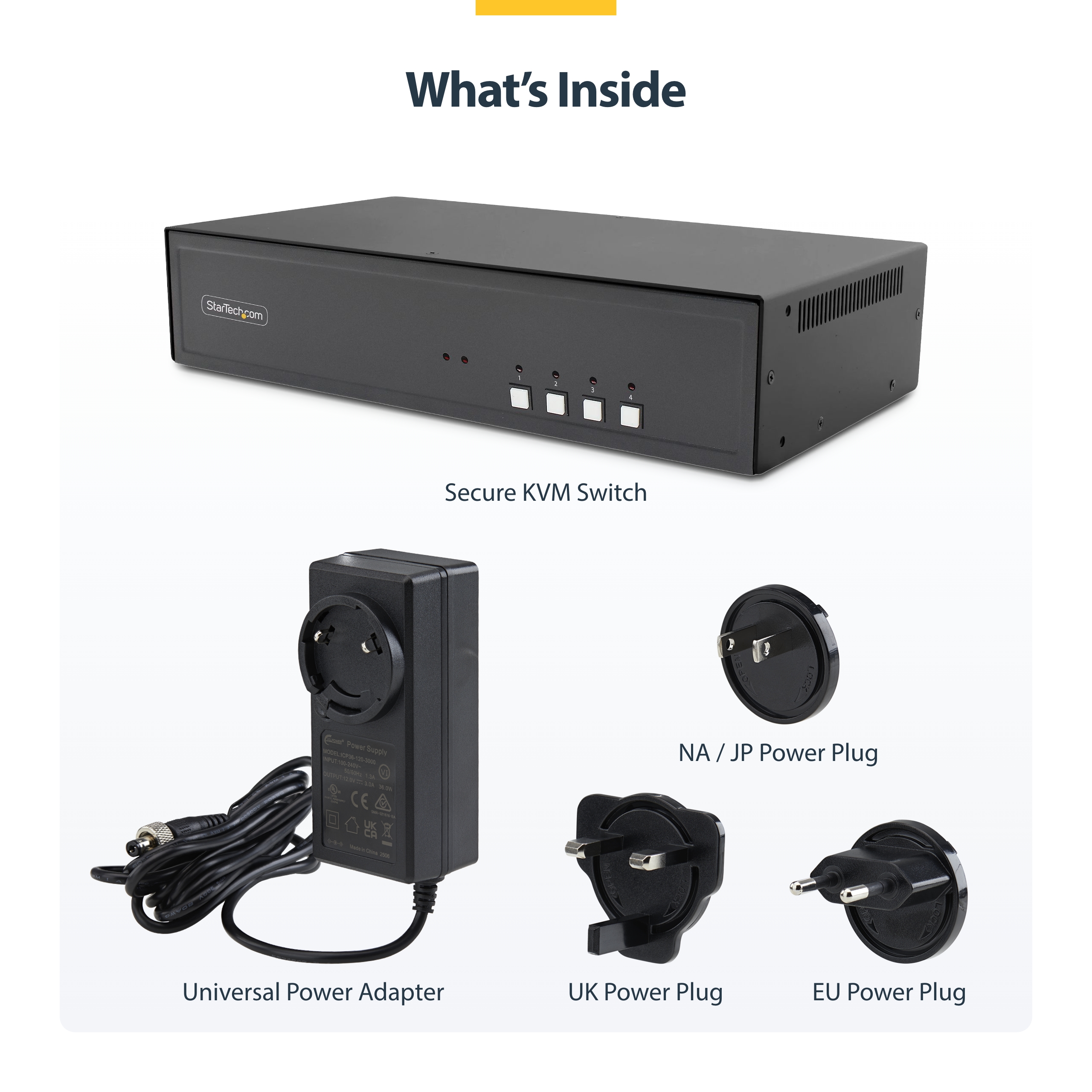

Color Black Humidity 0% ~ 80% RH (non-condensing) Material Metal Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 323.85 Product Width (mm) 169.926 Product Height (mm) 68.58 Product Weight (g) 1905.09 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant Yes Audio Specifications Analog Stereo - 2 Channel Audio Hot-Key Selection No KVM IP Control No Maximum Cable Length (mm) 6000 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button Audio Yes Cables Included No CAC Support Yes Cascadable No LED Indicators Number of KVM Ports 4 Number of Monitors Supported 4 PC Video Type DisplayPort Rack-Mountable No Regulatory Approvals Supported Platforms USB Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - Secure KVM Switch
- 1 - Universal Power Adapter
- 1 - Product Documentation
Package Depth (mm) 0 Package Height (mm) 0 Package Width (mm) 0 Package Weight (g) 0 Packaging Description Secure 4-Port Quad-Monitor KVM Switch, DP to HDMI, 4K60, CAC, Made In USA Packaging Description India Secure 4-Port Quad-Monitor KVM Switch, DP to HDMI, 4K60, CAC, Made In USA Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 3 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 HDMI Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 8 Host Connector 2 HDMI Host Connector 2 (Quantity) 8 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Host Connector 4 USB-B (480Mbps, 2.5W) Host Connector 4 (Quantity) 8 Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU No Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment exactly the same Comparable SKU 2 Comment N/A Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,NL,PL,SE,UK,US Priority New Product Critical Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-11-07 Target Production Release 2025-11-14 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
