Main Image
COMP2VGA
Game Console to PC Monitor Adapter
Convert a Composite or S-Video source signal from your Game Console, VCR or DVD Player to VGA
Main Image
Product Images
Product Images
BOM Image
Product Name Game Console to PC Monitor Adapter Product Number COMP2VGA UPC 065030789424 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) Composite S-Video to VGA Video Converter Product Title (Standard) StarTech.com Composite and S-Video to VGA Video Converter for Computer Monitors Product Title (Long) Composite and S-Video to VGA Video Converter for Computer Monitors Product Title (AMZ) Composite and S-Video to VGA Video Converter for Computer Monitors (COMP2VGA) Title Ingram (Part 1) Composite and S-Video to VGA Vid Title Ingram (Part 2) eo Converter Website Product Headline Convert a Composite or S-Video source signal from your Game Console, VCR or DVD Player to VGA Bullet 1 Compatible anywhere in the world, with automatic NTSC and PAL video signals detection Bullet 2 Convenient push-button switching between game display and PC display Bullet 3 Easy one-time plug and play set up requires no drivers Bullet 4 Audio pass through with amplified (active) speakers Bullet 5 Supports composite (RCA) and S-video input Bullets (Consolidated) Convert a Composite or S-Video source signal from your Game Console, VCR or DVD Player to VGA - S Video to VGA Adapter - SVideo to VGA Converter - S Video to Monitor - TV to PC Converter - TV to PC Adapter Marketing Copy Applications Connects any commercial game console or VCR/DVD to a VGA monitor Website Search Keyword Video Game Jockey Required Regulatory Compliance Marks RCM - EMC/EMI - Australia/New Zealand - RCM Mark System and Cable Requirements The SPK out port cannot be used with headphones. Accessory Products - SVIDAAHQ6
- COMPAAHQ6
- AUDIORCA6
- COMPHQ6
- SVIDHQ6
Related Products - COMP2VGATV
- USB2TVTUNER
Replacement Product VID2VGATV2 Equivalent Part Number in the UK COMP2VGAGB Input Current 0.1 A Input Voltage 100 ~ 125 AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Product Length (mm) 165 Product Width (mm) 101 Product Height (mm) 25 Product Weight (g) 49 TAA Compliant No Maximum Analog Resolutions 1280 x 1024 Supported Resolutions Active or Passive Adapter Active Audio Yes AV Input - S-Video
- Composite

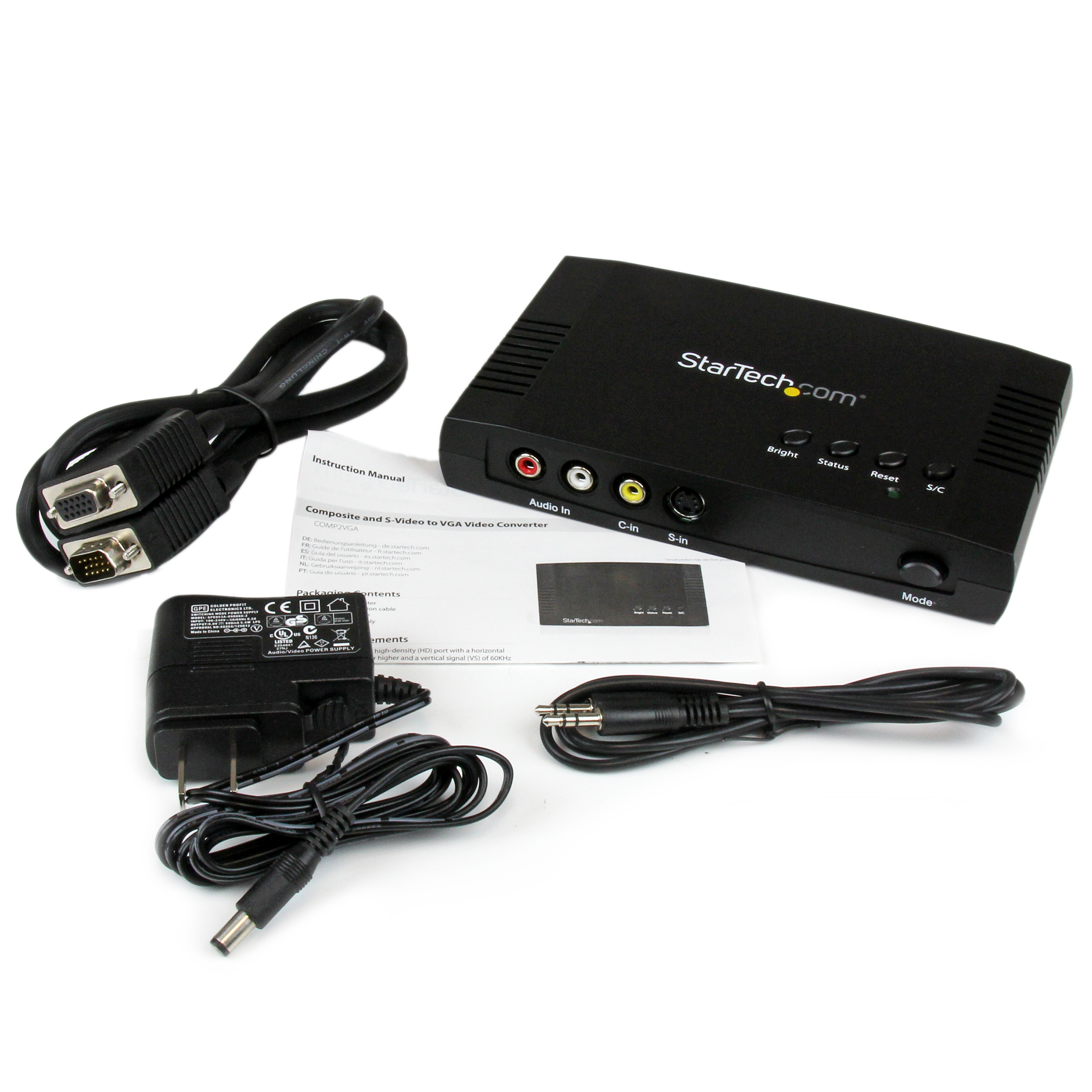

AV Output VGA Converter Type Format Converter Carton Depth (mm) 231 Carton Height (mm) 454 Carton Quantity 80 Carton Weight Gross (g) 5520 Included in Package - 1 - Composite/Svideo to VGA Converter
- 1 - AC Adapter
- 1 - Instruction Manual
- 1 - VGA cable
- 1 - 3.5mm audio cable
Number of Sub-Cartons 8 Package Depth (mm) 200 Package Height (mm) 10 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 58 Packaging Description Composite or S-Video to VGA Video Converter Packaging Description India Composite or S-Video to VGA Video Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 591 Connector 1 RCA (Stereo Audio) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 RCA (Composite Video) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 1 Connector 6 VGA Connector 6 (Quantity) 1 Connector 7 VGA Connector 7 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
