Game Console to PC Monitor Adapter forUK

Main Image

Product Images

Product Images

Product Name	Game Console to PC Monitor Adapter forUK
Product Number	COMP2VGAGB
UPC	065030797283
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	China
Country of Origin North America	China

Manual https://images.salsify.com/image/upload/s--QUIT3DSJ--/90fa3e5ff509bb76aa483641782fe3b176206a30.pdf

Product Title (Short)	Composite S-Video to VGA Video Converter
Product Title (Long)	Composite and S-Video to VGA Video Converter for Computer Monitors
Title Ingram (Part 1)	Composite and S-Video to VGA Vid
Title Ingram (Part 2)	eo Converter
Bullet 1	Compatible anywhere in the world, with automatic NTSC and PAL video signals detection
Bullet 2	Convenient push-button switching between game display and PC display
Bullet 3	Easy one-time plug and play set up requires no drivers
Bullet 4	Audio pass through with amplified (active) speakers

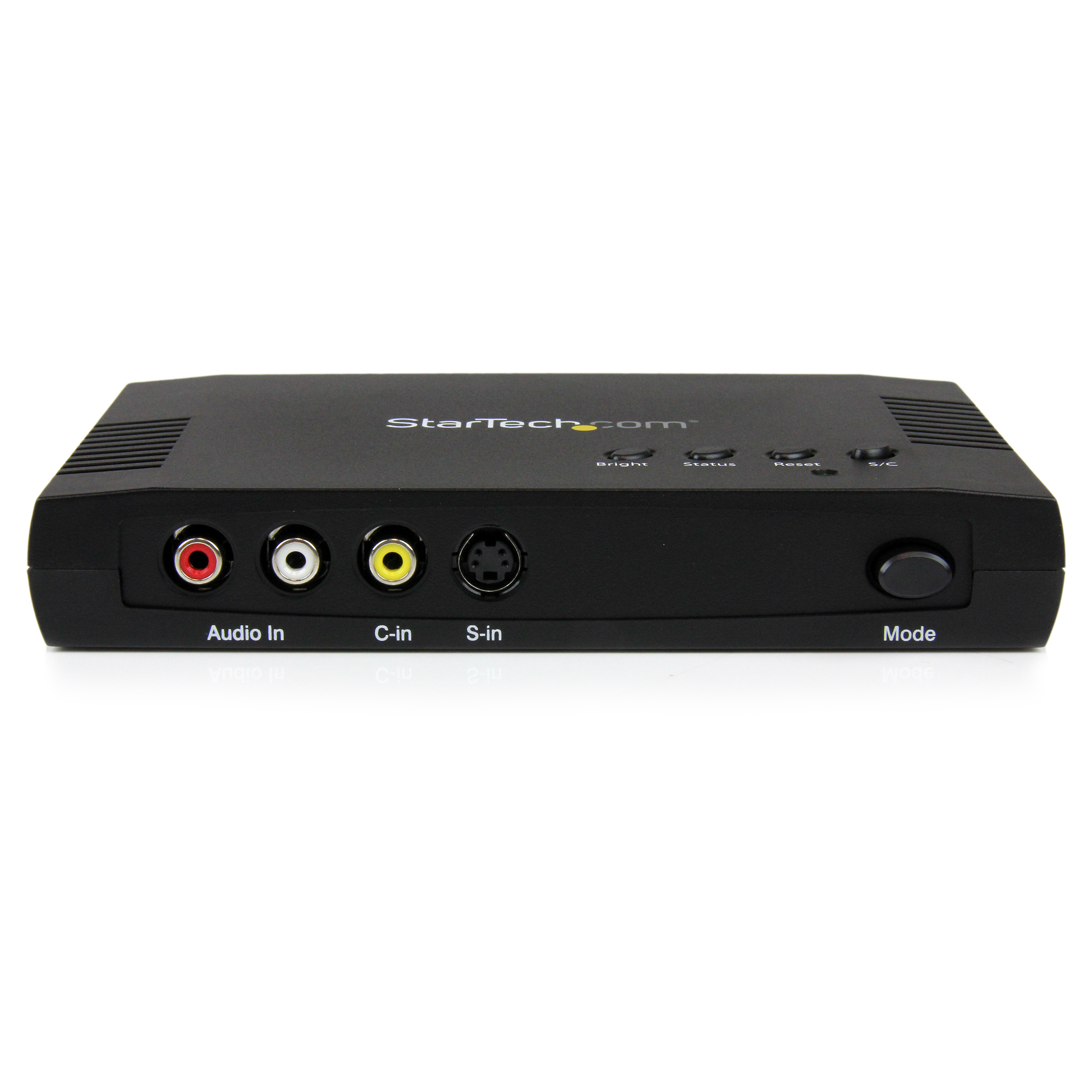

Bullet 5	Supports composite (RCA) and S-video input
Marketing Copy
Applications	Connects any commercial game console or VCR/DVD to a VGA monitor

General Specifications

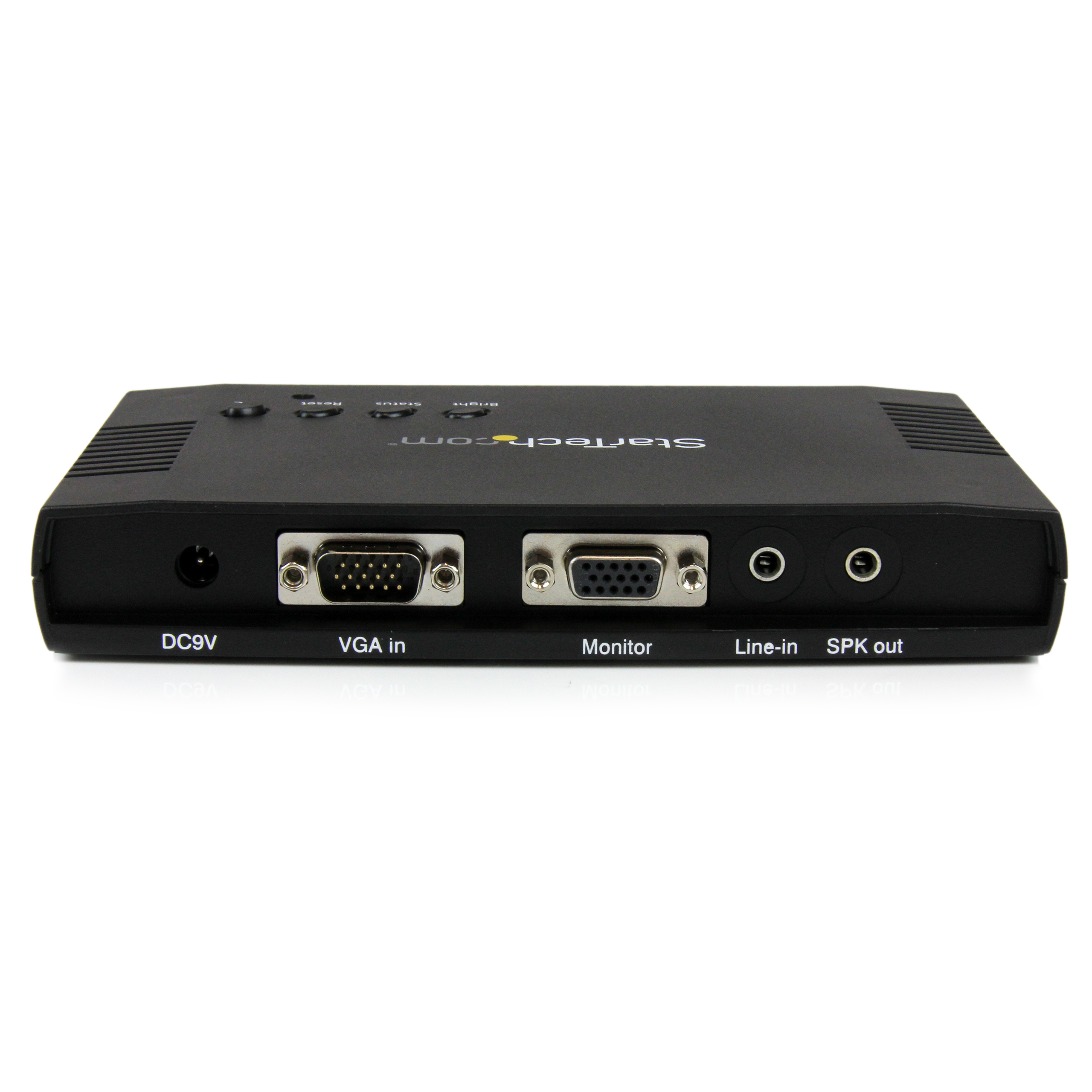

Connectors: 1 x Male DB15 VGA In
: 1 x Female DB15 VGA Monitor Out
: 2 x RCA composite Audio In, 3.5mm line in and speaker out
: 1 x RCA composite Video In
: 1 x S-Video In
Power Supply: DC 9V power adapter included
Cables Included: 1 x HDDB15-pin extension cable
: 1 x 3.5mm stereo audio cable
Output Frequency NTSC: Horizontal = 31.4685KHz Vertical = 60 Hz Resolution = 720 x 480
Output Frequency PAL: Horizontal = 31.25 KHz Vertical = 50 Hz Resolution = 720 x 576

Maximum Analog Resolutions

1280 x 1024

Input Voltage	9
Power Source	AC Adapter Included

Color	Black
TAA Compliant	No

en-US Content Approved	Yes
Product Manager	Eric Roth
