COMPUTPEXTA
Composite Video Audio Cat 5 Extender
Extend a Composite video signal with supporting audio up to 200 meters (650 feet) using Cat 5 cabling
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Composite Video Audio Cat 5 Extender Product Number COMPUTPEXTA UPC 065030820738 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Extenders Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX071X Product Title (Short) Composite Video Extender over Cat 5 Product Title (Standard) StarTech.com Composite Video Extender over Cat 5 with Audio Product Title (Long) Composite Video Extender over Cat 5 with Audio - TAA Product Title (AMZ) Composite Video Extender over Cat 5 with Audio - composite Video Extender - composite over Cat5 (COMPUTPEXTA) Title Ingram (Part 1) Composite Video Extender over Ca Title Ingram (Part 2) t 5 with Audio Website Product Headline Extend a Composite video signal with supporting audio up to 200 meters (650 feet) using Cat 5 cabling Bullet 1 Works with shielded twisted pair (STP) and unshielded twisted pair (UTP) Cat5 cable Bullet 2 Mounting kit included for wall installation Bullet 3 Quick, easy installation and setup Bullets (Consolidated) Video/audio extender - up to 656 ft Marketing Copy Applications - To be used in home or commercial applications as a fast, and cost-effective means of connecting composite video equipment over long distances
- Ideal for classrooms, projectors, tradeshows, and retail displays
Website Search Keyword - Video Baluns
- composite over cat5
- BNC over cat5
- RoHS
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Includes 2 x BNC to RCA composite adapters Accessory Products - AUDIORCA15
- AUDIORCA30
- AUDIORCA50
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
Related Products - CPNTUTPEXT
- SVIDUTPEXTA

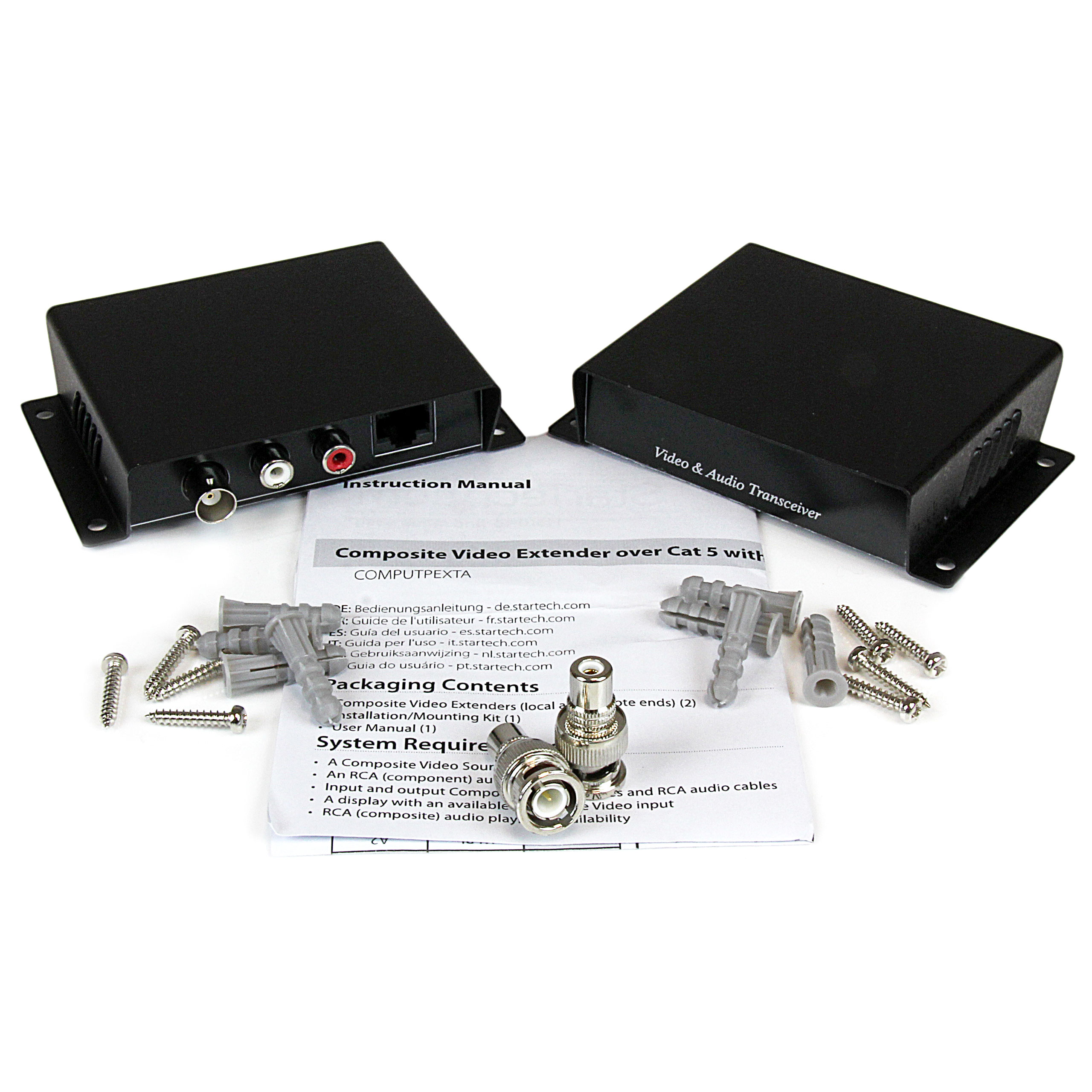

Color Black Material Aluminum Primary Material Aluminum Product Length (mm) 110.000 Product Width (mm) 77.000 Product Height (mm) 24.000 Product Weight (g) 335.000 TAA Compliant Yes Max Distance 200m [656ft] Supported Resolutions 480i, 480p Audio Yes Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 387 Carton Height (mm) 237 Carton Quantity 40 Carton Weight Gross (g) 17800 Included in Package - 1 - Composite Video and Audio Extender Kit
- 1 - Instruction Manual
- 1 - Mounting Kit
- 2 - BNC to RCA adapter
Package Depth (mm) 116 Package Height (mm) 84 Package Width (mm) 113 Package Quantity 1 Package Weight (g) 421 Packaging Description Composite Video Extender over Cat 5 - 200m Packaging Description India Composite Video Extender over Cat 5 - 200m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RCA (Composite Video) Connector 1 (Quantity) 1 Connector 2 RCA (Stereo Audio) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 BNC (50 Ohm / 75 Ohm) Connector 4 (Quantity) 1 Host Connector 1 RCA (Composite Video) Host Connector 1 (Quantity) 1 Host Connector 2 RCA (Stereo Audio) Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Host Connector 4 BNC (50 Ohm / 75 Ohm) Host Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
