Main Image
CPNT2VGAA
YPbPr Component to VGA Converter with Audio
Connect Component video devices to your VGA display with 2-channel stereo audio
Main Image
Product Images
Product Images
BOM Image
Product Name YPbPr Component to VGA Converter with Audio Product Number CPNT2VGAA UPC 065030826150 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) Component to VGA Video Converter w Audio Product Title (Standard) StarTech.com Component to VGA Video Converter with Audio Product Title (Long) Component to VGA Video Converter with Audio Title Ingram (Part 1) Component to VGA Video Converter Title Ingram (Part 2) with Audio Website Product Headline Connect Component video devices to your VGA display with 2-channel stereo audio Bullet 1 Supports two channel RCA audio input to 3.5mm output Bullet 2 Supports resolutions up to 1080p Bullet 3 Compact and easy to install Bullet 4 Component YPbPr input to VGA output Bullets (Consolidated) Video converter - component video - VGA - black Marketing Copy Applications - An Ideal solution for converting a component video source with supporting audio to a VGA display
- Great for adapting DVD players, satellite receivers, video game consoles and other home theater devices to be displayed on computer monitors
- Connect component devices to VGA projectors in boardrooms, retail settings or trade shows
Website Search Keyword - YPbPr
- Component video converter
- Audio
- YPbPr to VGA
- Comp to VGA
- Cpnt to VGA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MU6MMS
- MU15MMS
- AUDIORCA15
- AUDIORCA30
- AUDIORCA50
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- SVA9M2NEUA
Related Products - VGA2CPNT
- VID2VGATV
- COMP2VGA

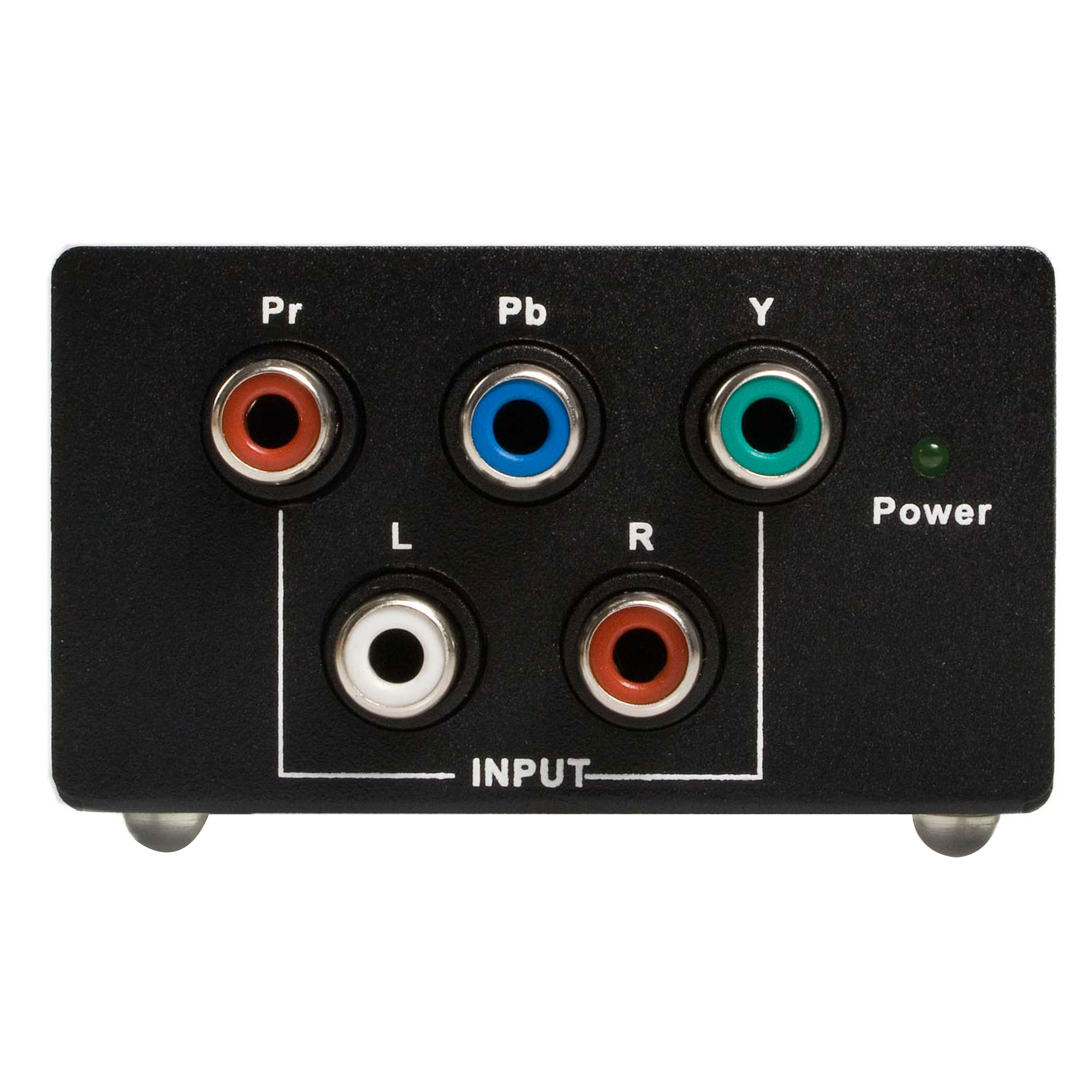

Equivalent Part Number in the EU CPNT2VGAAEU Equivalent Part Number in the UK CPNT2VGAAGB Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Color Black Material Steel Product Length (mm) 45.000 Product Width (mm) 65.000 Product Height (mm) 36.000 Product Weight (g) 359.000 TAA Compliant Yes Bandwidth -3dB @ 70MHZ Supported Resolutions 1080i /1080p, 720p, 576i/576p, 480i/480p Active or Passive Adapter Active Audio Yes AV Input - Component
- Audio RCA

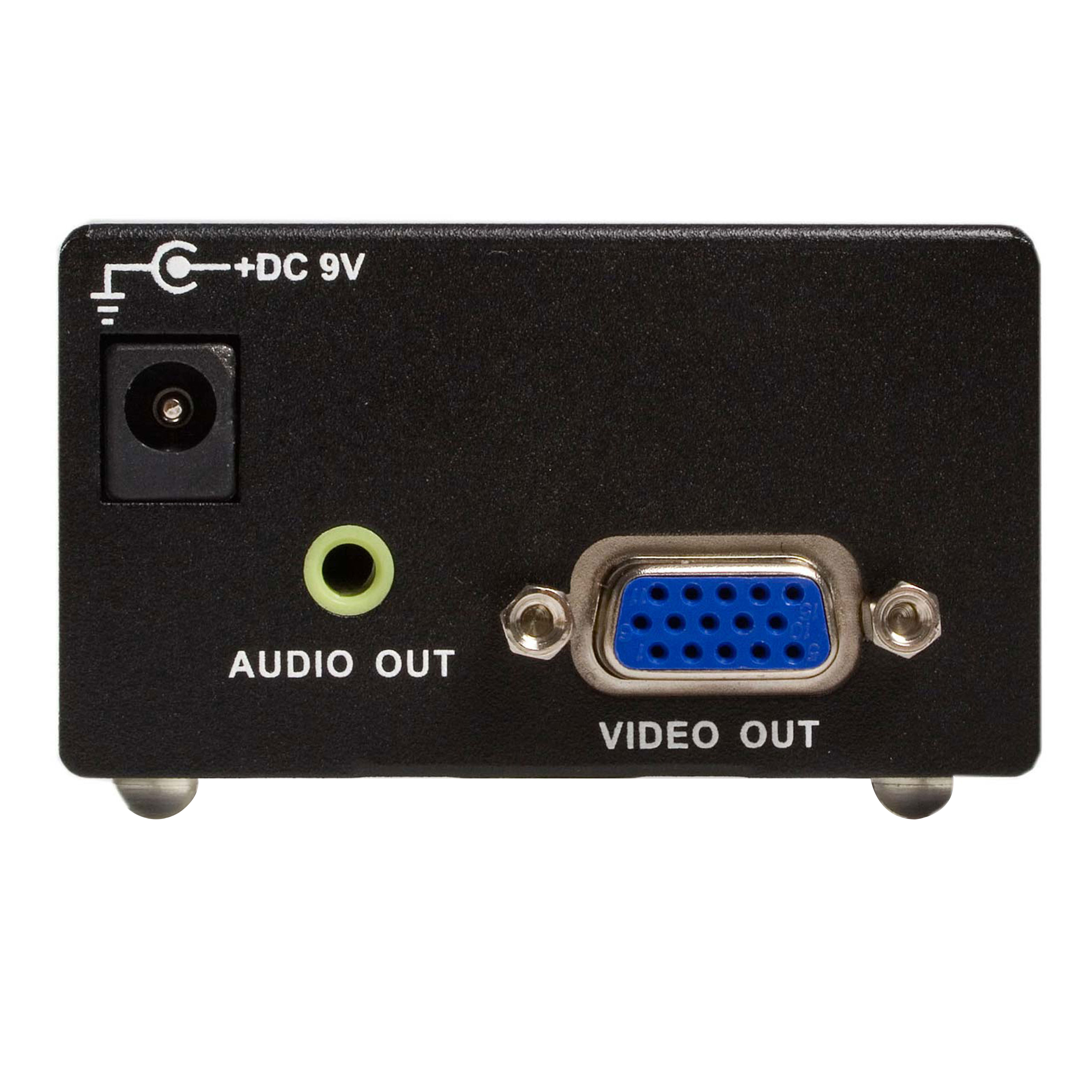

AV Output - VGA
- 3.5 mm Stereo Audio

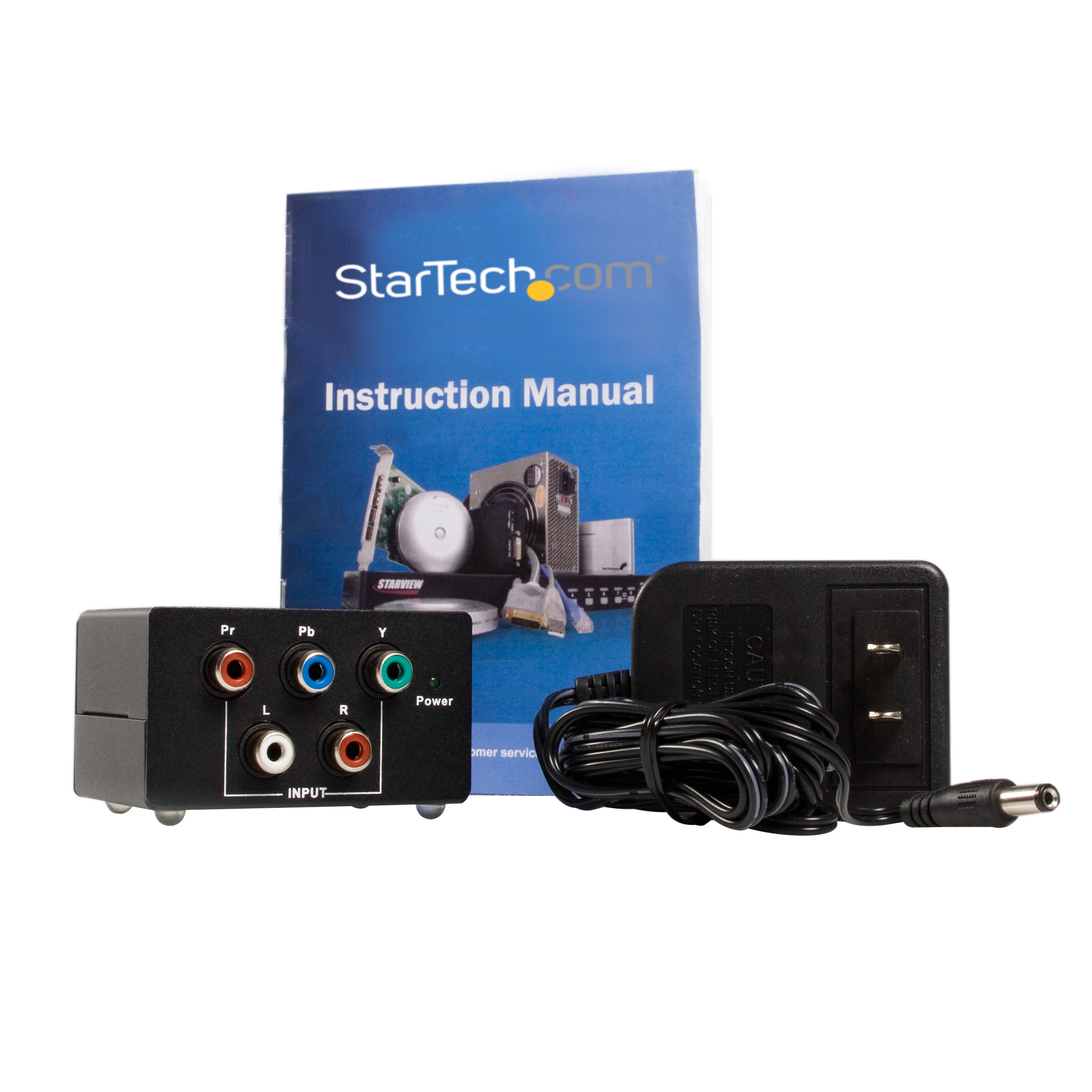

Converter Type Format Converter Carton Depth (mm) 503 Carton Height (mm) 330 Carton Quantity 20 Carton Weight Gross (g) 13600 Included in Package - 1 - Component to VGA Converter
- 1 - User Manual
- 1 - Power Adapter
Package Depth (mm) 67 Package Height (mm) 155 Package Width (mm) 244 Package Quantity 1 Package Weight (g) 966 Packaging Description Component to VGA Video Converter w/ Audio Packaging Description India Component to VGA Video Converter w/ Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RCA (Component Video, YPbPr) Connector 1 (Quantity) 1 Connector 2 RCA (Stereo Audio) Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
