CPNT410IR
4 Port Component HDTV A/V Switch w/ Digital Audio
Switch between four distinct Component video and audio source signals on a single television or projector
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port Component HDTV A/V Switch w/ Digital Audio Product Number CPNT410IR UPC 065030820172 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 Multi-Input Switchers Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX063X Product Title (Ultra-Short) . Product Title (Short) 4 Port Component Video Switch w/ Audio Product Title (Standard) Startech.com 4 Port Component Video Switch with Digital Audio and Remote - 4-to-1 Component YPbPr A/V Switch - AV selector - silver Product Title (Long) 4 Port Component Video Switch with Digital Audio and Remote Product Title (AMZ) 4 Port Component Video Switch with Digital Audio and Remote (CPNT410IR) Title Ingram (Part 1) 4 Port Component Video Switch wi Title Ingram (Part 2) th Digital Audio and Remote Website Product Headline Switch between four distinct Component video and audio source signals on a single television or projector Bullet 1 Connect up to four devices to your TV using a single set of inputs Bullet 2 With the Remote Learning feature, program the video switch to work with your existing universal remote Bullet 3 Maintains clear audio and video signals for excellent performance Marketing Copy Applications - Connect and switch between four component video devices to one TV / HDTV display
- Excellent for home theatre applications requiring digital or analog audio connections with the use of standard and HD component devices
Website Search Keyword - Component Video Switcher
- Digital Coax Audio Swithcer
- High Definition Component Video
- Converge AV
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference System and Cable Requirements Requires a standard or high definition display with a component video (YPbPr) video input Accessory Products - ZENCPNT1
- ZENCPNT2
- ZENCPNT3
- ZENCPNT4
- ZENDIGCOAX1
- ZENDIGCOAX2
- ZENDIGCOAX3
- ZENDIGCOAX4
Related Products - SVID410IR
- VS421CPNTA
Input Current 0.1A Input Voltage 120 AC Output Current 0.2A Output Voltage (V) 9V DC Power Consumption (In Watts) 1.8 Power Source AC Adapter Included Center Tip Polarity Positive Color Silver Material Plastic Product Length (mm) 233 Product Width (mm) 162 Product Height (mm) 44 Product Weight (g) 620 TAA Compliant No Maximum Analog Resolutions Supports standard and high definition video resolutions. 480i to 1080i. Audio Yes AV Input - Component
- Digital Coaxial
- Audio RCA
AV Output - Component
- Digital Coaxial
- Audio RCA

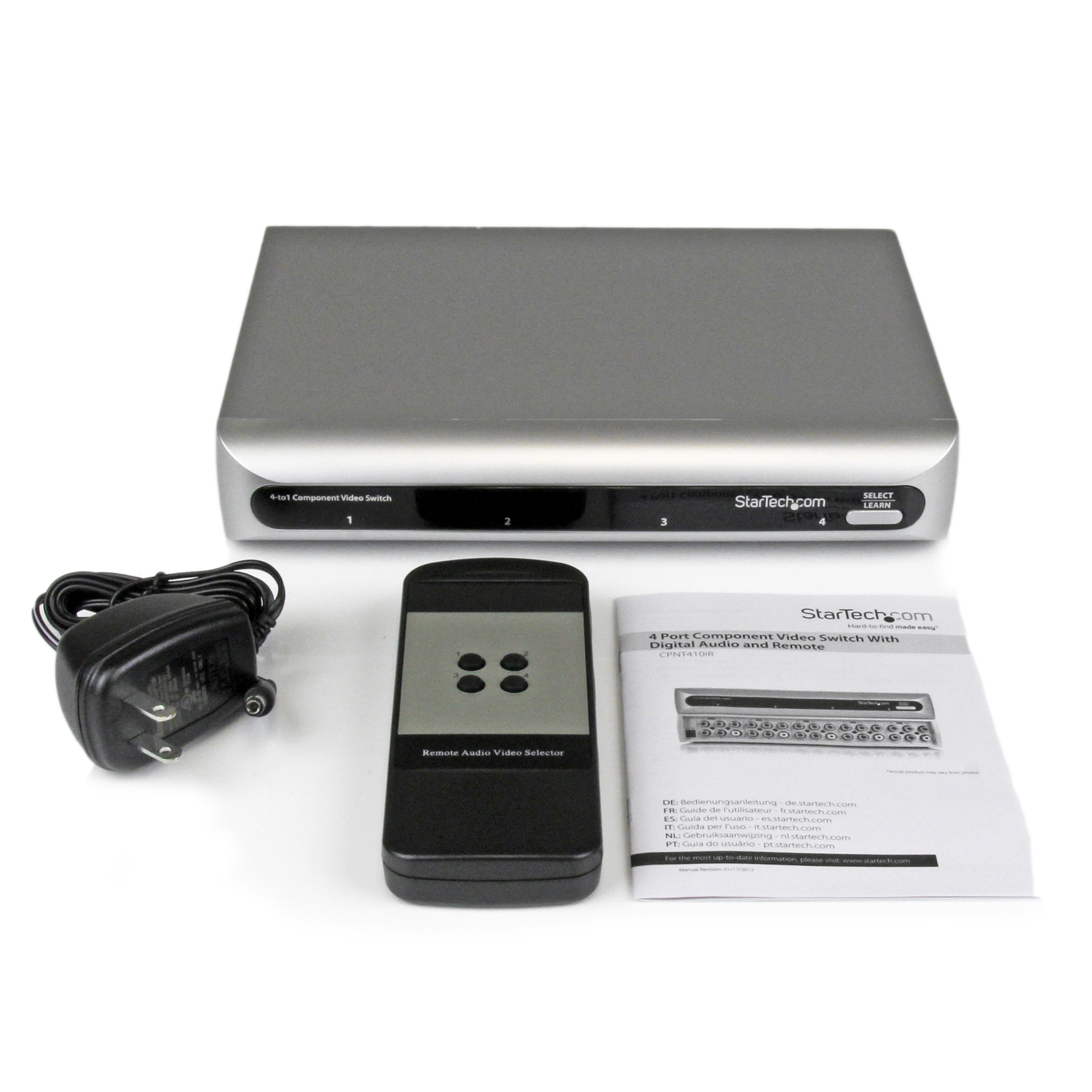

Matrix Video Switch (Filter) No Carton Depth (mm) 432 Carton Height (mm) 401 Carton Quantity 12 Carton Weight Gross (g) 11160 Included in Package - 1 - Component/Audio Switcher
- 1 - 9V DC Power Adapter
- 1 - Instruction manual
- 1 - Remote Control
Package Depth (mm) 64 Package Height (mm) 360 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 830 Packaging Description 4 Port Component Audio/Video Switch w/ Remote Packaging Description India 4 Port Component Audio/Video Switch w/ Remote Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RCA (Component Video, YPbPr) Connector 1 (Quantity) 4 Connector 2 RCA (Stereo Audio) Connector 2 (Quantity) 4 Connector 3 RCA (S/PDIF Coaxial Audio) Connector 3 (Quantity) 4 Connector 4 RCA (Component Video, YPbPr) Connector 4 (Quantity) 1 Connector 5 RCA (Stereo Audio) Connector 5 (Quantity) 1 Connector 6 RCA (S/PDIF Coaxial Audio) Connector 6 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
