CS201
Main Image

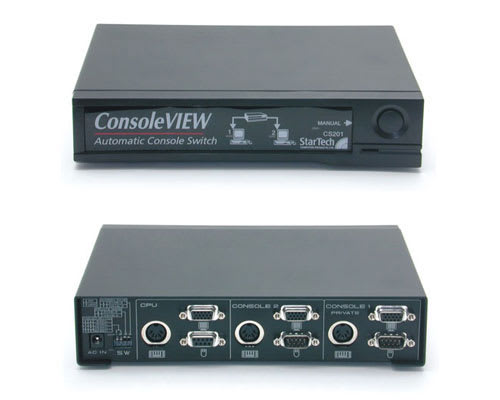

Product Name *D*2-port Console Sharing Switch Product Number CS201 UPC 065030775939 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*2-port Console Sharing Switch Bullet 1 2 monitors, keyboard, and mice share 1 CPU. Bullet 2 Fully transparent to the users. Bullet 3 LED "port in service" indicator. Bullet 4 Provides simultaneous VGA display to all users. Bullet 5 First-come, first-served CPU access. Applications - Two (2) sets of keyboard, monitor, mouse share one (1) CPU
- Requires one (1) set of: keyboard switchbox cable (KXT100MMxx), serial mouse switchbox cable (MXT100MM), and VGA monitor switchbox cable (MXT101MM, MXT101MMHQ, or MXT105MMHQ)
TAA Compliant No General Specifications - Sharing Users: Two (2)
- Shared Functions: Monitor, mouse, keyboard
- LEDs: (2) Console, Manual Status
- Function Key: Automatic/Manual Selection
- Timeout setting: 5~90 sec.
- Keyboard Connectors: 5-pin DIN Female (2 input, 1 output)
- Serial Mouse Connectors: (2) DB9 Male to Mouse, (1) DB9 Female to PC
- PS/2 Mouse Connectors: None
- Monitor Connectors: High Density DB15 Female
- Enclosure: Metal and plastic
- Weight: 2650g
- Dimensions: 254x180x82 mm
- Certifications: FCC Part 15 Class A, CE Mark
- Power: AC 9V 500mA (AC 120V power adapter included)
Included in Package - 1 - CONSOLE SWITCH
- 1 - ADAPTOR CABLE
- 1 - INSTRUCTION MANUAL
