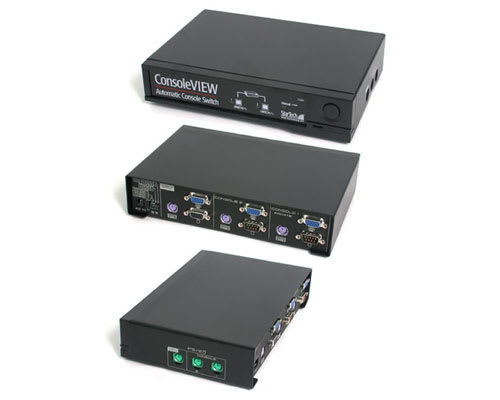

Main Image
CS221
Main Image
Product Name *D*2-port Console Sharing Switch (PS/2) Product Number CS221 UPC 065030781770 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Product Title (Long) *D*2-port Console Sharing Switch (PS/2) *D* Bullet 1 2 monitors, keyboard, and mice share 1 CPU. Bullet 2 Fully transparent to the users. Bullet 3 LED "port in service" indicator. Bullet 4 Provides simultaneous VGA display to all users. Bullet 5 First-come, first-served CPU access. Marketing Copy The 2-port Console Sharer is essentially a Reverse KVM Switch which lets two users share one PC or KVM switch. It automatically switches between 2 console sets of keyboard, monitor, and mouse, providing 1 user at a time complete control of the connected PC or KVM switch. It is ideal for training environments where a second user must be shown how to perform specific tasks, or for using special secondary keyboards, monitors, and mice or trackballs in addition to the standard peripherals. Applications - Two (2) sets of keyboard, monitor, mouse share one (1) CPU
- Requires one (1) set of: PS/2 keyboard switchbox cable (KXT102MMxx), serial mouse switchbox cable (MXT100MM) or PS/2 mouse switchbox cable (KXT102MMxx), and VGA monitor switchbox cable (MXT101MM, MXT101MMHQ, or MXT105MMHQ)
TAA Compliant No General Specifications - Sharing Users: Two (2)
- Shared Functions: Monitor, mouse, keyboard
- LEDs: (2) Console, Manual Status
- Function Key: Automatic/Manual Selection
- Timeout setting: 5~90 sec.
- Keyboard Connectors: 6-pin MiniDIN Female (2 input, 1 output)
- Serial Mouse Connectors: (2) DB9 Male to mice, (1) DB9 Female to PC
- PS/2 Mouse Connectors: 6-pin MiniDIN Female (2 input, 1 output)
- Monitor Connectors: High Density DB15 Female
- Enclosure: Metal and plastic
- Weight: 2650g
- Dimensions: 254x180x82 mm
- Certifications: FCC Part 15 Class A, CE Mark
- Power: AC 9V 500mA (AC 120V power adapter included)
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - SERVER SWITCH
- 1 - POWER ADAPTOR
- 1 - INSTRUCTION MANUAL
Package Depth (mm) 0 Package Height (mm) 0 Package Width (mm) 0 Package Weight (g) 1750.9 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
