CS601
Main Image

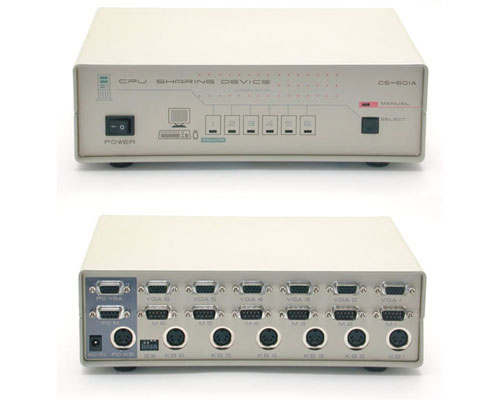

Product Name *D*6-port Console Sharing Device Product Number CS601 UPC 065030772938 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*6-port Console Sharing Device Bullet 1 6 monitors, keyboard, and mice share 1 CPU. Bullet 2 Fully transparent to the users. Bullet 3 LED "port in service" indicator. Bullet 4 Provides simultaneous VGA display to all users. Bullet 5 First-come, first-served CPU access. Applications - Six (6) sets of keyboard, monitor, mouse share one (1) CPU
- Includes one (1) set of keyboard, monitor, and mouse switchbox cables for connection to CPU
TAA Compliant No General Specifications - Sharing Users: Six (6)
- Shared Functions: Monitor, mouse, keyboard
- LEDs: Six (6) channel LEDs, one (1) manual status
- Function Key: Automatic/Manual Selection
- Timeout setting: 5~90 sec.
- Keyboard Connectors: Seven (7) 5-pin DIN Female
- Serial Mouse Connectors: Six (6) DB9 Male to mice, one (1) DB9 Female to PC
- Monitor Connectors: High Density DB15 Female
- Enclosure: Metal
- Weight: 2650g
- Dimensions: 254x180x82 mm
- Certifications: FCC Part 15 Class A, CE Mark
- Power: AC 9V 500mA (AC 120V power adapter included)
Included in Package - 1 - CONSOLE SHARING DEVICE
- 1 - ADAPTER
- 1 - INSTRUCTION MANUAL
- 3 - CONNECTING CABLES
en-US Content Approved Yes
