Main Image
CSKIT
Main Image

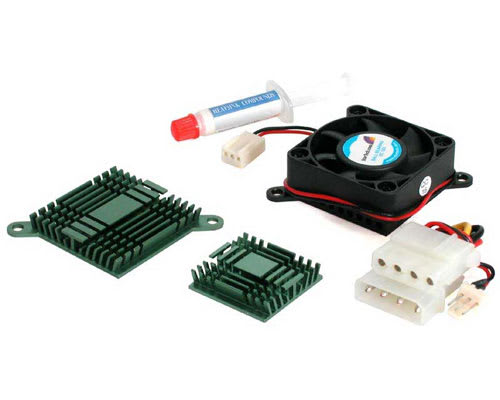

Product Name Computer Chipset Cooling Kit Product Number CSKIT UPC 065030789714 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Long) Computer PC Chipset Cooling Kit Bullet 1 Includes the following: Bullet 2 Chipset cooling fan Bullet 3 2 Chipset heatsinks Bullet 4 Power cable connector and 4 Nylon clips Bullet 5 2 Thermal pads Marketing Copy StarTech.com has all of the tools you need to keep your computer running smooth and cool. Take a look at the CSKIT, StarTech.com’s all-in-one chipset cooling kit, designed to provide you with everything you need to ensure stable and efficient operation of your PC. Included is a tube of StarTech.com’s high-performance heat grease and 2 heat-reducing heatsinks. Applications Six in one VGA chipset thermal cooling kit Color Black Product Weight (g) 90 TAA Compliant No Air Flow Rate 5.22 CFM General Specifications - Weight: 90 Grams
- Dimensions:
- Fan: 1.6x1.6x.62 (40x40x15mm)
- Heatsink 1: 1.1x1.1x0.3 (28x28x8mm)
- Heatsink 2: 1.5x1.5x0.3 (38x38x8mm)
- Thermal Pad 1 (Inches): .80x.80x.008 (20x20x0.2mm)
- Thermal Pad 2 (Inches): 1.2x1.2x.008 (30x30x0.2mm)
- Heatsink Material: Aluminum
- Fan Type: Sleeve Bearing
- Speed (RPM): 5300
- Noise Level (DB): 25
- Voltage: 12V
- Clips: 4 x Nylon clip
- Thermal Compound: 1.5 grams heat grease
- Other Connector: TX3 Motherboard power connector to LP4 power
- Connector: TX3 (2-Lead)
RPM 5300 Carton Depth (mm) 302 Carton Height (mm) 282 Carton Quantity 50 Carton Weight Gross (g) 5700 Included in Package - 1 - Chipset Cooler
- 2 - Chipset Heatsinks
- 1 - Cable Connector (3pin to 4pin power supply connector)
- 4 - Nylon clips
- 3 - Thermal Pads
- 1 - 1.5 gm tube of thermal compound
Package Depth (mm) 20 Package Height (mm) 190 Package Width (mm) 145 Package Weight (g) 90 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
