D01ML55U-FIBER-MEDIA

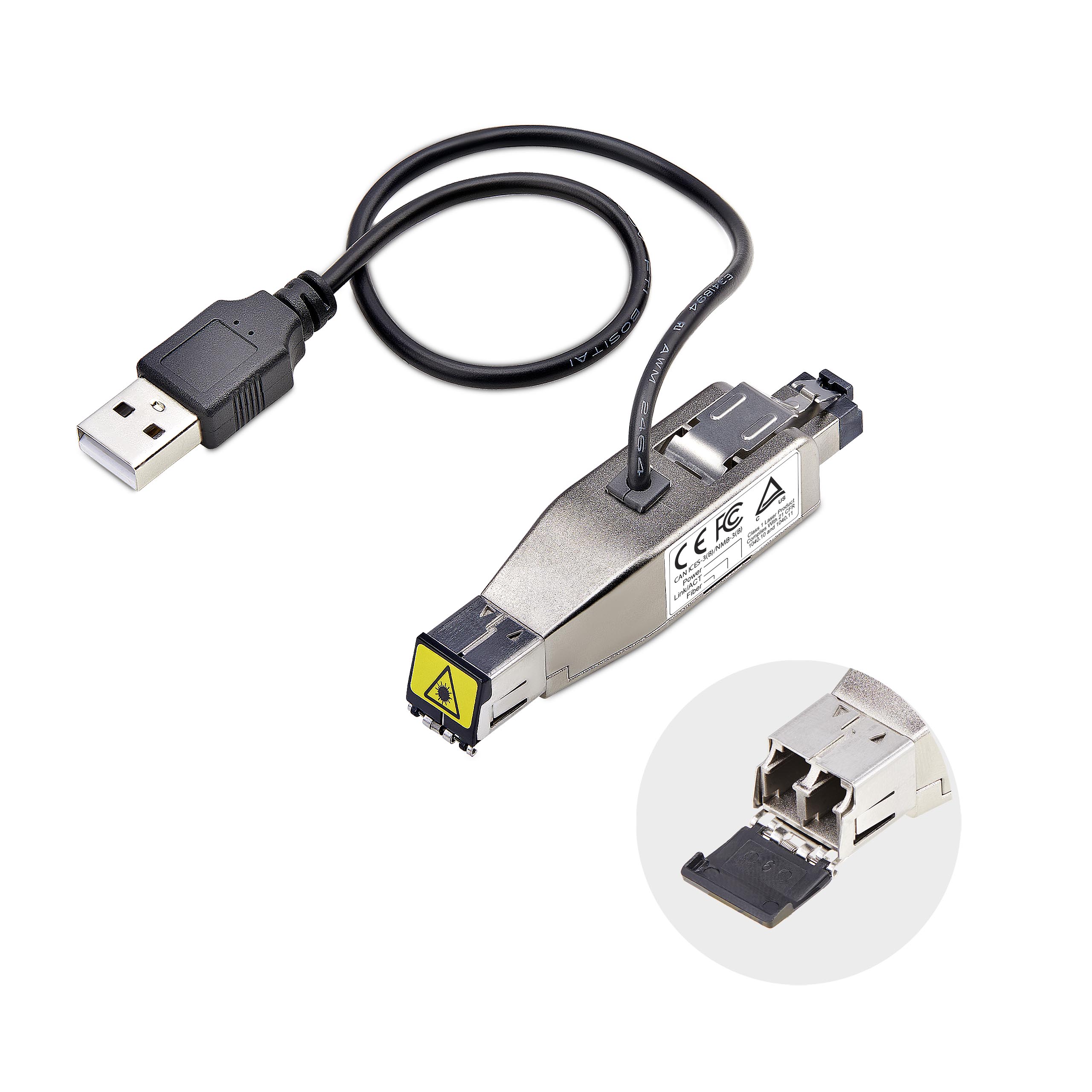

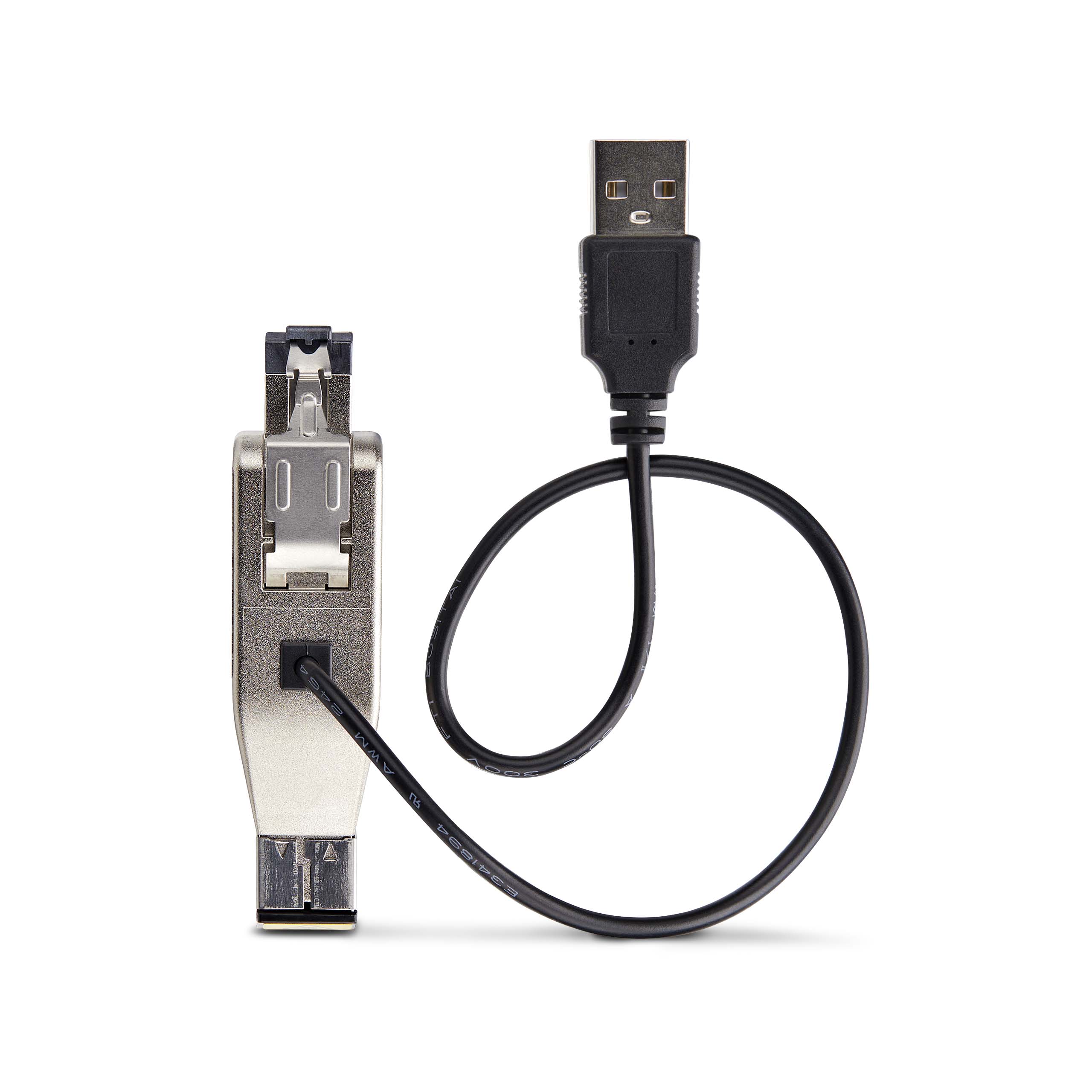

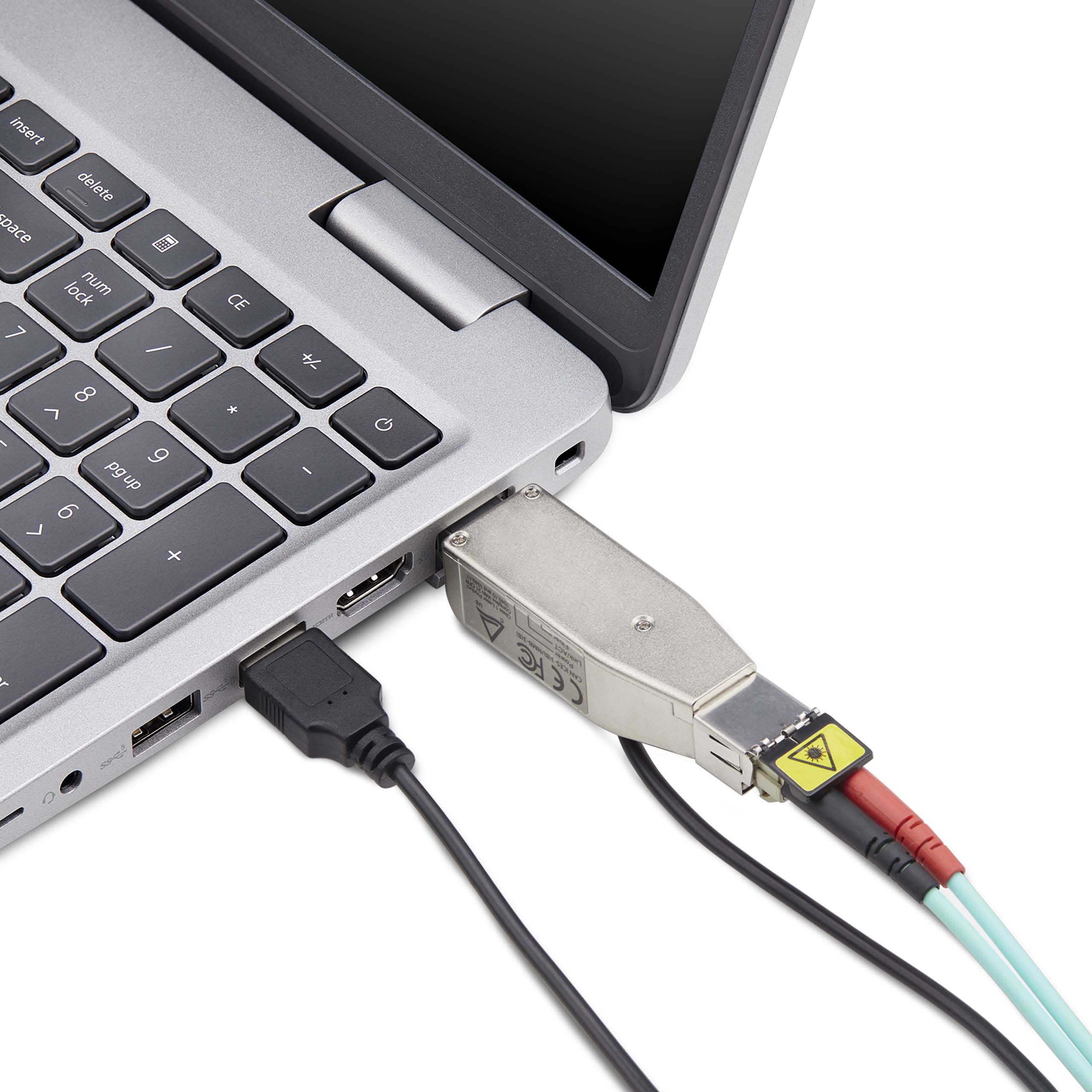

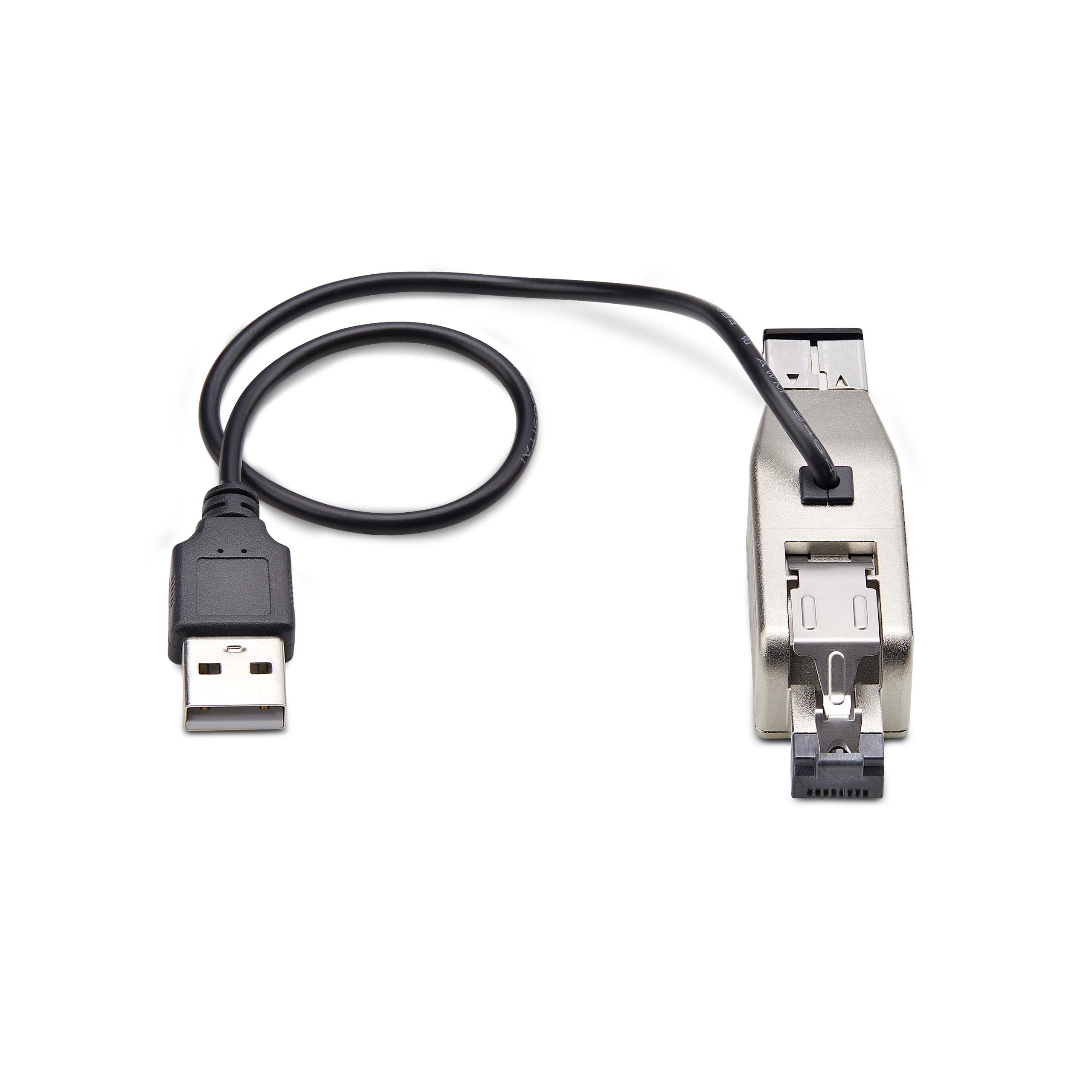

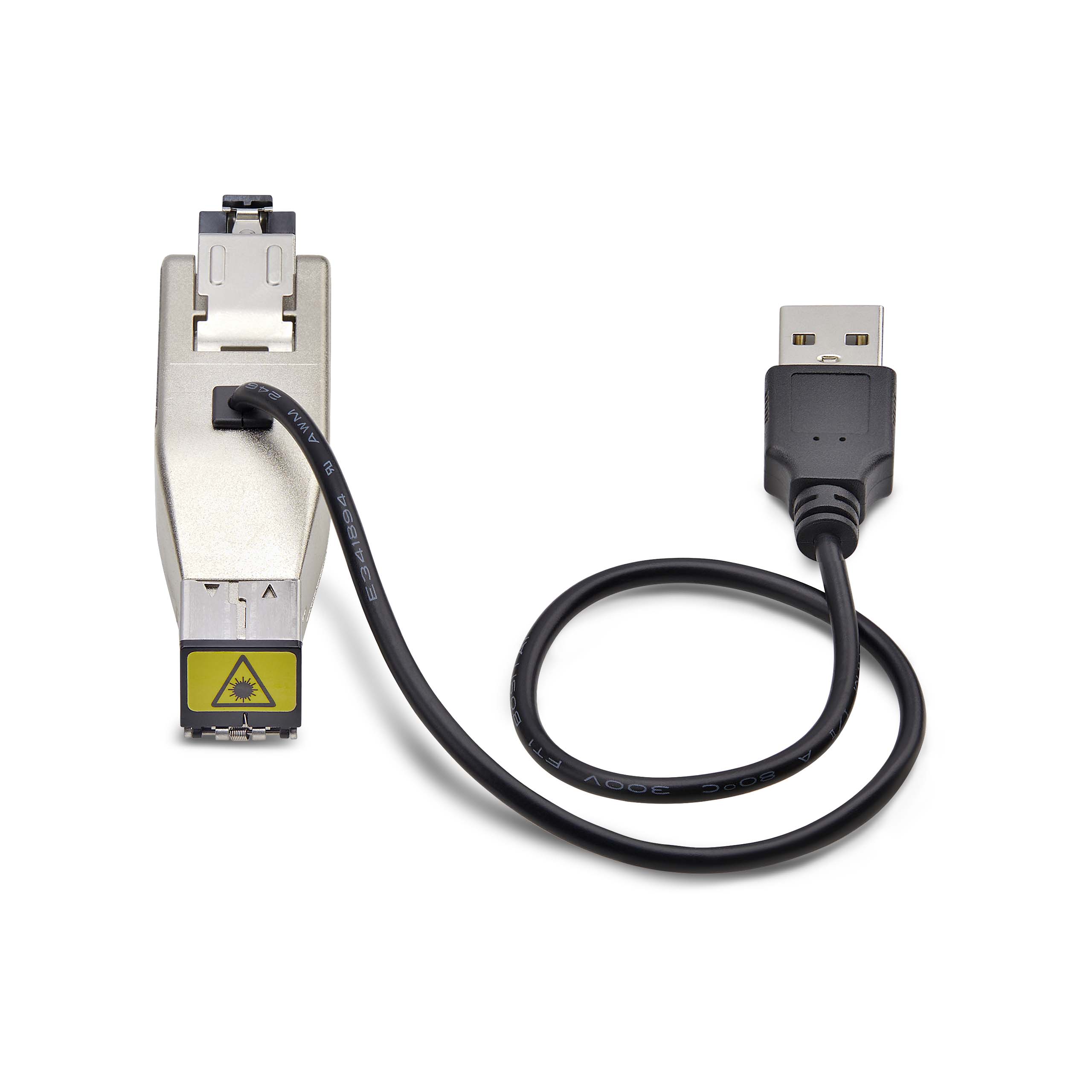

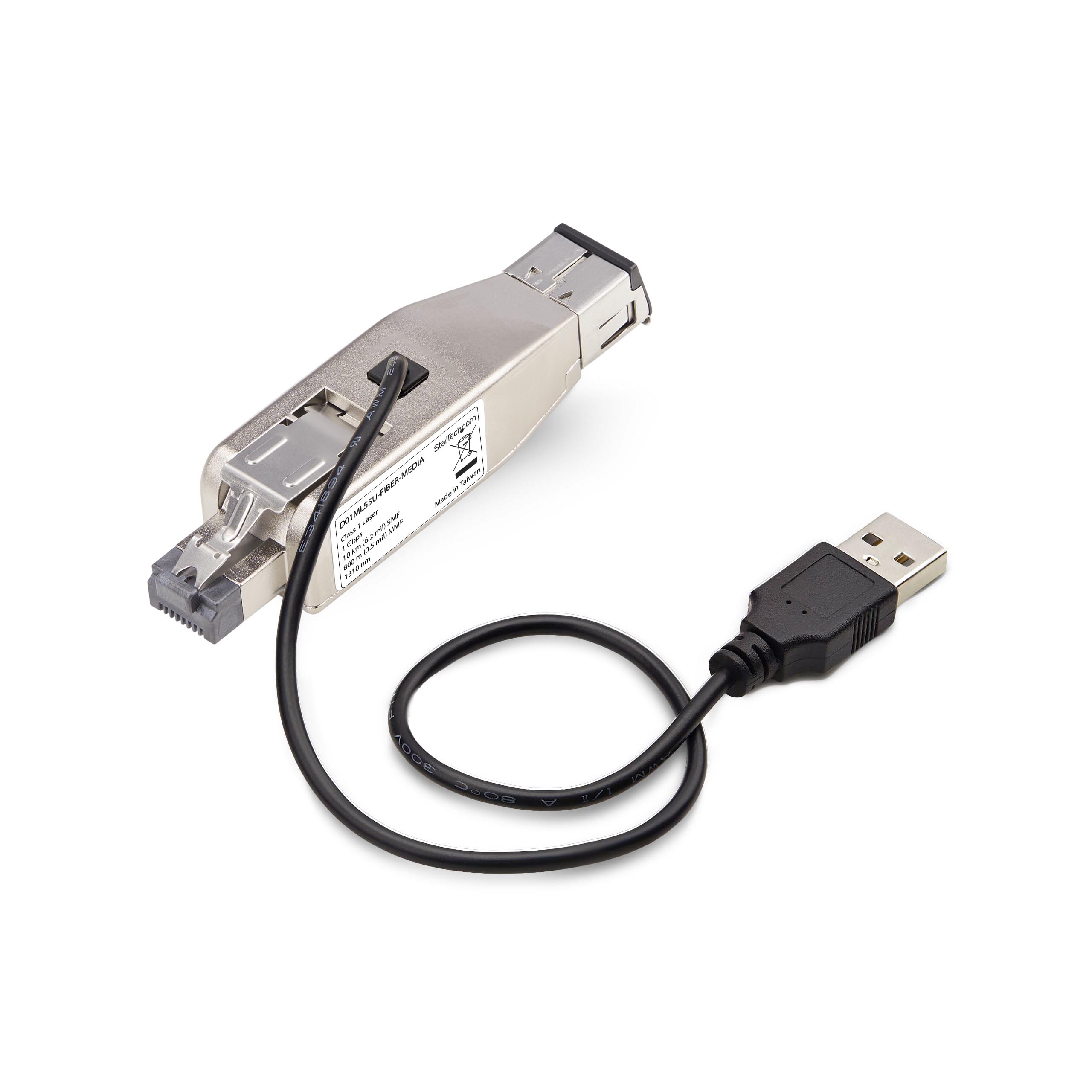

Gigabit Ethernet Fiber Converter Dongle MM LC 550m USB Power
Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Gigabit Ethernet Fiber Converter Dongle MM LC 550m USB Power Product Number D01ML55U-FIBER-MEDIA UPC 065030909815 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX137X Product Title (Ultra-Short) 1G Media Converter Product Title (Short) Gigabit Fiber to RJ45 Media Converter Product Title (Medium) Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, LC Single/Multimode, TAA Product Title (Standard) Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, USB Powered, SMF/MMF, Single/Multimode Optical Fiber, TAA Product Title (Long) Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, USB Powered, Compact Design, Metal Housing, Micro Mini, TAA Product Title (AMZ) Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, TAA, USB Powered Title Ingram (Part 1) Gigabit Fiber to RJ45 Ethernet Title Ingram (Part 2) Media Converter Dongle, SMF/MMF Website Product Headline Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber Bullet 1 FIBER TO ETHERNET MEDIA CONVERTER: Converts Gigabit fiber to RJ45 copper in a compact form factor; No SFP/Cat6 cables required; Convenient built-in USB cable for power; Dimensions: 3.2x0.8x0.7in (82.4x20x17.5mm) Bullet 2 SHORT & LONG RANGE FIBER: LC slot compatible w/Single-Mode (10km) & Multi-Mode (800m); Single speed 1Gbps for both fiber and RJ-45 ports; Status LEDs including LFPT (Link Fault Pass-Through) enables IT admins to monitor network connectivity Bullet 3 DURABLE CONSTRUCTION: IP20-rated full-metal housing for enhanced durability; Metal RJ45 latch tab ensures a robust and secure connection; Flexible strain relief on attached USB cable; Spring-loaded dust cover protects port when not in use Bullet 4 TECH SPECS: Single speed 1Gbps; x1 LC port; x1 RJ45; LC duplex; Singlemode SMF (10km) & multimode MMF (800m); 1310nm; LFPT; IP20 rated all metal housing; 1ft (300mm) built-in USB power cable; Max power consumption 2.5W Bullet 5 APPLICATIONS: Upgrade computers, switches, routers, or other equipment to fiber; Suitable for on-site network troubleshooting, field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking Bullets (Compact) Gigabit fiber-RJ45 Ethernet media converter dongle; USB powered - Single/multimode optical fiber - 1Gbps/x1 LC Port/x1 RJ45/SMF 10km/MMF 800m - All-metal; IP20 rated; Metal RJ45 tab - Ideal for upgrading computer/switch - TAA; Compact 3.2x0.8x0.7in Bullets (Consolidated) - Gigabit fiber to RJ45 Ethernet media converter dongle; Built-in USB power cable, No SFP needed - Upgrade computer/switch/router to fiber - 1Gbps; x1 LC Port; x1 RJ45; SMF 10km; MMF 800m; LC slot compatible w/singlemode/multimode optical fiber; Spring-loaded tab protects port when not in use - Suitable for industrial automation/telecom/broadcasting/data centers/secure facilities/remote network - All-metal housing for durability; IP20 rating; Metal RJ45 latch - Compact size 3.2×0.8×0.7in Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Laser Label - Safety - Laser - United States - FDA Class IIIa Laser Label
- Laser Label - Safety - Laser - Canada - Canada Laser Safety Label
- Laser Label - Safety - Laser - European Union - EU Laser Safety Label
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- TUV - Safety - Electrical - Canada / United States - TUV Rheinland cTUVus Mark
Accessory Products - N6PATCH6BL
- N6PATCH10BK
- 50FIBLCLC1
- 50FIBLCLC10
- 50FIBLCLC15
Related Products - MCM1110MMLC
- ET1000S40LC2
Power Consumption (In Watts) 2.5W Max Power Source USB-Powered Plug Type USB A (4 pin) Male Color Silver Humidity 5~85% RH Material Metal and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 20.000 Product Width (mm) 82.400 Product Height (mm) 17.500 Product Weight (g) 49.000 TAA Compliant Yes Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 1000 Mbps (1 Gbps) Fiber Type Single Mode / Multi Mode Maximum Data Transfer Rate 1000 Mbps OS Compatibility OS Independent Wavelength 1310nm Chipset ID Marvell - 88E1512 Fiber Connector LC Industry Standards - IEEE 802.3ab (1000BASE-T)
- IEEE 802.3z (1000BASE-LX)
LED Indicators - 1 - Power </br> Solid Green: Module On </br> Off: Module Off
- 1 - Link/ACT </br> Solid Green: 1000Mbps </br> Blinking Green: Activity </br> Off: Disconnected
- 1 - Fiber </br> Solid Blue: Connected </br> Off: Disconnected
Power over Ethernet No Carton Depth (mm) 340 Carton Height (mm) 126 Carton Quantity 24 Carton Weight Gross (g) 2370 Included in Package - 1 - Media Converter
- 1 - Quick-Start Guide
Package Depth (mm) 80 Package Height (mm) 35 Package Width (mm) 139 Package Weight (g) 88 Packaging Description Gigabit RJ45 Ethernet to LC Fiber Converter Dongle - USB Powered Packaging Description India Gigabit RJ45 Ethernet to LC Fiber Converter Dongle - USB Supplied Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LC Fiber Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-A (1.5Mbps, 2.5W) Connector 3 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-03-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m Comparable SKU 2 Comment Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m Digital Content Due Date 2024-09-13 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PL,SE,SG,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-01-31 Target Production Release 2024-03-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Latest
