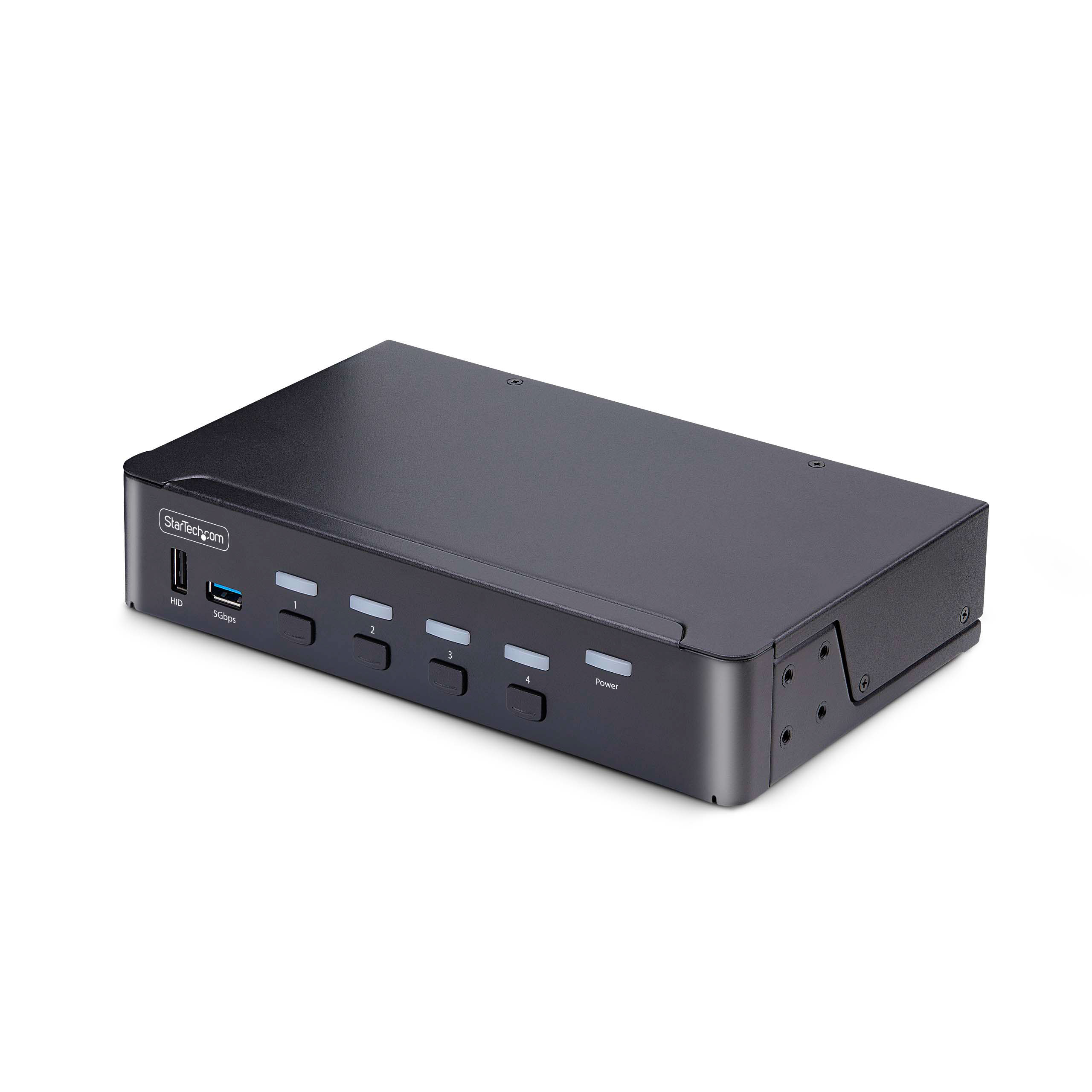

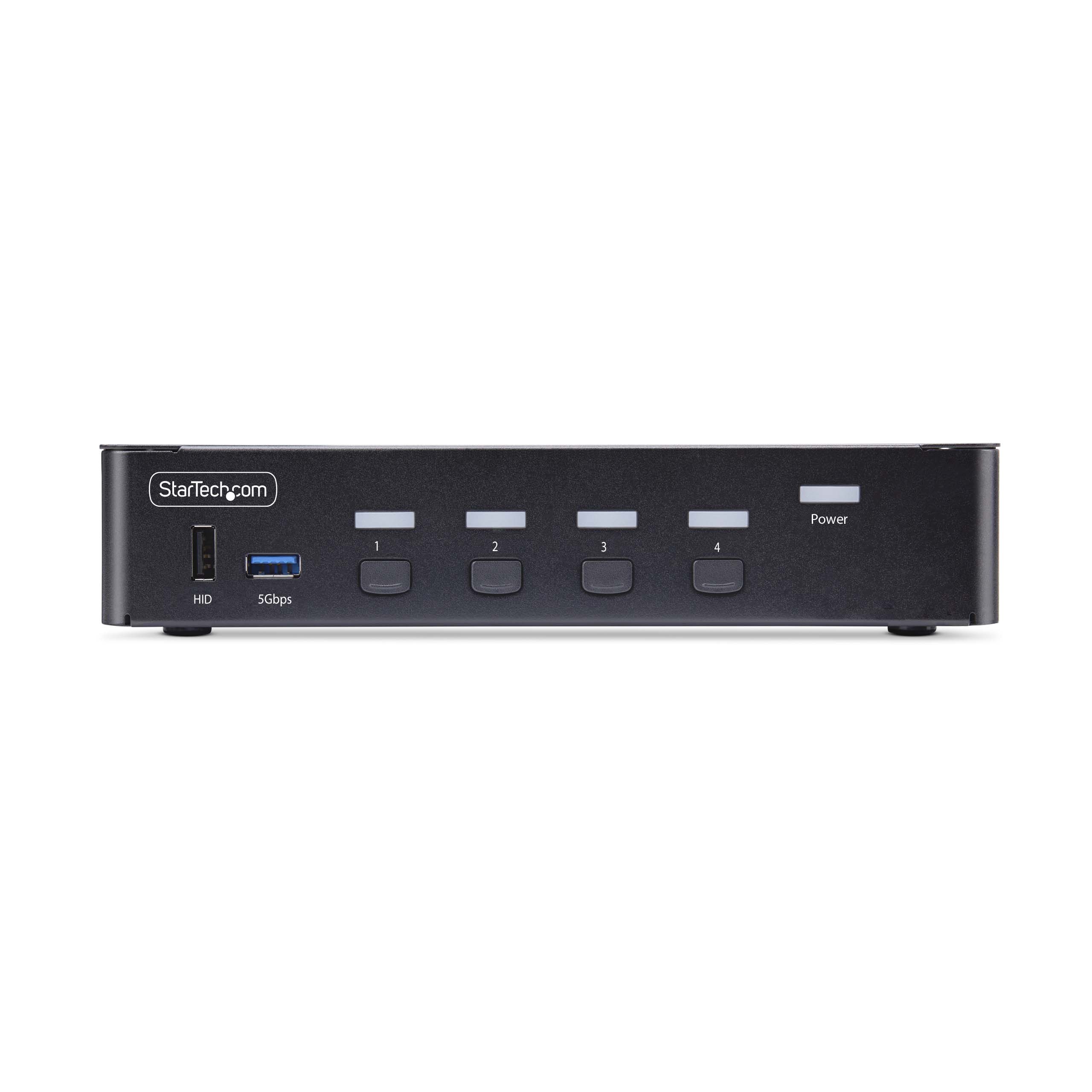

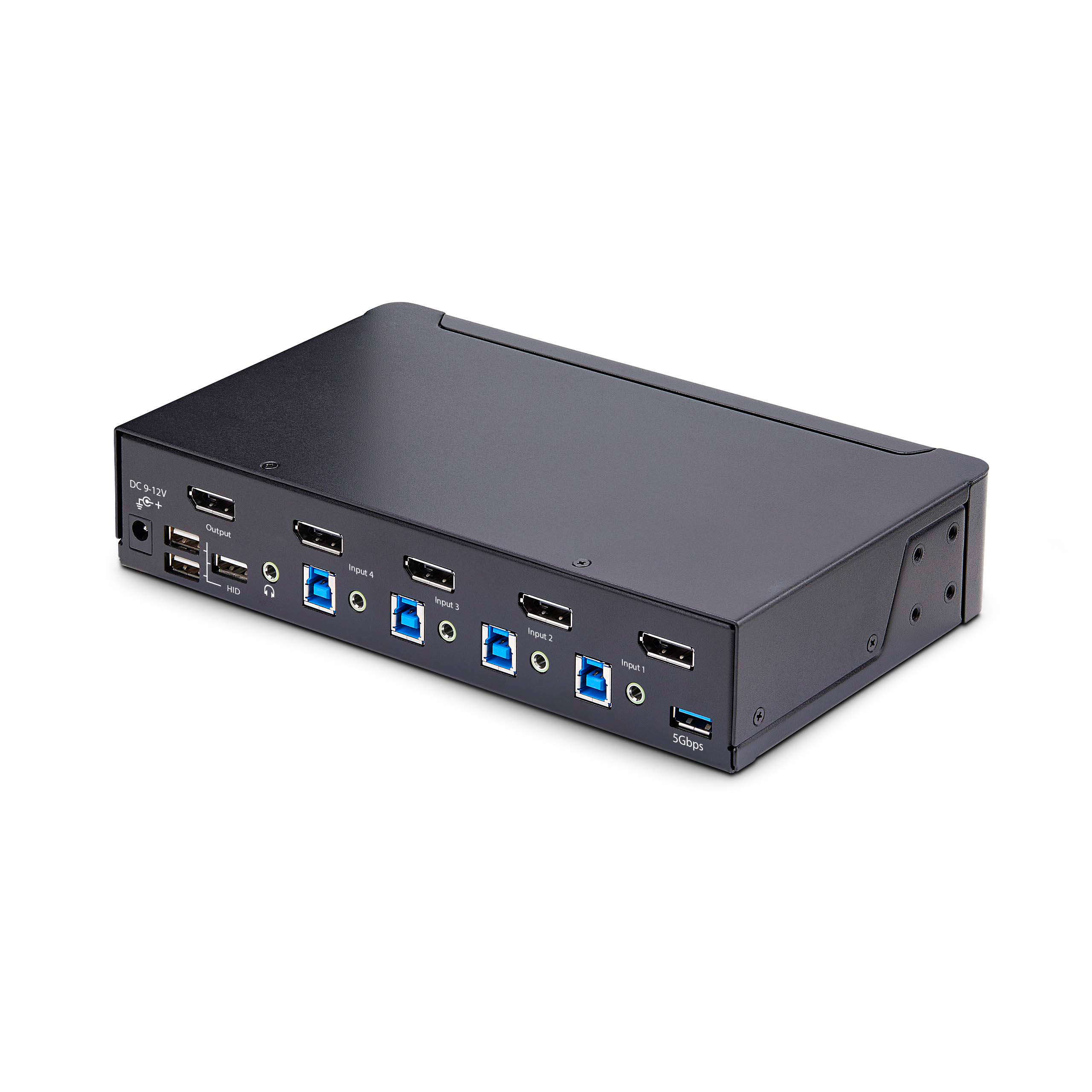

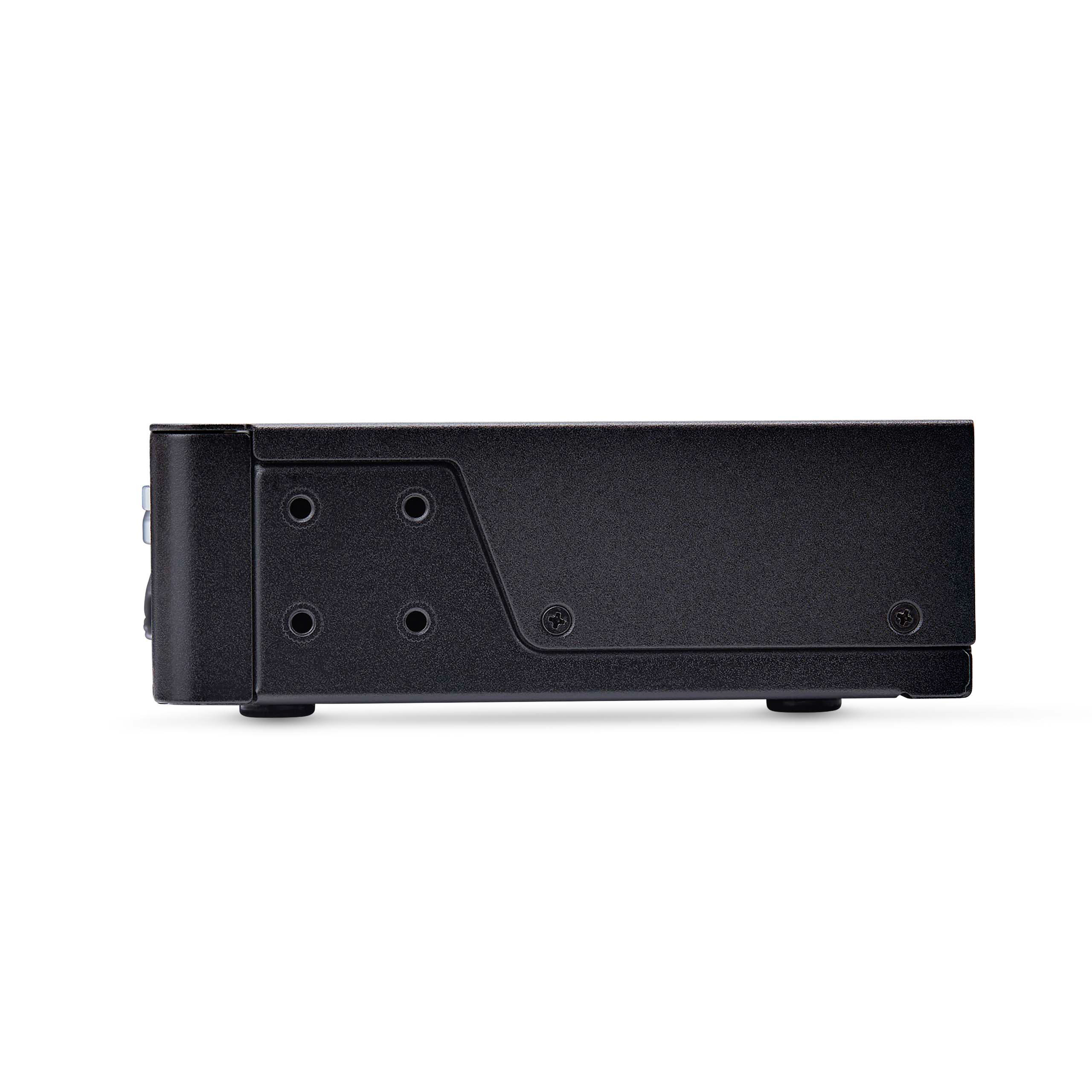

D86A2-4-PORT-8K-KVM
4 Port USB Gen 1 8K DP KVM switch
Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort monitor between four DisplayPort-enabled computers
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 Port USB Gen 1 8K DP KVM switch Product Number D86A2-4-PORT-8K-KVM UPC 065030893206 Lifecycle status Active Warranty 2 Years Weighted Opportunity 33006 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4-Port KVM Switch Product Title (Short) 4-Port DisplayPort KVM Switch, 8K 60Hz Product Title (Medium) 4-Port DisplayPort KVM Switch, 8K 60Hz, DP 1.4, Hotkey Switching, TAA Compliant Product Title (Standard) 4-Port DisplayPort 1.4 KVM Switch, 8K 60Hz / 4K 144Hz, 2x USB 3.0 Ports, 4x USB 2.0 Ports, Hotkey Switching, TAA Compliant Product Title (Long) 4-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing Product Title (AMZ) 4-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant (D86A2-4-PORT-8K-KVM) Title Ingram (Part 1) 4-Port DisplayPort KVM Switch - Title Ingram (Part 2) 8K 60Hz, Hotkeys, TAA Compliant Website Product Headline Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort monitor between four DisplayPort-enabled computers Bullet 1 8K 60HZ WITH HDR: Fast switch between four USB-A and DisplayPort-enabled desktops to share a keyboard, mouse, audio device, and a single 8K 60Hz DisplayPort monitor; DSC support required for maximum video performance; Supports MST Pass-through Bullet 2 UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux; Compatible with all hardware platforms such as Intel and AMD; Supports ultrawide resolutions up to 5120x1440 60Hz Bullet 3 MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling another Bullet 4 THOUGHTFUL DESIGN: Metal housing is durable and helps prevent Electro-magnetic Interference (EMI); Overcurrent Protection (OCP) prevents peripherals from overdrawing power, reducing the risk of damage to the KVM and attached USB devices Bullet 5 TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.4 compliant, supporting resolutions up to 8K 60Hz or 4K 144Hz, HDR10, HDCP 2.2/1.4, and DSC; Supports DisplayPort Audio and 3.5mm analog audio; USB 5Gbps Hub Ports; OS Independent Bullets (Compact) 4-Port KVM enables fast switching between USB-A/DisplayPort-enabled desktops sharing keyboard/mouse and an 8K 60Hz monitor; DSC support required for maximum performance; Universal KVM is OS independent; Push-button or hotkey switching; Metal housing Bullets (Consolidated) - 4-Port KVM enables fast switching between USB-A/DisplayPort-enabled desktops sharing keyboard/mouse and an 8K 60Hz monitor; DSC support required for maximum performance - Universal KVM is OS independent; Supports ultrawide monitors up to 5120x1440 60Hz - Push-button or hotkey switching with audible confirmation; Port selection LEDs; Audio from one computer while controlling another - Metal housing prevents EMI; Overcurrent Protection (OCP) prevents power overload reducing device dropouts Marketing Copy Marketing Copy (No HTML) Applications - Share a monitor, mouse, keyboard, and audio peripheral between four desktop computers
- Great for applications like CAD/CAM, video editing, and content creation
Website Search Keyword - 4 port displayport kvm switch
- 4 port kvm switch
- 8k 60hz displayport kvm
- computer monitor switch box
- displayport 1.4 kvm switch
- dp kvm switch
- keyboard mouse monitor switch
- kvm switch with audio
- kvm with usb
- USB 3.0 Hub
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements A host that supports DisplayPort 1.4 and DSC is required for maximum performance Accessory Products - DP14VMM2M
- MU6MMS
- USB3SAB6
- DP14VMM1M
- DP14VMM3M
- MU3MMS
- USB3SAB6BK
- USB3CAB1M
- SV431RACK
Related Products - SV231DPU34K
- D86A2-2-PORT-8K-KVM
- SV431DPU3A2
- SV231TDPU34K
- SV231QDPU34K
Input Current 1.0A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 85% RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 220.000 Product Width (mm) 130.000 Product Height (mm) 44.000 Product Weight (g) 1038.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio

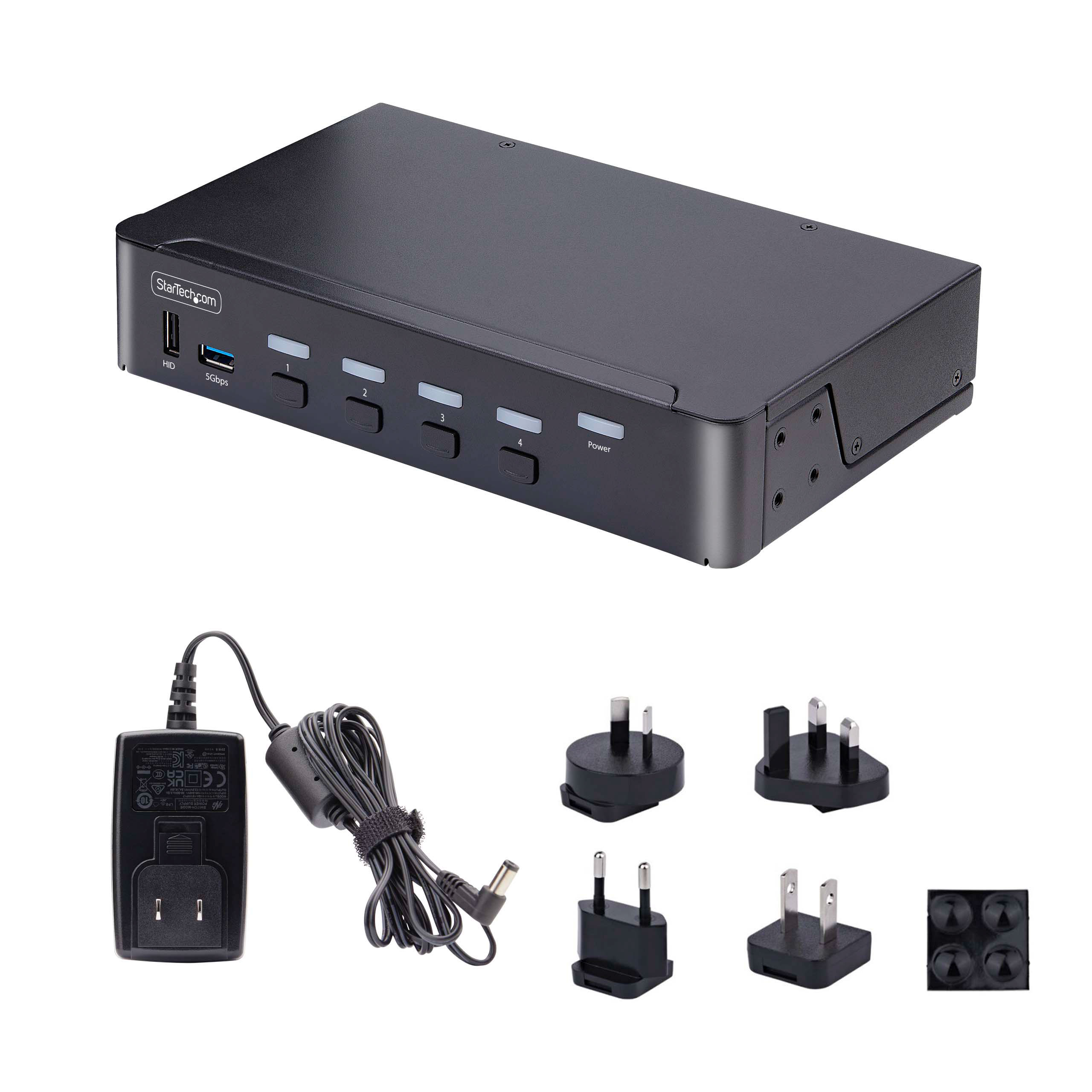

Auto Scan 3, 8, 15 & 30 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 5Gbps Maximum Digital Resolutions 7680 x 4320 @ 60Hz MTBF (hours) 130,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No Chipset ID GL-3523 LED Indicators Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 514 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 10596 Included in Package - 1 - KVM Switch
- 1 - Quick-Start Guide
- 1 - Universal Power Adapter (NA/JP, EU, UK, NZ)
- 4 - Rubber Feet

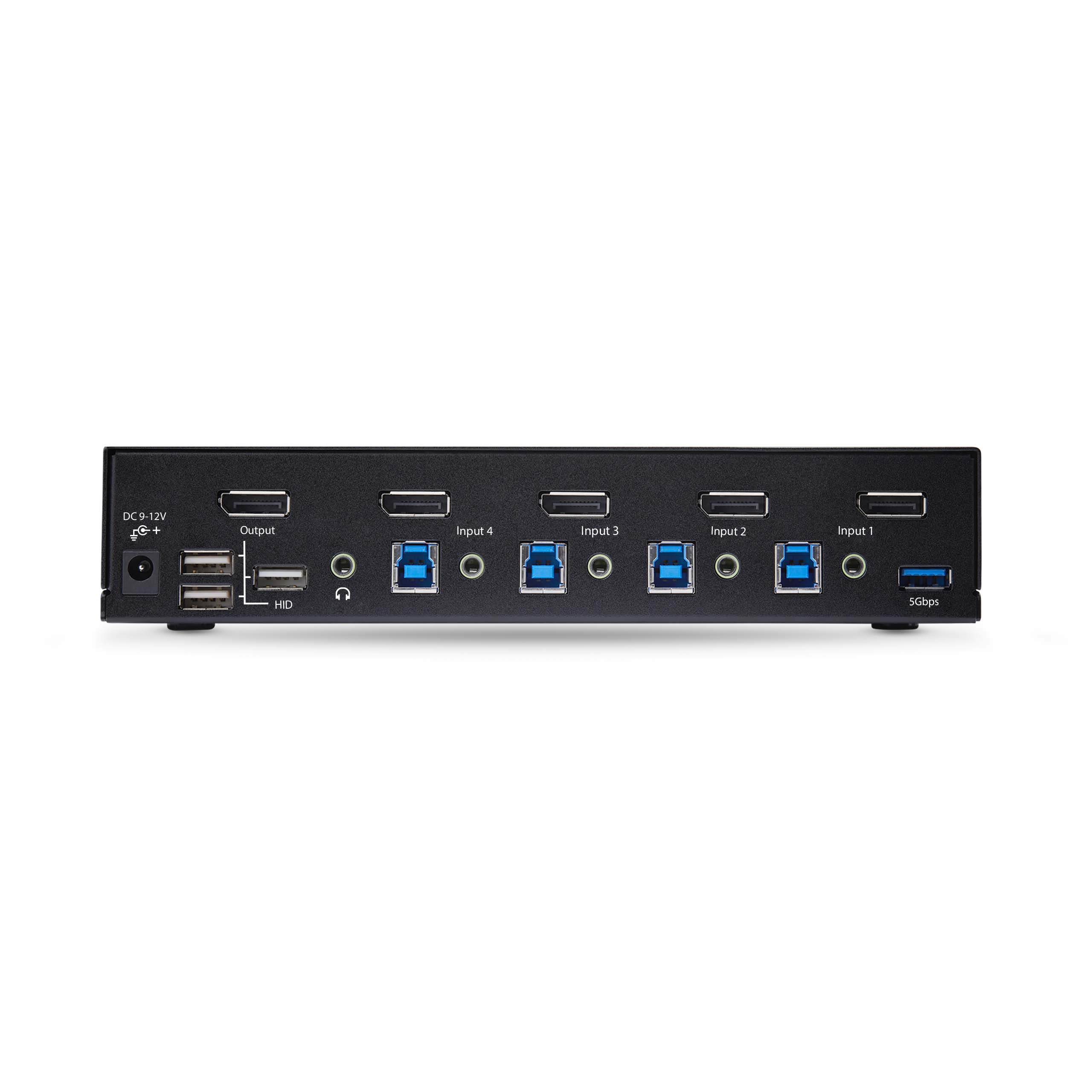

Package Depth (mm) 297 Package Height (mm) 87 Package Width (mm) 245 Package Quantity 1 Package Weight (g) 1594 Packaging Description 4-Port USB 3.2 Gen 1 KVM Switch - DisplayPort - 8K 60Hz Packaging Description India 4-Port USB 3.2 Gen 1 KVM Switch - DisplayPort - 8K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 DisplayPort Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 5 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 4 Host Connector 2 DisplayPort Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Artwork Due Date 2023-05-29 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 4-port 4K60 DP, USB 2.0 hub Comparable SKU 2 Comment 4-port 4K60 HDMI Digital Content Due Date 2024-01-10 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology DisplayPort 1.4 Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-09-13 Target Production Release 2023-09-30 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Not Required
