DACSFP10G2M

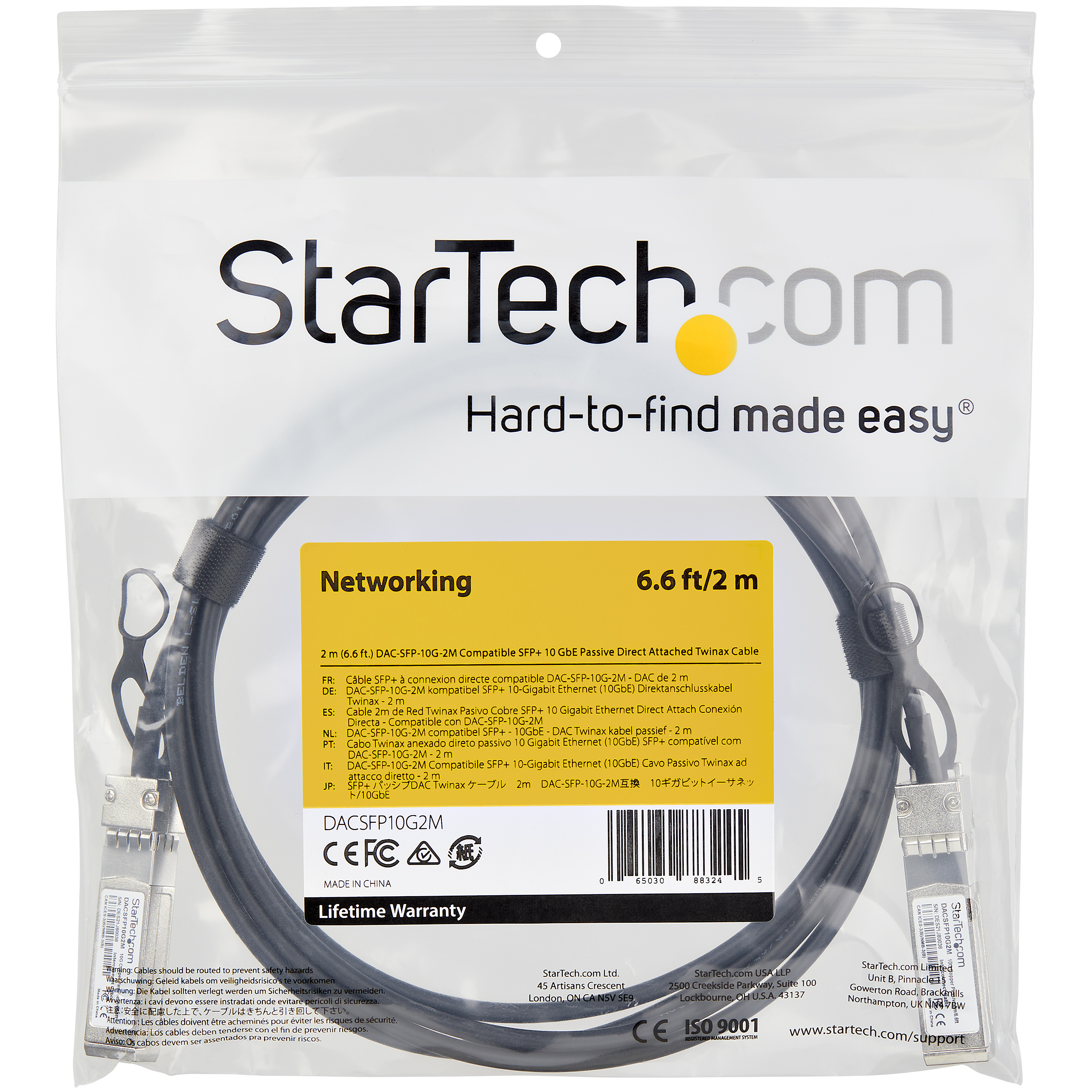

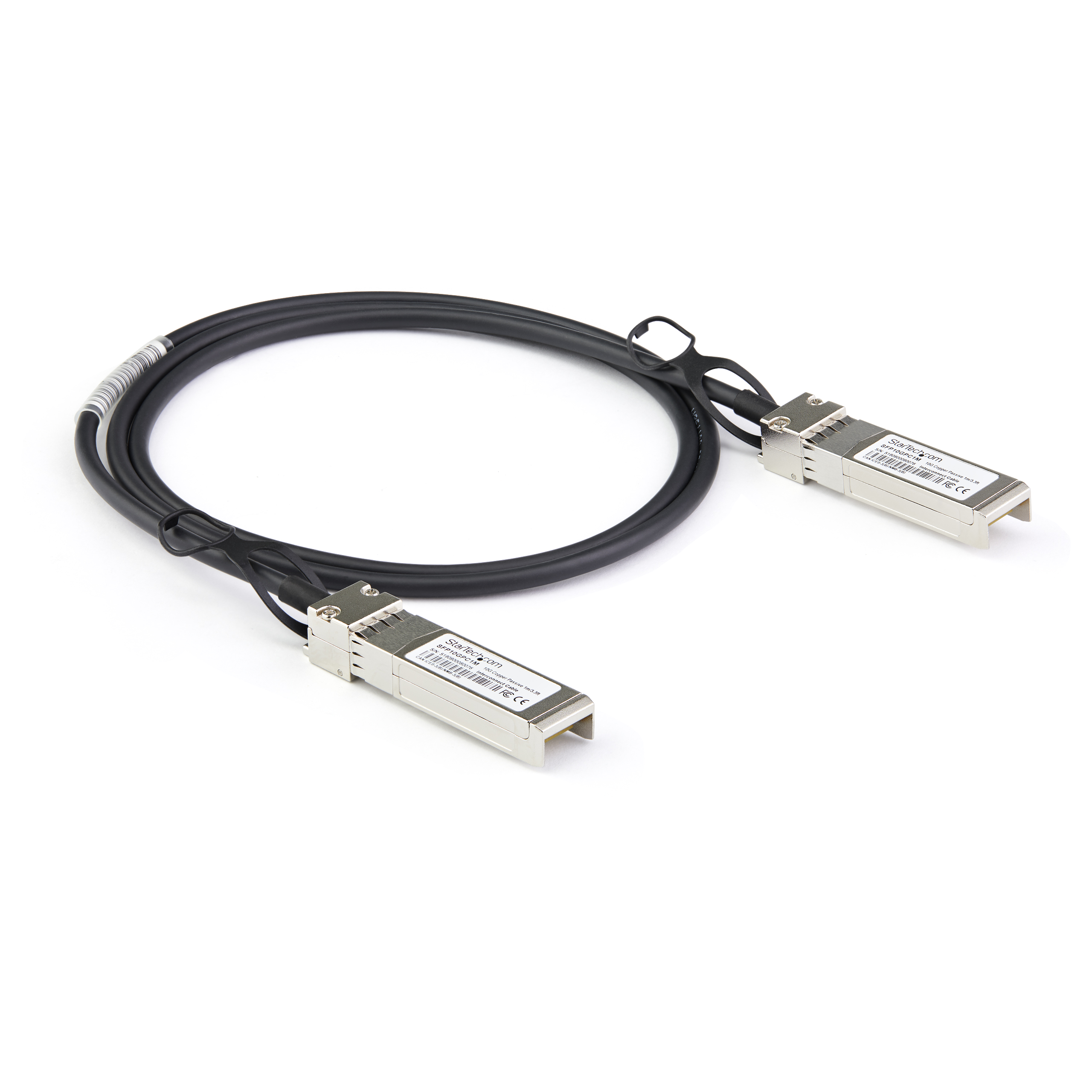

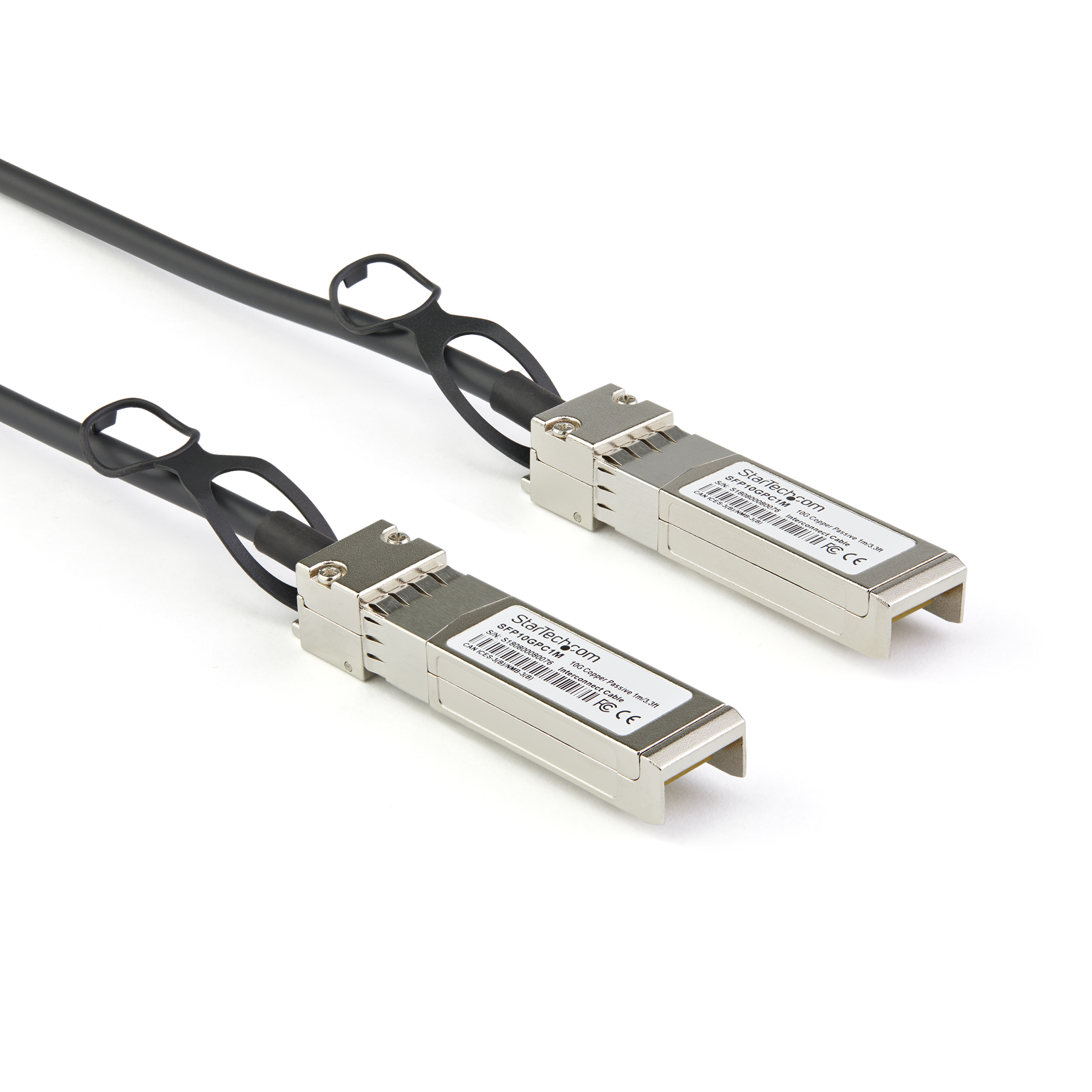

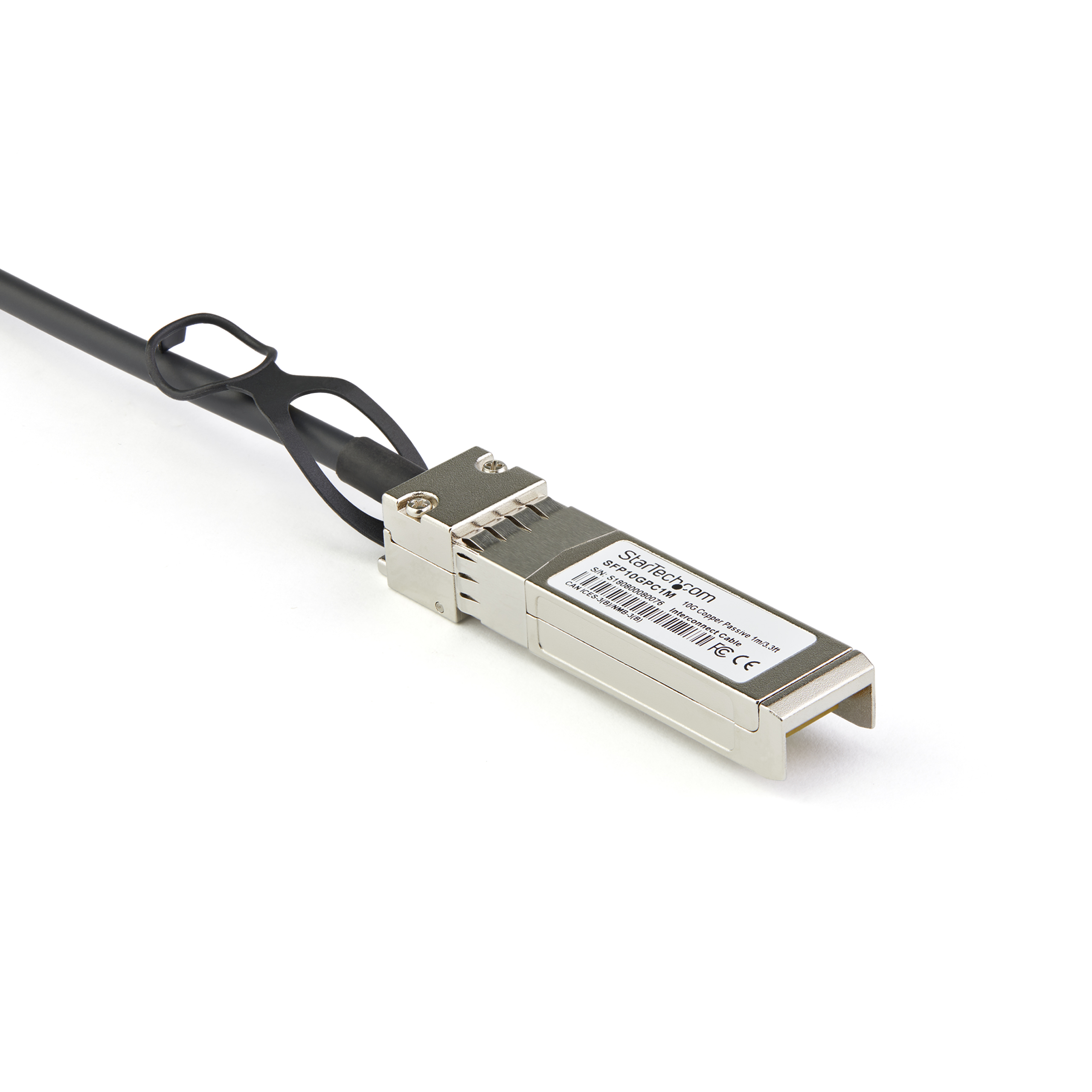

Dell EMC DAC SFP 10G 2M Compatible SFP 10GbE Passive Direct
10 Gbps | Passive Copper Cable | 2 m (6.6ft) | Lifetime Warranty
Main Image
Product Images
Product Images
BOM Image
Product Name Dell EMC DAC SFP 10G 2M Compatible SFP 10GbE Passive Direct Product Number DACSFP10G2M UPC 065030883245 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Dell SFP Transceivers Family Dell 10G SFP+ Cables - Twinax Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX169X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX056X Product Title (Ultra-Short) DAC-SFP-10G-2M Product Title (Short) 2m 10G SFP+ DAC Dell EMC DAC-SFP-10G-2M Product Title (Medium) Dell EMC DAC Twinax Cable - DAC-SFP-10G-2M Com 2 m - Lifetime Warranty Product Title (Standard) 2m SFP+ to SFP+ Direct Attach Cable for Dell EMC DAC-SFP-10G-2M - 10GbE - SFP+ Copper DAC 10 Gbps Passive Twinax Product Title (Long) Dell EMC DAC-SFP-10G-2M Compatible 2m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Mini GBIC/Transceiver Module DAC Product Title (AMZ) Dell EMC DAC-SFP-10G-2M Compatible 2m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Mini GBIC/Transceiver Module DAC (DACSFP10G2M) Title Ingram (Part 1) Dell EMC DAC-SFP-10G-2M Comp Title Ingram (Part 2) DAC Twinax Copper Cable 2m Website Product Headline 10 Gbps | Passive Copper Cable | 2 m (6.6ft) | Lifetime Warranty Bullet 1 100% DELL EMC DAC-SFP-10G-2M COMPATIBLE DAC: 10G direct attach cable works with Dell EMC switches and is MSA compliant Bullet 2 TECHNICAL SPECS: 2m (6.6ft) | 10 Gbps | Passive Twinax (Copper) | 2 x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Dell EMC routers and switches Bullet 4 LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch; our modules won't void your OEM warranty and supported by our Tech Advisors 5/24 Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers Bullets (Compact) 100% Dell EMC DAC-SFP-10G-2M Compatible 2m direct attached cable - 10 Gbps Passive Twinax Copper Low Power 2x SFP+ Pluggable Connector - 10GbE Mini GBIC/Transceiver Module DAC for Dell EMC switches - Hot-Swappable MSA Compliant Lifetime Warranty Bullets (Consolidated) 100% Dell EMC DAC-SFP-10G-2M Compatible 2m direct attached cable - 2m/6.6' Cable | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket - 10GbE Low Power Mini GBIC/Transceiver Module DAC for edge networks/server rooms/data centers - For Dell EMC switches - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 1 gig copper sfp+
- 2m sfp+ cable
- Axiom SFP+
- C2G SFP+
- cisco sfp+ rj45
- Copper SFP+ cable
- dac sfp+
- dac sfp+ cable
- Dell EMC DAC-SFP-10G-2M
- dell sfp+ cable
- dell sfp+ to rj45
- finisar copper sfp+
- Gigabit SFP+
- Mini GBIC
- mini gbic cable
- Proline SFP+
- rj45 sfp+
- sfp+ 10g
- sfp+ 10g cable
- sfp+ 10gb
- sfp+ 10gbe
- sfp+ 10gbe cable
- sfp+ cable
- sfp+ connector
- sfp+ dac
- sfp+ dac cable
- sfp+ rj45
- sfp+ to rj45
- sfp+ to rj45 cable
- sfp+ twinax cable
- small form factor pluggable
- Small Form Pluggable
- twinax sfp+ cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Constrained SKU Alternatives (Limited Stock) DACSFP10G3M Output Voltage (V) 3.3V DC Power Consumption (In Watts) < 1W Cable Length (mm) 2000 Humidity 0~85% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 2000.000 Product Width (mm) 14 Product Height (mm) 12 Product Weight (g) 100 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 10 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Copper Impedance (Ohm) 100 Ohm Maximum Data Transfer Rate 10.00 Gbps MTBF (hours) 61,728,395 hours Cable Type Passive Copper Cable OEM Part Number DAC-SFP-10G-2M SFP Compatible Brand Dell EMC Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 266 Carton Height (mm) 308 Carton Quantity 40 Carton Weight Gross (g) 5172 Included in Package 1 - SFP+ Cable Number of Sub-Cartons 4 Package Depth (mm) 200 Package Height (mm) 16 Package Width (mm) 147 Package Quantity 1 Package Weight (g) 110 Packaging Description 2m (6.6ft) 10Gb Passive Twinax Cable - DAC-SFP-10G-2M Compatible SFP+ Packaging Description India 2m (6.6ft) 10Gb Passive Twinax Cable - DAC-SFP-10G-2M Compatible SFP+ Sub-Carton Depth (mm) 261 Sub-Carton Height (mm) 80 Sub-Carton Width (mm) 198 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1120 Connector 1 SFP+ (10Gbps) Connector 1 (Quantity) 1 Connector 2 SFP+ (10Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-07-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-07-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-04-12 Target Production Release 2019-07-19 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
