DB9CONCABL6

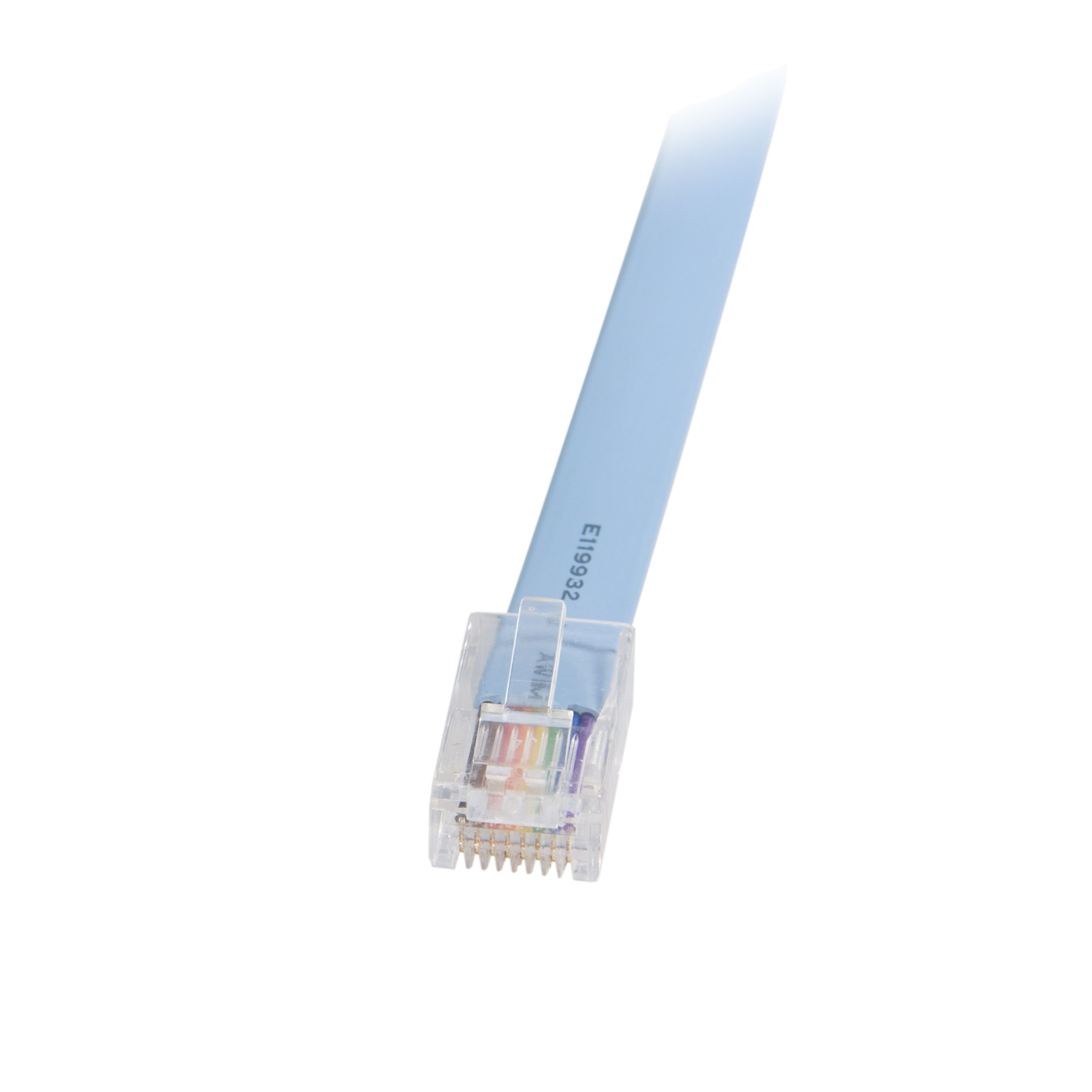

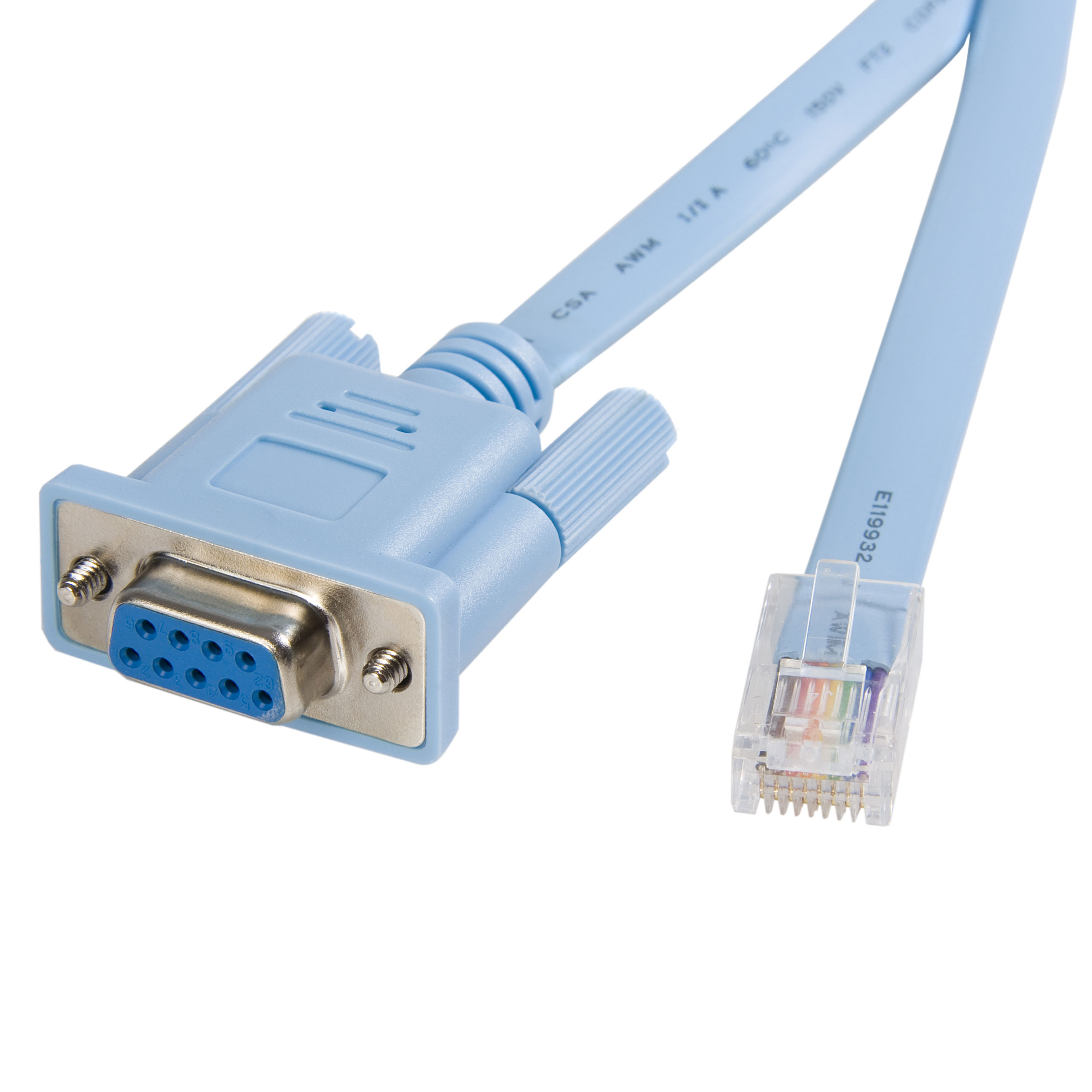

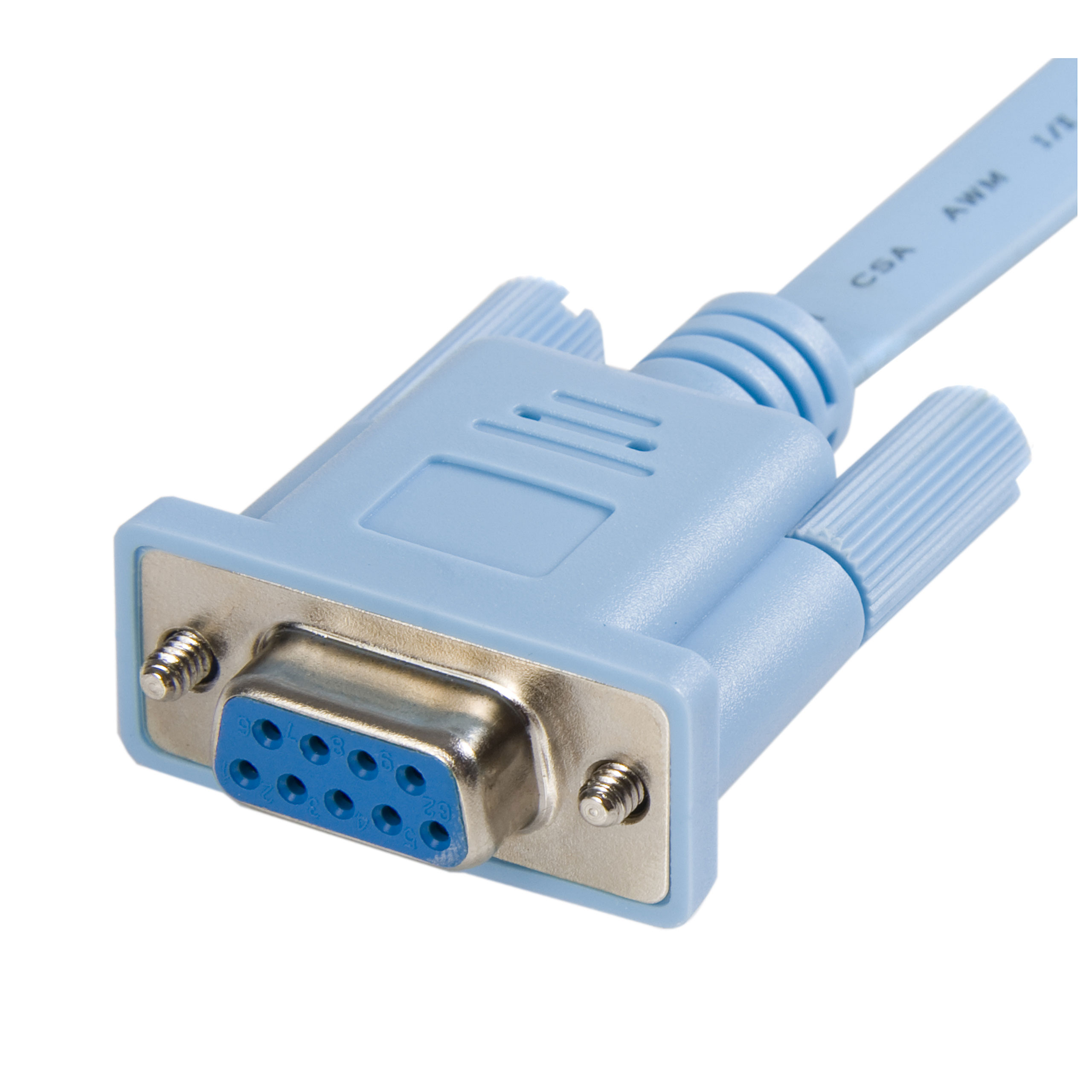

RJ45 to DB9 Cisco Router Cable - M/F
Connect your computer's serial port to the RJ45 console port on your Cisco router
Main Image
Product Images
Product Images
Product Name RJ45 to DB9 Cisco Router Cable - M/F Product Number DB9CONCABL6 UPC 065030833660 Lifecycle status Active Warranty Lifetime Taxonomy Product > Other > Unclassifiables Category Level 1 Network Cables Category Level 2 Other Network Cables Category Level 3 Console Cables Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX067X Product Title (Ultra-Short) 6ft RJ45/DB9 Cable Product Title (Short) 6 ft RJ45 to DB9 Cisco Console Cable Product Title (Medium) x Product Title (Standard) Cisco console router cable - RJ45 (m) - DB9 (f) - 6 ft Product Title (Long) 6 ft RJ45 to DB9 Cisco Console Management Router Cable - M/F Product Title (AMZ) 6 ft RJ45 to DB9 Cisco Console Management Router Cable - M/F Serial Console Cable (DB9CONCABL6) Title Ingram (Part 1) 6 ft RJ45 to DB9 Cisco Console M Title Ingram (Part 2) anagement Router Cable - M/F Website Product Headline Connect your computer's serial port to the RJ45 console port on your Cisco router Bullet 1 1x RJ-45 male connector Bullet 2 1x DB-9 female connector Bullet 3 Compatible with Cisco equipment Bullets (Consolidated) Connecting your computer's serial port to the RJ45 console port on your Cisco router - 6ft Cisco Console Cable - 6 ft Serial Console Cable - - RJ45 (m) - DB9 (f) - 6 ft Marketing Copy Applications Connect to your Cisco device (switch, router, firewall, etc.) from your PC or laptop, for reprogramming and updating your Cisco equipment Website Search Keyword - Cisco
- Router
- Management Cable
- 600 Series
- 800 Series
- 1600 Series
- 1700 Series
- P430-006
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Cable Length (mm) 1828 Color Blue Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 1850.000 Product Width (mm) 33.400 Product Height (mm) 15.700 Product Weight (g) 90.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Wire Gauge 24 AWG Cable Jacket Material PVC - Polyvinyl Chloride Number of Conductors 8 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 372 Carton Height (mm) 280 Carton Quantity 100 Carton Weight Gross (g) 10740 Included in Package 1 - 6 ft RJ45 to DB9 Cisco Console Management Router Cable - M/F Included In Package for Label 1 - 6 ft RJ45 to DB9 Cisco Console Management Router Cable - M/F Number of Sub-Cartons 10 Package Depth (mm) 155 Package Height (mm) 27 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 100 Packaging Description RJ45 to DB9 Cisco Router Cable - M/F Packaging Description India RJ45 to DB9 Cisco Router Cable - M/F Sub-Carton Depth (mm) 245 Sub-Carton Height (mm) 98 Sub-Carton Width (mm) 260 Sub-Carton Quantity 10 Sub-Carton Weight (g) 970 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
