DH5100E
Main Image

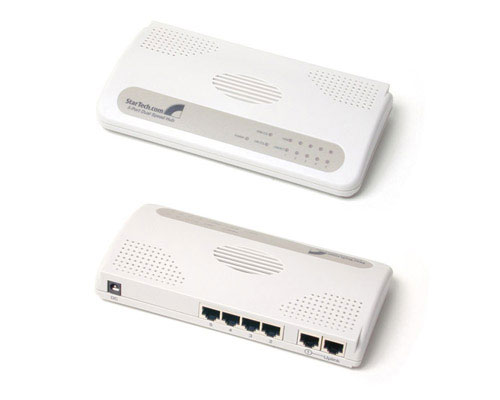

Product Name *D*5-Port Desktop 10/100 Mbps Fast Ethernet Hub Product Number DH5100E UPC 065030785655 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*5-Port Desktop 10/100 Mbps Fast Ethernet Hub Bullet 1 Built-in internal bridge provides two modes of operation: Extender mode or Dual-Speed mode Bullet 2 Desktop size case and wall mount ability provides a small footprint to accommodate different cabling and mounting requirements. Bullet 3 Provides collision LEDs for both 10 and 100 Mbps segments Bullet 4 The additional uplink port provides the cross-over required for cascading hubs using a standard patch cable Bullet 5 Provides five 10/100 Mbps auto-negotiation ports in dual speed mode, or four 100 Mbps ports in extender mode Marketing Copy The StarTech.com 5-port 10/100 Mbps Dual-Speed Fast Ethernet desktop hub is small in size but big in value. It provides two powerful modes of operation: Dual-speed mode, or extension mode. If used in dual-speed mode, up to five 10 or 100 Mbps devices can be connected and used together in a seamless environment. In extension mode, four 100 Mbps devices can be connected and the uplink port becomes an extension port. This allows the hub to break the standard 10m hub cascade distance limit of 100BaseT Ethernet and cascade from another hub that is up to 100m away! Each port has two LED indicators that show the link speed and activity for quick and easy monitoring. Applications - Perfect for creating a fast home or small business network
- Great for adding small workgroups to an existing network
TAA Compliant No General Specifications - Standards: IEEE 802.3 and 802.3u
- 10/100 Mbps Ports: (5) shielded RJ-45 ports
- Uplink Port: (1) Shielded RJ-45 pre-crossed uplink/extension port
- LEDs: Power, 10M collision, 100M collision, Link/Activity, 100 Mbps
- Dimensions: 187 x 99 x 26mm / 7.4 x 3.9 x 1 Inches
- Weight: 350g / .77 lb.
- Power: 12 VDC, 500mA
- Operating Temperature: 0 - 55 Degrees C / 32-131 Degrees F
- Operating Humidity: 10 - 95% (non-condensing)
Included in Package - 1 - 5 Port Desktop 10/100 Fast Ethernet Hub
- 1 - AC adaptor
- 1 - Manual Manual
- 1 - Screws and Rubberfeet
