DH5102E
Main Image

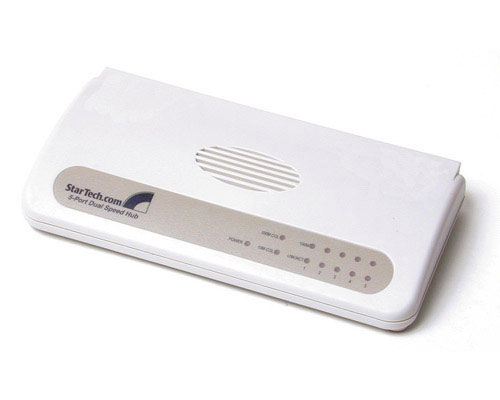

Product Name *D*5 Port Mini Desktop 10/100 Ethernet Hub Product Number DH5102E UPC 065030788687 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*5 Port Mini Desktop 10/100 Ethernet Hub Bullet 1 Built-in internal bridge allows integrated 10 and 100 Mbps operation Bullet 2 Desktop size case and wall mount ability provides a small footprint to accommodate different cabling and mounting requirements Bullet 3 The additional uplink port provides the cross-over required for cascading hubs using a standard patch cable Bullet 4 Complies with Fast Ethernet Class II Hub, IEEE 802.3, and IEEE 802.3u standards Marketing Copy The StarTech.com 5-port 10/100 Mbps Dual-Speed Fast Ethernet desktop hub is small in size but big in value. Up to five 10 or 100 Mbps devices can be connected and used together in a seamless environment. Each port has an LED indicator that show the link status and activity for quick and easy monitoring. An uplink port provides the ability to cascade from another nearby hub. Applications - Perfect for creating a fast home or small business network
- Great for quickly adding more users to an existing network
Accessory Products - ET9003SC
- ET9003ST
Related Products - DH8100E
- DH16100E
TAA Compliant No General Specifications - Standards: IEEE 802.3 and 802.3u
- 10/100 Mbps Ports: (5) shielded RJ-45 ports
- Uplink Port: (1) Shielded RJ-45 pre-crossed uplink
- LEDs: Power, 10M collision, 100M collision, Link/Activity, 100 Mbps
- Dimensions: 127 x 83 x 30 mm / 5 x 3.27 x 1.2 Inches
- Weight: 180g / 0.4 lb
- Power: 12 VDC, 500mA
- Operating Temperature: 0 - 55 Degrees C / 32-131 Degrees F
- Operating Humidity: 10 - 95% (non-condensing)
Included in Package - 1 - 5 Port Mini Desktop 10/100 Ethernet Hub
- 1 - DC12V Adapter
- 4 - Rubber feet
- 1 - Bag of screws
- 1 - Instruction Manual
