DISPL1M

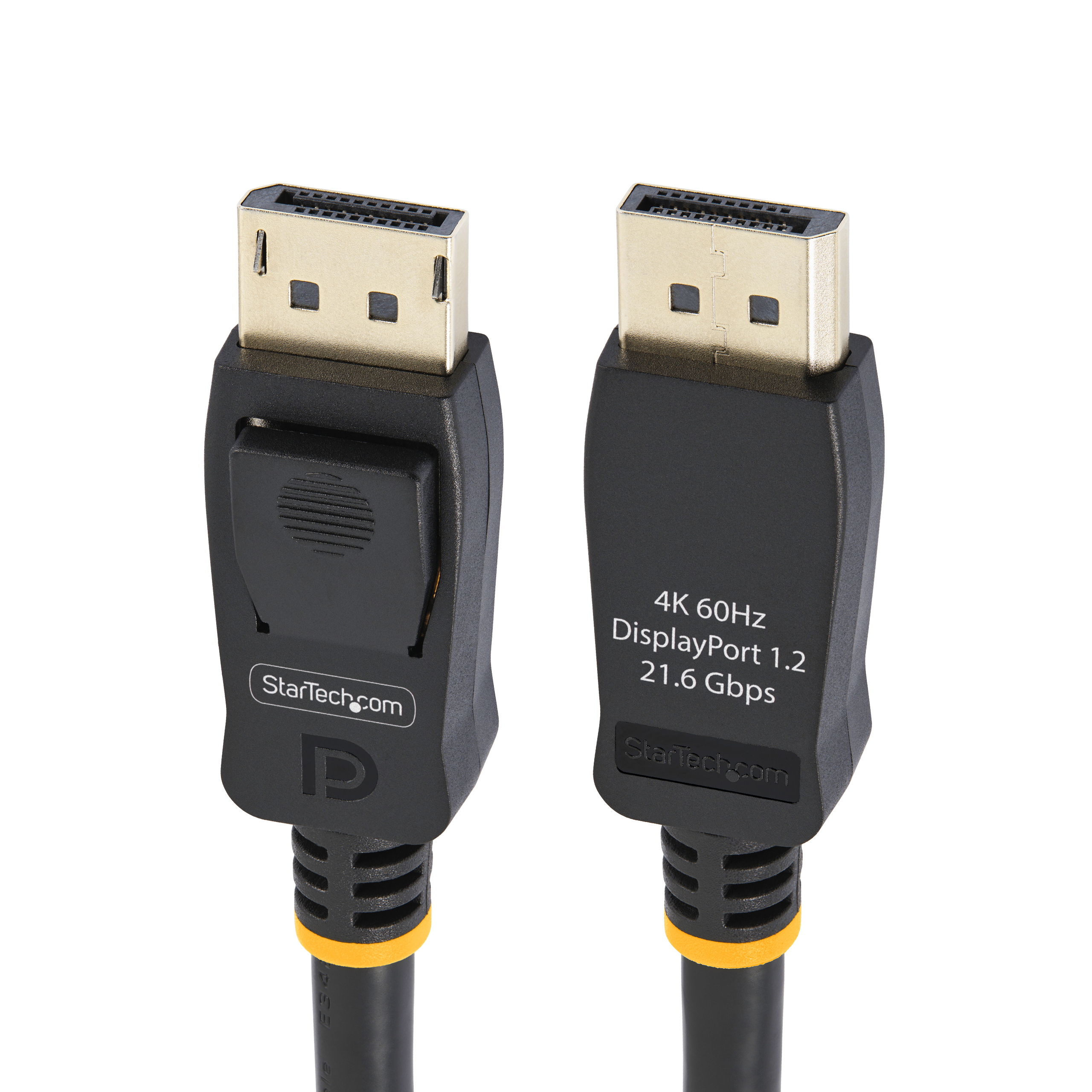

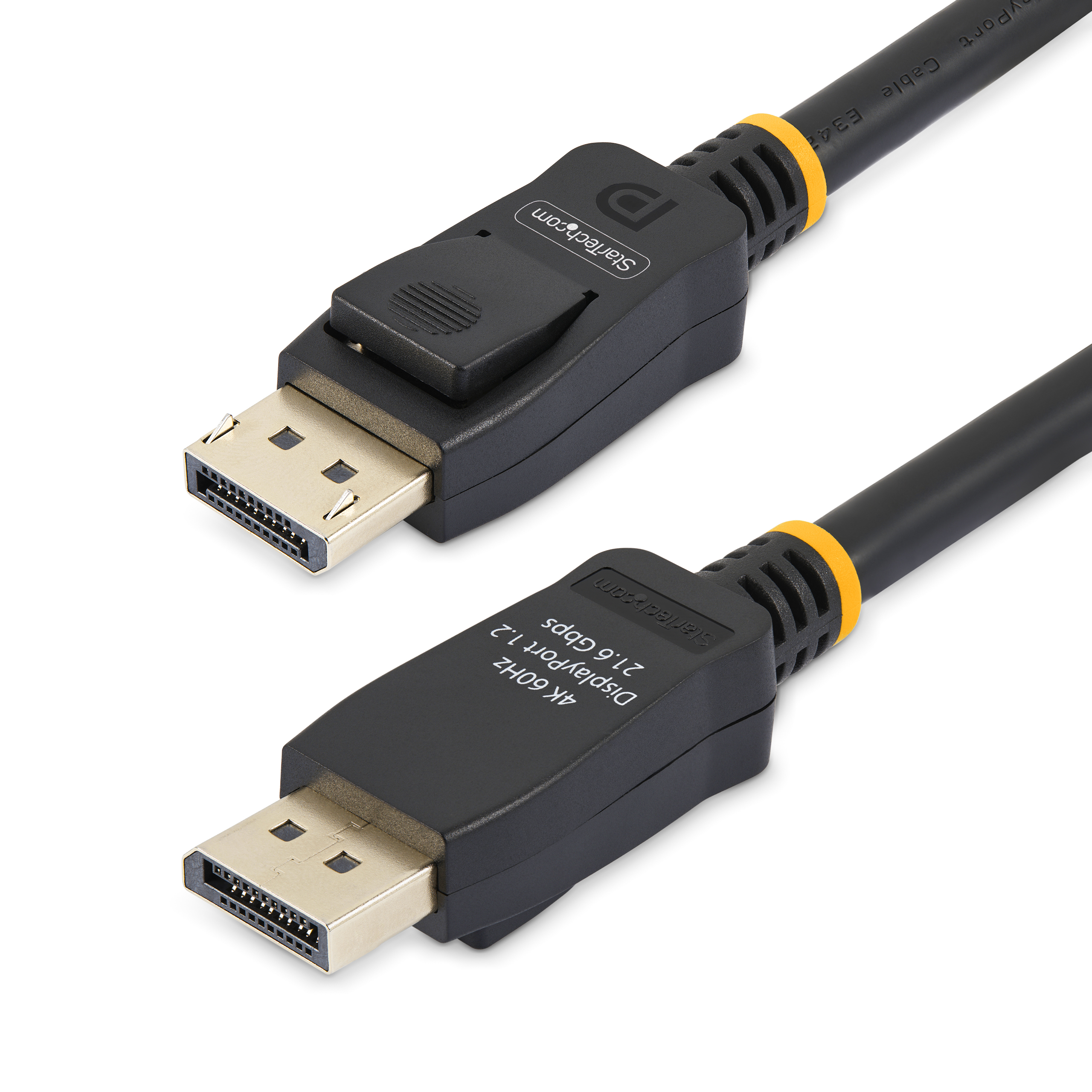

1m DisplayPort 1 2 Cable with Latches 4K 60Hz
Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 1m DisplayPort 1 2 Cable with Latches 4K 60Hz Product Number DISPL1M UPC 065030844208 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - 1.2 Family Certified DP 1.2 Cables, Partial VBL, 4K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) 1m DisplayPort 1.2 Product Title (Short) 3.3ft Latching DisplayPort Cable Product Title (Medium) 1m DisplayPort 1.2 Cable with Latches M/M – DisplayPort 4k Product Title (Standard) 1m (3ft) DisplayPort 1.2 Cable, 4K x 2K UHD VESA Certified DisplayPort Cable, DP Cable/Cord for Monitor, w/ Latches Product Title (Long) 1m (3.3ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors Product Title (AMZ) 1m (3ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors (DISPL1M) Title Ingram (Part 1) 1m DisplayPort 1.2 Cable - DP Title Ingram (Part 2) to DP Cable - 4k x 2k Website Product Headline Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices Bullet 1 APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display Bullet 2 SPECS: 1 meter (3.3 foot) | Black | DisplayPort v1.2 | DP Latching Male to Male | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty Bullet 3 HIGH PERFORMANCE CABLE: This 1m (3.3ft) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz) Bullet 4 RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection Bullet 5 QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1 Bullets (Compact) 1m/3.3ft VESA Certified DisplayPort v1.2 cable; 4Kx2K(3840x2400 60Hz)/21.6 Gbps bandwidth/HBR2/8Ch Audio/MST - Durable PVC strain relief; Latching connectors - For office/boardroom with laptop/workstation and monitor/projector; Samsung/Sony/Dell Bullets (Consolidated) 1m/3.3ft VESA Certified DisplayPort v1.2 cable supports 4Kx2K(3840x2400 60Hz); 21.6 Gbps bandwidth/HBR2/8Ch Audio/MST/GTC/3D Stereo(2560x1600 120Hz) - Durable 28AWG cable w/flexible PVC strain relief prevents damage due to bends/rough use; Latching DP connectors prevent accidental disconnection - For home/office/boardroom/classroom use w/ laptop/workstation and UHD monitor/projector/large display; Samsung/Sony/Dell - Supports DP1.2 and earlier versions - StarTech.com Lifetime Warranty Marketing Copy Applications Connecting a DisplayPort Display to a PC or other DisplayPort Source Website Search Keyword - DisplayPort
- High resolution
Required Marketing Compliance Marks VESA DisplayPort - Specification - Global - VESA DisplayPort Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
VESA Certified Yes Accessory Products - DPEXT6L
- DPPNLFM3
- GCDPMFRA
- VS421DP

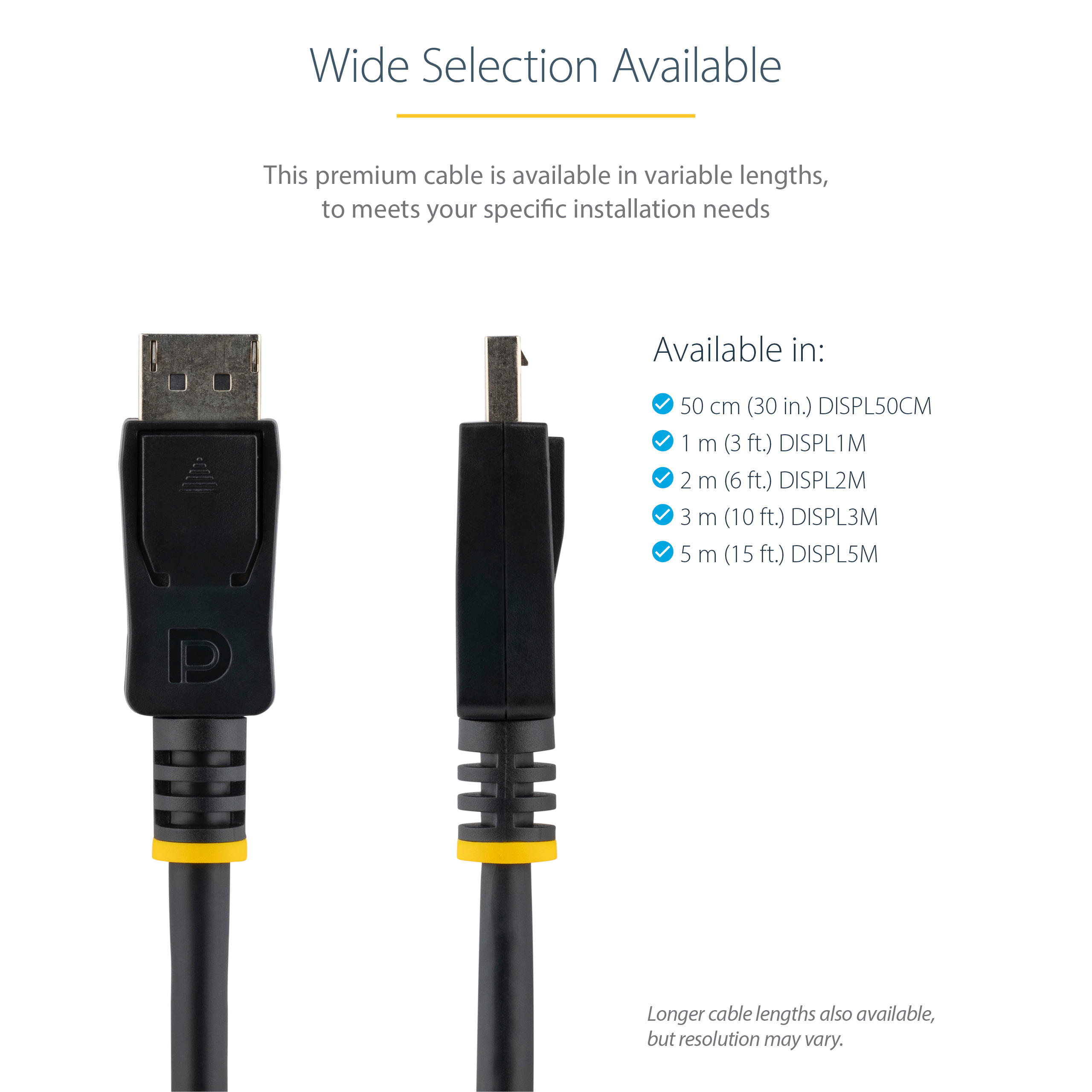

Related Products - DISPL5M
- DISPL2M
- DISPL50CM
- DISPL3M

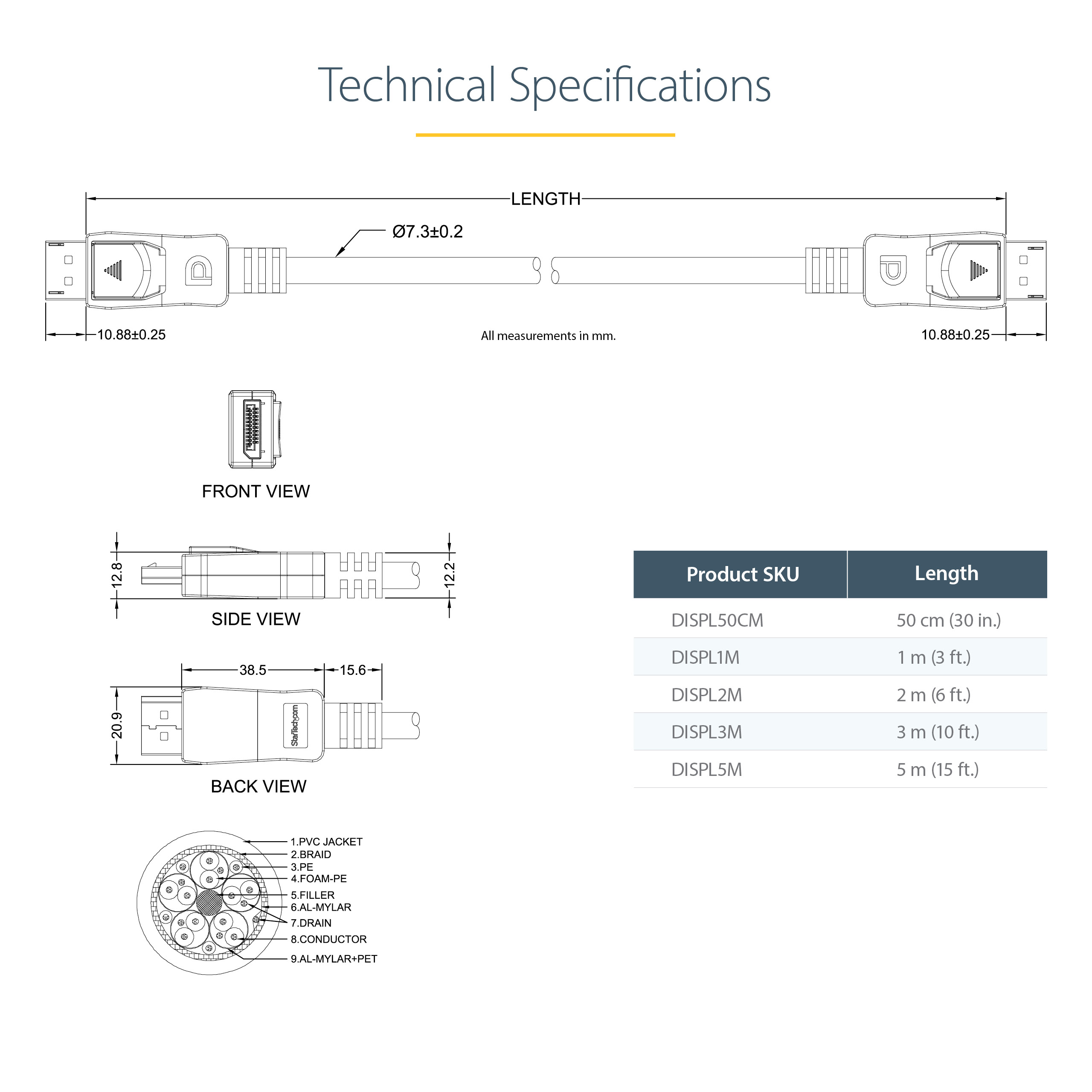

Cable Length (mm) 1000 Cable OD 7.3 Color Black Connector Style Latching Primary Material Plastic Product Length (mm) 1000.000 Product Width (mm) 20.090 Product Height (mm) 12.460 Product Weight (g) 78.000 TAA Compliant No Wire Gauge 28 AWG DisplayPort Version DP 1.2 - (HBR2) Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Connectors DisplayPort to DisplayPort Fire Rating CMG Rated (General Purpose) Number of Conductors 19 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 338 Carton Height (mm) 282 Carton Quantity 120 Carton Weight Gross (g) 12796 Included in Package 1 - 1m Latching DisplayPort 1.2 Cable Included In Package for Label 1 - 1m Latching DisplayPort 1.2 Cable Number of Sub-Cartons 12 Package Depth (mm) 199 Package Height (mm) 23 Package Width (mm) 137 Package Quantity 1 Package Weight (g) 94 Packaging Description 1m (3.3ft) DisplayPort 1.2 Cable with Latches - 4K 60Hz - VESA Certified Packaging Description India 1m DisplayPort 1.2 Cable with Latches - 4K 60Hz - VESA Certified Sub-Carton Depth (mm) 249 Sub-Carton Height (mm) 115 Sub-Carton Width (mm) 196 Sub-Carton Quantity 10 Sub-Carton Weight (g) 974 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK Primary Technology None Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
