DISPLPORT10L

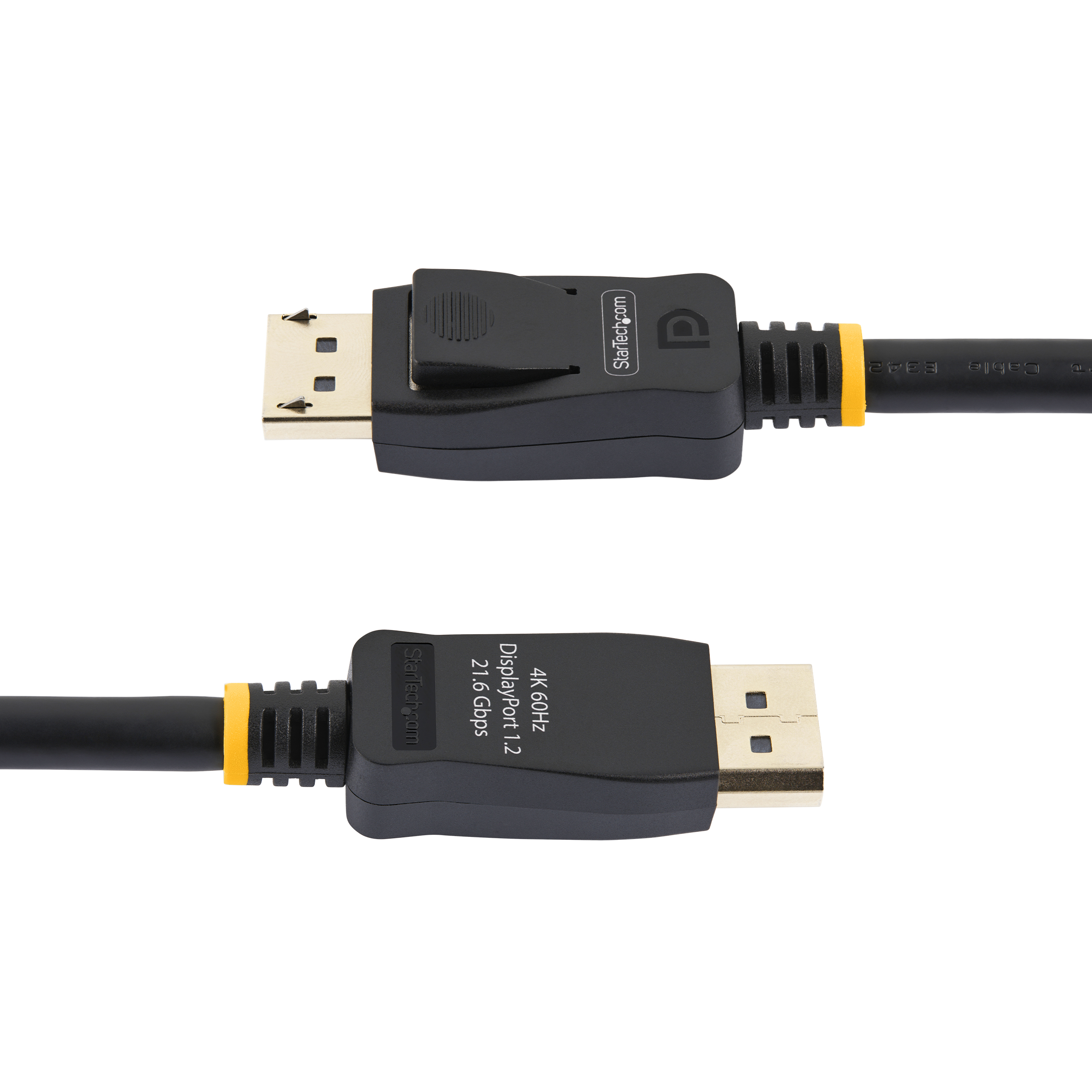

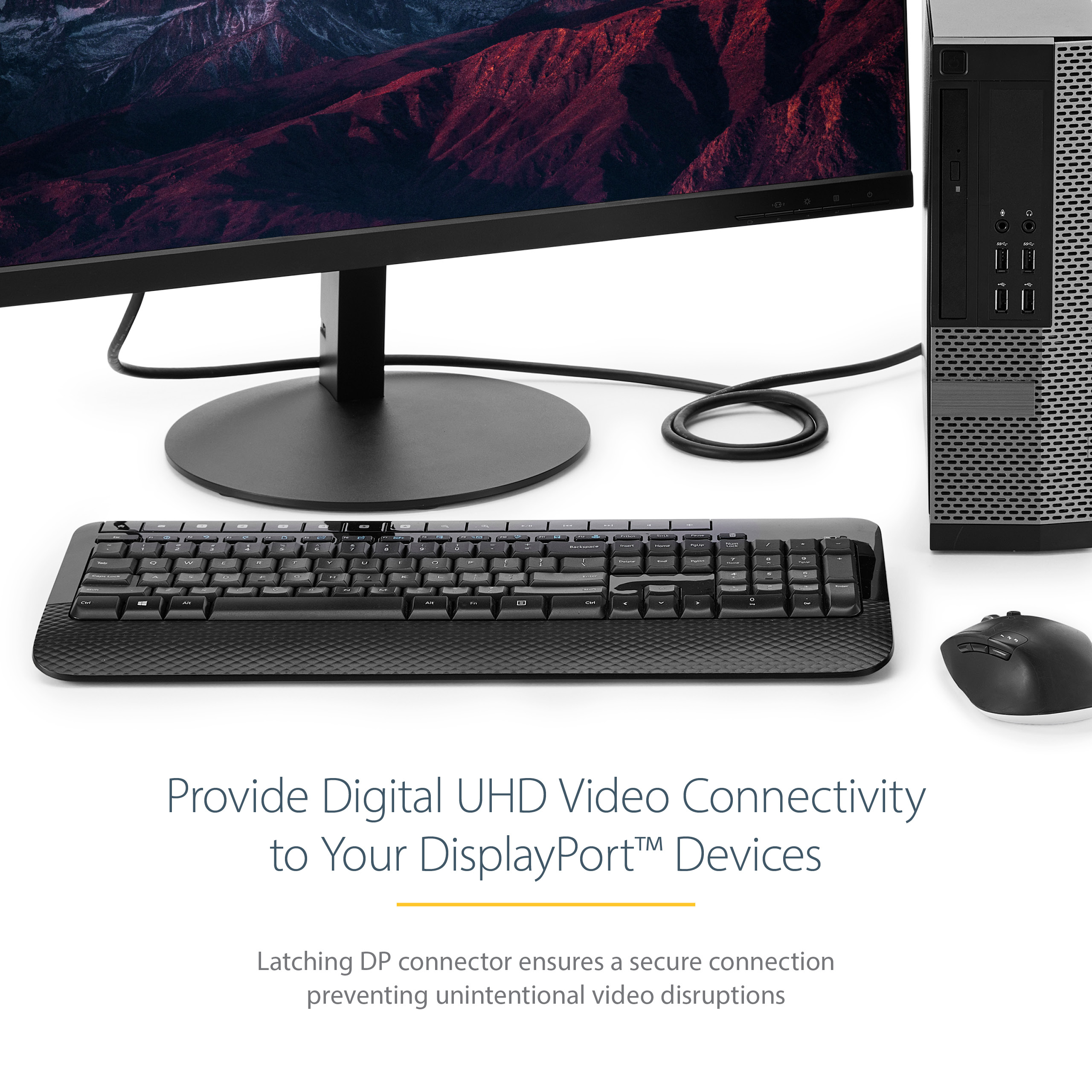

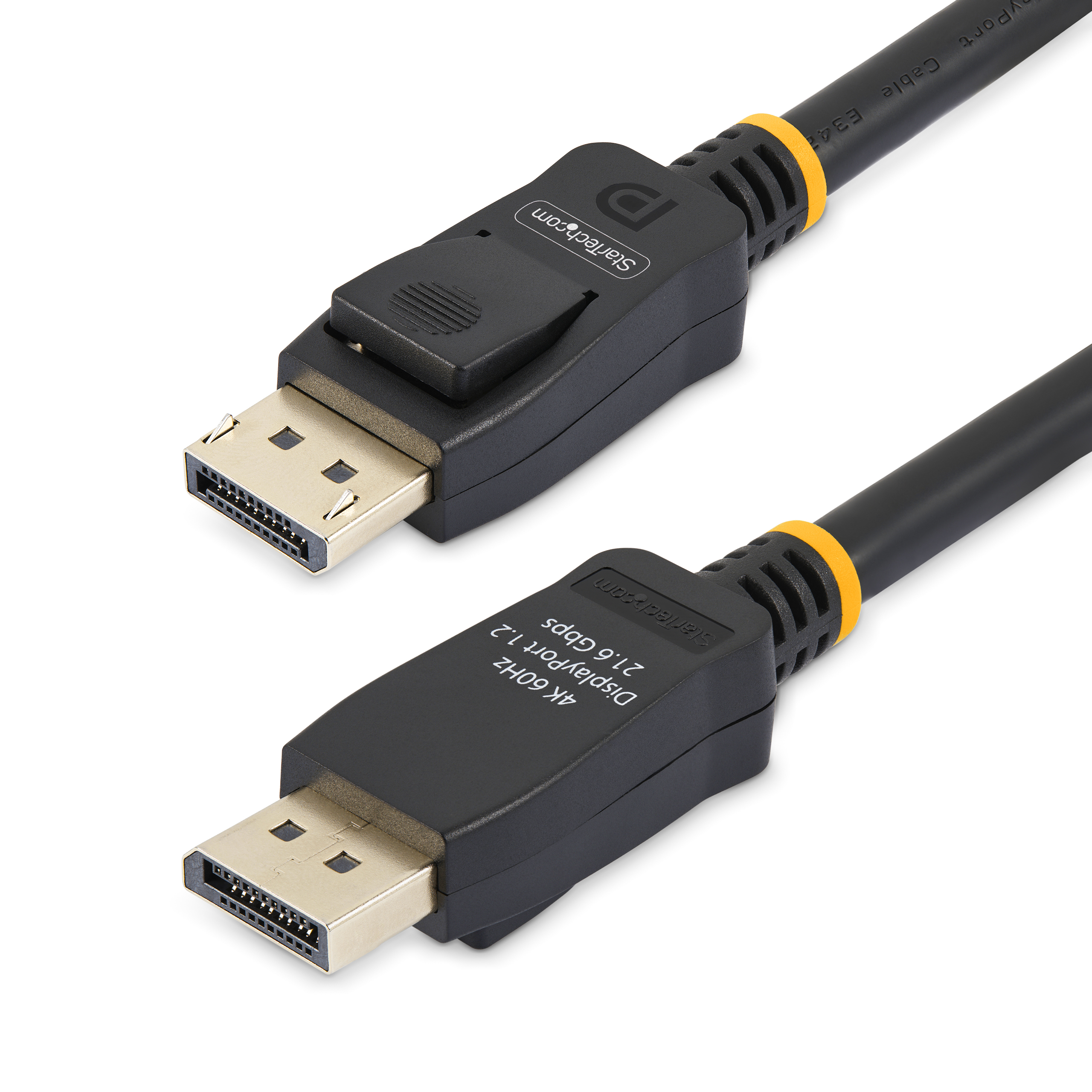

10 ft DisplayPort Cable with Latches
Create high-resolution 4K x 2K connections with HBR2 support between your DisplayPort equipped devices
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 10 ft DisplayPort Cable with Latches Product Number DISPLPORT10L UPC 065030827829 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - 1.2 Family Certified DP 1.2 Cables, Partial VBL, 4K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Country of Origin History (3) China Country of Origin Revision (3) XXXXXX045X Product Title (Ultra-Short) 10ft DisplayPort 1.2 Product Title (Short) 10ft VESA Certified DisplayPort 1.2 Cbl Product Title (Medium) 10 ft Certified DisplayPort 1.2 Cable with Latches M/M – DisplayPort 4k Product Title (Standard) 10ft (3m) DisplayPort 1.2 Cable, 4K x 2K UHD VESA Certified DisplayPort Cable, DP Cable/Cord for Monitor, w/ Latches Product Title (Long) 10ft (3m) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors Product Title (AMZ) 10ft (3m) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors (DISPLPORT10L) Title Ingram (Part 1) 10ft Certified DisplayPort 1.2 Title Ingram (Part 2) Cable - DP to DP - 4k x 2k Website Product Headline Create high-resolution 4K x 2K connections with HBR2 support between your DisplayPort equipped devices Bullet 1 HIGH PERFORMANCE CABLE: This 10ft VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz) Bullet 2 RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection Bullet 3 APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display Bullet 4 SPECS: 10 foot (3 meter) | Black | DisplayPort v1.2 | DP Latching Male to Male | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty Bullet 5 QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1 Bullets (Compact) 10ft/3m VESA Certified DisplayPort v1.2 cable; 4Kx2K(3840x2400 60Hz)/21.6 Gbps bandwidth/HBR2/8Ch Audio/MST - Durable PVC strain relief; Latching connectors - For office/boardroom with laptop/workstation and monitor/projector; Samsung/Sony/Dell Bullets (Consolidated) 10ft/3m VESA Certified DisplayPort v1.2 cable supports 4Kx2K(3840x2400 60Hz); 21.6 Gbps bandwidth/HBR2/8Ch Audio/MST/GTC/3D Stereo(2560x1600 120Hz) - Durable 28AWG cable w/flexible PVC strain relief prevents damage due to bends/rough use; Latching DP connectors prevent accidental disconnection - For home/office/boardroom/classroom use w/ laptop/workstation and UHD monitor/projector/large display; Samsung/Sony/Dell - Supports DP1.2 and earlier versions - StarTech.com Lifetime Warranty Marketing Copy Marketing Copy (No HTML) This 10ft DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI or dual-link DVI. This 4K DP cable supports high resolutions of up to 4K x 2K (4096 x 2160 @ 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors. This DisplayPort to DisplayPort cable is (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices. For ultimate capability, this DisplayPort cable is also backward compatible with DP 1.1 so you're not limited with what systems you can use. As well, this DP cable delivers reliability, ensuring that digitally protected content is displayed properly, with both HDCP and DPCP capability. This 4K DisplayPort cable is extremely versatile and can be used for a number of applications including your office or boardroom setups, or in your home entertainment center where you require a DisplayPort to DisplayPort connection. This DisplayPort cable is backed by a StarTech.com lifetime warranty and free lifetime technical support. Applications Connecting a DisplayPort display to a PC or other DisplayPort source Website Search Keyword - DisplayPort
- DisplayPort Cable
- Video Cable
- audio video cable
- displayport cables
- P580-010
Required Marketing Compliance Marks VESA DisplayPort - Specification - Global - VESA DisplayPort Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
VESA Certified Yes Accessory Products - DPEXT6L
- DPPNLFM3
- DPEXTAA6IN
- MDP2DPMF6IN
- GCMDP2DPMF

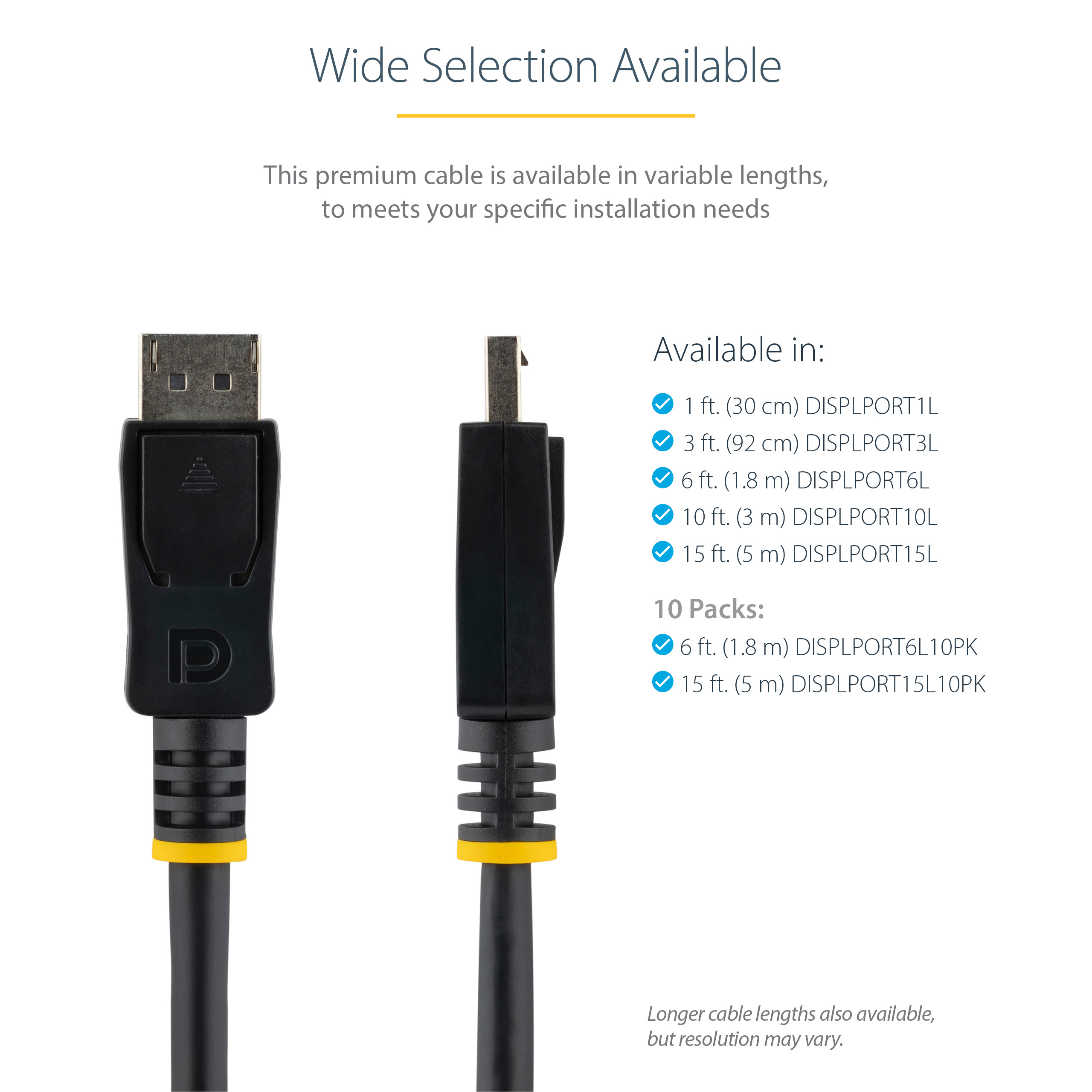

Related Products - DISPLPORT3L
- DISPLPORT6L
- DISPLPORT15L
- DISPLPORT25L
- DISPLPORT1L
- DISPLPORT35L
- DISPLPORT50L

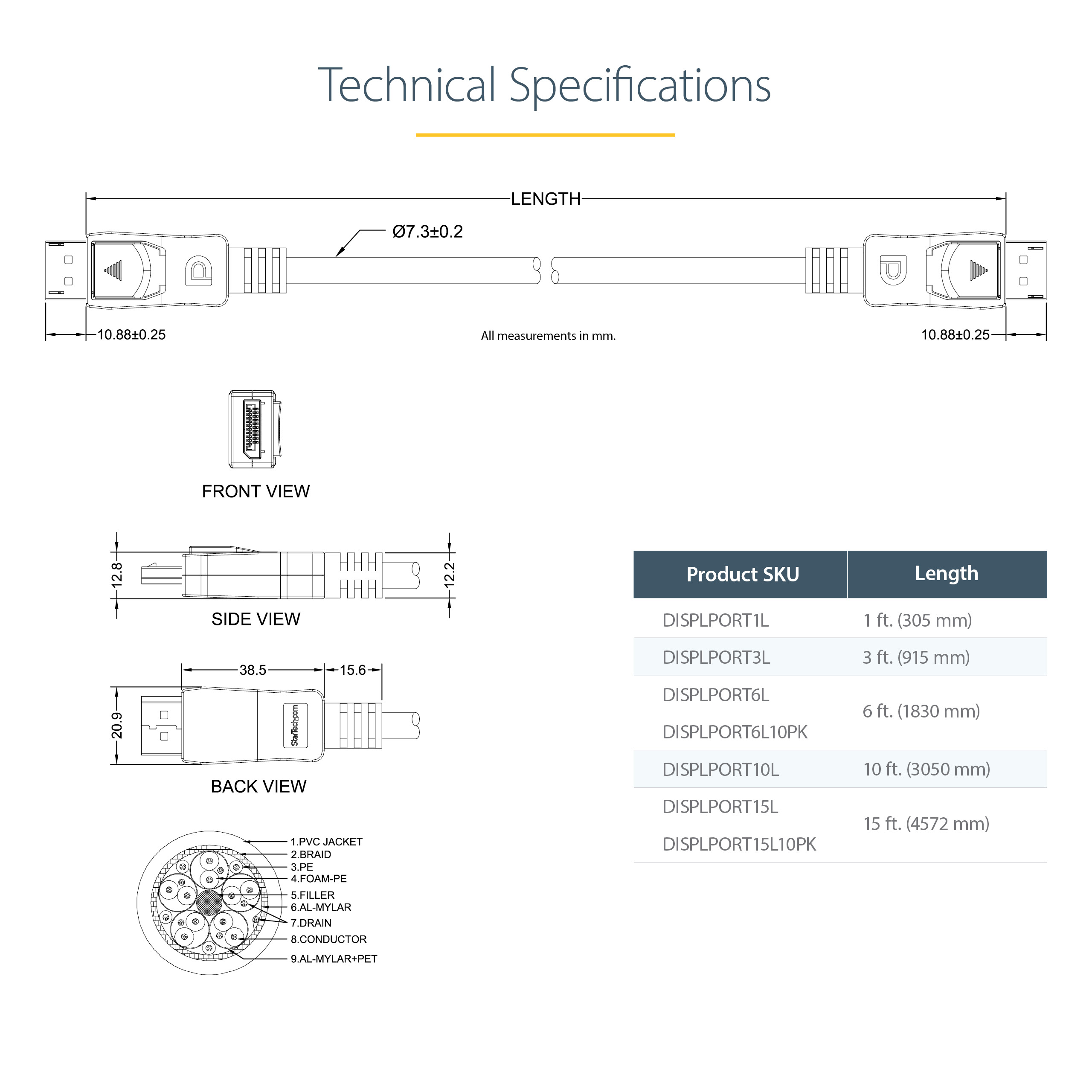

Cable Length (mm) 3048 Cable OD 7.3 Color Black Connector Style Latching Humidity 0 to 95% Operating Temperature 0 to 50 °C Primary Material Plastic Product Length (mm) 3050.000 Product Width (mm) 20.500 Product Height (mm) 13.4 Product Weight (g) 210.000 Storage Temperature -20 to 70 °C TAA Compliant No Wire Gauge 28 AWG DisplayPort Version DP 1.2 - (HBR2) General Specifications Insertion Rating: 5000 Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Gold Connectors DisplayPort to DisplayPort Fire Rating CMG Number of Conductors 19 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 517 Carton Height (mm) 222 Carton Quantity 40 Carton Weight Gross (g) 9228 Included in Package 1 - 10 ft DisplayPort™ Cable 1.2 with Latches - M/M Included In Package for Label 1 - 10 Ft Displayport™ Cable 1.2 With Latches - M/M Package Depth (mm) 186 Package Height (mm) 48 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 194 Packaging Description 10ft (3m) DisplayPort 1.2 Cable with Latches - 4K 60Hz - VESA Certified Packaging Description India 10ft (3m) DisplayPort 1.2 Cable with Latches - 4K 60Hz - VESA Certified Sub-Carton Depth (mm) 393 Sub-Carton Height (mm) 146 Sub-Carton Width (mm) 249 Sub-Carton Weight (g) 2036 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
