DK30A2DH
Dual 4K Monitor Dock DL 6950
Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Product Name Dual 4K Monitor Dock DL 6950 Product Number DK30A2DH UPC 065030868235 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-A Docks Category Level 3 USB-A Multi-Monitor Docks Family no family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Ultra-Short) Dual 4K Dock Product Title (Short) Hybrid USB-A USB-C Dock Dual 4K HDMI/DP Product Title (Medium) Dual 4K Docking Station, Mac & Windows - USB-A & USB-C Dock, Dual 4K60 DP & HDMI Product Title (Standard) USB-C & USB-A Dock, Dual Monitor 4K 60Hz Dock DisplayPort/HDMI, Hybrid USB 3.0 Laptop Docking Station, 6x USB-A, mac/Windows Product Title (Long) USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.2 Gen 1 - Mac/Windows Product Title (AMZ) USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C/USB-A Laptops - 6x USB Type-A, GbE - USB 3.2 Gen 1 - Mac/Windows (DK30A2DH) Title Ingram (Part 1) Dual 4K 60 Docking Station for Title Ingram (Part 2) Mac & Windows - DP & HDMI, 6x USB 3 Website Product Headline Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz Bullet 1 DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK: Universal USB 3.0 docking station (5Gbps) works with USB-C & USB-A laptops/computers; port replicator features 6-Port USB Type-A hub, Gigabit Ethernet, and 3.5mm audio jacks (headset and mic) Bullet 2 FLEXIBLE MULTI MONITOR VIDEO: This dual 4K 60Hz universal laptop docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays - supports two extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip Bullet 3 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a built-in 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub with USB-A ports on the front and back to support devices such as a keyboard, mouse, flash drive, external hard drive, and printer Bullet 4 FOR USB-A & USB-C LAPTOPS: DisplayLink certified DL 6950 chipset supports USB-C/Thunderbolt 3 & USB-A PCs; USB-C & USB-A host cables incl; Supports Windows, macOS, Chrome OS, & Ubuntu; This dock does not provide USB-C Power Delivery to charge your laptop Bullet 5 CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities Bullets (Compact) Universal hybrid USB 3.0 docking station for USB-C/USB-A laptops with USB-A and USB-C host cables - Dual 4K 60Hz monitor: 2x DisplayPort or 2x HDMI or DP + HDMI - USB C USB A Dock w/ 6x USB Type-A ports/Gigabit Ethernet/Audio - DisplayLink Certified Bullets (Consolidated) Dual monitor hybrid USB-A USB-C dock works with USB Type-C/TB3 or USB A laptops/computers/PCs - Dual 4K 60Hz docking station with 3 video options: 2x DisplayPort | 2x HDMI | 1x DP + 1x HDMI - Supports 2 extended displays on Macbook Pro/Air w/ Intel processor or Apple M1/M2 chip - Universal USB 3.0 docking station w/ USBC and USB-A host cables - 6 port USB-A Hub (5Gbps USB 3.1/3.2 Gen 1) | Gigabit Ethernet | 3.5mm Audio (Headphone and Mic) | DisplayLink Certified - Windows macOS Chrome OS Ubuntu Marketing Copy Marketing Copy (No HTML) Applications - Perfect for laptops in business, government, finance, and sales environments
- Ideal for working with graphics or data-intensive applications on your laptop
Website Product Alert Website Search Keyword - 4k docking station
- 4k usb docking station
- anker docking station
- Belkin docking station
- dell docking station
- dell usb docking station
- DisplayPort docking station
- docking station laptop
- dual 4k docking station
- Dual Displayport docking station
- dual hdmi dock
- dual hdmi docking station
- Dual monitor docking station
- dual monitor port replicator
- dual video docking station
- HDMI docking station
- hdmi dual monitor
- hp envy docking station
- laptop dock
- laptop docking station
- multi-monitor docking station
- plugable docking station
- plugable usb 3.0
- port replicator
- surface pro docking station dual monitor
- universal docking station dual monitor
- universal laptop dock
- universal laptop docking station
- universal laptop docking station with hdmi
- universal usb docking station
- usb 3 dock
- usb 3 docking station
- usb 3.0 dock
- usb 3.0 docking station
- usb 3.0 universal docking station
- usb c dock
- usb dock
- usb docking station
- usb3 docking station
- video docking station
- U442-DOCK21-B
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- A USB-C to USB-C cable and a USB-C to USB-A cable are included.
- 4K resolution is supported on both video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolution
- DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.
System and Cable Requirements A host laptop with an available USB-C port or a USB-A port. Accessory Products - DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- HDMM1MP
- HDMM2MP
- HDMM3MP
- RJ45PATCH10
- RJ45PATCH25
- MUYHSMFF
- DK30ADD
- ACCSMNT
- ARMBARDUO
- ARMBARDUOV
- ARMDUAL
- ARMDUAL30
- ARMDUALV
- ARMSLIMDUO
- SVA20N2NEUA
- HDMMV2M
- DP14MM2M

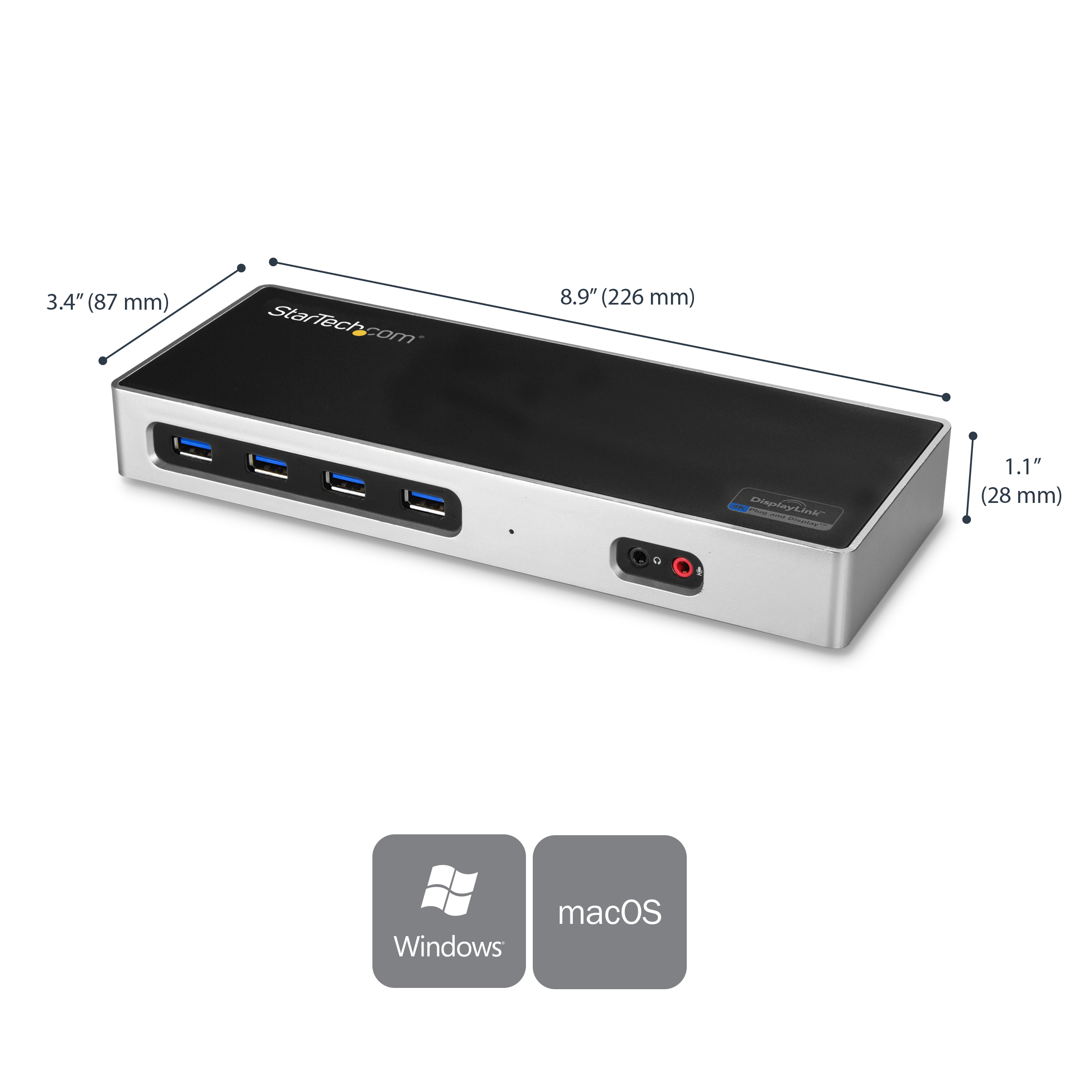

Related Products HB31C3A1CPD3 Input Current 2A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 20V DC Power Consumption (In Watts) 40W Power Delivery No PD Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 1000 Color Black & Silver Humidity 10~90% RH Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 226.000 Product Width (mm) 87.000 Product Height (mm) 28.000 Product Weight (g) 301.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 7
- Windows 8
- macOS Mojave (10.14)
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS Catalina (10.15)
- Chrome OS
- Windows XP
- macOS Big Sur (11.0)
- Ubuntu
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Bus Type - USB-C
- USB 3.2 Gen 1 (5Gbps)
Chipset ID Host Connection Port Hybrid (USB-C or USB-A) Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power Number of Displays 2 Other Ports - Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

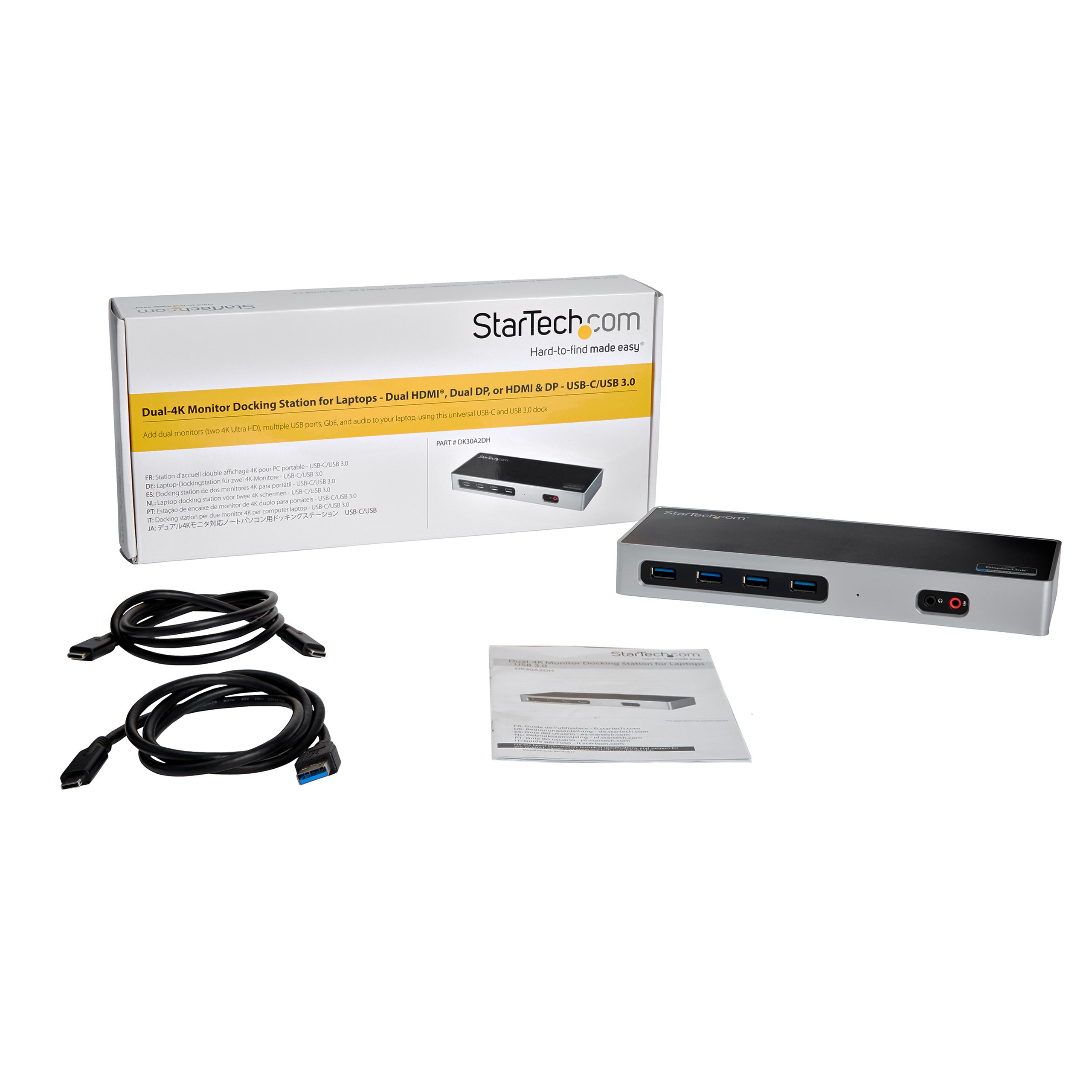

Carton Depth (mm) 337 Carton Height (mm) 314 Carton Quantity 10 Carton Weight Gross (g) 8314 Included in Package - 1 - docking station
- 1 - 1 m USB-C to USB-A cable
- 1 - 1 m USB-C to USB-C cable
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - quick-start guide
Package Depth (mm) 315 Package Height (mm) 64 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 792 Packaging Description Dual-4K Monitor Docking Station for Laptops - USB-C/USB 3.0 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-05-05 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-08-11 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-06-30 Target Production Release 2017-06-30 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
