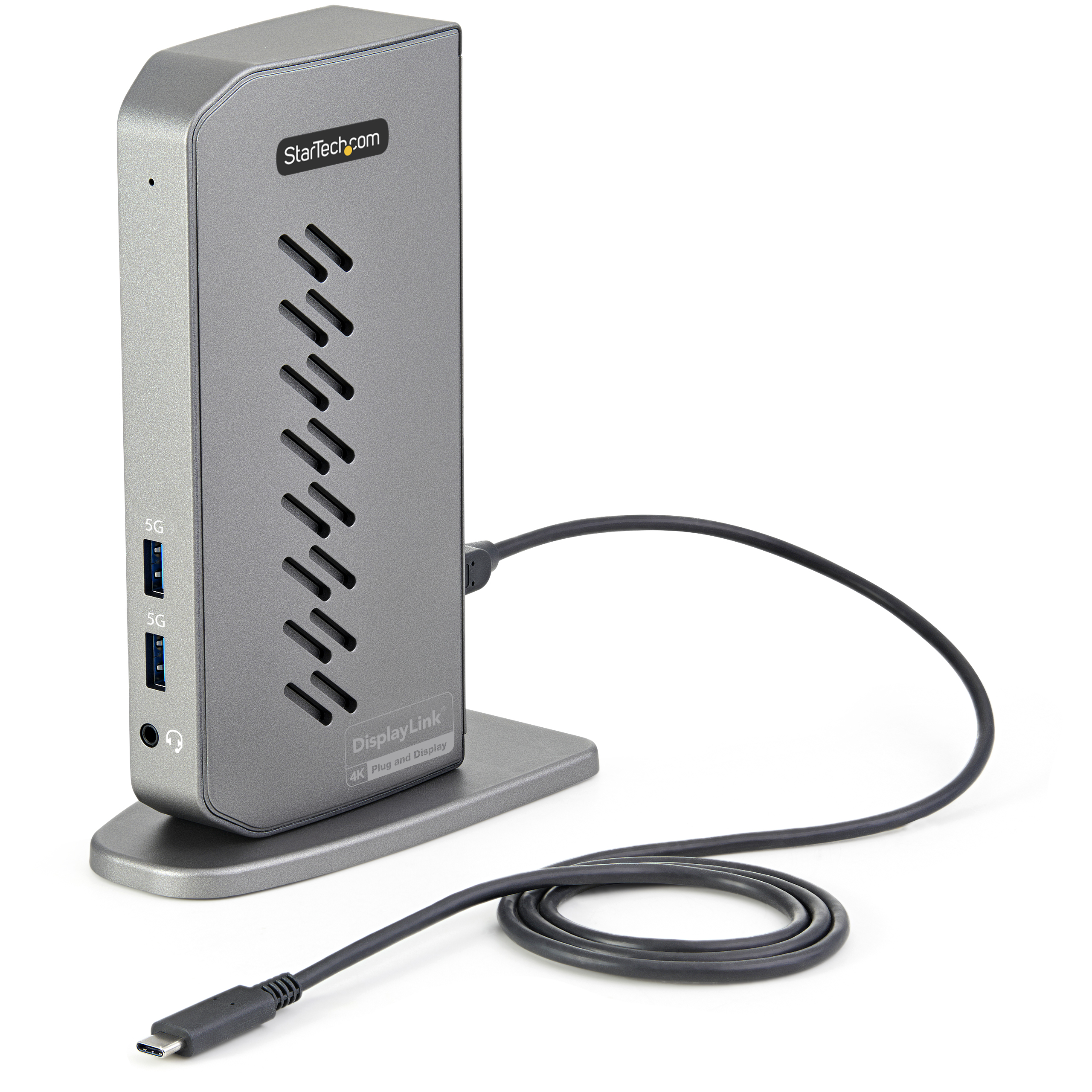

Main Image
DK30A2DHU
Dual Monitor DL 6950 USB A C Gen1 Dock 2xDP 2xHDMI 6A
Universal Hybrid Dock | USB Type-C & USB Type-A | Dual 4K 60Hz HDMI & DisplayPort
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Dual Monitor DL 6950 USB A C Gen1 Dock 2xDP 2xHDMI 6A Product Number DK30A2DHU UPC 065030891349 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-A Docks Category Level 3 USB-A Multi-Monitor Docks Family no family Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) USB-C USB-A Dock Product Title (Short) Hybrid USB-C USB-A Dock - Dual HDMI/DP Product Title (Medium) USB-C USB-A Dock - Hybrid Docking Station Dual 4K 60Hz HDMI/DP Product Title (Standard) USB-C USB-A Dock - Hybrid Universal USB 3.0 Laptop Docking Station - Dual Monitor 4K 60Hz HDMI/DisplayPort - 6xUSB Type-A/GbE Product Title (Long) USB-C USB-A Dock - Hybrid Universal USB 3.0 Docking Station for USB-C or USB-A Laptop - Dual Monitor 4K 60Hz HDMI/DisplayPort - 6x USB-A, GbE - USB 5Gbps - Windows/Mac Product Title (AMZ) USB-C USB-A Dock - Hybrid Universal USB 3.0 Docking Station for USB-C or USB-A Laptop - Dual Monitor 4K 60Hz HDMI/DisplayPort - 6x USB-A, GbE - USB 3.1 Gen 1 - Windows/Mac Title Ingram (Part 1) USB-C USB-A Dock - Hybrid Title Ingram (Part 2) USB 3.0 Dock Dual 4K 60Hz HDMI / DP Website Product Headline Universal Hybrid Dock | USB Type-C & USB Type-A | Dual 4K 60Hz HDMI & DisplayPort Bullet 1 DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK: Universal USB 3.0 docking station (5Gbps) works with USB-C & USB-A laptops/computers and features 6-Port USB Type-A hub, Gigabit Ethernet, and 3.5mm audio jacks; NOTE: This dock does not support USB-C Power Delivery Bullet 2 FLEXIBLE DUAL MONITOR VIDEO: This 4K 60Hz USB-C or USB-A docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays; Supports dual extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip Bullet 3 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a 6-port USB 3.2 Gen 1 (5Gbps) hub w/ extra USB-A ports to support devices such as keyboard, mouse, flash drive, external hard drive & printer Bullet 4 COMPATIBILITY: DisplayLink Certified port replicator for maximum performance & compatibility w/Dell, HP, Lenovo & MacBook PCs on Windows, ChromeOS & macOS platforms; Includes USB-C & USB-A host cables; Ideal for offices where mixed laptop brands are used Bullet 5 CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities Bullets (Compact) Universal hybrid docking station for USB-C & USB-A laptops w/ USB-A & USB-C host cables - Dual 4K 60Hz monitor DisplayPort or HDMI or DP + HDMI - USB-C USB-A dock w/ 6 USB Type-A ports/GbE/headset audio jack - Vertical stand - DisplayLink certified Bullets (Consolidated) Hybrid USB-C USB-A dock w/same functionality as DK30A2DH w/ optional vertical stand - Universal USB 3.0 docking station for USB-C and USB-A laptops w/ 3.3' USB-A or USB-C host cables - 6x USB Type-A hub (5Gbps USB 3.1/3.2 Gen 1)/Gigabit Ethernet/audio jack - Dual 4K 60Hz video: dual DisplayPort/dual HDMI/DP + HDMI - Supports 2 extended displays on Macbook Pro/Air w/ Intel or Apple M1/M2 chip - DisplayLink certified; Windows/macOS/Chrome OS - Port Replicator for Dell HP Lenovo MacBook Marketing Copy Marketing Copy (No HTML) Website Search Keyword - usb 3.0 docking station
- usb 3.0 dock
- usb docking station dual monitor
- usb dock hdmi
- usb dock dvi
- usb 3.0 laptop dock
- usb a docking station
- universal docking station
- laptop docking station
- dual monitor dock
- usb hub docking station
- displaylink dock
- usb 3.0 dual display dock
- usb dock 4k
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. Accessory Products - SVA20N2NEUA
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- HDMM1MP
- HDMM2MP
- HDMM3MP
- RJ45PATCH10
- USB31CCV50CM
- MUYHSMFF
- ARMBARDUO
- ARMBARDUOV
- ARMDUAL
- ARMDUAL30
- ARMDUALV
- ARMSLIMDUO
- HDMMV2M
- DP14MM2M
Constrained SKU Alternatives (Limited Stock) DK30A2DH Equivalent Part Number in the EU DK30A2DHUUE Equivalent Part Number in the UK DK30A2DHUUE Input Current 1.0A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 20V DC Power Consumption (In Watts) 40W Power Delivery No PD Power Source AC Adapter Included Plug Type N Cable Length (mm) 1000 Color Black & Gray Humidity 0% to 95% (non-condensing) at 25°C Material Aluminum and Plastic Operating Temperature 0 to 50°C Product Length (mm) 133.000 Product Width (mm) 73.000 Product Height (mm) 187.000 Product Weight (g) 347.000 Storage Temperature -20 to 70°C TAA Compliant No Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) General Specifications Wake-on-LAN (WoL): Yes Maximum Digital Resolutions 4K 60Hz Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 26 280 hrs OS Compatibility - Windows 10
- Windows 8.1
- Windows 8
- Windows 7
- Windows XP
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Mac OS X Yosemite (10.10)
- Mac OS X Mavericks (10.9)
- Chrome OS
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Ubuntu
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Wake-On-LAN (WOL) Yes Audio Yes Bus Type USB-C Chipset ID Host Connection Port Hybrid (USB-C or USB-A) Interface/Bridge USB 3.2 Gen 1 Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge No Network Adapter LAN Ports 1 Number of Displays 2 Other Ports - Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

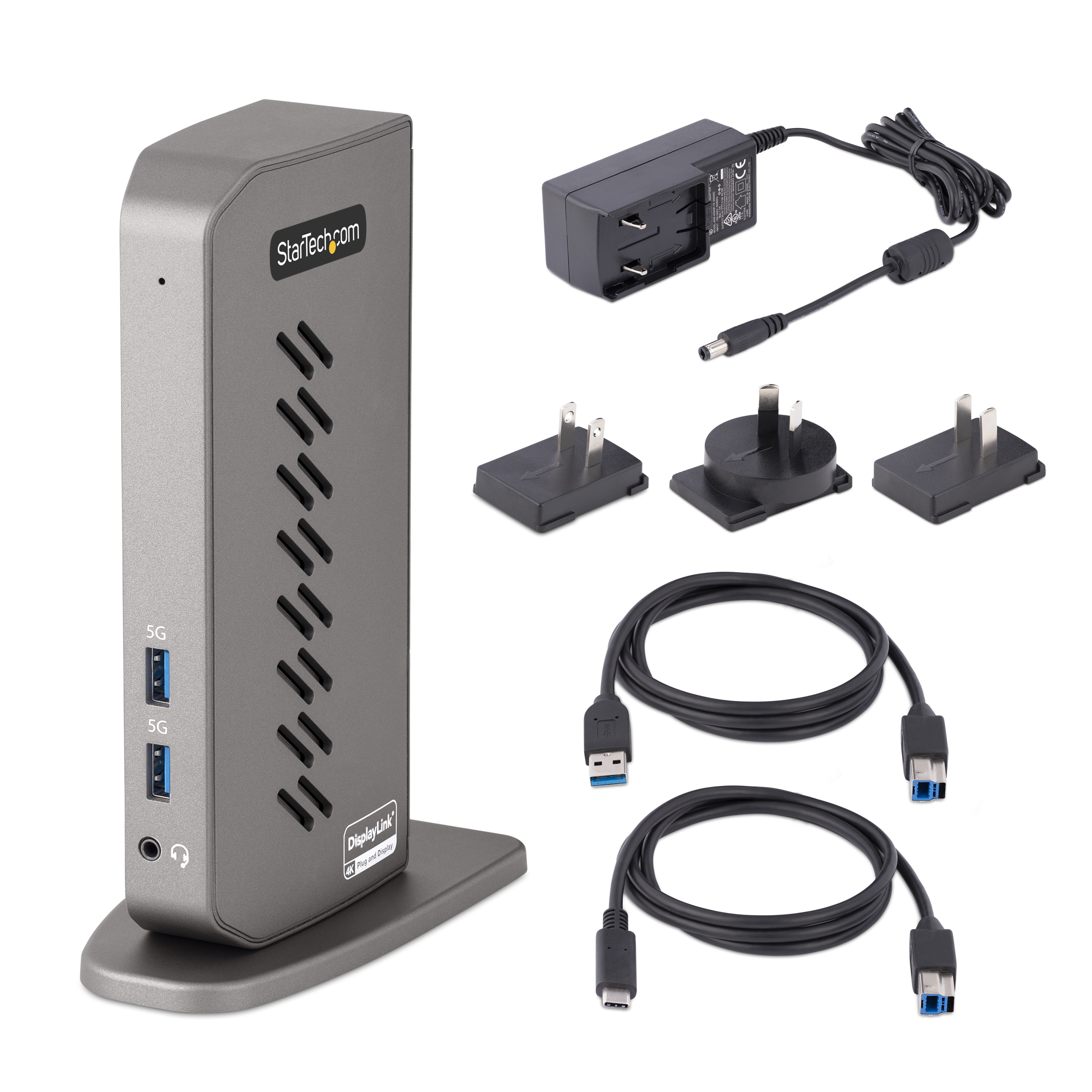

USB Pass-Through Yes USB Port Type USB-A, USB-C Carton Depth (mm) 222 Carton Height (mm) 296 Carton Quantity 6 Carton Weight Gross (g) 5094 Included in Package - 1 - Docking Station
- 1 - USB-C to USB-B Cable
- 1 - Universal Power Adapter (NA/JP, ANZ)
- 1 - Quick-Start Guide
- 1 - Dock Stand
- 1 - USB-A to USB-B Cable
Package Depth (mm) 114 Package Height (mm) 144 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 790 Packaging Description Dual-4K Dock - DP/HDMI - USB-C/USB 3.1 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 6 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 2 Connector 4 DisplayPort Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2020-07-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2020-11-06 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AU,CA,JP,NZ,US Primary Technology - DisplayPort 1.2 / 4K 60Hz
- USB 3.2 Gen 1 / 5Gbps
Priority New Product BNC Male Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2020-07-17 Target Production Release 2020-08-06 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
