DK30C2DAGPD
Dual Monitor USB-C Multiport Adapter - Dual DP - USB-A - GbE
USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Dual Monitor USB-C Multiport Adapter - Dual DP - USB-A - GbE Product Number DK30C2DAGPD UPC 065030878746 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-C Multiport Adapters Category Level 3 USB-C Multiport Adapters - 5Gbps Family USB-C Multiport Adapters - 5Gbps - Dual Video Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) USB-C Adapter 2xDP Product Title (Short) USB C Dock - 4K Dual DP/GbE/2x USB-A/PD Product Title (Medium) USB C Multiport Adapter - Dual 4K DisplayPort - Windows - 2xA - 100W PD 3.0, GbE Product Title (Standard) USB C Dock - 4K Dual Monitor DisplayPort Docking Station - 100W Power Delivery Passthrough, GbE, 2x USB-A - Multiport Adapter Product Title (Long) USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable Product Title (AMZ) USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable (DK30C2DAGPD) Title Ingram (Part 1) USB C Multiport Adapter - Dual Title Ingram (Part 2) Monitor - 2 x 4K DP - Windows - PD Website Product Headline USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch Bullet 1 USB-C DUAL DISPLAY MULTIPORT ADAPTER: Portable USB C Dock w/ dual 4K 30Hz or single 4K 60Hz DisplayPort, 2-Port USB-A Hub (USB 3.0/3.1 Gen 1 5Gbps), Gigabit Ethernet, 100W Power Delivery passthrough Bullet 2 POWERED BY LAPTOP OR EXTERNAL ADAPTER: Mini dock can be USB bus powered or w/ a power adapter; Charge laptop via PD 3.0 Passthrough w/ your USB-C power adapter (15W for dock, the rest for charging) Bullet 3 COMPATIBILITY: USB-C docking station compatible with brands like HP, Dell, Lenovo, Surface Book/Laptop 3/Pro 7, Chromebooks; Windows, Chrome OS; MacBook compatibility limited to single monitor Bullet 4 TWO OPERATION MODES: Physical switch to change between higher resolution dual 4K 30Hz DP monitor output w/ USB 2.0 transfer speeds, or dual DP 1080p video w/ faster USB 3.0 speeds for large data files Bullet 5 EASY INSTALLATION: Includes a 1m (3.3ft) USB Type-C host cable for extended port reach; ideal for working from home, office, boardroom or on the go; Automatic driver setup Bullets (Compact) Mini USB C docking station - Multiport adapter w/ dual monitor 4K DisplayPort video/2 USB Type-A/GbE/100W Power Delivery pass through - 3.3ft cable/Mac Address Changer/Driverless - Supports dual DP 4K 30Hz + USB 2.0 OR 1080p + USB 3.0 - Win/Chrome OS Bullets (Consolidated) Portable USB C dock with dual 4K 30Hz or single 4K 60Hz DisplayPort (DP) video/2 USB-A (USB 3.0/USB 3.1 Gen 1 5Gbps)/Gigabit Ethernet/100W Power Delivery 3.0 pass through - USB Type-C multiport adapter can be USB bus powered or w/ USB-C power adapter - Mini docking station works w/ USB-C laptops | Windows/Chrome OS | MacBooks limited to 1 monitor - 2 switchable operation modes: dual 4K 30Hz + USB 2.0 OR dual 1080p + USB 3.0 - 3.3' USB-C host cable/MAC Address Changer utility/Auto driver setup Marketing Copy Marketing Copy (No HTML) Applications Ideal for mass Windows® based deployments Website Search Keyword - USB C multiport adapter
- USB C adapter
- USBC adapter
- USB Type C adapter
- USB C hub with DisplayPort
- USB C hub
- USB C dual monitor docking station
- USB C dual monitor dock
- USB C dual DP docking station
- USB C dual DP dock
- USB Type C to DisplayPort adapter
- USB C to DP adapter
- USB C to dual DisplayPort adapter
- USB-C video adapter
- USB C to Gigabit Ethernet
- USB C to DisplayPort and USB
- USB C to GbE
- USB C to Ethernet
- U442-DOCK2-S
- U442-DOCK4-S
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - For a dual-monitor configuration the host laptop must support MST.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode.
- The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
- The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power).
- The multiport adapter provides limited Android support (no MST support).
- A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
- Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop.
- Through support of USB Power Delivery 3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power).
- In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode)
- Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Accessory Products - DISPL10MA
- N6PATCH1BL
- N6PATCH3BL
- N6PATCH6BL
- N6PATCH15BL
- DP2VGA2
- DP2VGA
- DP2HD4K60S
- DP2DVIS
- ACCSMNT
- ARMBARDUO
- ARMBARDUOV
- ARMDUAL
- ARMDUAL30
- ARMDUALV
- ARMSLIMDUO
- USB315C5C6
- USB31C5C1M
- USB315CCV2M
- USB31CCV50CM
- USB31CCV1M
- DISPLPORT6L
- N6LPATCH10BK
Related Products - MST30C2HDPPD
- MST30C2DPPD
- DK30A2DH
- DK30CH2DPPD
Output Voltage (V) 5 DC Power Consumption (In Watts) 15W Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Color Black Humidity 0~95% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 120.000 Product Width (mm) 60.000 Product Height (mm) 18.800 Product Weight (g) 150.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Chrome OS
- Windows 11

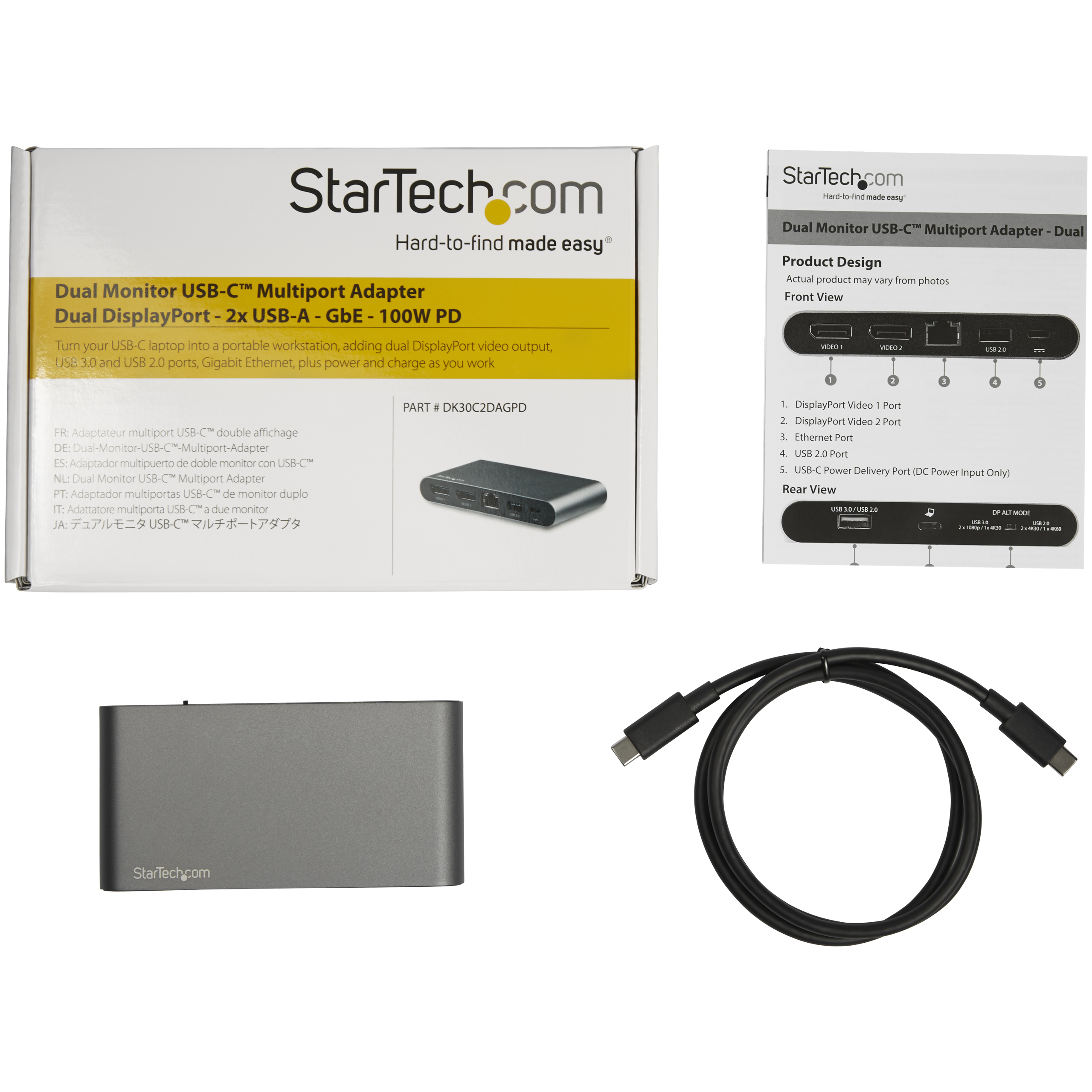

UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port DisplayPort Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge No Number of Displays 2 Other Ports Gigabit Ethernet Carton Depth (mm) 306 Carton Height (mm) 282 Carton Quantity 24 Carton Weight Gross (g) 7978 Included in Package - 1 - Multiport Adapter

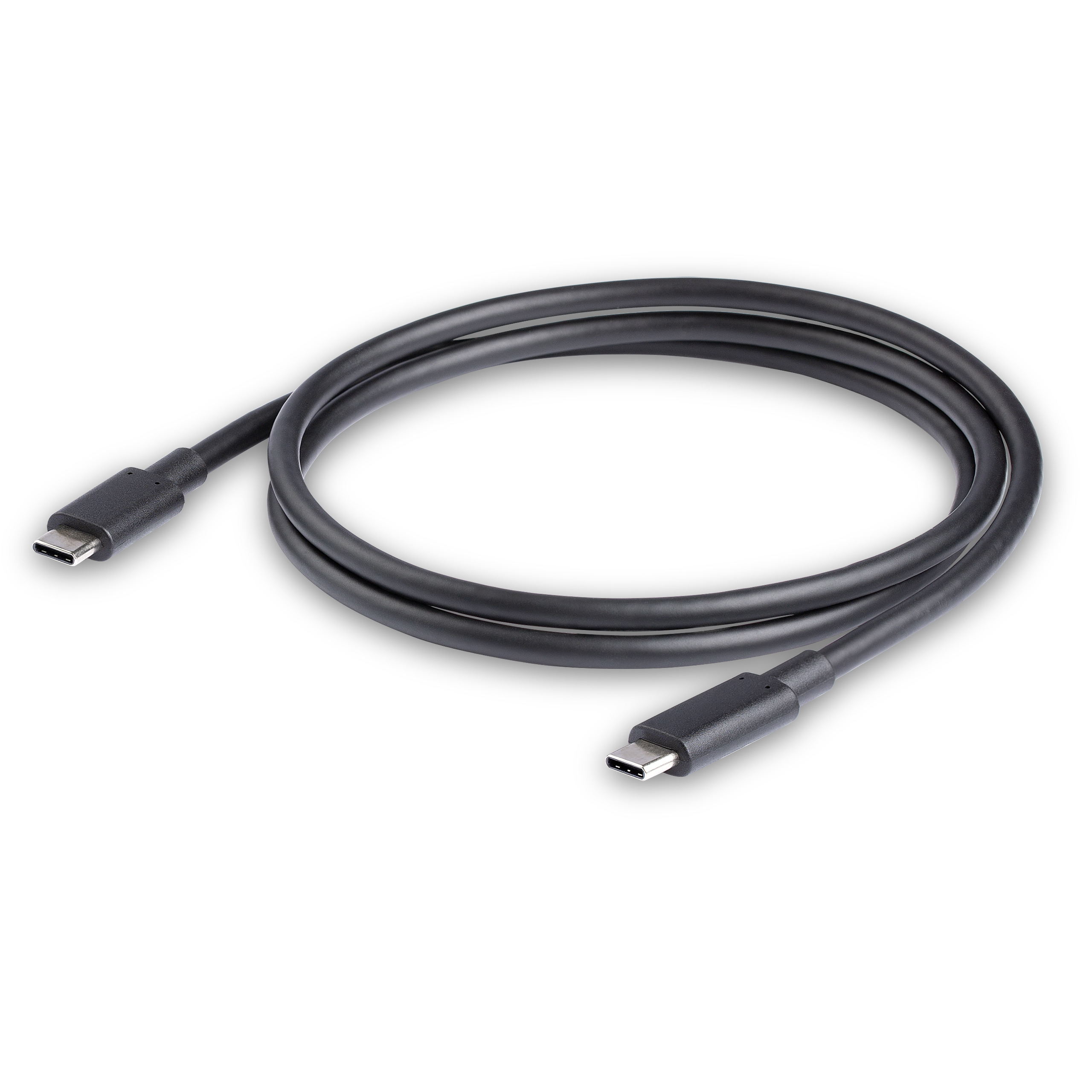

- 1 - USB-C Cable
- 1 - Quick-Start Guide
Package Depth (mm) 146 Package Height (mm) 40 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 292 Packaging Description Dual Monitor USB-C™ Multiport Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-08-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-09-14 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2018-08-24 Target Production Release 2018-08-31 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream
