DK30C2DPEP
USB C Gen 1 Dual Monitor Dual 4K60 PD 3 0 90W
Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock Slot
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB C Gen 1 Dual Monitor Dual 4K60 PD 3 0 90W Product Number DK30C2DPEP UPC 065030879972 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family USB-C Hybrid Dock Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX008X Product Title (Ultra-Short) USB-C & USB-A Dock Product Title (Short) Hybrid USB-C USB-A Dock - 100W PD - 4K60 Product Title (Medium) StarTech.com Universal Laptop Docking Station - USB-C & USB-A - 2x 4K, 100W PD Product Title (Standard) Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI, 100W PD, Mac / Windows / Chrome OS, GbE Product Title (Long) Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI, 100W PD, Mac / Windows / Chrome OS, 4x USB 5Gbps Hub, GbE Product Title (AMZ) USB-C / USB-A Hybrid Docking Station for MacBook Pro / Air M1 M2 M3 M4 & Windows, Universal Dual 4K 60Hz HDMI DP Dock, Thunderbolt Compatible, 100W Laptop Charging Title Ingram (Part 1) 2x 4K Universal Laptop Docking Title Ingram (Part 2) Station - USB-C & USB-A - 100W PD Website Product Headline Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock Slot Bullet 1 HYBRID DOCK: Universal docking station works with USB Type-C, Thunderbolt 3 / 4 & USB Type-A laptop computers, using a 2-in-1 USB-C / USB-A cable; Ideal for hoteling or shared workspace setup Bullet 2 DUAL DISPLAY ON MACBOOK AIR: Enable two external displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; DisplayPort or HDMI ports supporting up to Dual 4K 60Hz; Driver installation required on Windows and macOS Bullet 3 WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink certified docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS) Bullet 4 FULL-FEATURED DOCK: 4-Port USB 5Gbps Hub (2x Fast Charge) with 1x USB-C and 3x USB-A, Gigabit Ethernet & 1x 3.5mm audio/headset, K-slot for security lock & holes for optional mounting bracket; Includes DisplayLink Update Utility; 100W power delivery Bullet 5 IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout Bullets (Compact) Docking station for USB-C, USB-A laptops - Works w/ Windows, macOS, Ubuntu, ChromeOS - Dual monitors on base M-Series MacBook Pro/Air, Dual 4K 60Hz - USB-IF, VESA & DisplayLink certified dock; 100W PD - 4-Port USB 5Gbps, NIC, 3.5mm ports, K-slot Bullets (Consolidated) - Universal docking station works w/ USB Type-C, Thunderbolt and USB Type-A laptop computers - DisplayPort / HDMI ports supporting up to Dual 4K 60Hz - USB-IF, VESA & DisplayLink certified dock; 100W power delivery - Compatible Windows, macOS, Ubuntu and ChromeOS; Dual extended monitors on MacBook Air/Pro (base Apple M-Series) laptops that natively only support one - 4-Port USB 5Gbps (2x Fast Charge); 1x USB-C and 3x USB-A, Gigabit Ethernet & 1x 3.5mm audio/headset, K-slot, mount option Marketing Copy Marketing Copy (No HTML) Applications - Create a dual-display workstation using either a USB-C laptop or USB 3.0 laptop
- Ideally suited for large enterprise, businesses and organizations using a mix of laptops
- Effective in work environments working with sensitive data and applications
- Ideal for hot-desking (hoteling or shared workstations), with universal compatibility
Website Search Keyword - usb c displayport dock
- usb c dual displayport dock
- usb c dual monitor dock
- usb c dual 4k dock
- usb c dp dock
- usb c docking station displayport
- usb c docking station dual monitor
- dual displayport docking station
- dual 4k displayport dock
- usb c dock dp 4k 60hz
- Docking Stations
Required Regulatory Compliance Marks - EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.

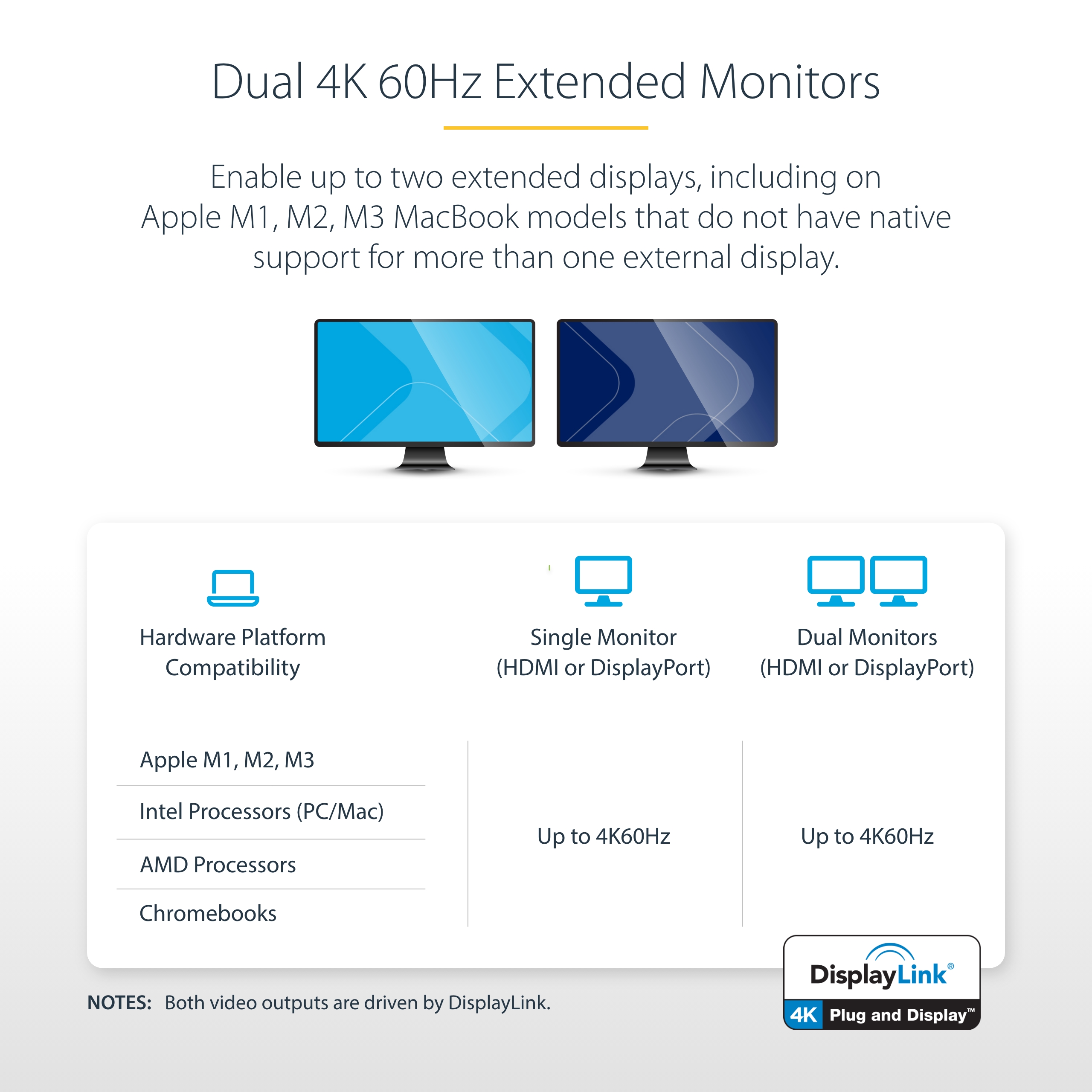

- 4K resolution is supported on all 4 video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolutions
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display.
System and Cable Requirements USB-C enabled computer with an available USB Type-C port, or a USB-3.0 enabled computer with an available USB Type-A port Accessory Products - DISPLPORT6L
- USB31CCV50CM
- HDMIDVIMF
- USB31CAADP
- LTLOCK
- HDMM6
- HDMM10
- 45PATCH6BK
- 45PATCH10BK
- DP2VGA3
- HD2VGAE2
- DP2DVI2
- HDMIDVIMM6
- USB31AC1M
- HDMM3
- DISPL10MA
- DISPLPORT3L
- SSPMSUDWM
- SSPMSVESA
- USBCCADP
- 158-DOCKPOWERADAPTER
- HDMMV2M
- DP14MM2M
- DOCK-NUC-VESA-MOUNT
Related Products - DK30CH2DPPD
- USB3DOCKH2DP
- DK30C2DPPD

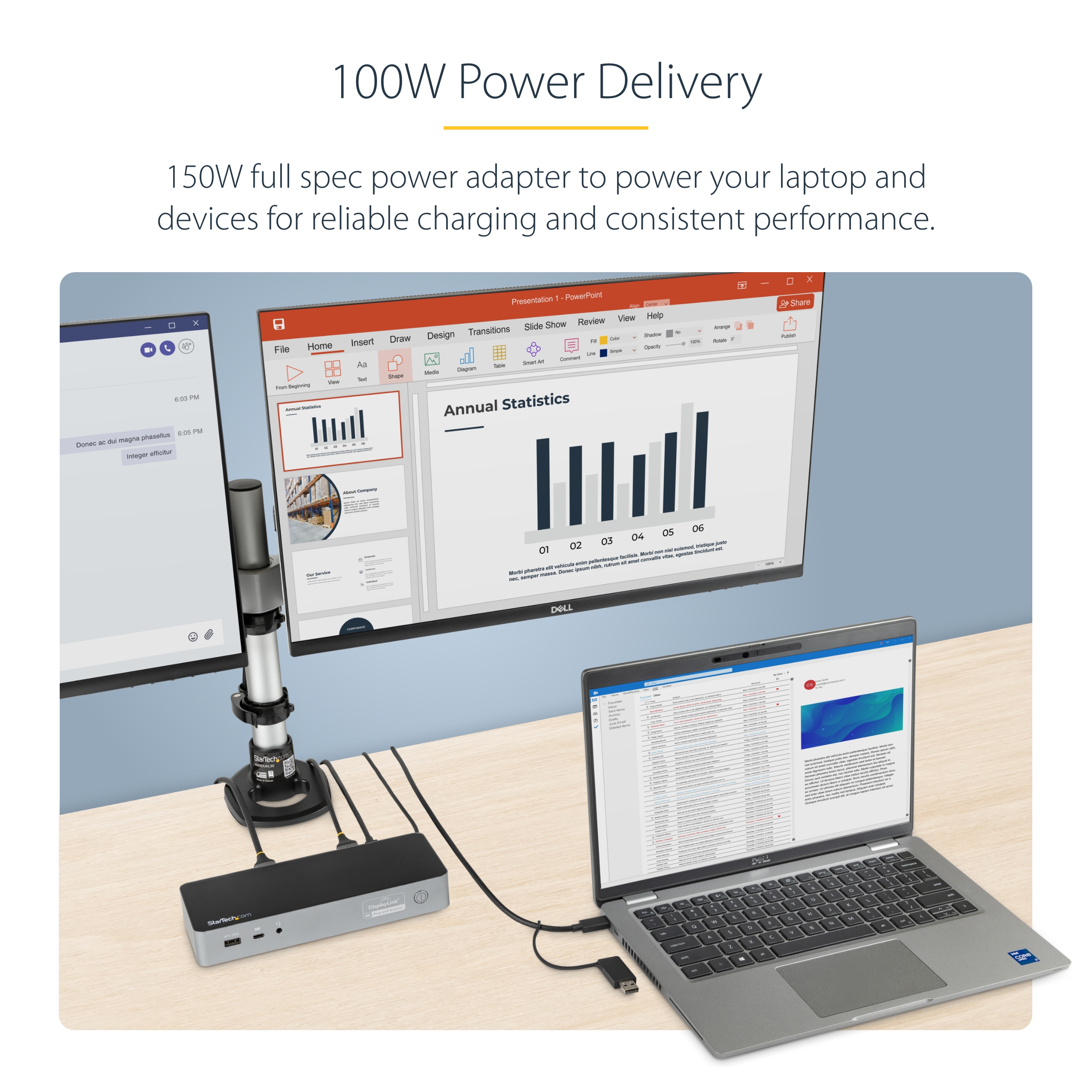

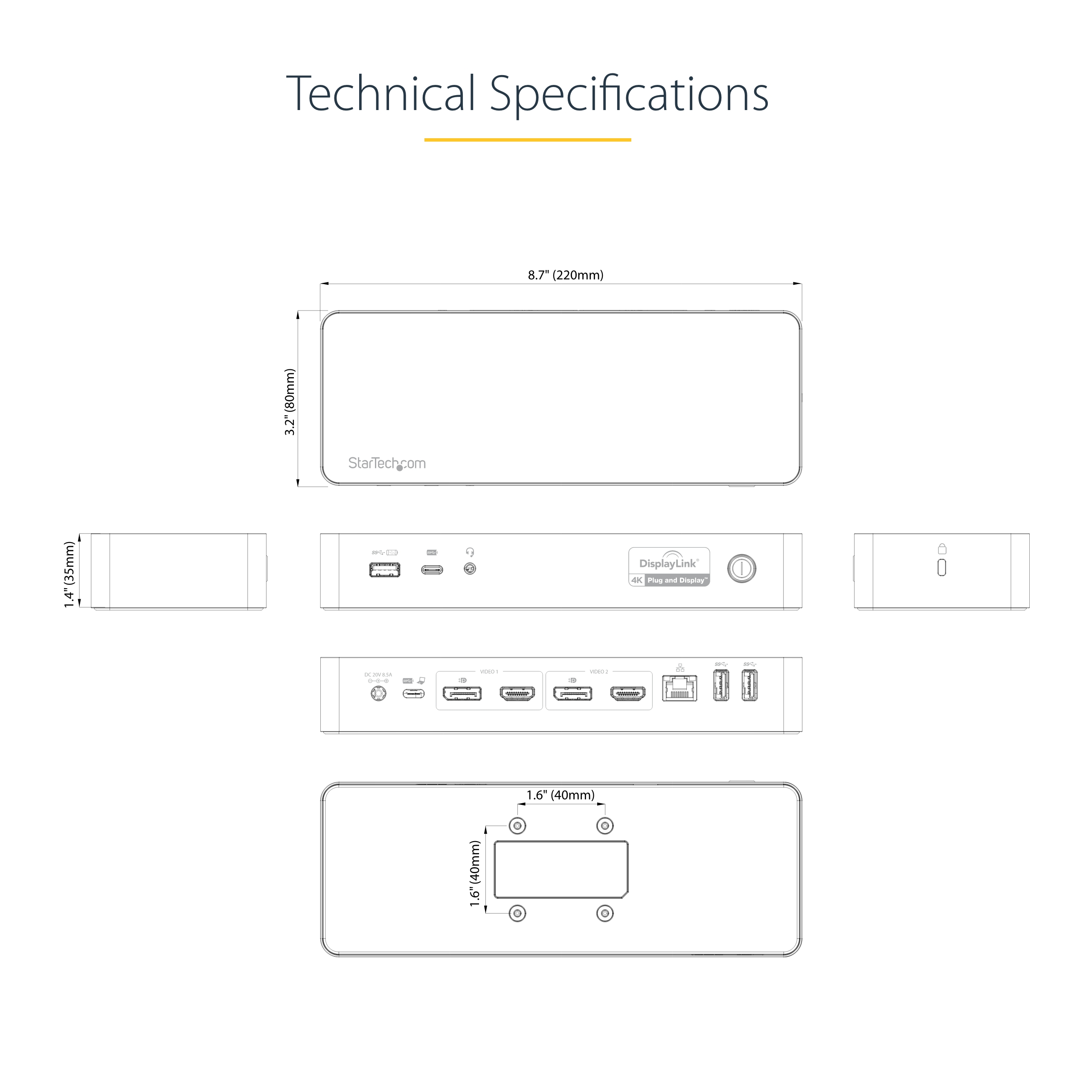

Equivalent Part Number in the EU DK30C2DPEPUE Equivalent Part Number in the UK DK30C2DPEPUE Input Current 2.5 A Input Voltage 110V-240V AC Output Current 7.7 A Output Voltage (V) 19.5V DC Power Consumption (In Watts) 150 W Power Delivery 100W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black & Space Gray Humidity 0~95% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 220.000 Product Width (mm) 80.000 Product Height (mm) 30.000 Product Weight (g) 280.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 7
- Windows 8
- macOS Mojave (10.14)
- macOS Sierra (10.12)
- Chrome OS
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Ubuntu
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Mac OS X El Capitan (10.11)

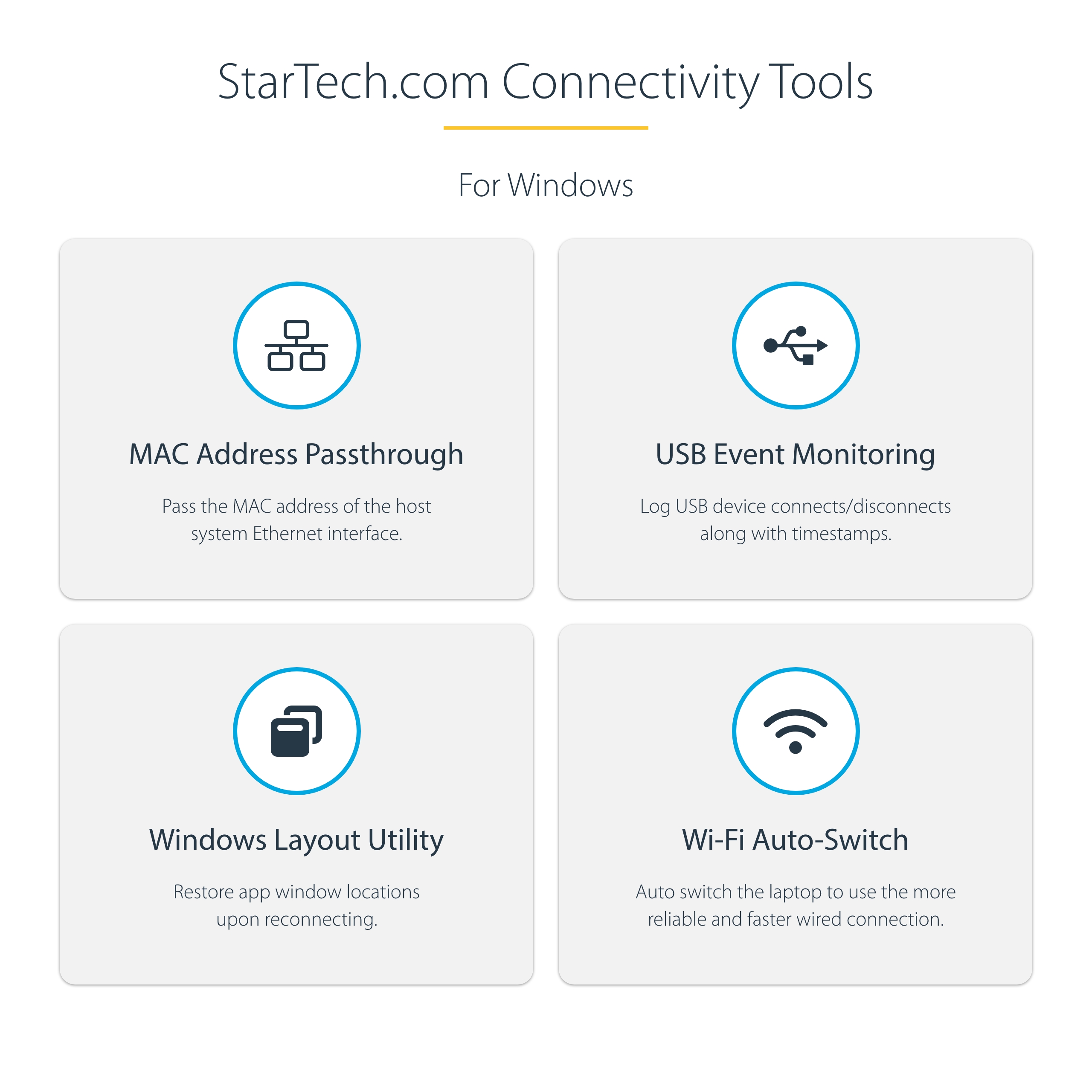

PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Bus Type - USB-C
- USB 3.2 Gen 1 (5Gbps)

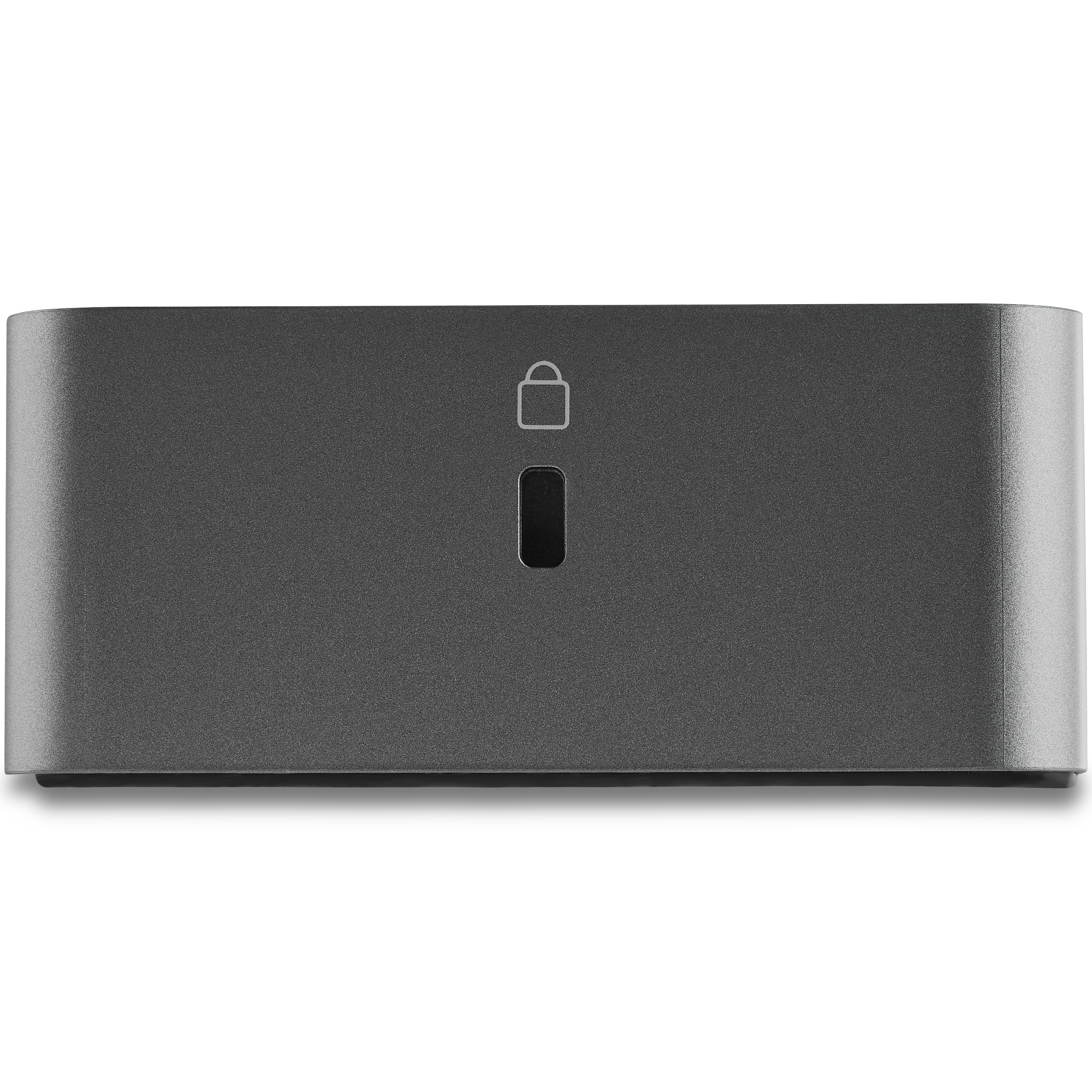

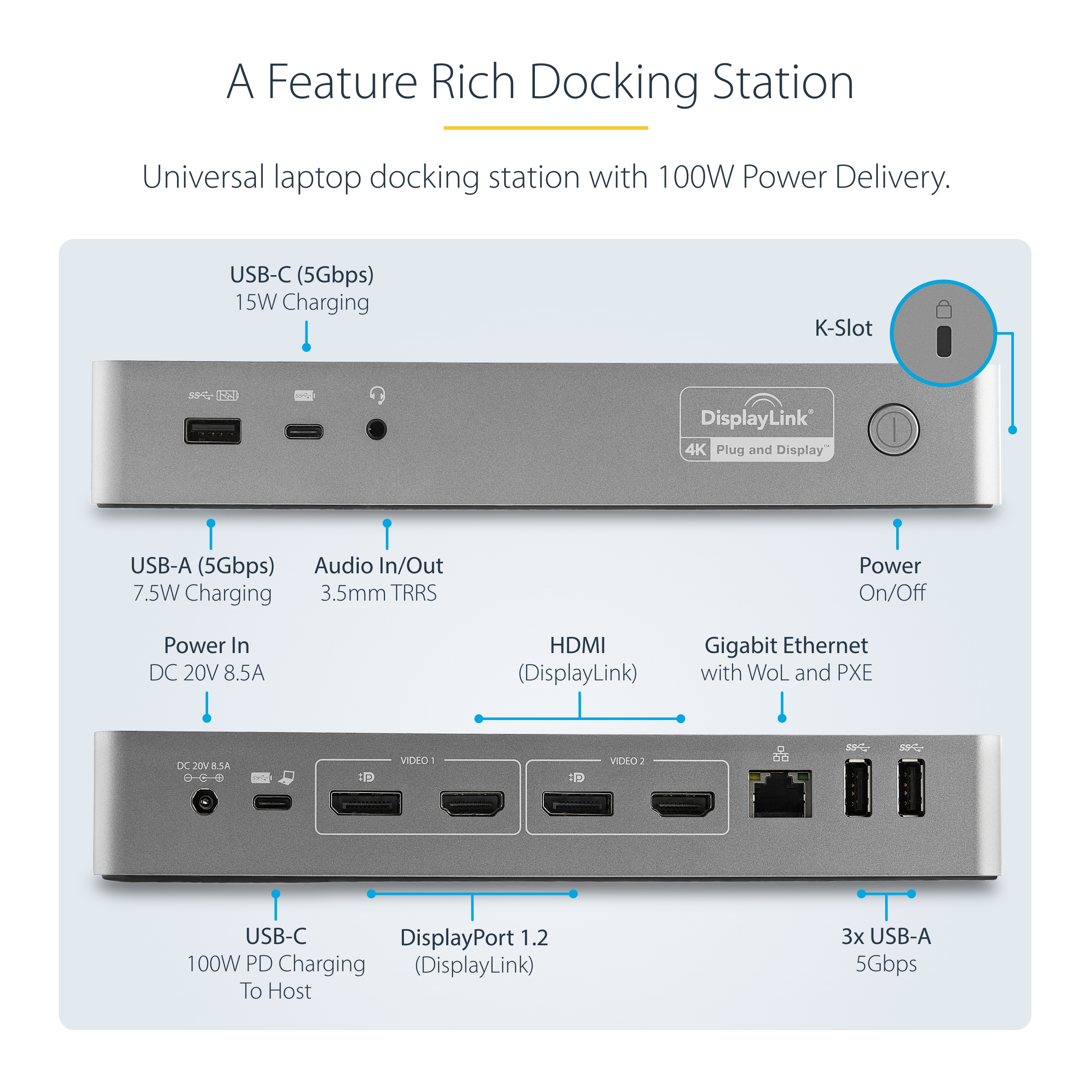

Chipset ID Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port Hybrid (USB-C or USB-A) Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

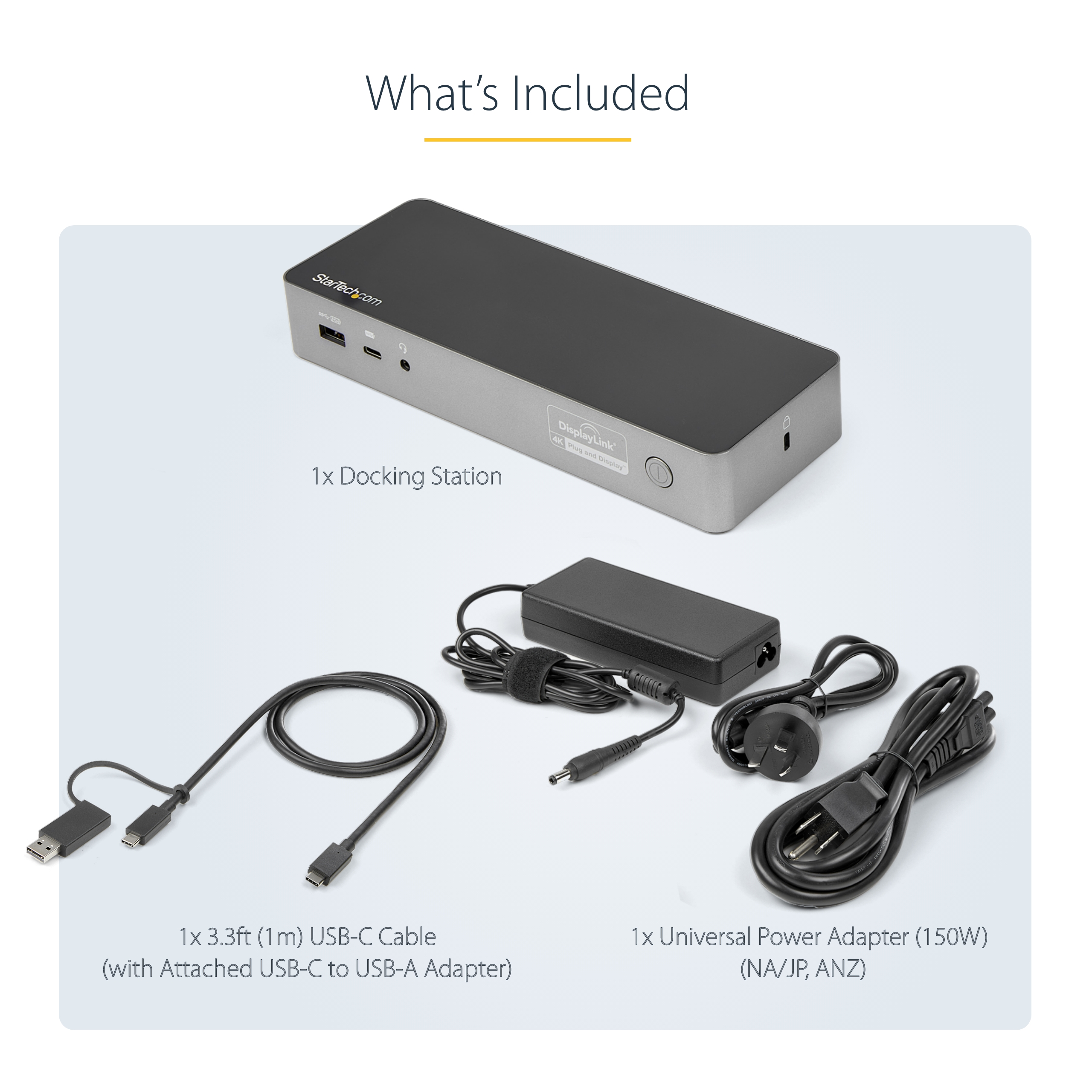

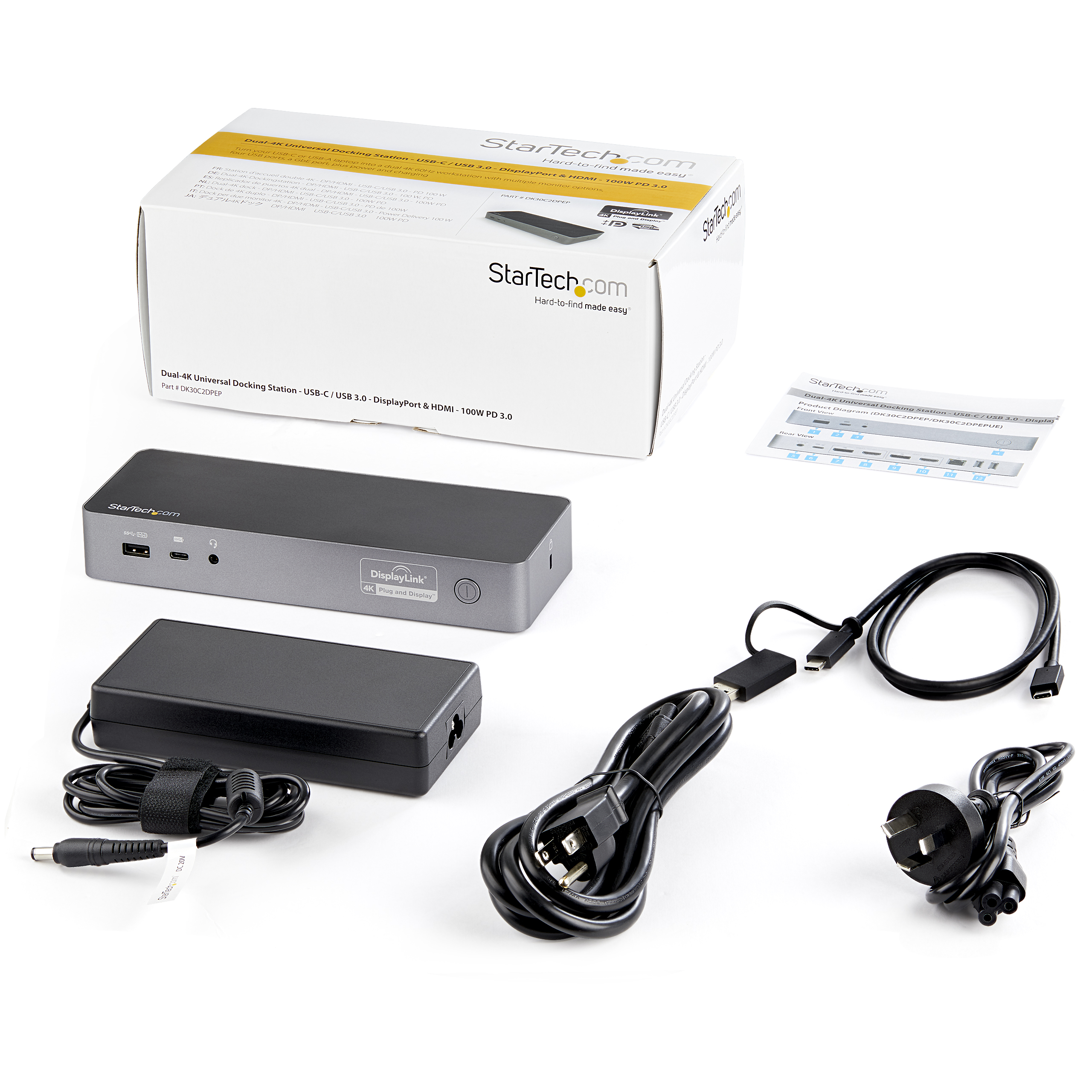

Carton Depth (mm) 510 Carton Height (mm) 248 Carton Quantity 6 Carton Weight Gross (g) 9400 Included in Package - 1 - Docking Station

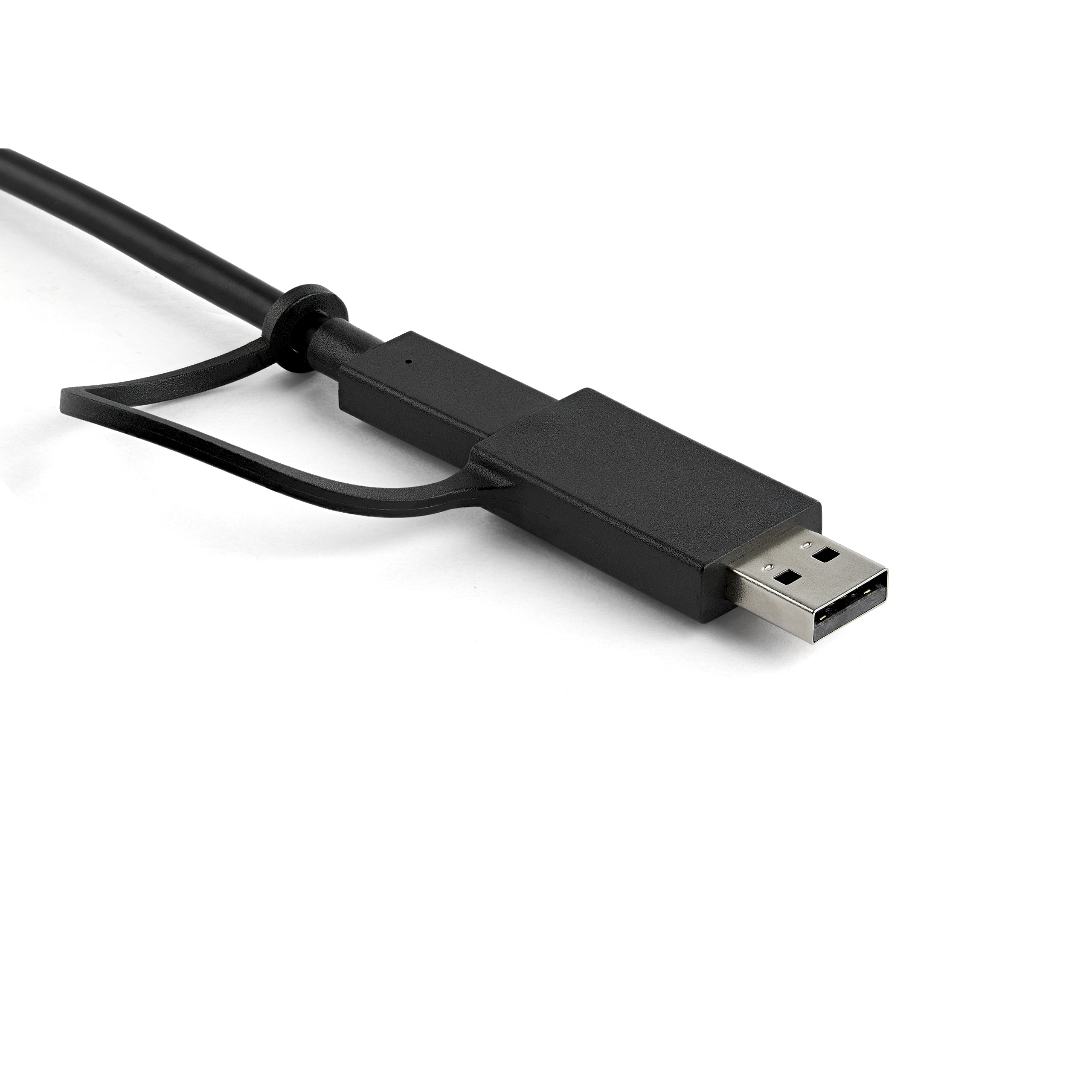

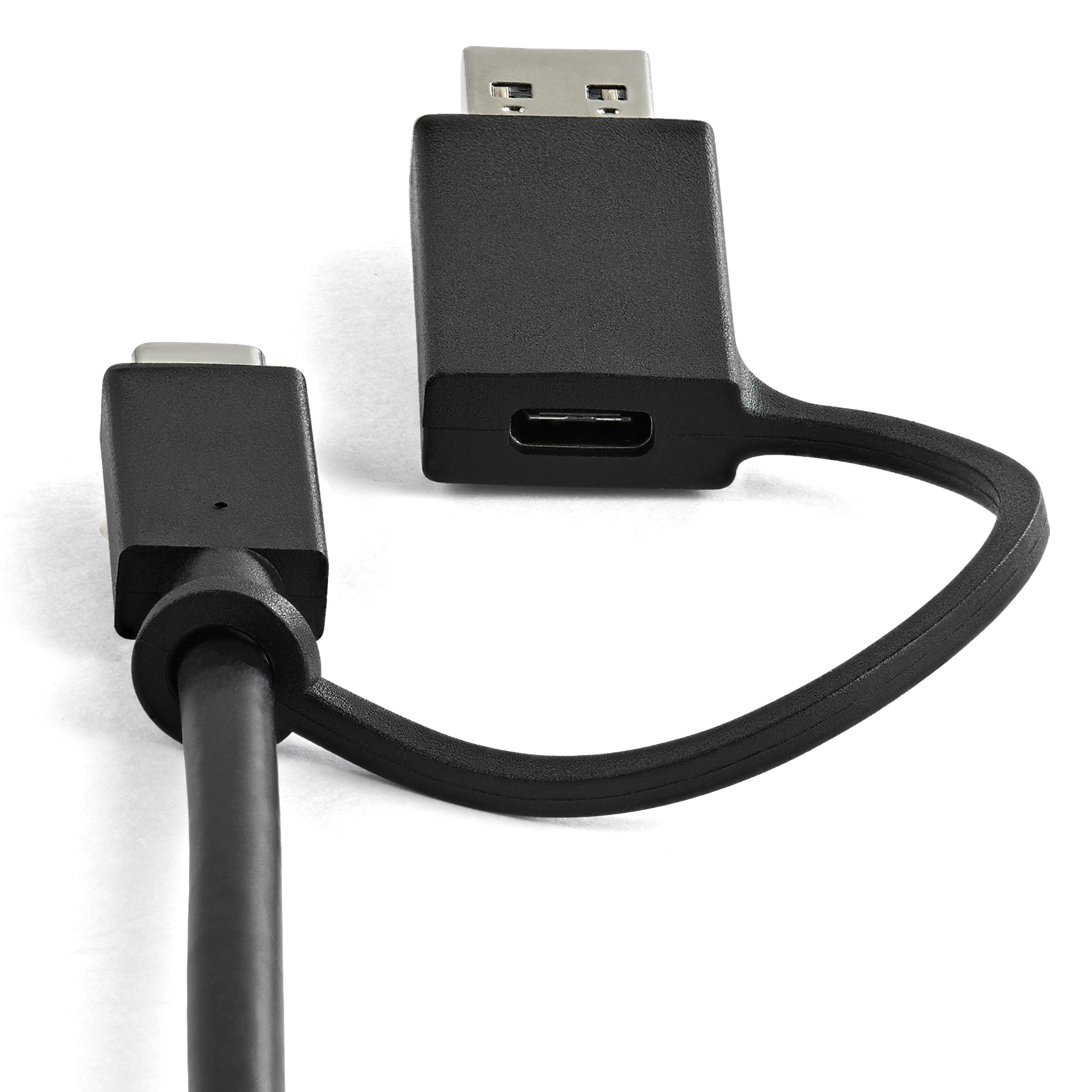

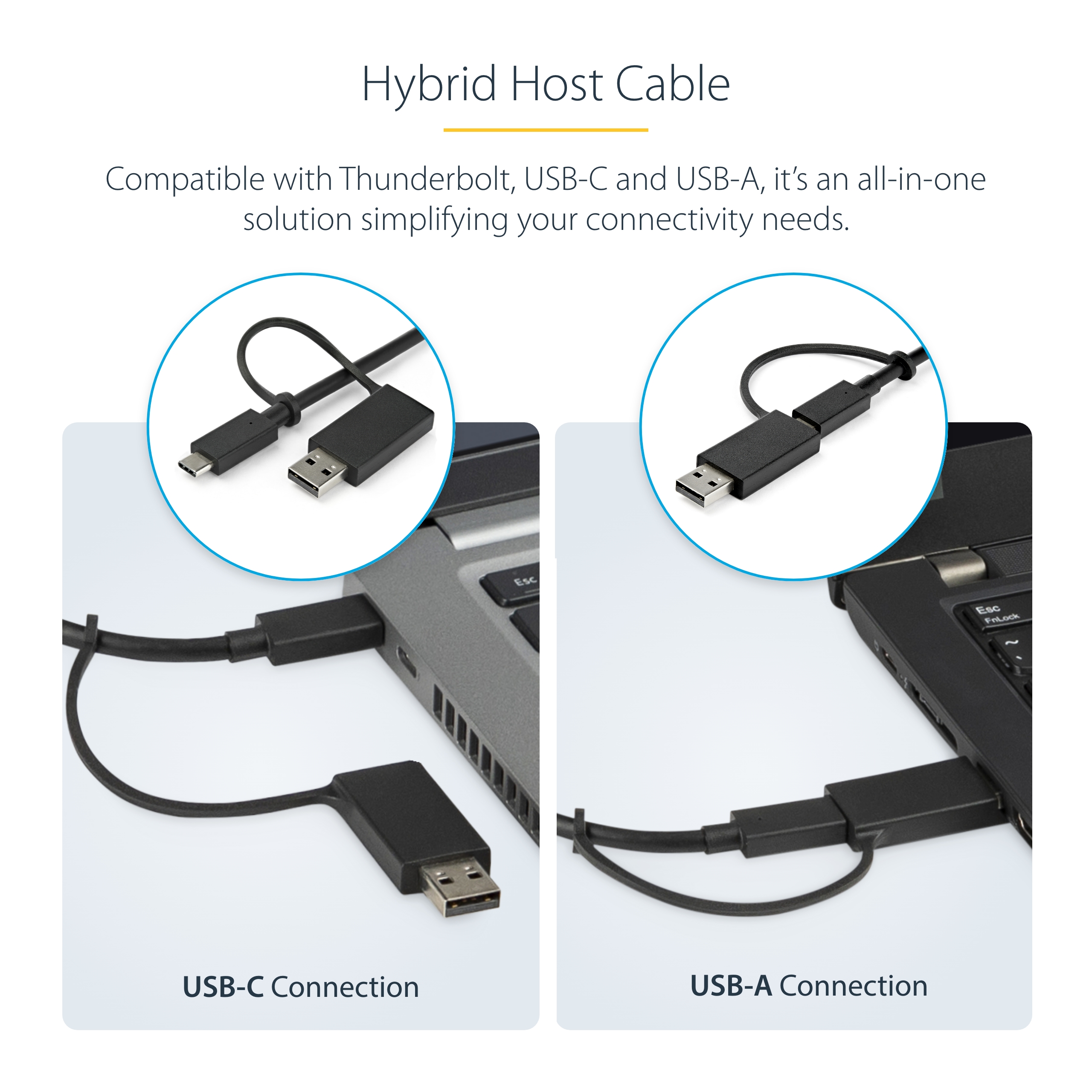

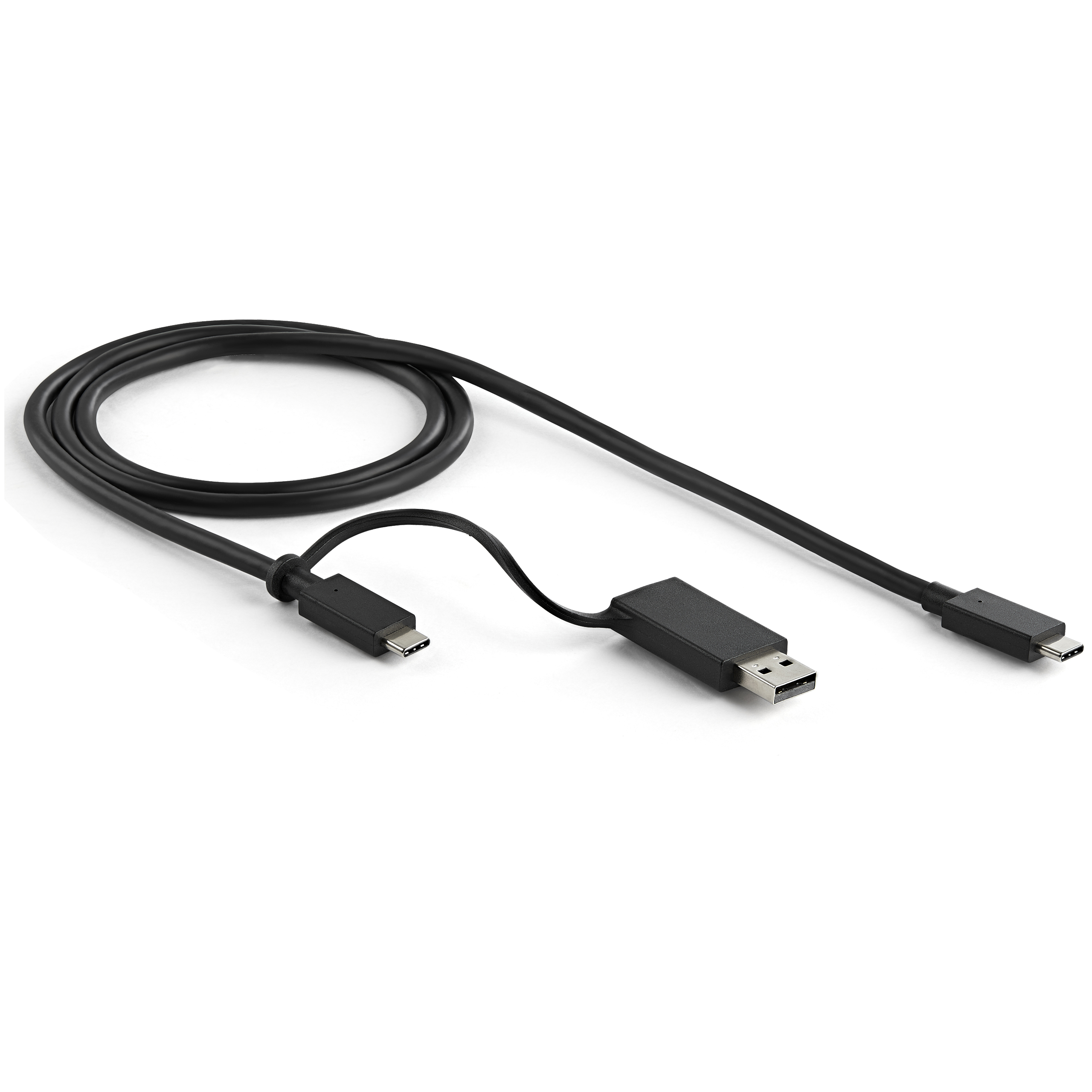

- 1 - 3.3ft (1m) USB-C Cable (with Attached USB-C to USB-A Adapter)
- 1 - Universal Power Adapter (NA/JP, ANZ)
- 1 - Quick-Start Guide
Package Depth (mm) 278 Package Height (mm) 108 Package Width (mm) 161 Package Quantity 1 Package Weight (g) 1420 Packaging Description Dual-4K Dock - DP/HDMI - USB-C/USB 3.0 - 100W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 2 Connector 3 USB-C (7.5W Power Only) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 2 Connector 6 RJ-45 Connector 6 (Quantity) 1 Connector 7 3.5mm (4 Conductors, TRRS) Connector 7 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Application Photos Required Artwork Due Date 2018-12-20 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-12-27 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AU,CA,JP,MX,NZ,US Primary Technology USB-C Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2019-10-03 Target Production Release 2019-10-10 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
