DK30C2DPEPRN
USB C A Dock Dual 4K60 DP HDMI 140W EPR 4x USB 2 5GbE
Universal triple-monitor dock compatible with macOS, Windows, and ChromeOS
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name USB C A Dock Dual 4K60 DP HDMI 140W EPR 4x USB 2 5GbE Product Number DK30C2DPEPRN UPC 065030911245 Lifecycle status Pending Warranty 3 Years Weighted Opportunity 0 Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family DK30C2DPEP Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) 3x Monitor Dock Product Title (Short) Triple-Monitor USB-C Dock, 140W PD Product Title (Medium) Triple-Monitor USB-C Docking Station, 140W Laptop Charging, 4K 60Hz, TAA Product Title (Standard) Triple-Monitor USB-C Docking Station, 140W Laptop Charging Dock for MacBook Pro and Windows, 4K 60Hz, TAA Product Title (Long) Triple-Monitor USB-C Docking Station, 140W Laptop Charging Dock for MacBook Pro and Windows, 4K 60Hz HDMI or DisplayPort, TAA Product Title (AMZ) Triple Monitor USB-C Docking Station, 4K 60Hz DisplayLink Dock for MacBook M1 M2 M3 M4 & Windows, 2.5GbE, 2x HDMI & 2x DP, 140W Laptop Charging, USB-C DP Alt Mode - TAA Title Ingram (Part 1) Triple-Monitor Docking Station, Title Ingram (Part 2) 4K 60Hz HDMI/DisplayPort, TAA Website Product Headline Universal triple-monitor dock compatible with macOS, Windows, and ChromeOS Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Supports triple 4K 60Hz displays and charges up to 140W power over USB-C; USB-A adapter offers legacy host support with dual-displays; Multi-monitor support on macOS/Windows/ChromeOS; 2.5Gb Ethernet connection; Jumbo Frames/PXE Boot/Wake-on-LAN Bullets (Consolidated) - Supports triple 4K 60Hz displays and charges up to 140W power over USB-C - USB-A adapter offers legacy host support with dual-displays - DisplayLink-based HDMI and DiisplayPort outputs for multi-monitor support on macOS/Windows/ChromeOS - 2.5Gb Ethernet connection supports Jumbo Frames/PXE Boot/Wake-on-LAN - Universal dock features built-in lock slots for physical security - Supports surface or VESA mounting (mounting accessories sold separately: SSPMSUDWM/DOCK-NUC-VESA-MOUNT/SSPMSVESA) Marketing Copy Marketing Copy (No HTML) Website Search Keyword - usb c displayport dock
- usb c dual displayport dock
- usb c dual monitor dock
- usb c dual 4k dock
- usb c dp dock
- usb c docking station displayport
- usb c docking station dual monitor
- dual displayport docking station
- dual 4k displayport dock
- refurbished docking station
- refurb usb c dock
- Docking Stations
Required Marketing Compliance Marks - DisplayLink - Specification - Global - DisplayLink
- TAA - Specification - United States - TAA compliant product
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps)
- Jumbo Frames are no longer supported in macOS
Accessory Products - HDMMV1M
- DP14VMM1M
- C6ASPAT10BL
- SSPMSVESA
- SSPMSUDWM
- DOCK-NUC-VESA-MOUNT
- DP14VMM2M
- HDMMV2M
Related Products - 101N-USBC-DOCK
- DK31C4DPPD
- DK31C3MNCR
- 129N-USBC-KVM-DOCK
- DKM30CHDPD

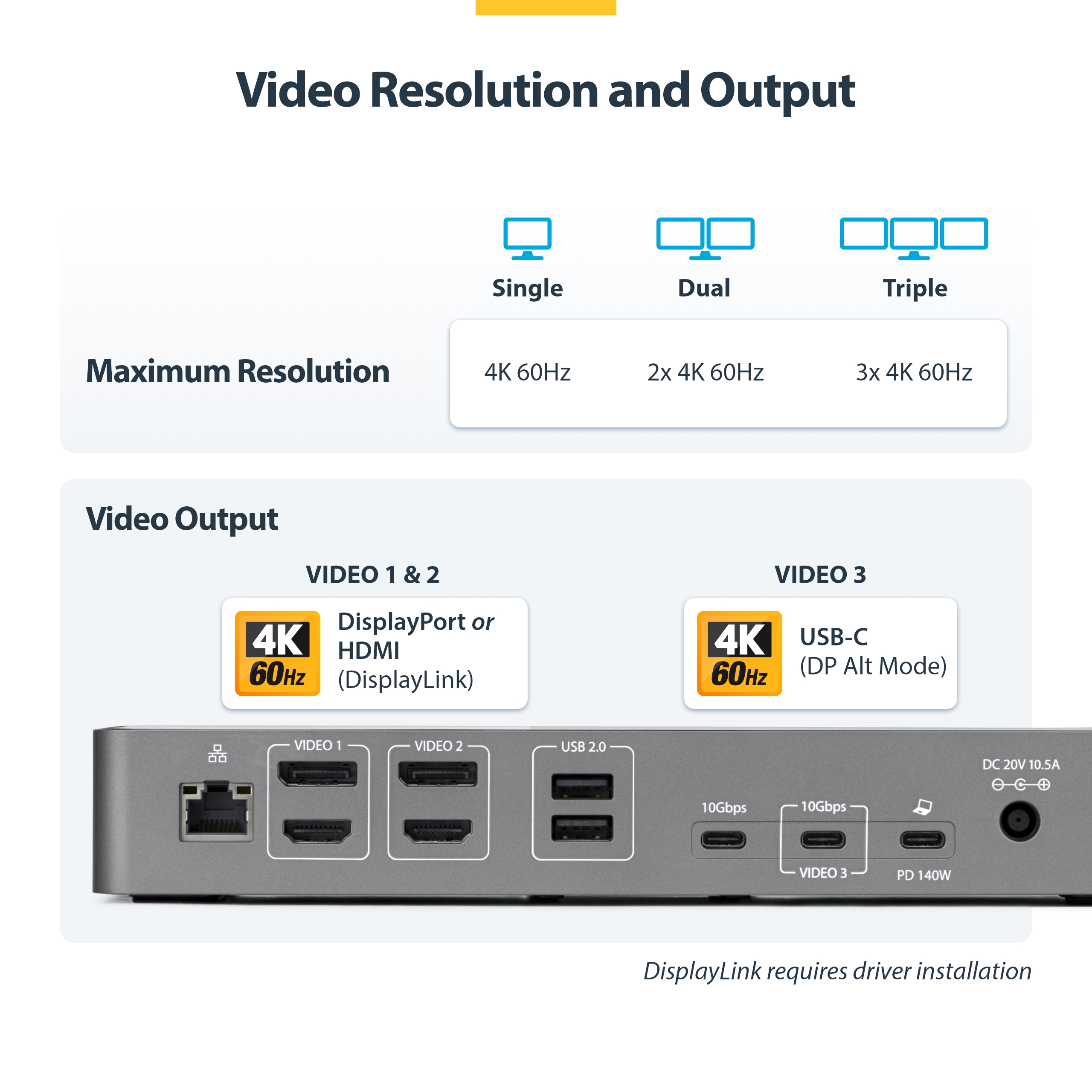

Equivalent Part Number in the EU DK30C2DPEPRUE Equivalent Part Number in the UK DK30C2DPEPRUE Input Current 2.5A Input Voltage 110V-240V AC Output Current 10.5A Output Voltage (V) 20V DC Power Consumption (In Watts) 210 Power Delivery 140W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Space Gray Humidity 0% ~ 90% RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 232.5 Product Width (mm) 84 Product Height (mm) 37 Product Weight (g) 394 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Full Duplex Support Yes Maximum Data Transfer Rate 10Gbps Maximum Digital Resolutions 4K 60Hz Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 42,209 Hours OS Compatibility - Windows 11
- Windows 11 ARM
- Windows 10
- macOS Sequoia (15.0)
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- Chrome OS
- Ubuntu
- macOS Tahoe (26.0)
PXE Yes Supported Charging Outputs - BC 1.2 (1.5A)
- USB-C (18W)
UASP Support Yes USB Type and Rate USB 10Gbps Video Output Port - HDMI
- DisplayPort
- USB-C (DP Alt-Mode)
Video Transport Technology USB Graphics Wake-On-LAN (WOL) Yes Audio Yes Bus Type - USB-A
- USB-C
Chipset ID - DisplayLink - DL6950
- Genesys Logic - GL5911
- Genesys Logic - GL5910
- Genesys Logic - GL3590
- Realtek - RTL8156B

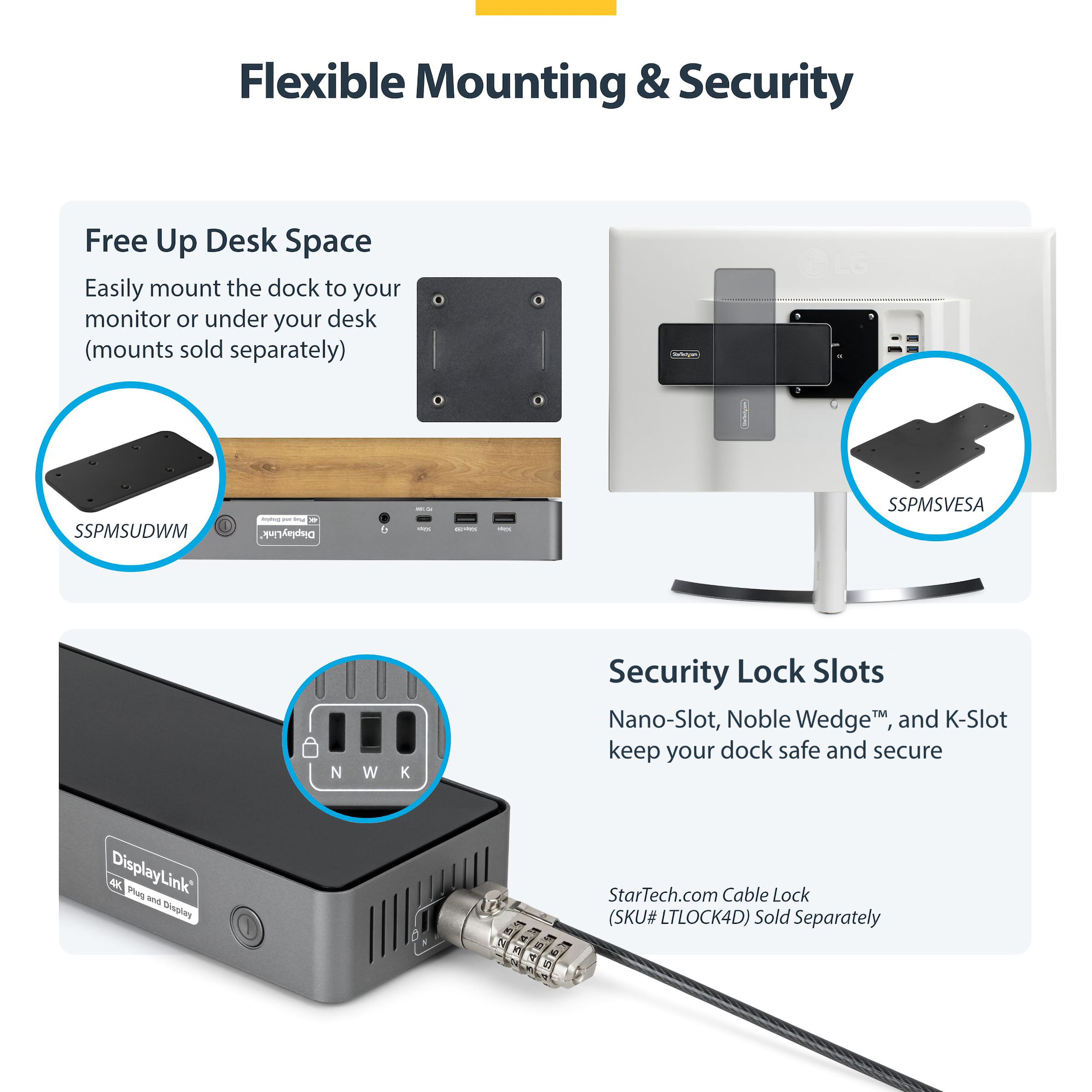

Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
- Noble Wedge Slot
Host Connection Port Hybrid (USB-C or USB-A) Interface/Bridge USB 3.2 Gen 2 10Gbps Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - LAN Port - Network Status LED (Green): Illuminates to Indicate an Ethernet Link is Active
- 1 - LAN Port - Network Activity LED (Amber): Blinks to Indicate Network Traffic
- 1 - Power Button LED (White): Illuminates when the Dock is Connected to a Power Source and Powered On
Number of Battery Charge 1.2 Ports 1 Number of Displays 3 Other Ports - 2.5Gb Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack
- USB-A BC 1.2 Fast Charge

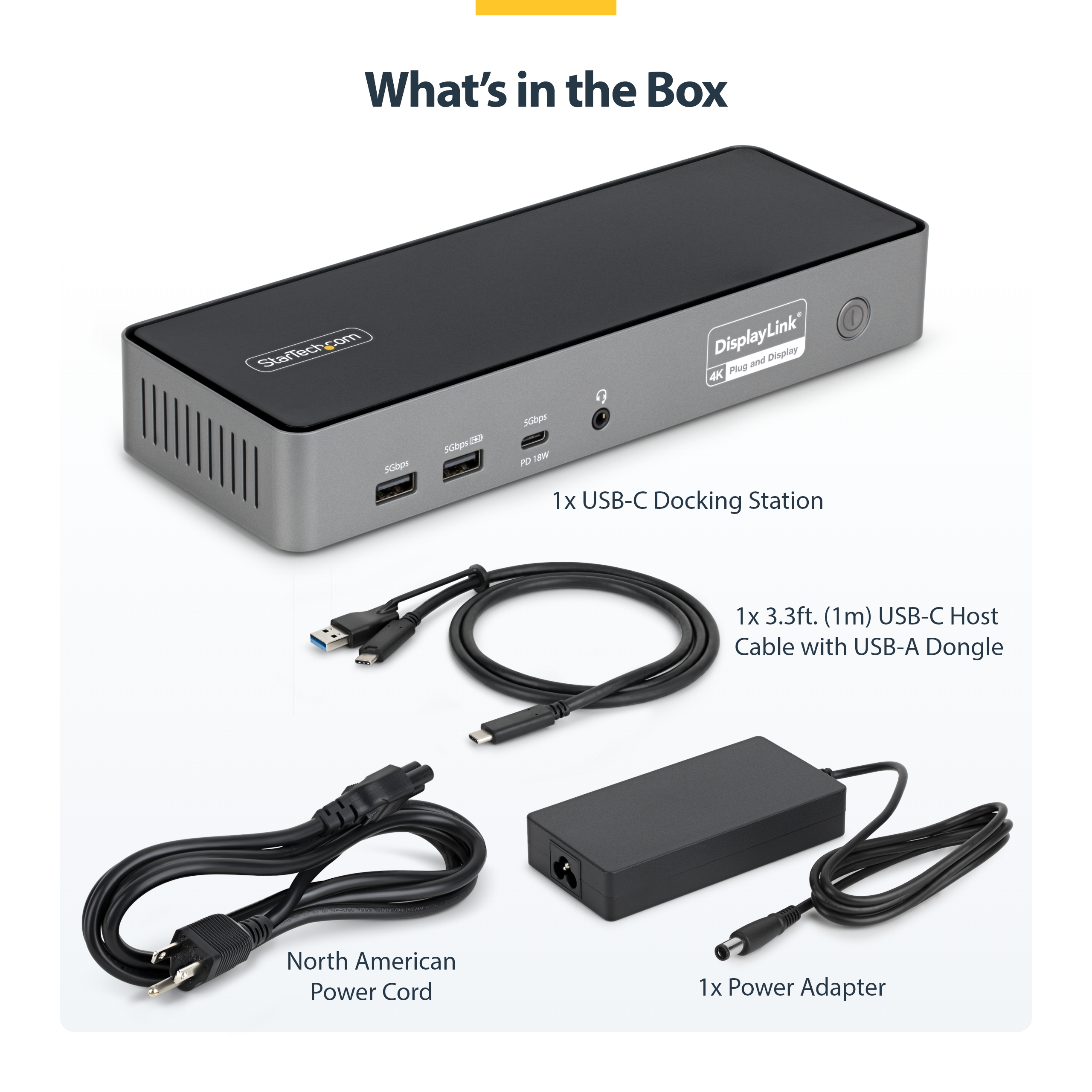

Carton Depth (mm) 315 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 8780 Included in Package - 1 - Docking Station
- 1 - 3ft (1m) USB-C Host Cable
- 1 - Universal Power Adapter
- 1 - Power Cable
- 1 - Product Documentation

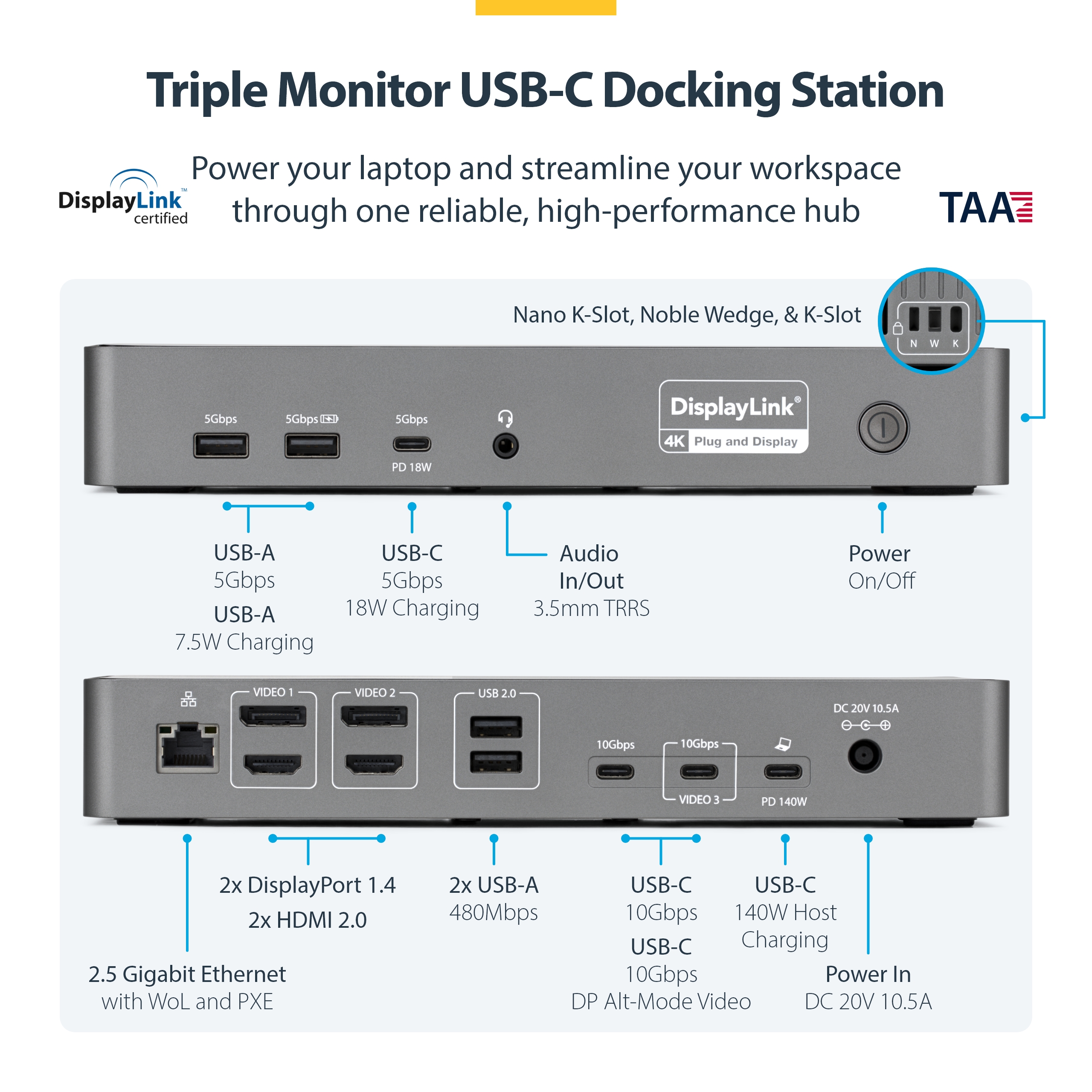

Number of Sub-Cartons 3 Package Depth (mm) 169 Package Height (mm) 90 Package Width (mm) 250.5 Package Weight (g) 1246 Packaging Description USB-C Triple-Monitor Dock - HDMI or DP, 4x USB-A/3x USB-C, 2.5GbE, 140W PD Sub-Carton Depth (mm) 185 Sub-Carton Height (mm) 270 Sub-Carton Width (mm) 295 Sub-Carton Quantity 2 Sub-Carton Weight (g) 3938 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 7.5W) Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 18W) Connector 3 (Quantity) 1 Connector 4 3.5mm (4 Conductors, TRRS) Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 DisplayPort Connector 6 (Quantity) 2 Connector 7 HDMI Connector 7 (Quantity) 2 Connector 8 USB-A (480Mbps, 2.5W) Connector 8 (Quantity) 2 Connector 9 USB-C (10Gbps, 4.5W) Connector 9 (Quantity) 1 Connector 10 USB-C Dual-Mode DP++ (10Gbps, 7.5W / DP Alt-Mode) Connector 10 (Quantity) 1 Host Connector 1 USB-C Host Connector 1 (Quantity) 1 A+ Uploaded Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kristian Haighton Amazon Visual Content Level Platinum Apple Compatibility Apple Compatible Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment NPI is an updated version of the comp sku Comparable SKU 2 Comment n/a Digital Content Due Date 2025-08-25 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Graphic Design SKU Logic Naming Convention DK30C2DPEPRx ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) CA,JP,MX,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- USB-C
- DisplayPort 1.4
- Power Delivery
- HDMI 2.0 / 4K 60 Hz and HDR
