DK30CH2DPPD
Triple 4K Monitor USB C Dock Windows Mac 60W PD
Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Triple 4K Monitor USB C Dock Windows Mac 60W PD Product Number DK30CH2DPPD UPC 065030867672 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family Triple Monitor Dock - Family 1 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) Triple 4K USB-C Dock Product Title (Short) Dock - USB-C - Triple 4K - 60W PD Product Title (Medium) 4K USB-C Dock - Triple Monitor - Mac / Windows - 5x USB 3.2 5Gbps Ports - 60W PD Product Title (Standard) 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, HDMI & DisplayPort, 60W PD, 5x USB 5Gbps Hub, TAA Product Title (Long) USB-C Triple Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal 4K HDMI DP Dock, Thunderbolt Compatible, 60W Laptop Charging - TAA Product Title (AMZ) USB-C Triple Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal 4K HDMI DP Dock, Thunderbolt Compatible, 60W Laptop Charging - TAA Title Ingram (Part 1) 4K USB-C Dock - Triple Monitor Title Ingram (Part 2) - For Mac & Windows - 60W USB PD Website Product Headline Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI Bullet 1 FULL-FEATURED DOCK: USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 60WPower Delivery, 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot & 1m/3.3ft USB-C cable; Includes DisplayLink Update Utility Bullet 2 TRIPLE DISPLAY ON MACBOOK AIR: Add up to three external displays on Apple MacBook Air models that normally support only one; Supports dual or triple video output via DisplayPort or HDMI; Driver installation required for Windows and macOS Bullet 3 WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink certified docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS) Bullet 4 UNIVERSAL USB-C & USB-A FUNCTIONALITY: Also connects to USB-A laptops with a USB-C to A cable adapter (USB315AC1M, sold separately); Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported Bullet 5 IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout Bullets (Compact) USB-C Dock 3 video outputs, 60W PD - 4x USB-A, 1x USB-C 5Gbps, NIC, headset, K-Slot - Triple monitor on base M-Series MacBook Pro/Air - Works w/ USB-C, USB4, Thunderbolt laptops; Windows, macOS, Ubuntu, ChromeOS - USB-IF, VESA, DisplayLink certified Bullets (Consolidated) USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 60W Power Delivery - 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot - Three external displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; Single, dual or triple video connectivity w/ DisplayPort or HDMI - Compatible Windows, macOS, Ubuntu and ChromeOS - USB-IF, VESA & DisplayLink certified docking station; Includes DisplayLink Update Utility Marketing Copy Marketing Copy (No HTML) Applications - Ideal for 4K video editing or working with high-resolution graphics
- Work on multiple documents simultaneously in office applications
- View multiple monitors at a glance, in financial or investment firms
- Ideal for surveillance and monitoring
Website Search Keyword - usb c hdmi dock
- usb c dual hdmi dock
- usb c dual monitor dock
- usb c dual 4k dock
- usb c hdmi docking station
- usb c docking station hdmi
- usb c docking station dual monitor
- dual hdmi docking station
- dual 4k hdmi dock
- usb c dock hdmi 4k
- usb c dock with usb c port
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.

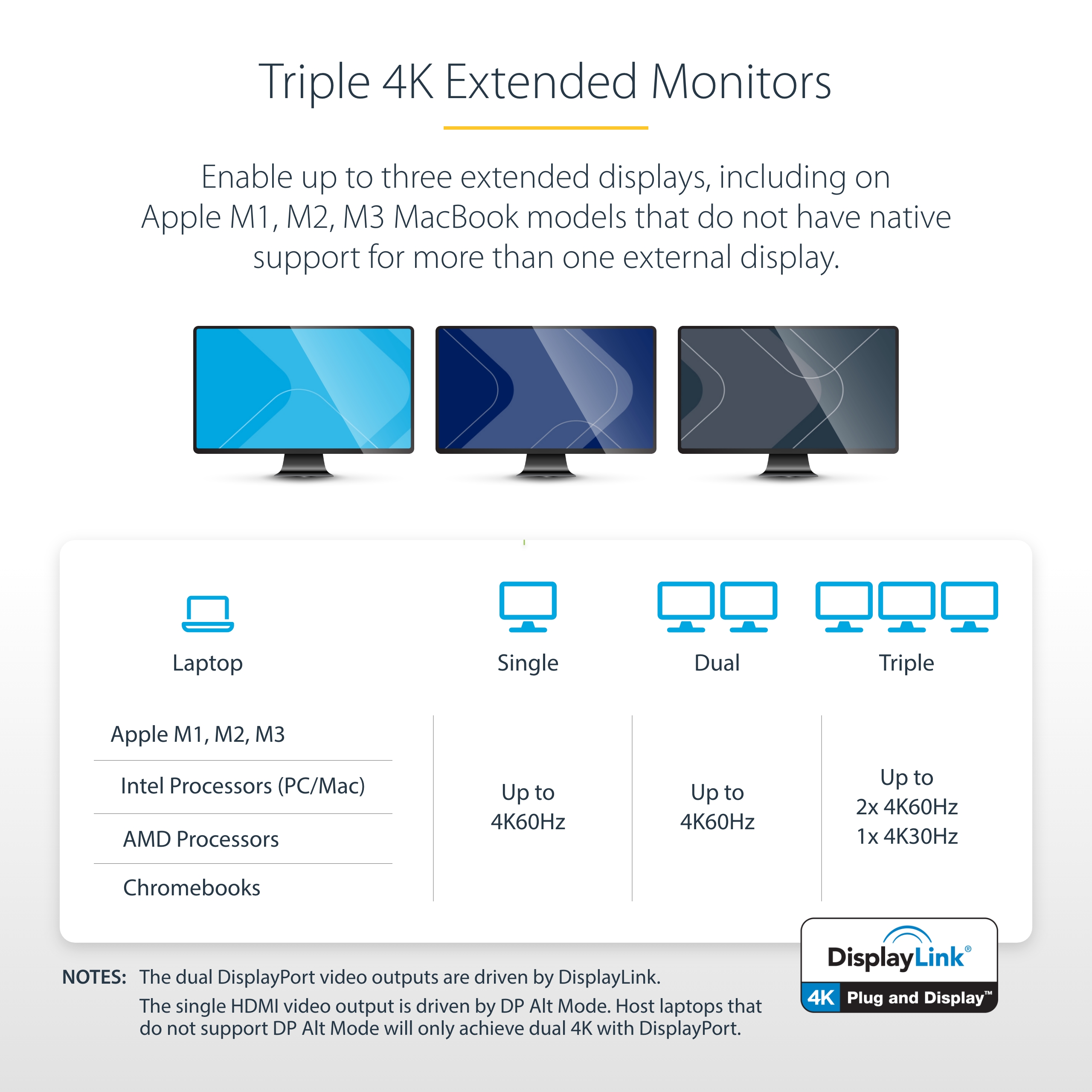

- 4K resolution is supported on all 3 video ports. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
- The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A
- DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.
System and Cable Requirements USB-C enabled computer with an available USB Type-C port Accessory Products - LTLOCK
- USB31CCV50CM
- DP2HDMM2MB
- DP2HDMI2
- DISPLPORT6L
- DISPLPORT10L
- HDMM6
- HDMM10
- 45PATCH6BK
- 45PATCH10BK
- ARMBARTRIO2
- ARMTRIO
- 158-DOCKPOWERADAPTER
- HDMMV2M
- DP14MM2M

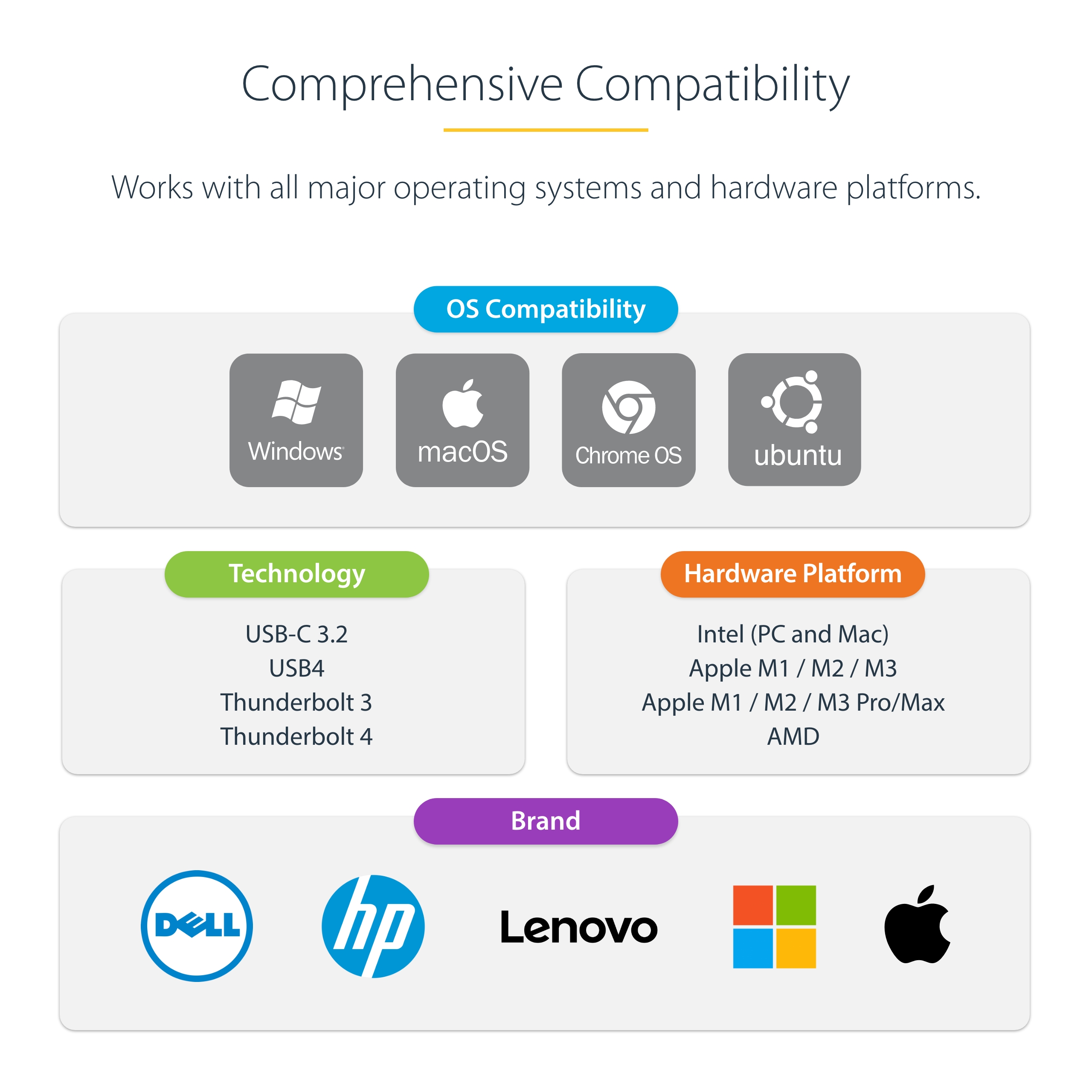

Related Products USB3DOCKH2DP Constrained SKU Alternatives (Limited Stock) DK31C3HDPD Equivalent Part Number in the EU DK30CH2DPPDU Equivalent Part Number in the UK DK30CH2DPPDU Input Current 2 A Input Voltage 110V-240V AC Output Current 6 A Output Voltage (V) 20V DC Power Delivery 60W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black & Silver Humidity 0~95% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 270 Product Width (mm) 82 Product Height (mm) 34 Product Weight (g) 385 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- macOS Mojave (10.14)
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Ubuntu
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Chrome OS
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Bus Type USB-C Chipset ID Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 3 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Speaker Audio Jack
- 3.5mm TRRS Mic Audio Jack

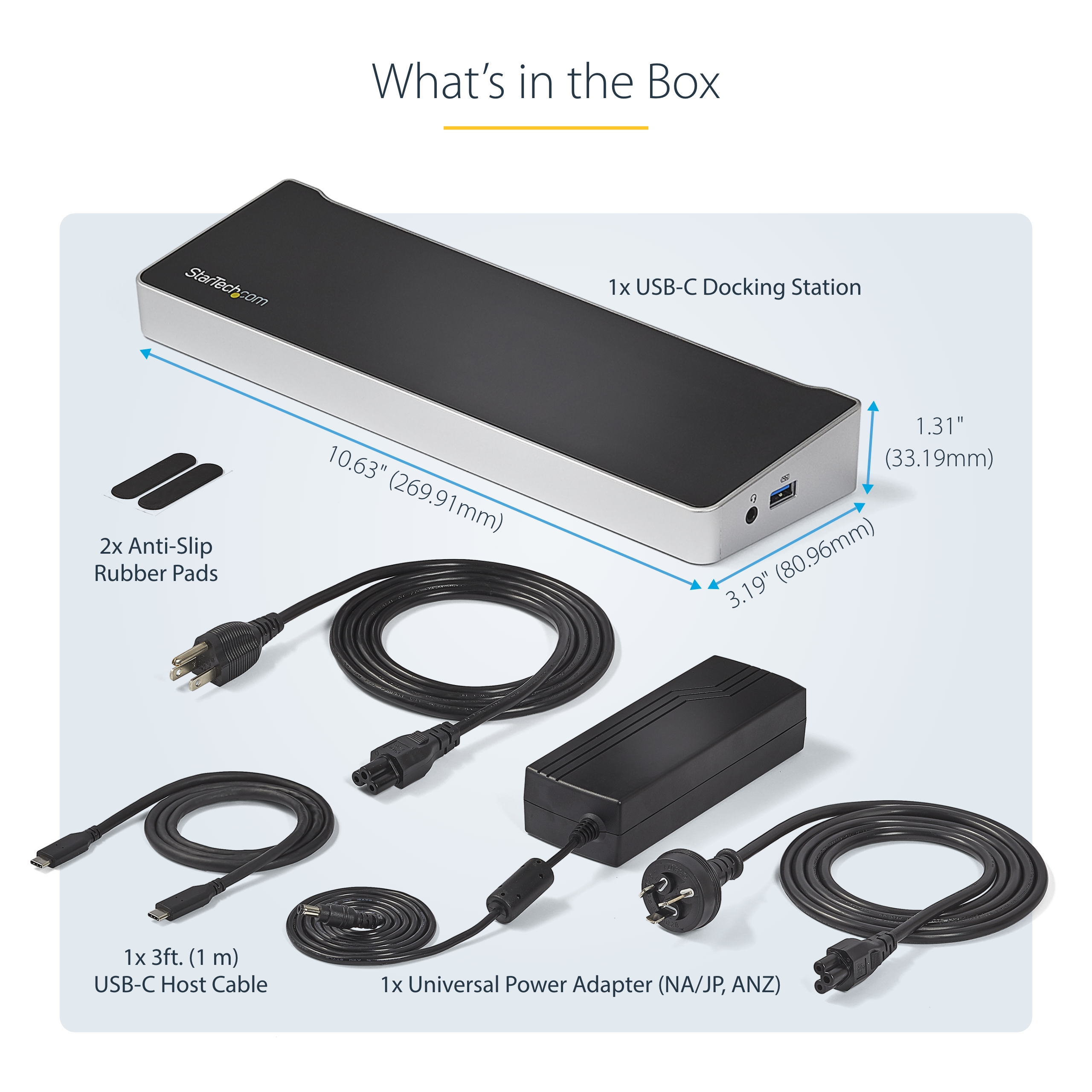

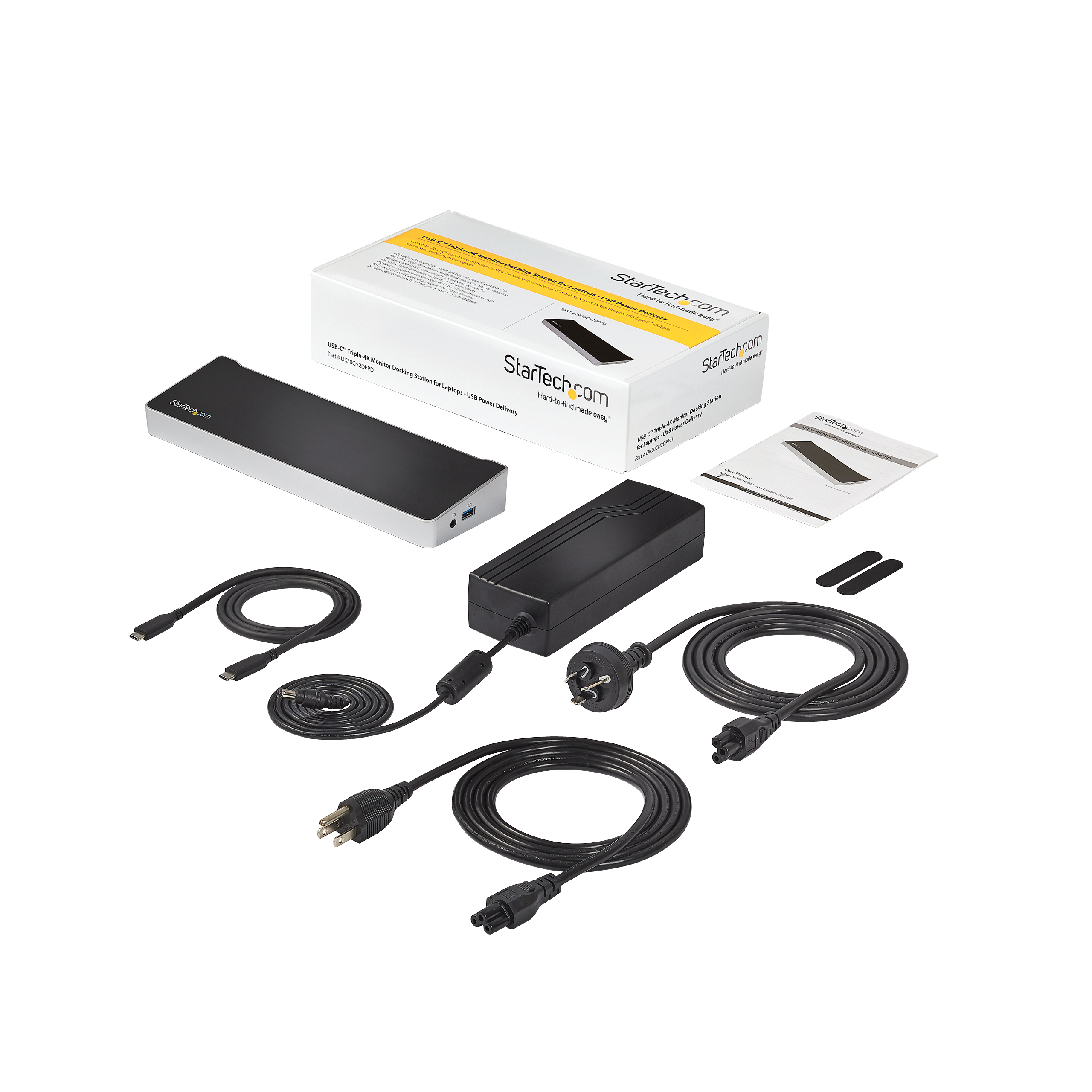

Carton Depth (mm) 383 Carton Height (mm) 393 Carton Quantity 10 Carton Weight Gross (g) 15492 Included in Package - 1 - Docking Station
- 1 - 3.3ft (1m) USB-C Cable
- 1 - Universal Power Adapter (NA/JP, ANZ)
- 1 - Instruction Manual
- 1 - Anti-slip Rubber Pads

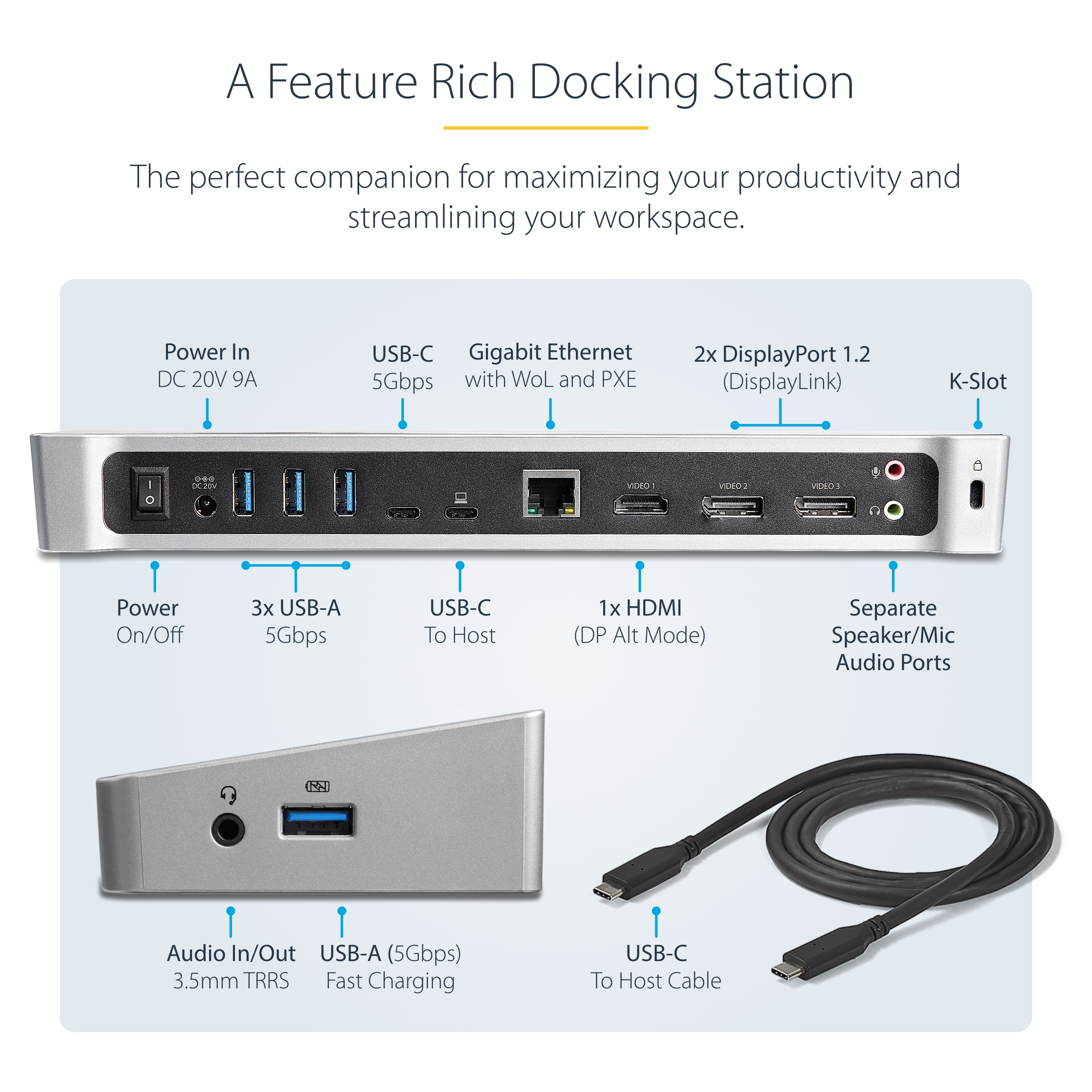

Package Depth (mm) 295 Package Height (mm) 73 Package Width (mm) 165 Package Quantity 1 Package Weight (g) 1390 Packaging Description USB-C Triple-4K Monitor Laptop Dock - Power Delivery Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 2 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 3 Connector 6 RJ-45 Connector 6 (Quantity) 1 Connector 7 3.5mm (4 Conductors, TRRS) Connector 7 (Quantity) 1 Connector 8 3.5mm (3 Conductors, TRS) Connector 8 (Quantity) 2 Connector 9 Security Lock Slot Connector 9 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-03-03 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU USB3DOCKH2DP Digital Content Due Date 2017-06-26 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,HK,JP,MX,NZ,PE,US Primary Technology USB-C Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-05-26 Target Production Release 2017-04-07 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
