Main Image
DK30CHDPD
Type C Single Video HDMI Dock with PD
Power and charge your laptop through USB Type-C™, and create a workstation virtually anywhere you go by adding 4K HDMI display, plus GbE, and four USB 3.0 ports
Main Image
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Type C Single Video HDMI Dock with PD Product Number DK30CHDPD UPC 065030875608 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Single-Monitor Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) China Country of Origin Revision (1) XXXXXX158X Product Title (Ultra-Short) USB-C Dock, HDMI, PD Product Title (Short) USB-C Dock - 4K HDMI/85W PD/GbE/4pt USB Product Title (Medium) USB C Dock - 4K HDMI - 85W PD - Windows / Mac - USB C to HDMI Laptop Dock Product Title (Standard) USB-C Dock - USB Type-C Laptop Docking Station w/ Single 4K 30Hz HDMI - 85W Power Delivery - 4pt USB 3.0, GbE, Audio - Mac/PC Product Title (Long) USB-C Dock - Single Monitor 4K 30Hz HDMI Laptop Docking Station with 85W Power Delivery, 4pt USB 3.0 Hub, Gb Ethernet, Audio - Compact USB 3.1 Gen 1 Type-C Dock - Mac & PC Product Title (AMZ) USB-C Dock - Single Monitor 4K 30Hz HDMI Laptop Docking Station with 85W Power Delivery, 4pt USB 3.0 Hub, Gb Ethernet, Audio - Compact USB 3.1 Gen 1 Type-C Dock - Mac & PC (DK30CHDPD) Title Ingram (Part 1) USB C Dock - 4K HDMI - Windows Title Ingram (Part 2) / Mac - 85W Power Delivery Website Product Headline Power and charge your laptop through USB Type-C™, and create a workstation virtually anywhere you go by adding 4K HDMI display, plus GbE, and four USB 3.0 ports Bullet 1 COMPACT FULL FEATURE DOCK: This USB-C dock features single 4K 30Hz HDMI video, 85W PD, 4x USB-A 3.0 (5Gbps) ports (1 fast charge), Gigabit Ethernet, a headset/audio port & 1m/3.3 ft USB-C cable Bullet 2 WIDE DEVICE COMPATIBILITY: USB C dock supports USB-C/Thunderbolt 3 (TB3) laptops like HP, Dell, Lenovo, Surface Laptop 3 & Pro 7, Chromebook, MacBook Pro, MacBook Air, iPad Pro, Samsung, Google Pixel Bullet 3 85W POWER DELIVERY: The USB 3.1 Gen 1 Type-C docking station will quickly charge workstation laptops like Lenovo ThinkPad P Series, HP Z Books & MacBook Pro 15/16, where more power is required Bullet 4 COMPACT SIZE: Designed for small workspaces or work from home, this USB-C laptop port replicator is ideal for single monitor or ultra-wide monitor workstation setups Bullet 5 WIDE OPERATING SYSTEM COMPATIBILITY: Automatic driver installation; universal USB-C dock is compatible with major OS platforms like Windows, MacOS, Chrome OS, iPadOS, and Android phones Bullets (Compact) USB-C docking station w/ 4K HDMI, 85W Power Delivery, 4x USB-A 3.0, GbE, Headset Port, 3.3ft USB-C cable - USB-C & Thunderbolt 3 laptops incl. Macbook Pro - Compact USB 3.1 Gen 1 Type-C Dock - Windows MacOS Chrome OS iPadOS Android; Automatic drivers Bullets (Consolidated) USB C dock with 4K 30Hz HDMI video/85W Power Delivery/4x USB-A 3.0 Hub (1 fast charge)/Gigabit Ethernet/Headset Port/3.3' USB-C cable -Thunderbolt 3 and USB-C docking station for laptops like HP Dell Lenovo ThinkPad/P Series Surface Chromebook MacBook Pro 15/16 MacBook Air iPad Pro -USB 3.1 Gen 1 Type-C dock w/ 85W PD to charge workstation laptops -Compact design ideal for single display/ultra-wide monitor setup - Automatic drivers Windows MacOS Chrome OS iPadOS Android phone/tablet Marketing Copy Marketing Copy (No HTML) This single monitor docking station turns your USB-C enabled laptop into a fully capable ultra HD 4K workstation, with support for a single external 4K HDMI monitor or ultrawide monitor. With USB Power Delivery 2.0 (85W), you can power and charge your laptop as you work, eliminating the need to use a separate power adapter with your laptop. This USB C to HDMI docking station is the perfect companion for your MacBook Pro or other Thunderbolt 3 equipped laptop or tablet. The USB Type C dock helps you maximize your workspace, ideal for smaller or shared work areas using one monitor. The 4K HDMI USB C hub expands the display capabilities of your laptop to an HDMI display, with support for resolutions including: 4096x2160 @ 30Hz, 3840 x 2160 @ 30Hz, 2560x1600 @60 Hz, 1920 x 1200 @ 60Hz. Create an immersive experience by connecting the USB-C dock to an ultrawide or ultrawide curved monitor with 21:9 aspect ratio (3440 x 1440p @ 60 Hz), to gain exceptional picture quality. The USB 3.0 laptop docking station provides four USB 3.0 (Type-A) ports to connect peripherals such as your mouse or keyboard. It also includes a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port (with PXE Boot support) and a combined 3.5 mm audio and microphone port. This cost-effective docking station solution for business and office environments, where most employees use only a single external monitor. The USB 3.0 laptop docking station is backed by a StarTech.com 3-year warranty and free lifetime technical support. Applications - A cost-effective docking station solution for business and office environments, where most employees use only a single external monitor
- Effective in small workspaces or cubicle environments with limited space for multiple displays
- Ideal for temporary or shared workspaces (hoteling) where only one external monitor is required
- Connect to an ultrawide or ultrawide curved monitor to emulate a multi-display experience view and gain exceptional picture quality
Website Search Keyword - USB-C Dock
- USB-C Dock with HDMI
- laptop docking station
- macbook pro
- USB C Dock
- USB C hub
- macbook pro dock
- macbook docking station
- usb-c to hdmi
- usb c to hdmi
- apple docking station
- mac docking station
- port replicator
- macbook dock
- usb 3.1 type c
- universal docking station
- mac dock
- usb c to usb
- usb docking station
- laptop dock
- usb c docking station
- usb type c to hdmi
- macbook air dock
- dell usb c dock
- universal laptop docking station
- usb type c dock
- usb c to ethernet
- usb-c hdmi
- usb c hdmi
- usb type c docking station
- usb type c to type a
- docking station laptop
- Power Delivery
- HDMI docking station
- universal dock
- best usb c dock
- desktop docking station
- usb 3.1 dock
- type c dock
- type c docking station
- usb c port replicator
- mac laptop dock
- U442-DOCK5D-GY
- U442-DOCK5-GY
- U442-DOCK11-S
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
- Supports 4K resolution. A 4K-capable HDMI display is required to achieve 4Kx2K resolution.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements USB-C enabled computer with an available USB Type-C port Accessory Products - MUYHSMFF
- HDMM6
- HDMM10
- 45PATCH6BK
- 45PATCH10BK
- S2510BMU33CB
- S2510SM12U33
- S3520BU33ER
- 158-DOCKPOWERADAPTER
Related Products - DK30BACDD
- DK30CH2DPPD
- DK30A2DH
- DKWG30DPHPD
Equivalent Part Number in the EU DK30CHDPDUE Equivalent Part Number in the UK DK30CHDPDUE Input Current 2 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 20V DC Power Consumption (In Watts) 100W Power Delivery 85W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 5%~95% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 98.000 Product Width (mm) 91.000 Product Height (mm) 32.000 Product Weight (g) 200.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port HDMI Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID - Parade - PS176
- Realtek - RTS5440
- Realtek - RTL8153
- Realtek - RTS5411
- C-Media - CM6533
Host Connection Port USB-C Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 1 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge

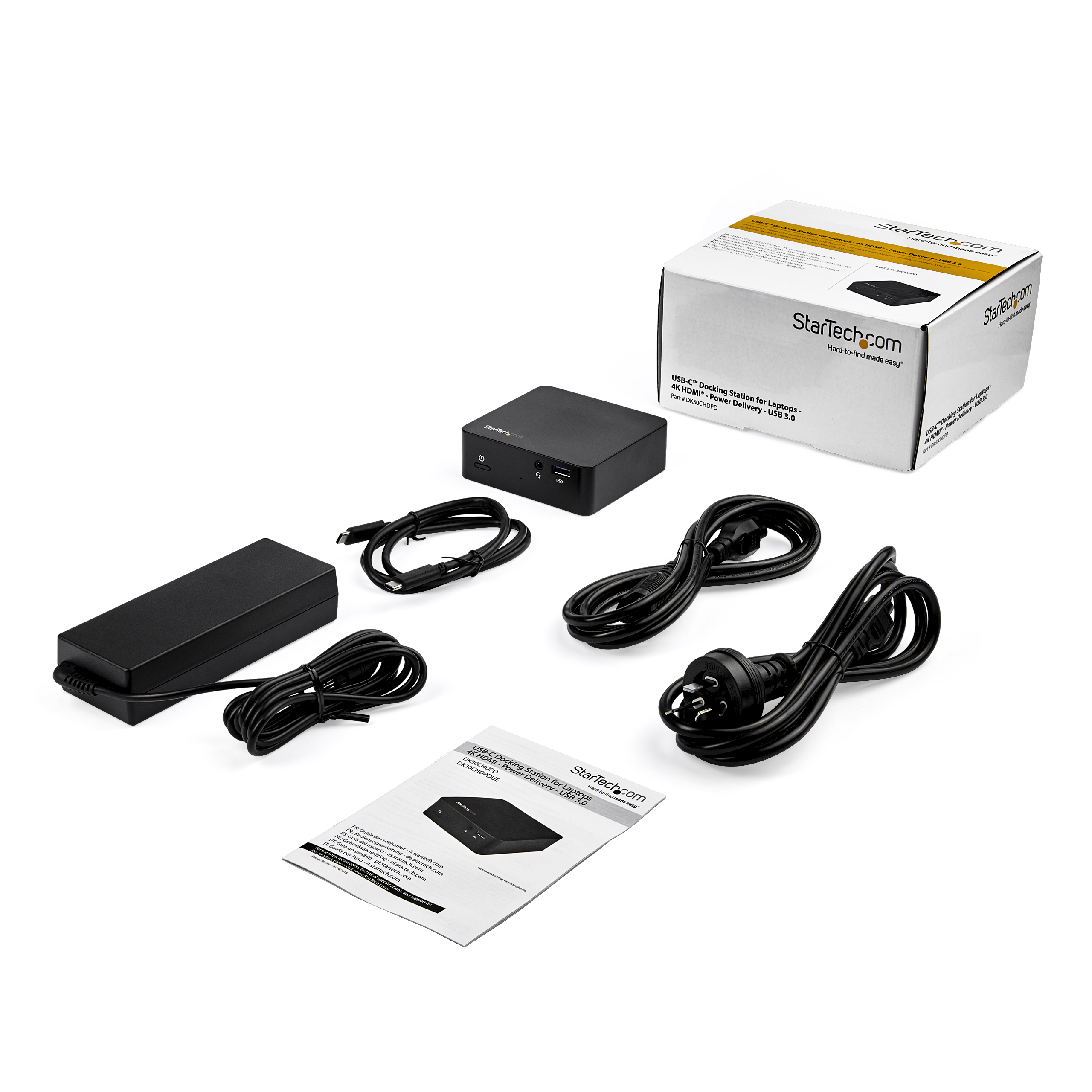

Carton Depth (mm) 208 Carton Height (mm) 374 Carton Quantity 6 Carton Weight Gross (g) 7590 Included in Package - 1 - docking station
- 1 - 3.3 ft [1 m] USB-C cable
- 1 - universal power adapter (NA/JP, ANZ)
- 1 - quick-start guide
Package Depth (mm) 170 Package Height (mm) 102 Package Width (mm) 192 Package Quantity 1 Package Weight (g) 1188 Packaging Description USB-C Laptop Dock - 4K HDMI - Power Delivery Packaging Description India USB-C Laptop Dock - 4K HDMI - Power Delivery Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (7.5W Power Only) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 3 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 3.5mm (4 Conductors, TRRS) Connector 6 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-12-15 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-12-29 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CO,HK,JP,MX,NZ,US Primary Technology USB-C Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-11-17 Target Production Release 2017-12-15 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
