DK31C2DHSPD
Triple Monitor DP 1 4 MST USB C Gen2 Dock 2xDP HDMI 1C
USB Type-C Docking Station| Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name Triple Monitor DP 1 4 MST USB C Gen2 Dock 2xDP HDMI 1C Product Number DK31C2DHSPD UPC 065030891356 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family no family Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) Triple 4K USB C Dock Product Title (Short) USB C Dock Triple 4K - 100W PD, 6x USB Product Title (Medium) USB C Dock, Triple 4K Monitor USB Type C Docking Station, 100W Power Delivery Product Title (Standard) USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps) Product Title (Long) USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps), SD - Windows/Chrome Product Title (AMZ) USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps) - Windows/Chrome Title Ingram (Part 1) USB C Dock - Triple 4K Monitor Title Ingram (Part 2) 2xDP/HDMI, 100W PD/USB (10Gbps) Website Product Headline USB Type-C Docking Station| Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports Bullet 1 HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/Chrome OS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 3.0 UHS-I Card Reader, Gigabit Ethernet, and headset port Bullet 2 DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop (min. Intel 11th Gen); works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery) Bullet 3 100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook Bullet 4 6-PORT USB HUB: 2x 10Gbps USB-C (USB 3.2/3.1 Gen 2), both BC 1.2 fast charge always-on ports), 2x USB 3.0 5Gbps, and 2x USB 2.0; a variety of USB ports to connect many peripherals incl. two 10Gbps high speed USB-C ports for external drives Bullet 5 DEPLOYMENT READY: Universal multi monitor USB Type-C docking station with no driver setup, features 2x security lock k-slots, On/Off button, 3.3ft (1m) USB-C host cable; Windows/Chrome OS support Bullets (Compact) USB-C docking station 10Gbps - Dual or Triple Monitor MST USB C Dock 4K 60Hz (2x DisplayPort and 1x HDMI) DP 1.4 Alt-Mode w/ DSC/HBR3 - 100W Power Delivery, SD slot, Ethernet - Windows-based laptops - 2xA 5Gbps, 2xA (USB 2.0), 2xC 10Gbps - Driverless Bullets (Consolidated) Dual or triple 4K monitor USB-C docking station (10Gbps) w/ 2x DisplayPort and 1x HDMI 2.0 video /100W Power Delivery/6xUSB/SD 3.0 UHS-I Card Reader/Gigabit Ethernet/Audio - USB C Dock supports DP 1.4 Alt-Mode MST w/ DSC/HBR3 - 100W PD to power and charge Windows-based USB-C/Thunderbolt 3 laptops - USB Hub with 2xUSB-A (USB 3.0 5Gbps) / 2xUSB-A 2.0 / 2xUSB-C (10Gbps and BC 1.2 fast charge) - Driverless/3.3' USB Type-C host cable/2x K-Slots/MAC address changer - See gallery for resolutions Marketing Copy Marketing Copy (No HTML) Website Search Keyword - usb c dual hdmi 4k 60hz dock
- usb c dual hdmi dock
- usb c dual monitor dock 4k 60hz
- usb c dock 100w
- usb c docking station 100w pd
- usb c docking station dual hdmi
- usb c docking station dual monitor
- dual hdmi 4k 60hz docking station
- dual 4k 60hz hdmi dock
- usb 3.2 gen 2 dock
- 10gbps docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

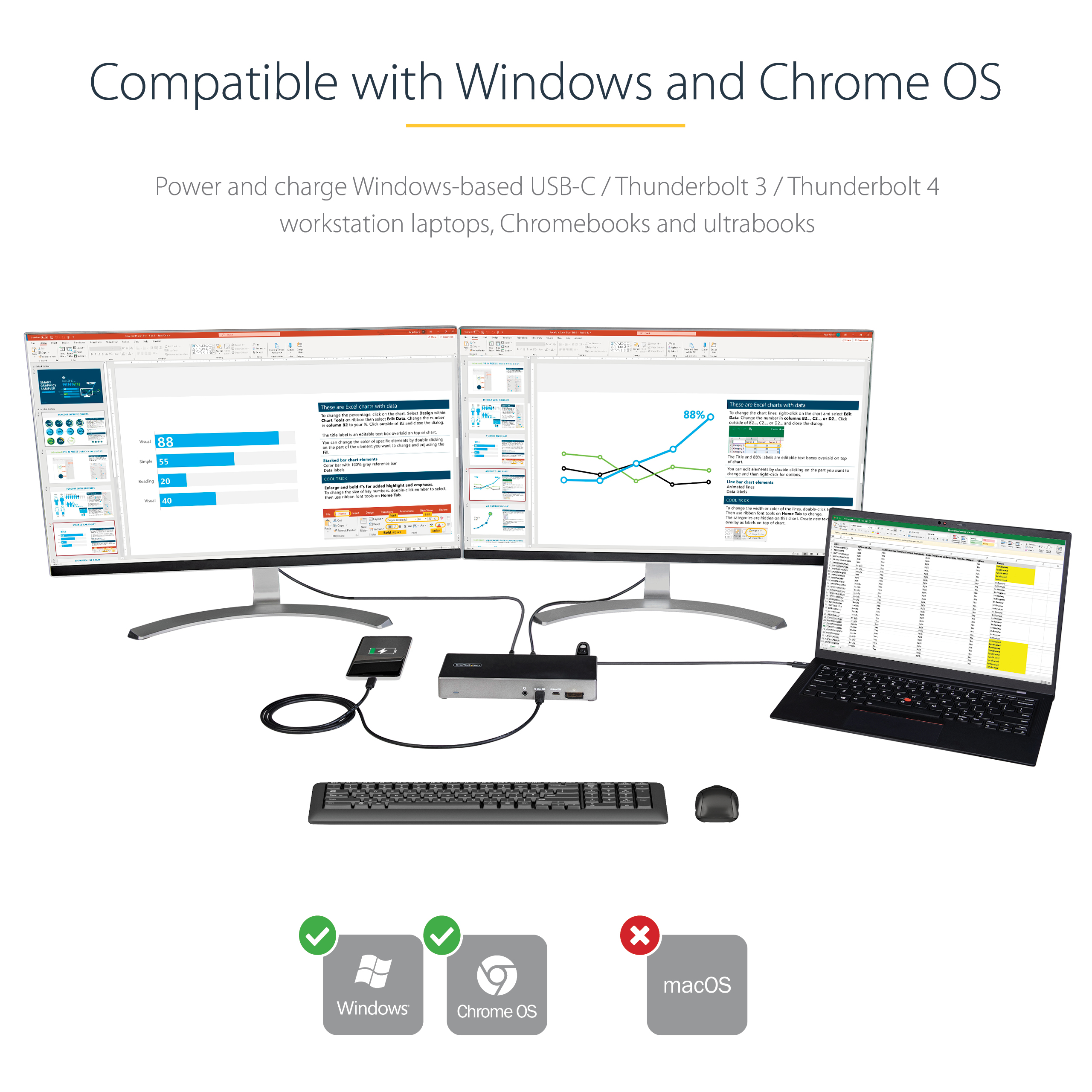

Special Notes Ensure your laptop's drivers, firmware, and operating system are up to date prior to using the docking station. For a multi-monitor configuration, the Windows laptop must support MST System and Cable Requirements A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB-C Power Delivery and DP alt mode) Accessory Products - USB31AC1M
- DISPLPORT6L
- DISPLPORT10L
- HDMIDVIMF
- USB31CAADP
- LTLOCK
- HDMM3
- HDMM6
- HDMM10
- 45PATCH6BK
- USB31CCV50CM
- DP2VGA3
- HD2VGAE2
- DP2DVI2
- HDMIDVIMM6
- DISPL10MA
- DISPLPORT3L
- HDMMV2M
- DP14MM2M
Related Products - DK30C2DPEP
- DK30CH2DPPD
- USB3DOCKH2DP
Constrained SKU Alternatives (Limited Stock) DK30CH2DEP Equivalent Part Number in the EU DK31C2DHSPDUE Equivalent Part Number in the UK DK31C2DHSPDUE Input Current 2.5A Input Voltage 110V-240V AC Output Current 8.5A Output Voltage (V) 20V DC Power Consumption (In Watts) 170 Power Delivery 100W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Cable Length (mm) 1000 Color Black & Space Gray Humidity 0% to 95% (non-condensing) at 25 degrees Operating Temperature 0C to 50C Product Length (mm) 90.000 Product Width (mm) 210.000 Product Height (mm) 30.000 Product Weight (g) 300.000 Storage Temperature -20C to 70C TAA Compliant No Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) Memory Media Type SD/MMC (Secure Digital/Multimedia Card) MTBF (hours) 215,990 hours OS Compatibility - Windows 10
- Windows 8.1
- Chrome OS
- Windows 11
- Windows 11 ARM
PXE Yes Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Audio Yes Bus Type USB 3.2 Gen 2 10Gbps Chipset ID - Cypress - CYPD4236
- Synaptics - VMM5320BJG-R
- Cypress - CYPD3125
- Genesys - GL850
- Genesys - GL3523
- Genesys - GL3590
- Genesys - GL3232S
- TI - TUSB1064RNQR
- Realtek - RTL8153B
- Realtek - ALC4030U

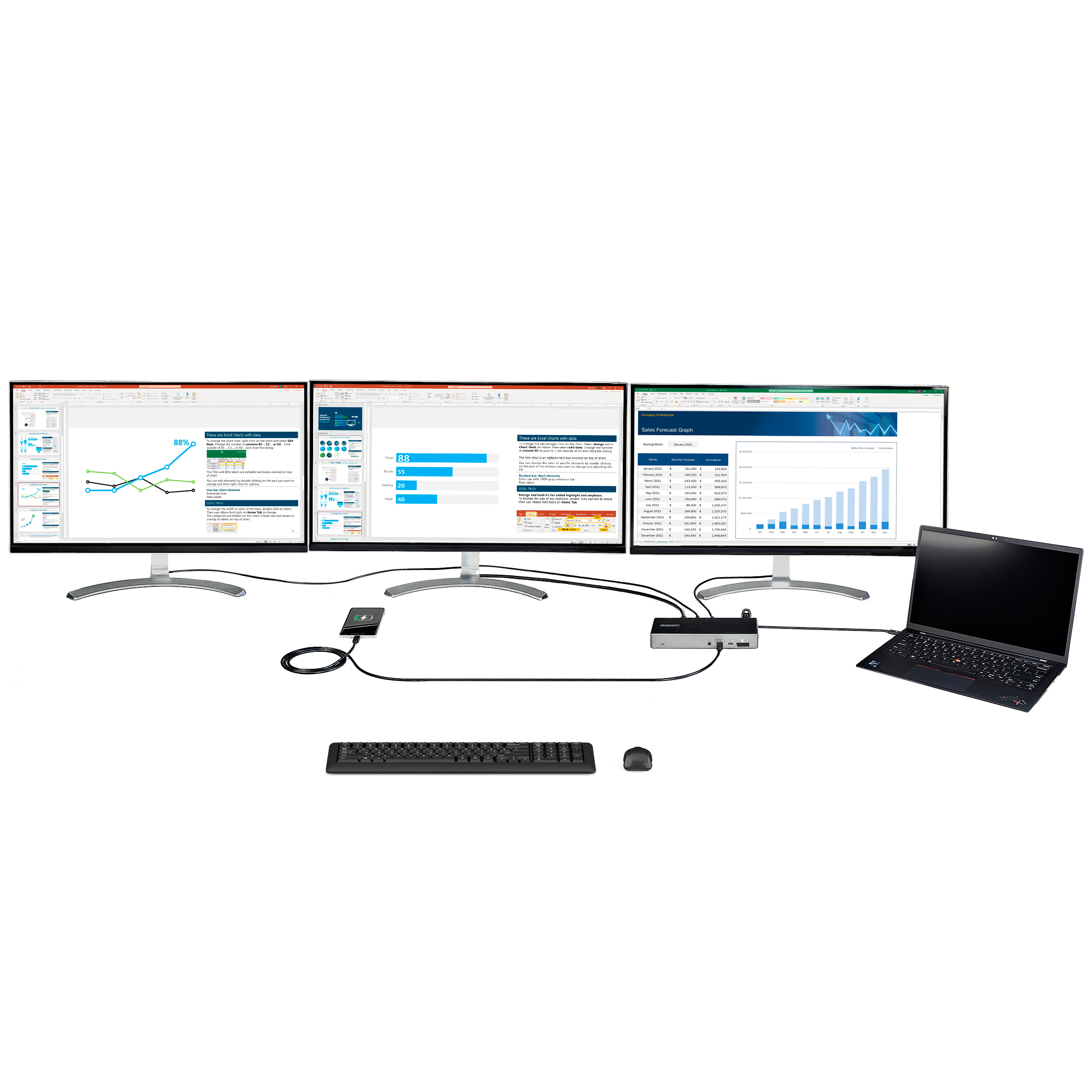

Host Connection Port USB-C Industry Standards 1 Gigabit connectivity to any 1000Base-T device (IEEE802.3ab compliant)</br> 100 Megabit connectivity to any 100Base-TX device (IEEE802.3u compliant)</br> 10 Megabit connectivity to any 10Base-T device (IEEE802.3i compliant) Interface/Bridge USB 10Gbps Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - White On: Power
- 1 - Yellow On: Link Detected
- 1 - Yellow Flashing: Activity
- 1 - Green On: 1Gbps
- 1 - Yellow On: 100Mbps

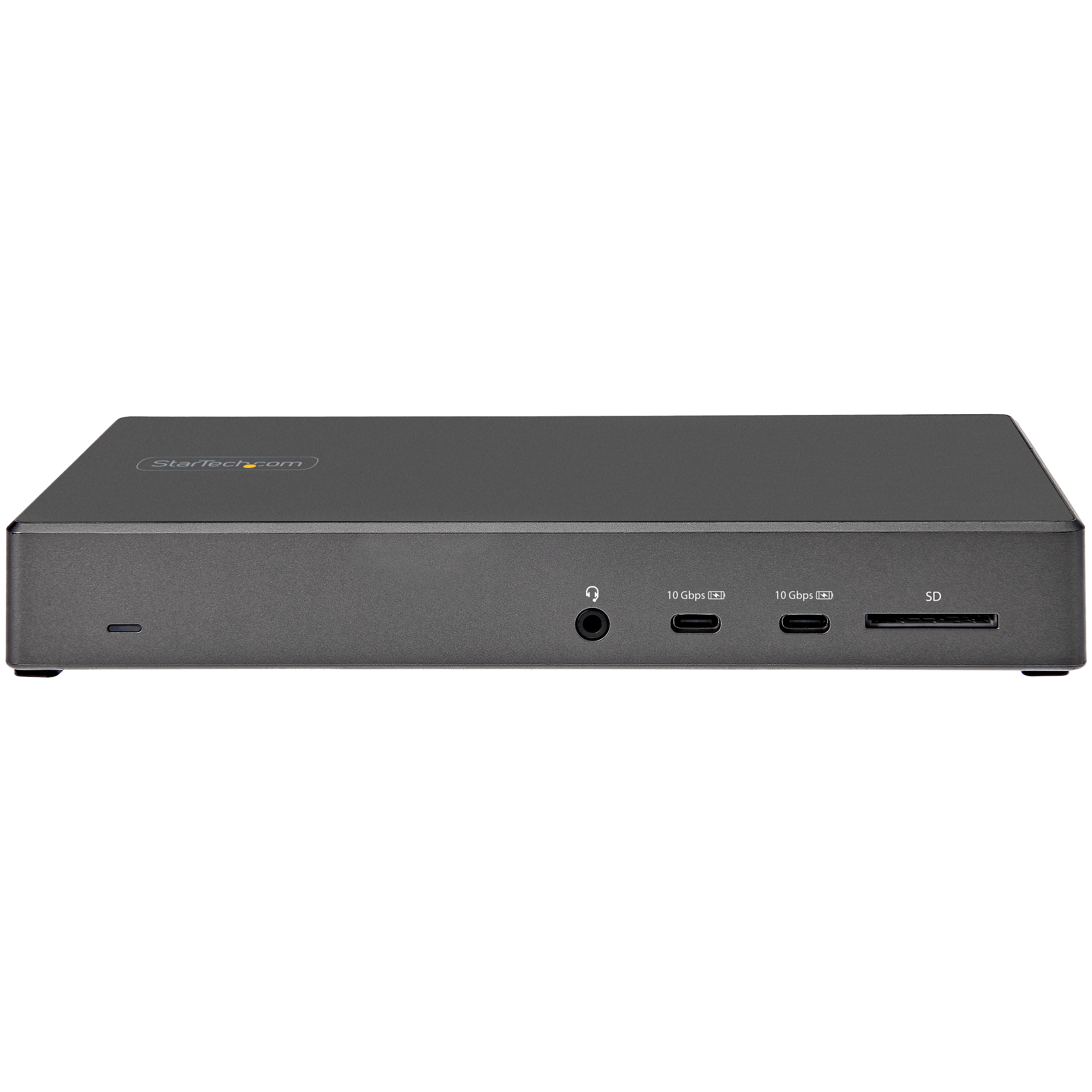

Network Adapter LAN Ports 1 Number of Battery Charge 1.2 Ports 2 Number of Displays 3 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
- SD Card Reader
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

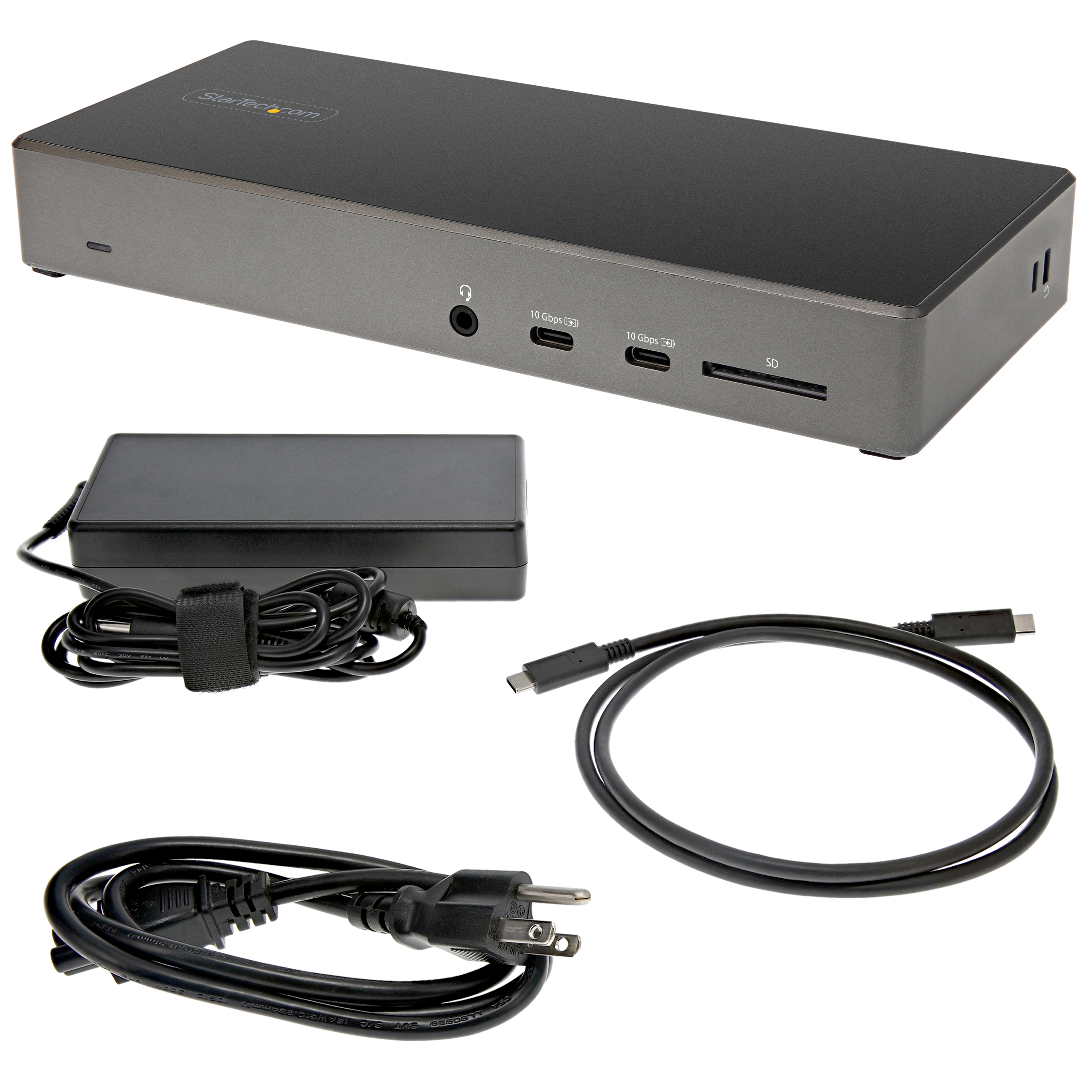

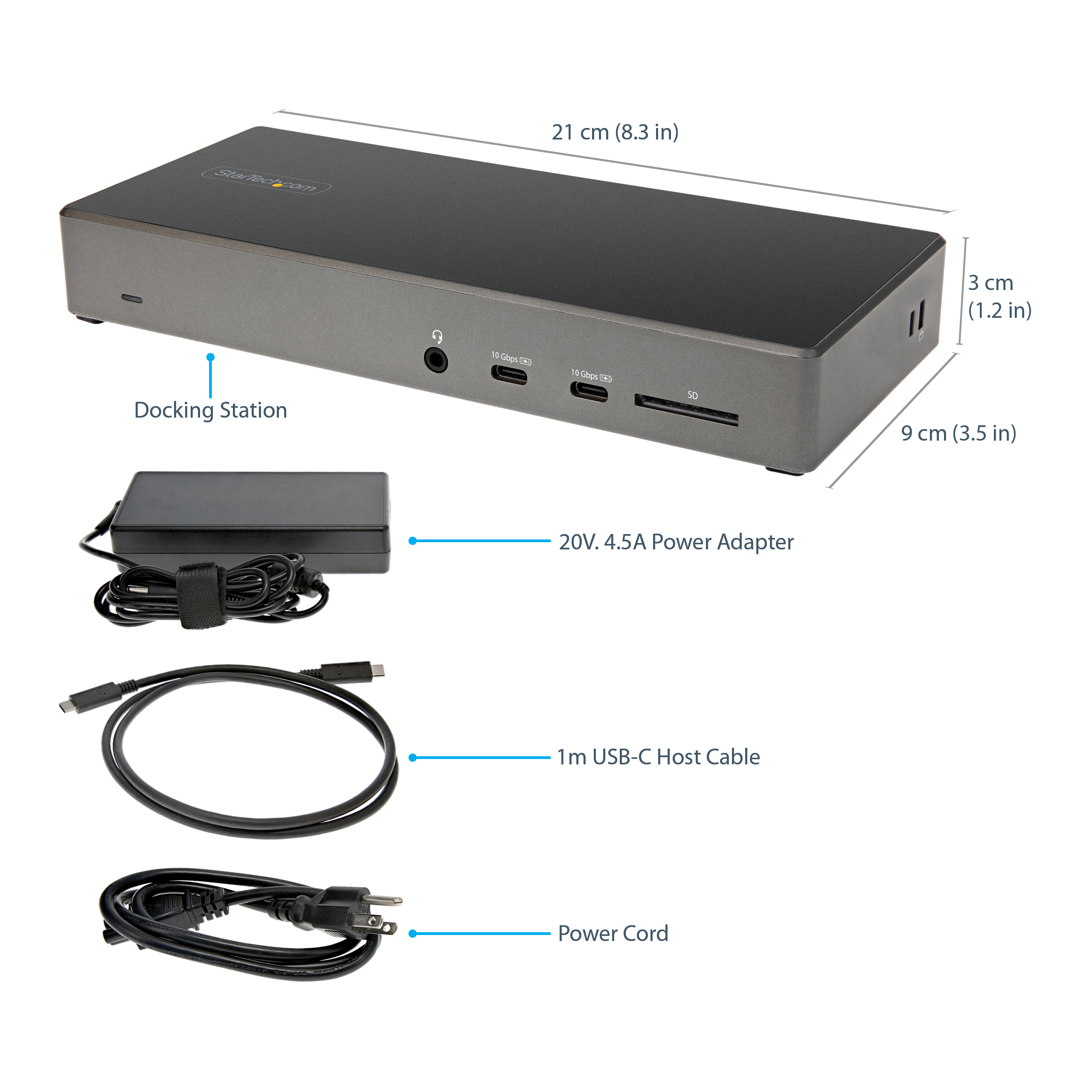

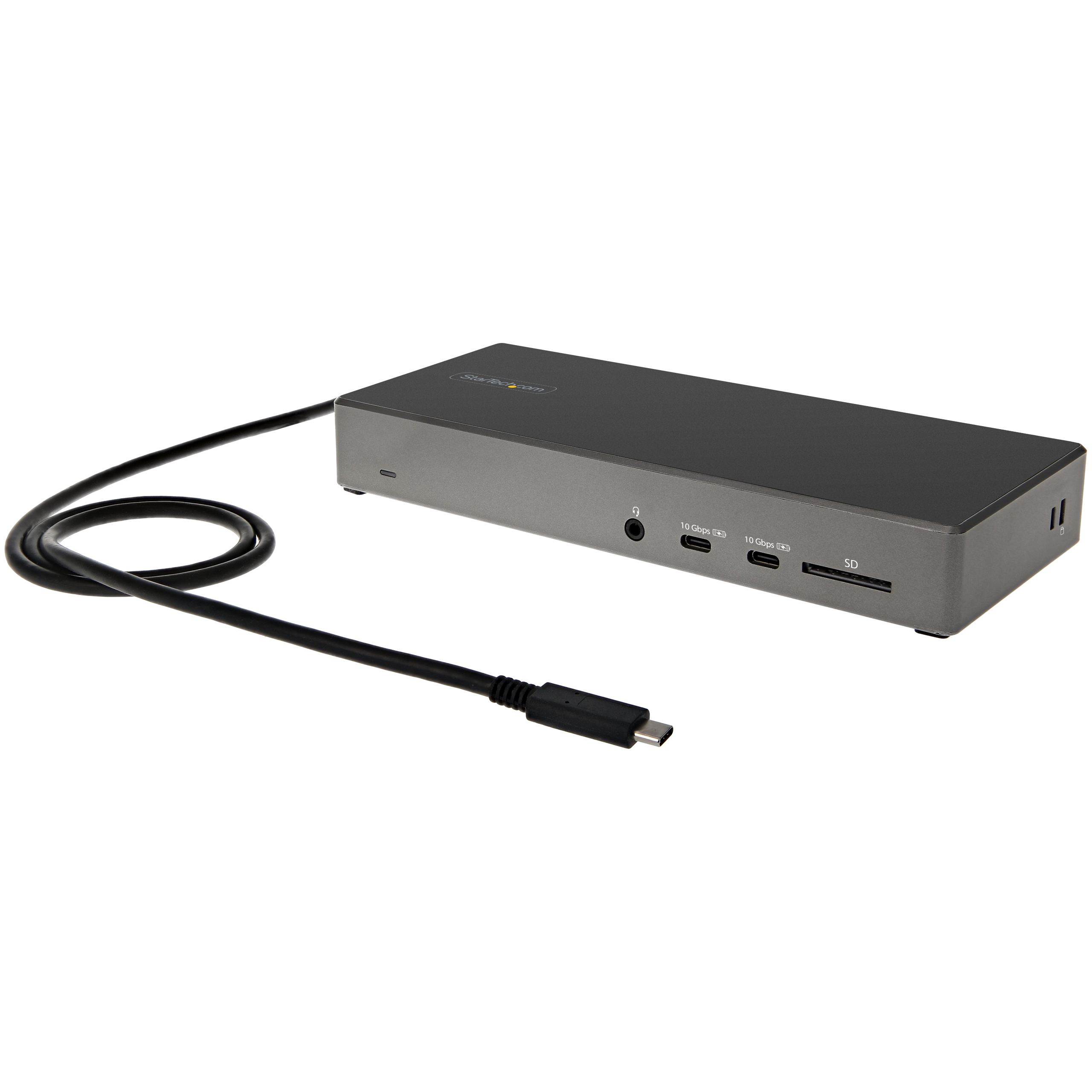

Carton Depth (mm) 386 Carton Height (mm) 280 Carton Quantity 8 Carton Weight Gross (g) 11078 Included in Package - 1 - USB-C Dock
- 2 - Power Cable NA/JP & ANZ
- 1 - USB-C Cable (1 m)
- 1 - Quick-Start Guide
- 1 - Power Adapter
Included In Package for Label - 1 - USB-C Dock
- 2 - AC Cables
- 1 - USB-C Cable (1 m)
- 1 - Quick-Start Guide
- 1 - PSU

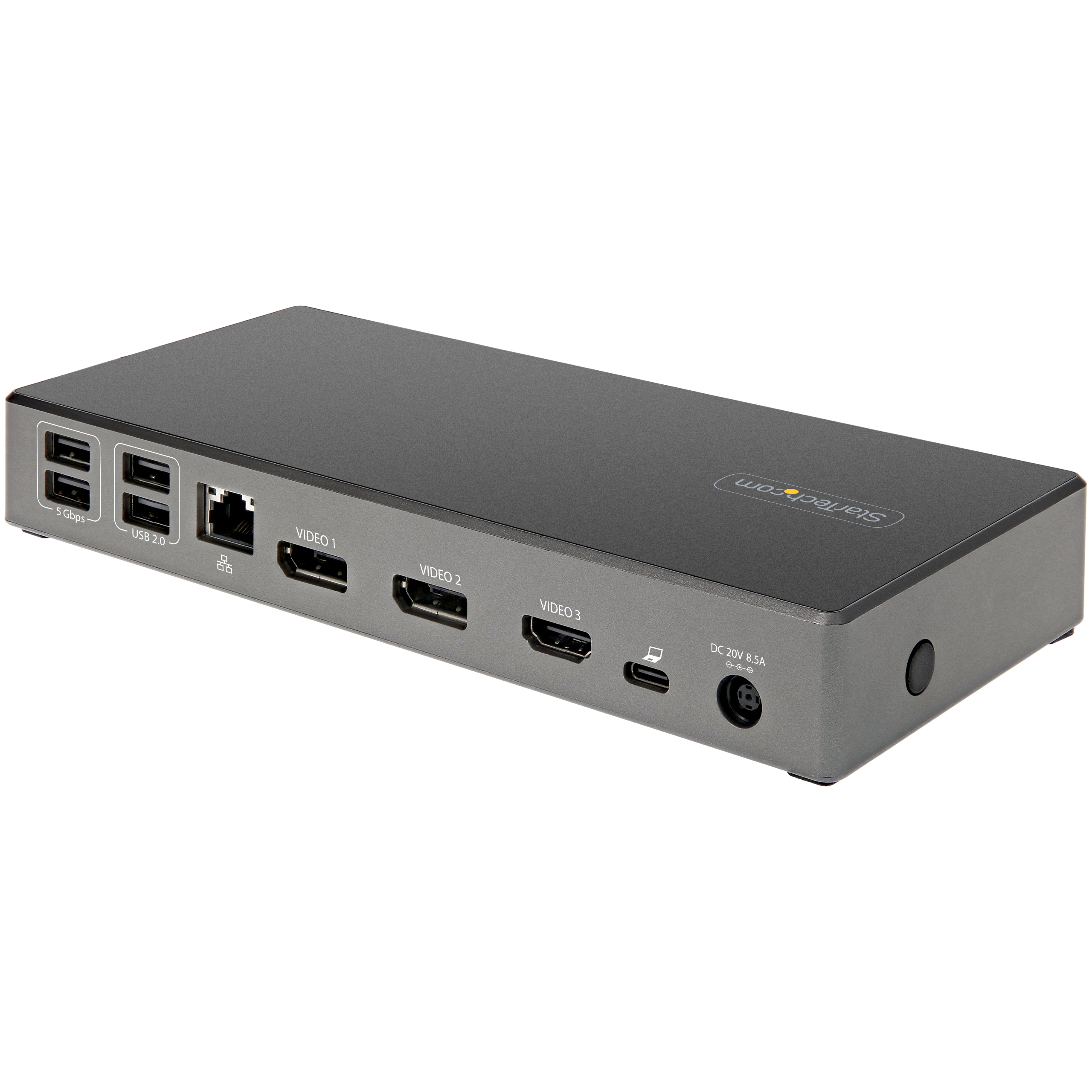

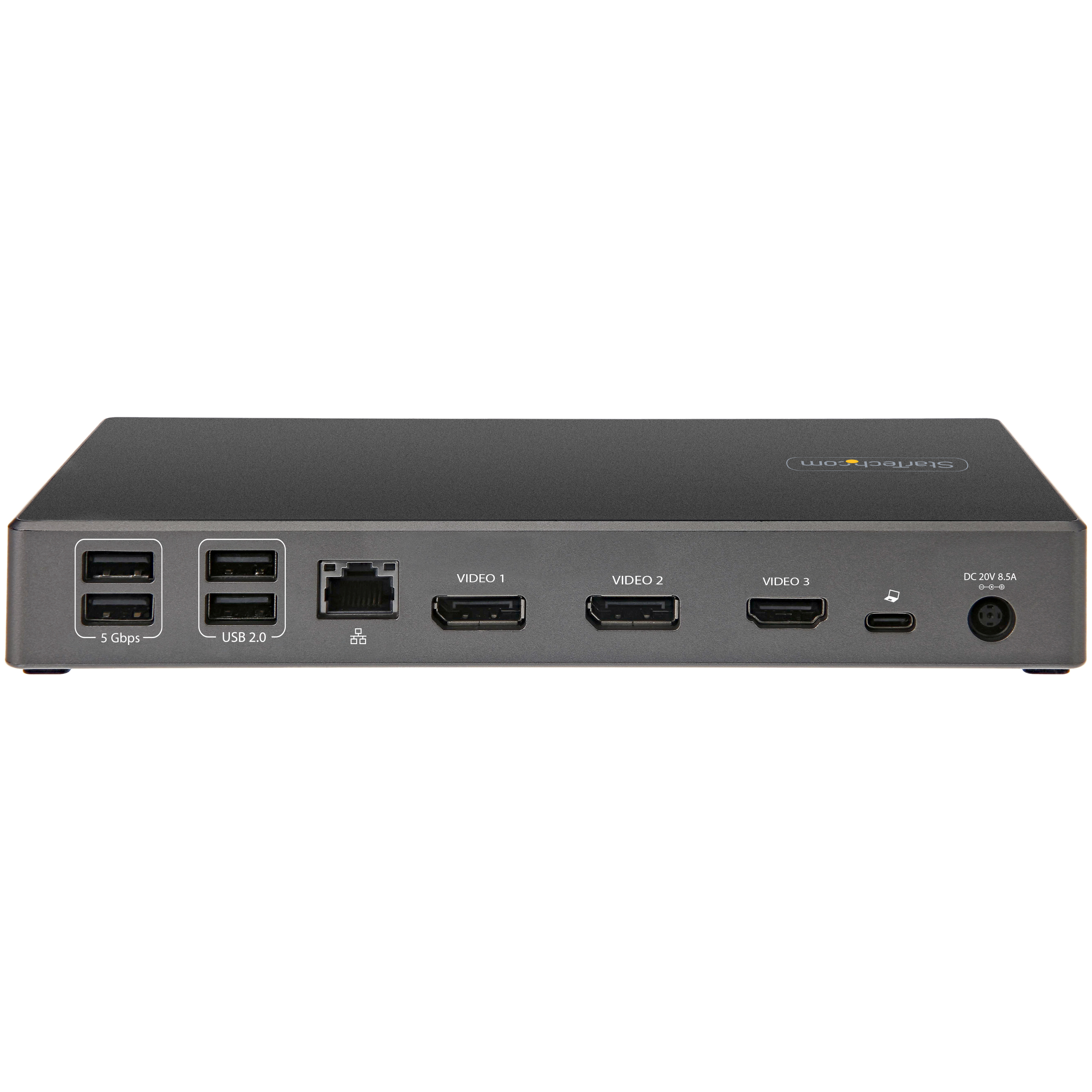

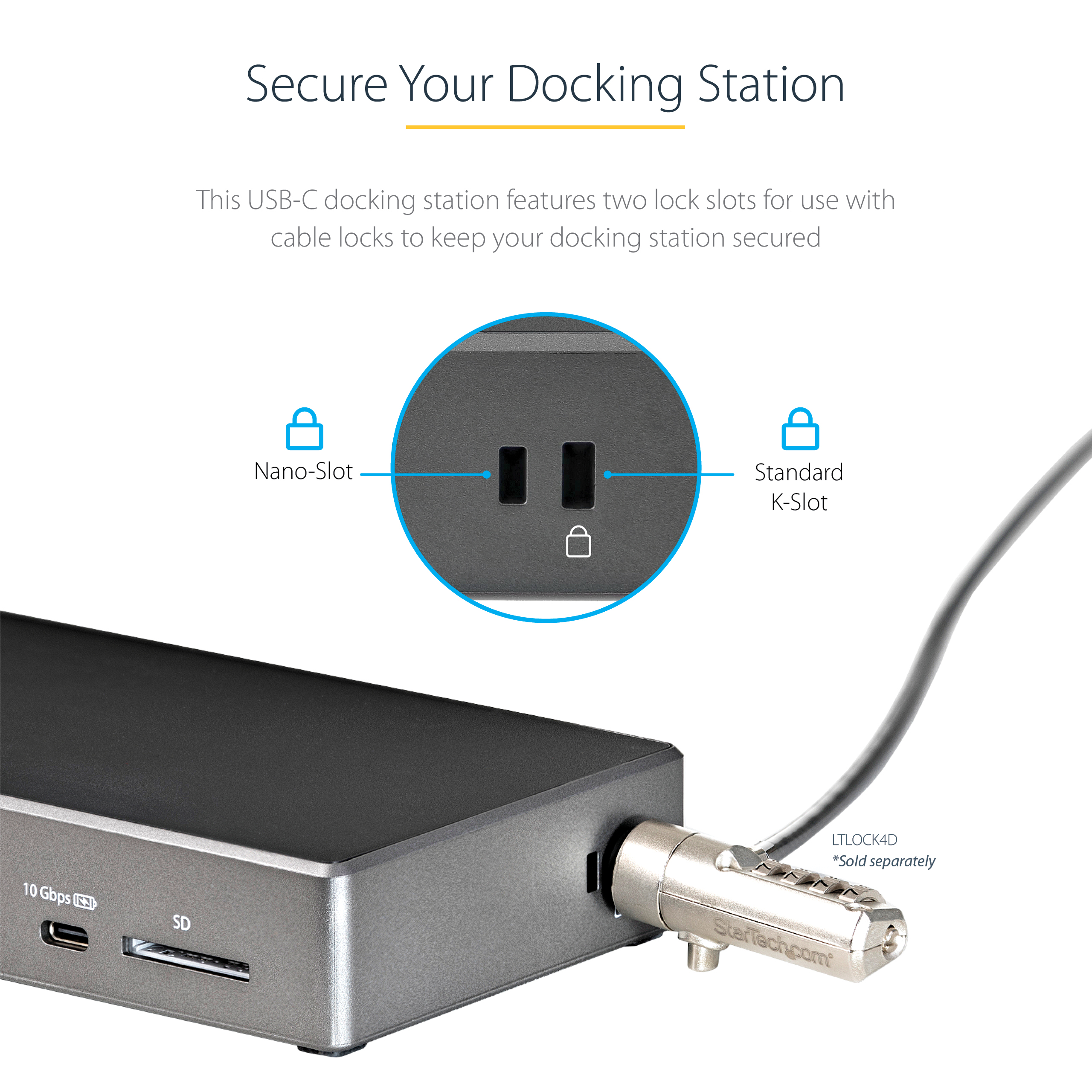

Package Depth (mm) 235 Package Height (mm) 91 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 1300 Packaging Description USB-C Gen 2 Triple Monitor Dock - 2x DP + HDMI Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (7.5W Power Only) Connector 1 (Quantity) 2 Connector 2 USB-A (7.5W Power Only) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 DisplayPort Connector 4 (Quantity) 2 Connector 5 HDMI Connector 5 (Quantity) 1 Connector 6 SD Card Slot Connector 6 (Quantity) 1 Connector 7 RJ-45 Connector 7 (Quantity) 1 Connector 8 3.5mm (3 Conductors, TRS) Connector 8 (Quantity) 1 Connector 9 Security Lock Slot Connector 9 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2020-09-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2021-03-19 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AU,CA,IN,JP,MX,NZ,US Primary Technology - DisplayPort 1.4
