DK31C3HDPDUE
USB C Gen 2 10G Triple Monitor 3xDP 3xHDMI Docking Statio
USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | DisplayPort | 85W Power Delivery
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB C Gen 2 10G Triple Monitor 3xDP 3xHDMI Docking Statio Product Number DK31C3HDPDUE UPC 065030881944 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) USB-C USB-A Dock Product Title (Short) Hybrid USB-C USB-A Dock - Triple 4K 60Hz Product Title (Medium) USB-C USB-A Dock - Hybrid Triple Monitor Docking Station DP/HDMI 4K 60Hz 85W PD Product Title (Standard) USB-C & USB-A Dock, Hybrid Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz/85W PD/6x USB/GbE, TAA Product Title (Long) USB-C & USB-A Dock - Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz - 85W Power Delivery, 6x USB Hub, GbE, Audio - USB 3.1 Gen 2 10Gbps - TAA Product Title (AMZ) USB-C / USB-A Hybrid Docking Station for MacBook Pro / Air M1 M2 M3 M4 & Windows, Universal Triple 4K 60Hz HDMI DP Dock, Thunderbolt Compatible, 85W Laptop Charging - TAA Title Ingram (Part 1) Hybrid USB-C & USB-A Dock Title Ingram (Part 2) Triple 4K 60Hz DP/HDMI - 85W PD Website Product Headline USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | DisplayPort | 85W Power Delivery Bullet 1 FLEXIBLE MULTI DISPLAY SETUP: USB 3.2 Gen 2 10Gbps Type-C/A dock supports dual or triple monitor setup (up to 3x 4K 60Hz), using any combination of the 3x DisplayPort 1.4 & 3x HDMI 2.0 Bullet 2 85W POWER DELIVERY: Power & charge USB-C/Thunderbolt 3 and 4 workstation laptops/ultrabooks incl Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, ZBook & MacBook Pro 16 Bullet 3 COMPATIBILITY: Supports Windows, macOS, ChromeOS, Linux and hardware platforms including Intel, AMD and the Apple M-Series, enabling three external displays even on laptops that natively only support one; Driver installation required on Windows and macOS Bullet 4 6-PORT USB HUB: 4x USB-A (1x 10Gbps), 2x USB-C (1x 10Gbps), incl. 2x BC 1.2 fast charge always-on front ports; USB-C Gen 1 & USB-A laptops will only support downstream port speeds up to USB 5Gbps Bullet 5 DEPLOYMENT READY: Docking station features a K-slot, 1m combo host cable; Gigabit Ethernet & headset ports; Windows, MacOS, Chrome OS; Mounting holes for mounting plates SSPMSUDWM/SSPMSVESA Bullets (Compact) Universal hybrid USB-C USB-A dock (USB 10Gbps) - 4K triple monitor docking station with DisplayPort (DP 1.4) & HDMI 2.0 - 85W Power Delivery, GbE & audio - 4x USB Type-A + 2x USB-C - Host port & USB-IF Certified combo cable w/screw lock Bullets (Consolidated) - Universal hybrid USB-C USB-A dock (USB 10Gbps) with 3.3ft/1m USB-C/USB-A USB-IF certified host cable - 4K 60Hz dual/triple monitor; 3x DisplayPort and/or 3x HDMI; DP 1.4, HDMI 2.0 - Three extended displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; Compatible with Windows, macOS and ChromeOS - 85W Power Delivery charging; USB Hub w/ 4xA (1x 10Gbps) + 2xC (1x 10Gbps) / Gigabit Ethernet/Headset Port - Screw-lock port/K-slot/mount/MAC address changer Marketing Copy Marketing Copy (No HTML) Website Product Alert Website Search Keyword - usb c triple hdmi 4k 60hz dock
- usb c triple hdmi dock
- usb c triple monitor dock 4k 60hz
- usb c dock 100w
- usb c docking station 100w pd
- usb c docking station triple hdmi
- usb c docking station triple monitor
- triple hdmi 4k 60hz docking station
- triple 4k 60hz hdmi dock
- usb 3.2 gen 2 dock
- 10gbps docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
- 4K resolution is supported on all 3 video ports. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions
- HDR is supported on Video 1 HDMI or Video 1 DP and requires a USB Type-C host with DP alt mode to work
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions

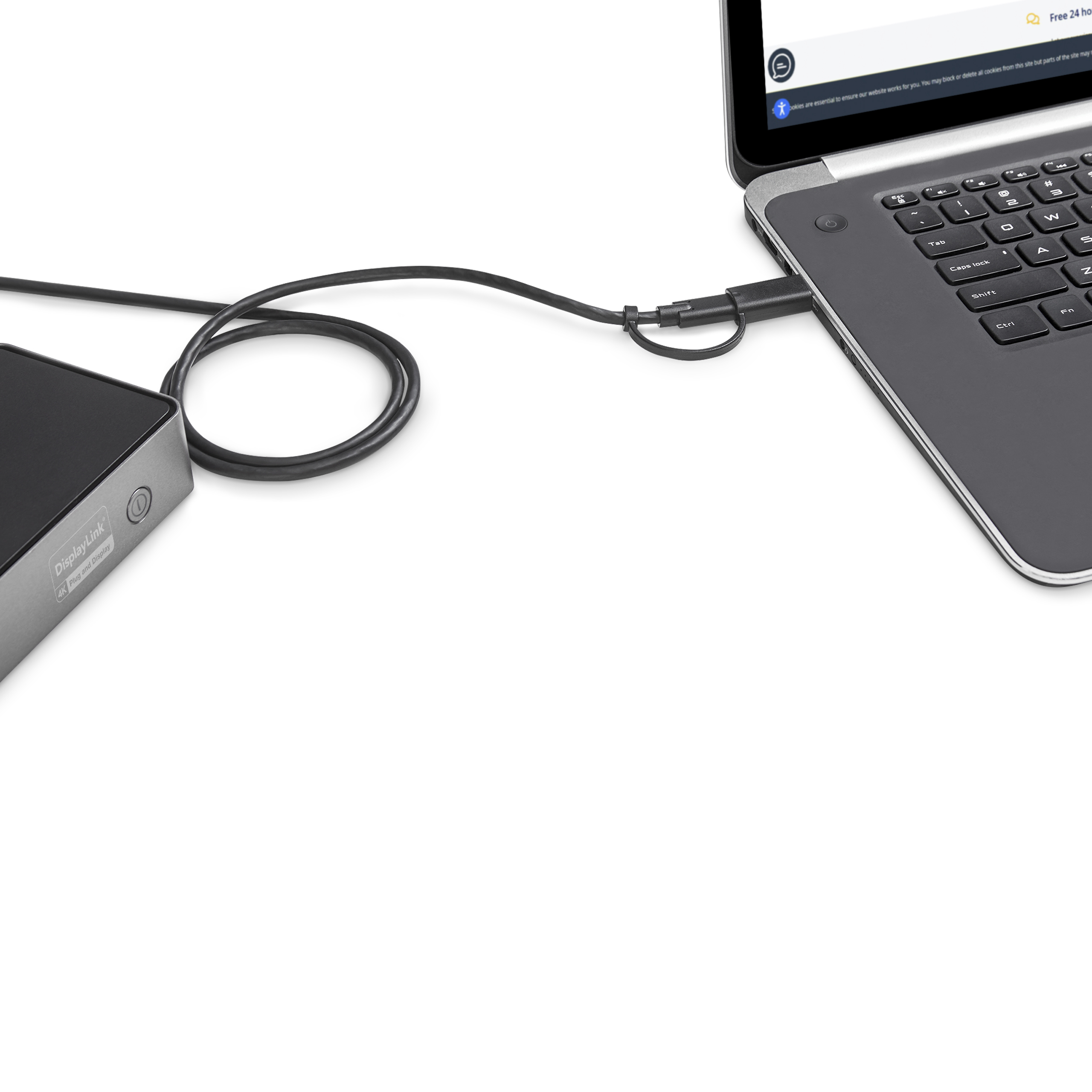

- The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A
System and Cable Requirements USB-C enabled computer with an available USB Type-C port Accessory Products - USB31AC1M
- DISPLPORT6L
- DISPLPORT10L
- HDMIDVIMF
- USB31CAADP
- LTLOCK
- HDMM3
- HDMM6
- HDMM10
- 45PATCH6BK
- 45PATCH10BK
- DP2VGA3
- HD2VGAE2
- DP2DVI2
- HDMIDVIMM6
- DISPL10MA
- DISPLPORT3L
- SSPMSUDWM
- SSPMSVESA
- DOCK-NUC-VESA-MOUNT
Related Products - DK30C2DPEPUE
- DK30CH2DPPDU
- USB3DOCKH2DP
Replacement Product DK30C2DPEPRUE Constrained SKU Alternatives (Limited Stock) DK30CH2DEPUE Input Current 2.5A Input Voltage 110V-240V AC Output Current 7.5A Output Voltage (V) 20V DC Power Delivery 85W Power Source AC Adapter Included Plug Type N Cable Length (mm) 1000 Color Black & Gray Humidity 0% to 95% Material Aluminum and Plastic Operating Temperature 0℃ to 50 ℃ Product Length (mm) 233.000 Product Width (mm) 84.000 Product Height (mm) 37.000 Product Weight (g) 402.000 Storage Temperature -20℃ to 70℃ TAA Compliant Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Full Duplex Support Yes Maximum Analog Resolutions 4K 60Hz Maximum Data Transfer Rate Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 40 841 hrs OS Compatibility - Windows 10
- macOS Big Sur (11.0)
- Ubuntu
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows 8.1
- Windows 8
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- Mac OS X El Capitan (10.11)
- Mac OS X Yosemite (10.10)
- Mac OS X Mavericks (10.9)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Speed - USB 3.2 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps)
USB Type and Rate - USB 10Gbps
- USB 5Gbps
Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Wake-On-LAN (WOL) Yes Audio Yes Bus Type - USB-C
- USB-A

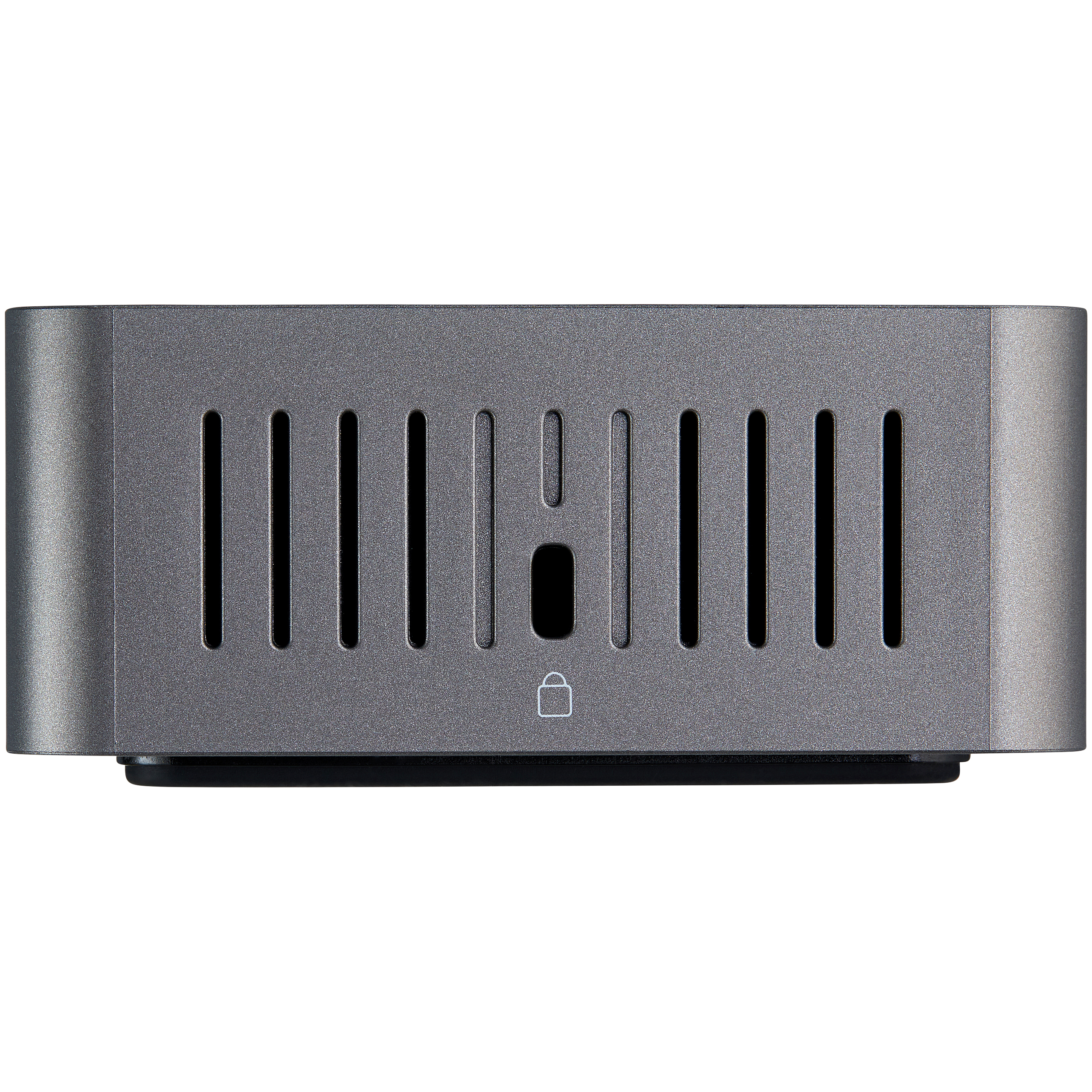

Chipset ID Realtek RTS5423</br> Realtek RTS5411</br> Realtek RTS5412</br> Realtek RTS5451</br> Realtek RTD2142</br> DisplayLink DL6950 Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port Hybrid (USB-C or USB-A) Interface/Bridge USB 10Gbps Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 3 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

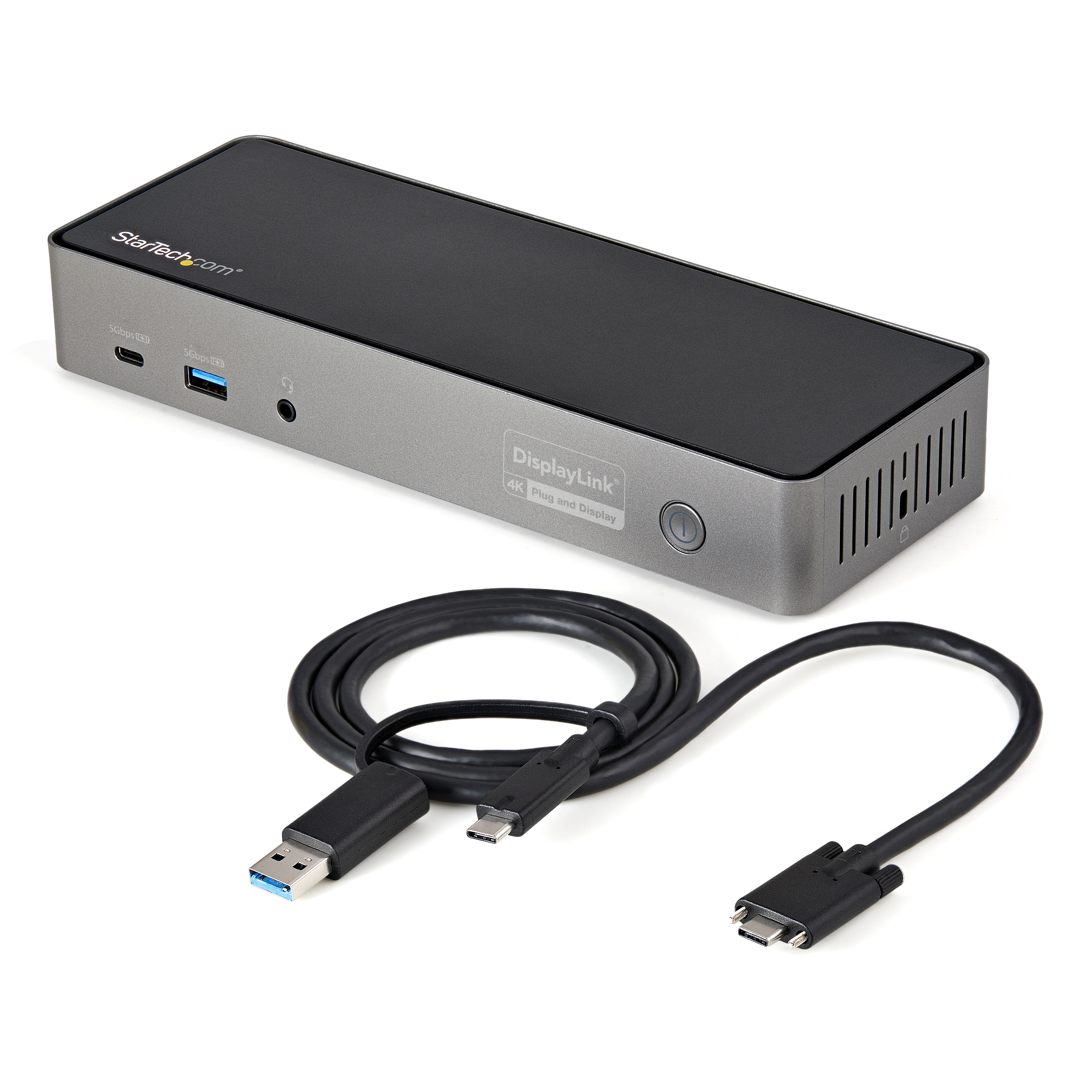

USB Pass-Through Yes USB Port Type USB-A, USB-C Carton Depth (mm) 315 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 11466 Included in Package - 1 - Docking Station
- 1 - USB-C Screw Lock Cable with USB-A Adapter
- 1 - Universal Power Adapter (EU, UK)
- 1 - Quick-Start Guide

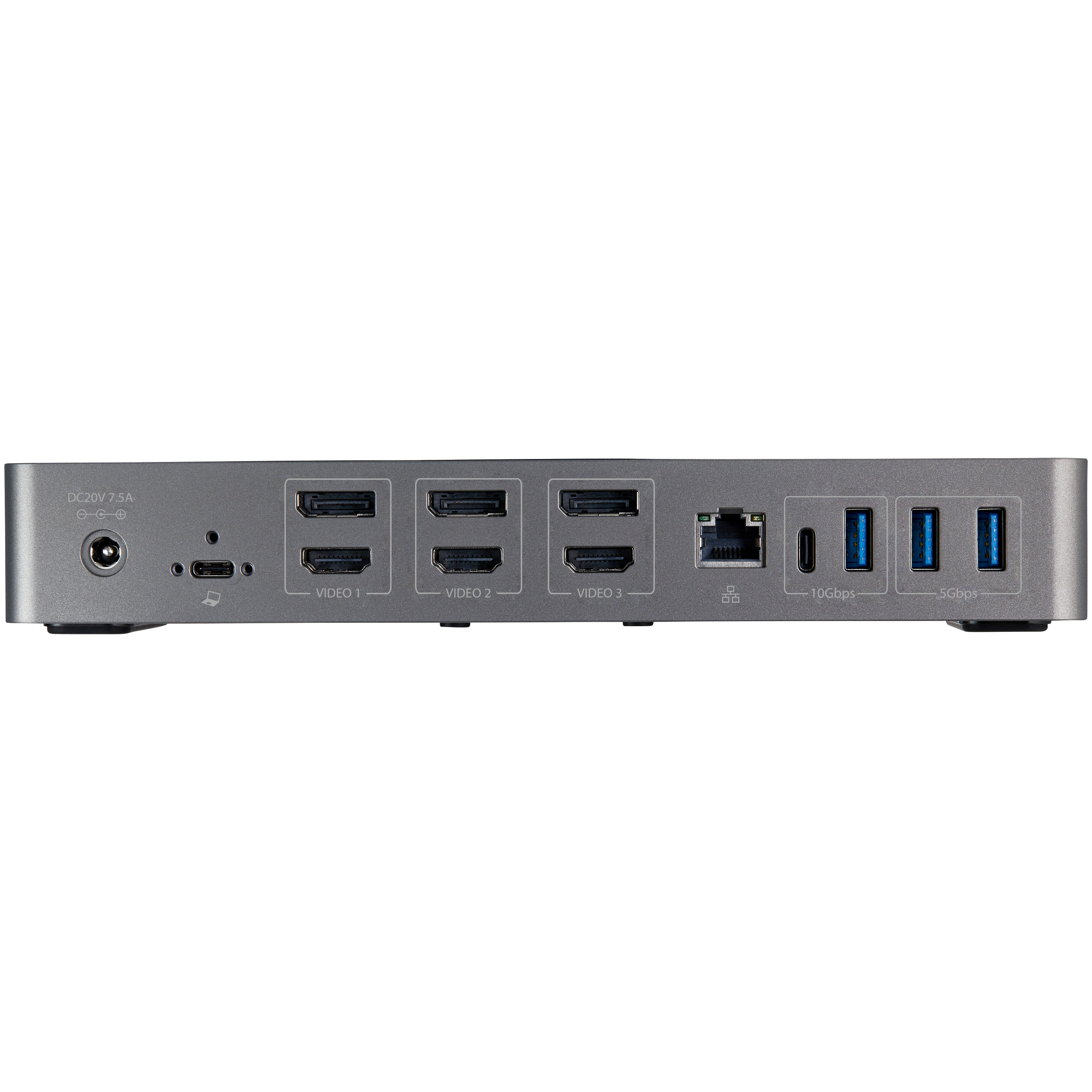

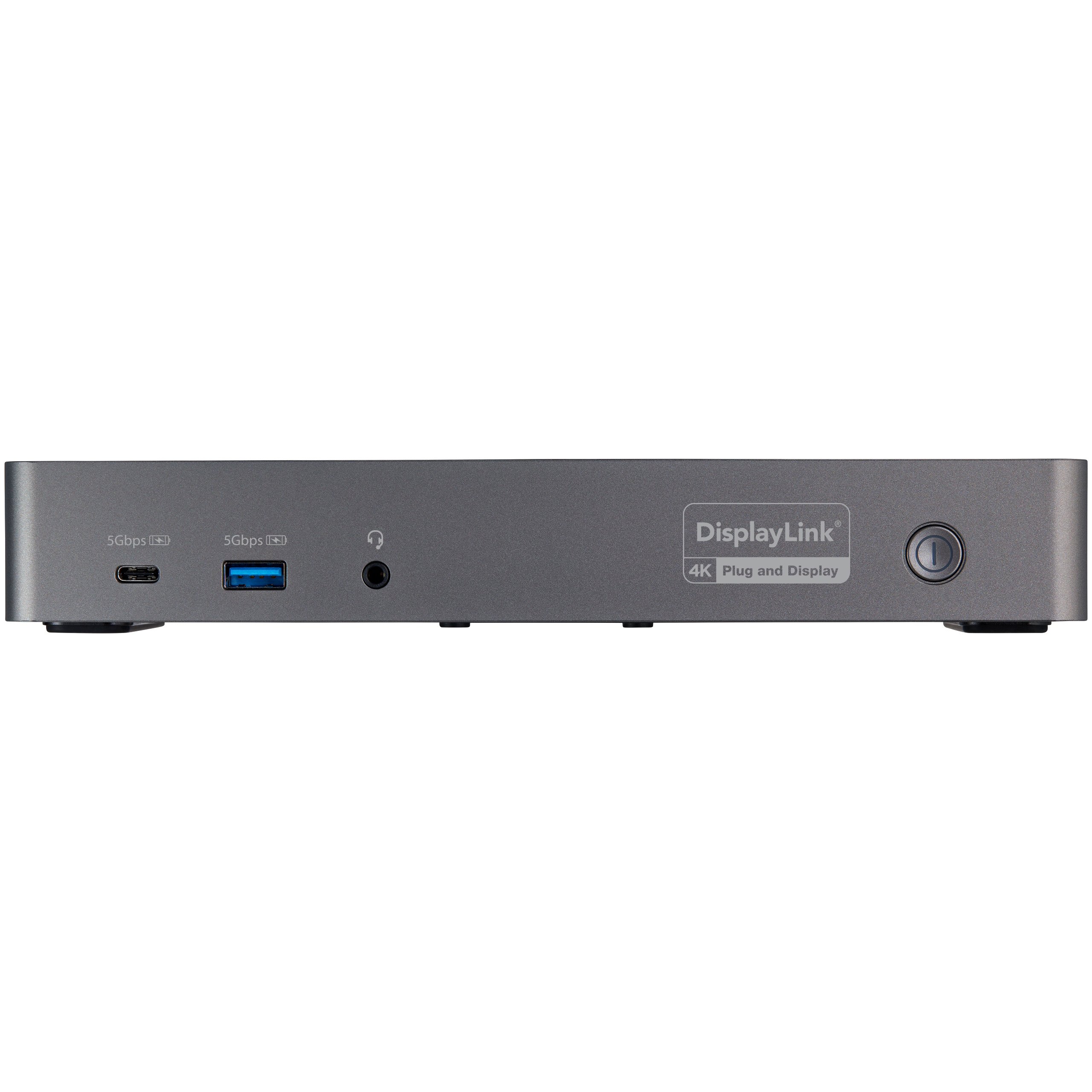

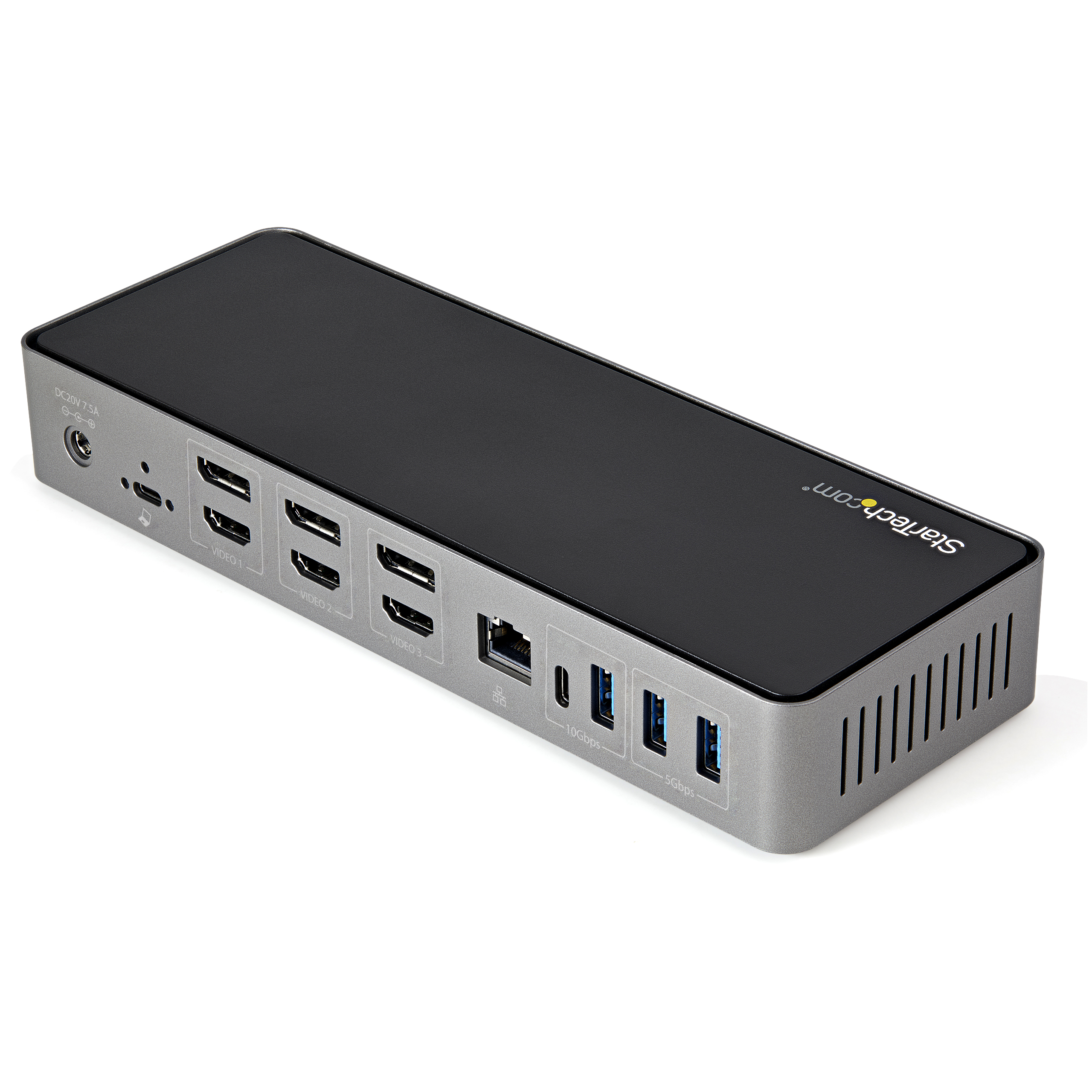

Package Depth (mm) 172 Package Height (mm) 91 Package Width (mm) 253 Package Quantity 1 Package Weight (g) 1728 Packaging Description USB-C™ (10Gbps) Triple 4K Monitor Hybrid Dock for Laptops Sub-Carton Depth (mm) 186 Sub-Carton Height (mm) 272 Sub-Carton Width (mm) 285 Sub-Carton Weight (g) 500 Connector 1 USB-C (5Gbps, 18W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 7.5W) Connector 2 (Quantity) 1 Connector 3 3.5mm (4 Conductors, TRRS) Connector 3 (Quantity) 1 Connector 4 DisplayPort Connector 4 (Quantity) 3 Connector 5 HDMI Connector 5 (Quantity) 3 Connector 6 RJ-45 Connector 6 (Quantity) 1 Connector 7 USB-C (10Gbps, 4.5W) Connector 7 (Quantity) 1 Connector 8 USB-A (10Gbps, 4.5W) Connector 8 (Quantity) 1 Connector 9 USB-A (5Gbps, 4.5W) Connector 9 (Quantity) 2 Host Connector 1 USB-C (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2020-02-13 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CH,CL,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK Primary Technology - USB-C
- HDMI 2.0 / 4K 60 Hz and HDR
- USB 3.2 Gen 2 / 10Gbps
- Power Delivery
- DisplayPort 1.4
