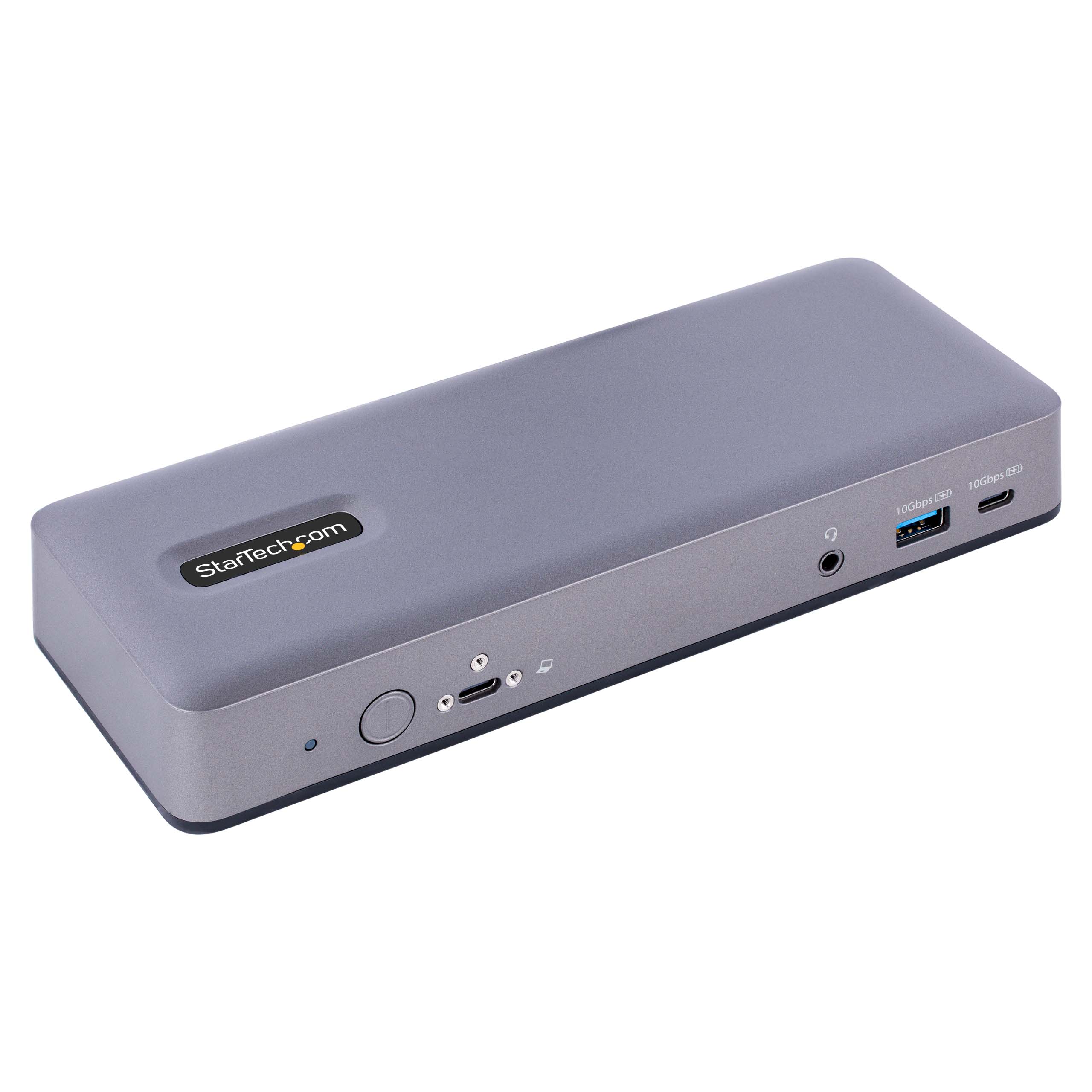

DK31C3MNCR
USB-C Triple Video Dock Certified for Works with Chromebook
USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name USB-C Triple Video Dock Certified for Works with Chromebook Product Number DK31C3MNCR UPC 065030891967 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) USBC Chromebook Dock Product Title (Short) USB-C Docking Station, 4K, Chromebook Product Title (Medium) USB-C Docking Station, Triple/Dual 4K, 7x USB Hub, PD, GbE, works w/ Chromebook Product Title (Standard) USB-C Docking Station, HDMI/DP/DP Alt Mode USB-C Dock, Triple/Dual 4K, 7x USB Hub, 60W PD, GbE, WWCB certified, TAA Product Title (Long) USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock - 3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio - Works With Chromebook certified - TAA Product Title (AMZ) USB-C Docking Station - Triple 4K30 / Dual 4K60 - DP Alt Mode/DP/HDMI - 7-Port USB Hub - PD 3.0 - GbE - Audio - K-Slots - Works With Chromebook - Multi-Monitor USB-C Dock , TAA Title Ingram (Part 1) USB C DOCKING STATION UNIVERSAL Title Ingram (Part 2) Multi Monitor WWCB Chromebook Dock Website Product Headline USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE Bullet 1 SECURE & EASY SETUP: Ideal for Enterprise deployment; Includes front screw lock host port and 3.3ft (1m) locking USB Type-C cable, automatic driver installation, front Power/Mode button, K-Slot & Nano slot for anti-theft security, plus mounting holes Bullet 2 WORKS WITH CHROMEBOOK CERTIFIED: WWCB certified, for guaranteed compatibility with USB-C, Thunderbolt™ 4 Chromebooks; Features auto-updates to firmware through ChromeOS for max performance, compatibility, and security Bullet 3 FLEXIBLE MULTI-MONITOR OUTPUTS: MST based video supports extended dual-4K 60Hz monitors with HDMI 2.0b, DisplayPort 1.4, and USB-C video outputs, triple 4K 30Hz, or single 5K 60Hz (DP 1.4 HBR3); Ideal for use with USB-C monitors (portable or desktop) Bullet 4 FULL-FEATURED: 7-Port USB Hub (2x USB-A 10Gbps, 1x USB-A 10Gbps w/BC 1.2 charging, 1x USB-C 10Gbps, 2x USB-A 480Mbps, 1x USB-C shared 10Gbps & DP Alt Mode video), 60W Power Delivery, Gigabit Ethernet, 3.5mm headset/audio port Bullet 5 TWO OPERATION MODES: Hold Power/Mode button for 4 sec to switch between two and four lane modes; Default four lane mode features 4K video performance with USB 2.0 480Mbps, while two lane mode features USB 3.2 Gen2 10Gbps throughput w/ 1080p video performance Bullets (Compact) Works With Chromebook (WWCB) certified USB-C Laptop Docking Station - MST based video for extended 4K dual/triple multi monitors - HDMI DisplayPort and USB-C video - 7x USB Hub - 60W USB PD - K-Slots - Auto firmware updates - 3ft Type-C locking cable Bullets (Consolidated) Works With Chromebook (WWCB) USB-C Laptop Docking Station - Multi-monitor via HDMI 2.0 DisplayPort 1.4 and USB-C Video Output - Port Replicator supports multimonitor video: Dual 4K 60Hz | Triple 4K 30Hz | Single Display 5K 60Hz (DP 1.4 HBR3 for max performance) - 7-Port USB Hub: 2x USB-A (10Gbps) | 1x USB-A/1xUSB-C (10Gbps w/BC 1.2) | 2x USB-A (480Mbps) | 1x USB-C (10Gbps or DP Alt Mode) - 3ft USB-C cable (screw-locking) - 60W PD - Chromebook Dock receives automatic firmware updates from Google Marketing Copy Marketing Copy (No HTML) Applications - Works With Chromebook (WWCB) certified and features guaranteed compatibility with ChromeOS devices like USB-C or Thunderbolt™ 4 Chromebooks

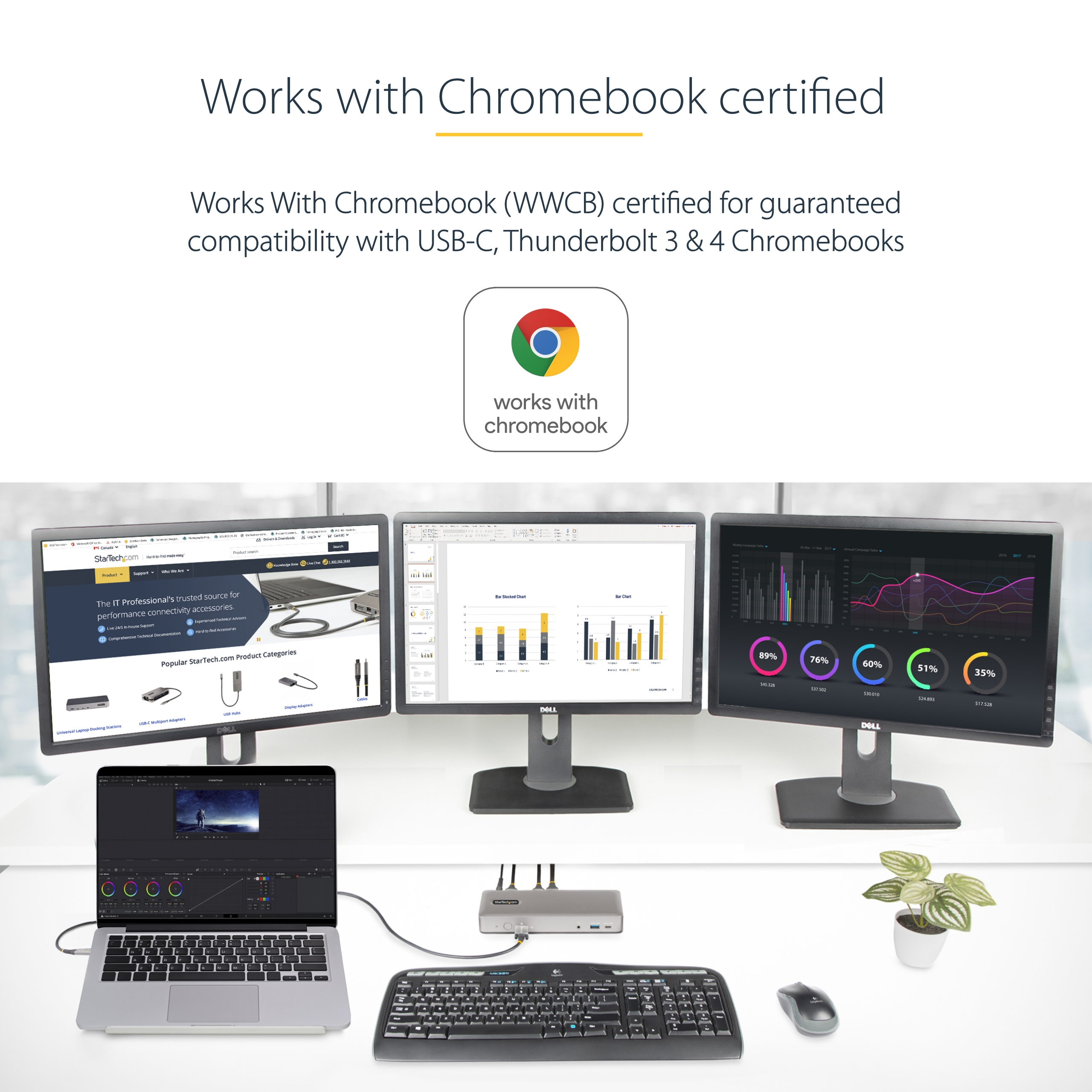

- Seamless operation with Chromebooks and automatic firmware updates through ChromeOS makes it ideal for IT setup and deployments
- Connect up to three external 4K 30Hz monitors for a triple-monitor setup
Website Search Keyword - usb c triple monitor dock
- usb c triple 4k dock
- usb c dock sd card reader
- usb c docking station triple monitor
- usb c docking station 100w pd
- triple 4k 60hz docking station
- usb 3.2 gen 2 dock
- 10gbps docking station
- usb c dp hdmi dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - Compatible with Chromebooks only.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure your host device's USB-C port supports USB Power Delivery and DP alt mode.
- A 4K-capable display is required to achieve 4096 x 2160p/3840 x 2160p resolution.
- A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) on the DP Alt-Mode USB-C port.
- USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1, and SuperSpeed USB 10Gbps.

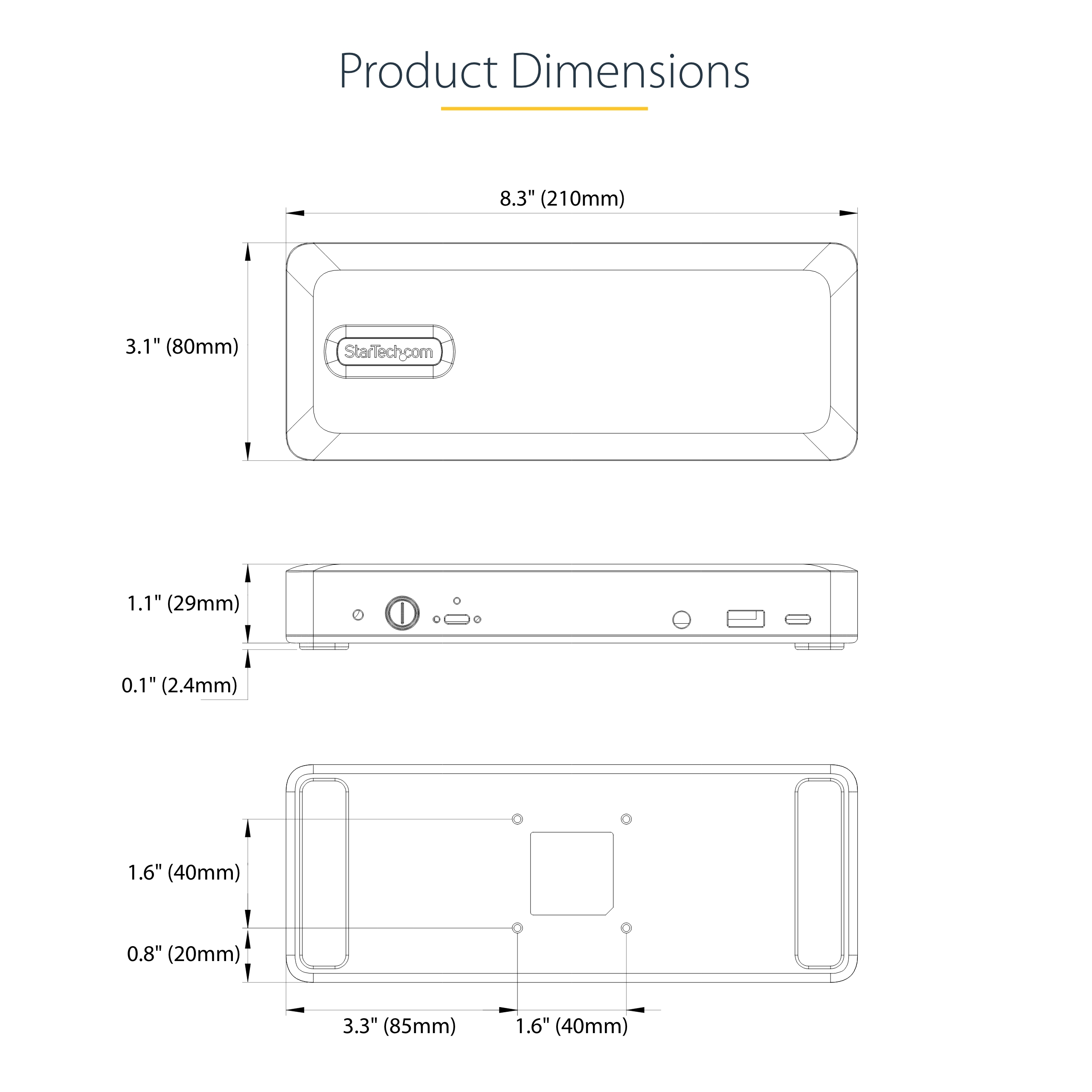

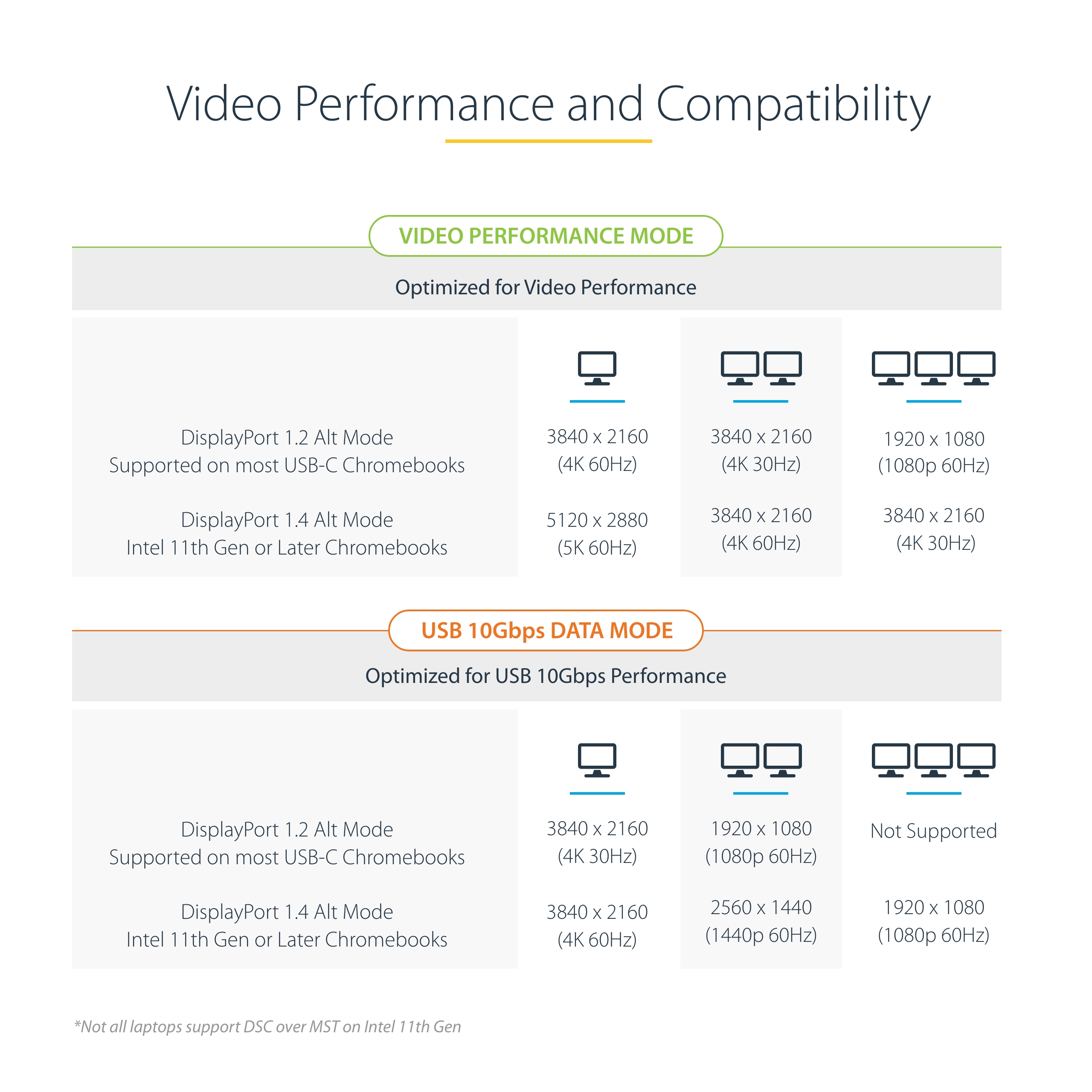

System and Cable Requirements Compatible with Chromebooks running ChromeOS and equipped with USB-C, TB3/TB4 (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery and DP alt mode). Accessory Products DOCK-NUC-VESA-MOUNT Equivalent Part Number in the EU DK31C3MNCRUE Equivalent Part Number in the UK DK31C3MNCRUE Input Current 2.37A Input Voltage 110V-240V AC Output Current 6.75A Output Voltage (V) 20V DC Power Consumption (In Watts) 135W Power Delivery 60W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Color Space Gray Humidity 0% to 95% Operating Temperature 0 to 40°C (32 to 104°F) Product Length (mm) 210.000 Product Width (mm) 80.000 Product Height (mm) 32.000 Product Weight (g) 275.000 Storage Temperature -20 to 70°C (-4 to 158°F) TAA Compliant Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) General Specifications - Video 1 USB-C port can perform charging and data transfer while paired DP output is displaying video
- 4 Video Lanes (4K): 480 Mbps
- 2 Video Lanes (1080p): 10 Gbps
Maximum Data Transfer Rate 10 Gbps Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility Chrome OS PXE Yes USB Speed - USB 3.2 Gen 2 (10Gbps)
- USB 2.0 (480Mbps)
USB Type and Rate - USB 10Gbps
- USB 2.0 (480Mbps)
Video Output Port - HDMI
- DisplayPort
- USB-C (DP Alt-Mode)

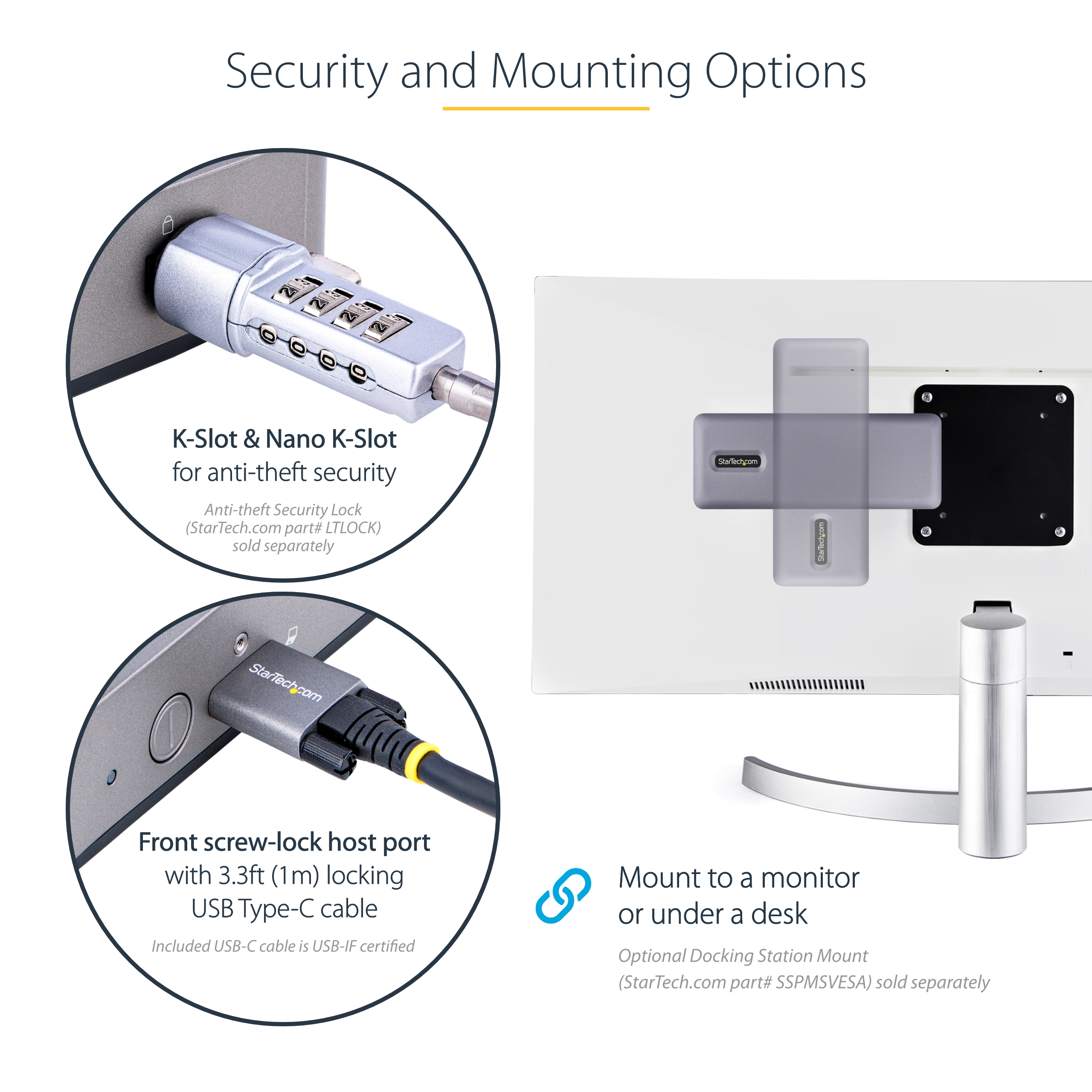

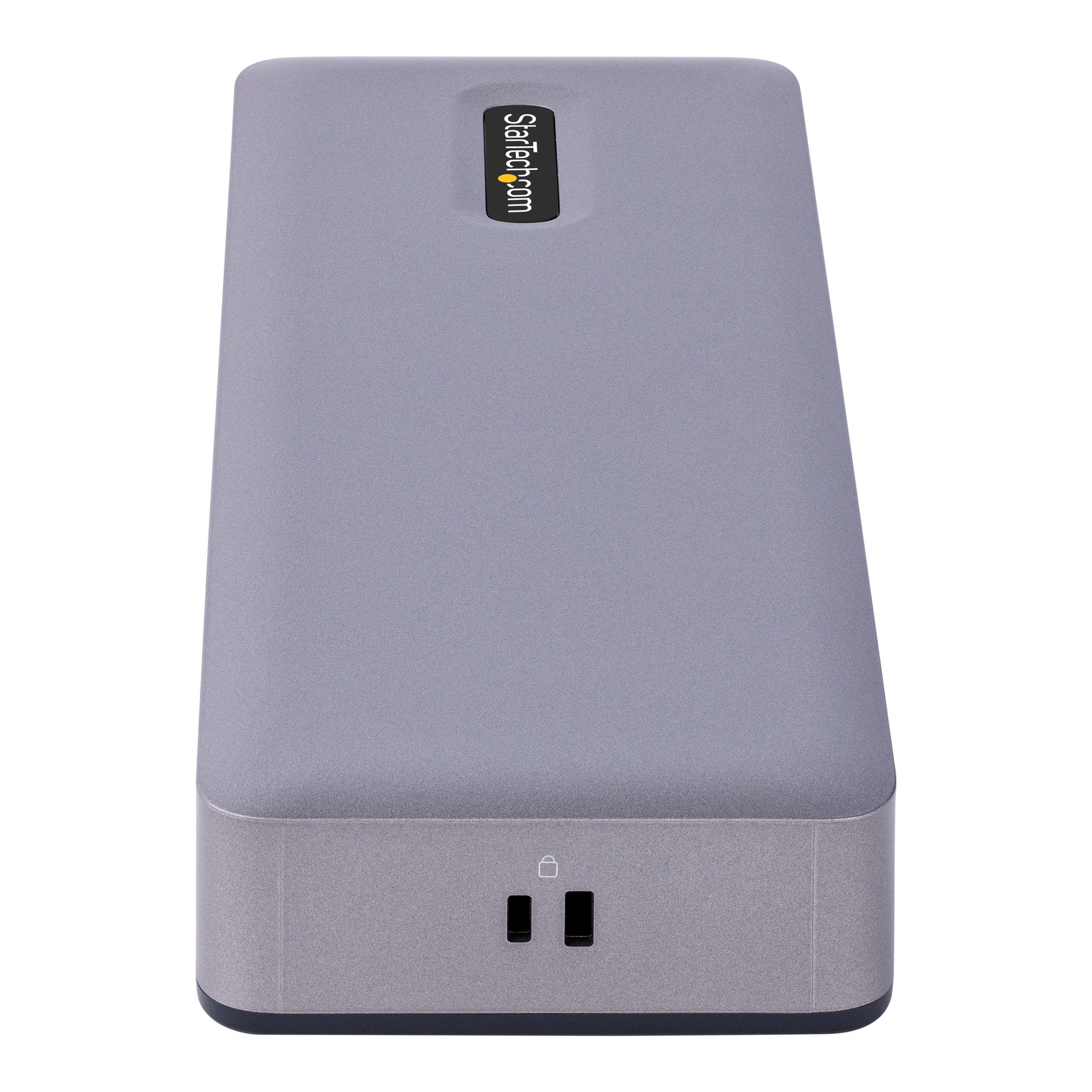

Video Transport Technology USB Graphics Bus Type USB-C Chipset ID Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port USB-C Industry Standards - DisplayPort 1.4
- HDMI 2.0b
- USB 3.2 Gen 2 (10 Gbps)
- USB-C Power Delivery 3.0 Specification

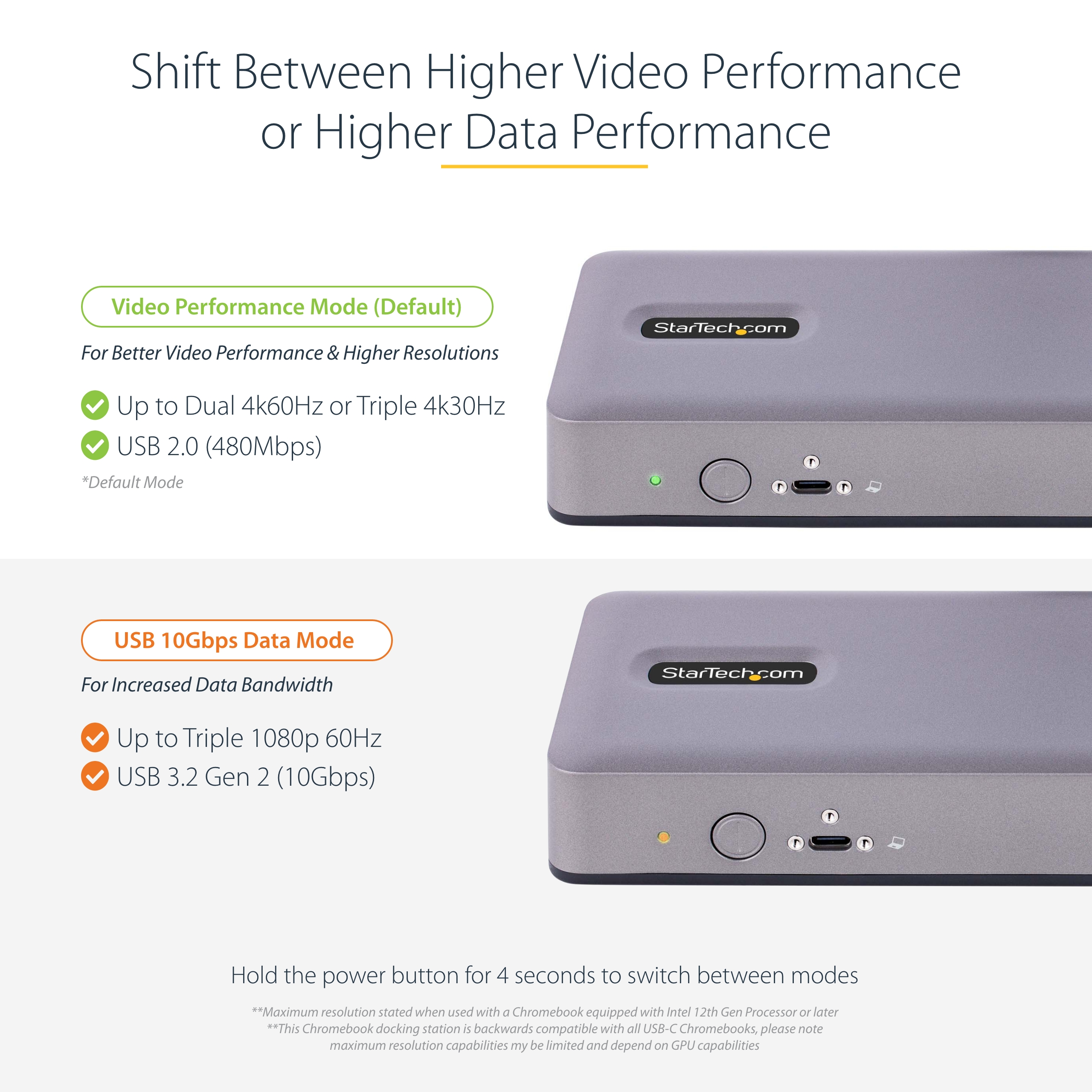

Interface/Bridge USB 10Gbps Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Power - Solid Green: ON in 4-Lane Mode (480 Mbps)
- 1 - Power - Solid Orange: ON in 2-Lane Mode (10 Gbps)
- 1 - Network Port - Yellow On: Link Detected
- 1 - Network Port - Yellow Flashing: Activity
- 1 - Network Port - Green On: 1Gbps
- 1 - Network Port - Yellow On: 100Mbps
Number of Battery Charge 1.2 Ports 1 Number of Displays 3 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
USB Port Type - USB-A
- USB-C

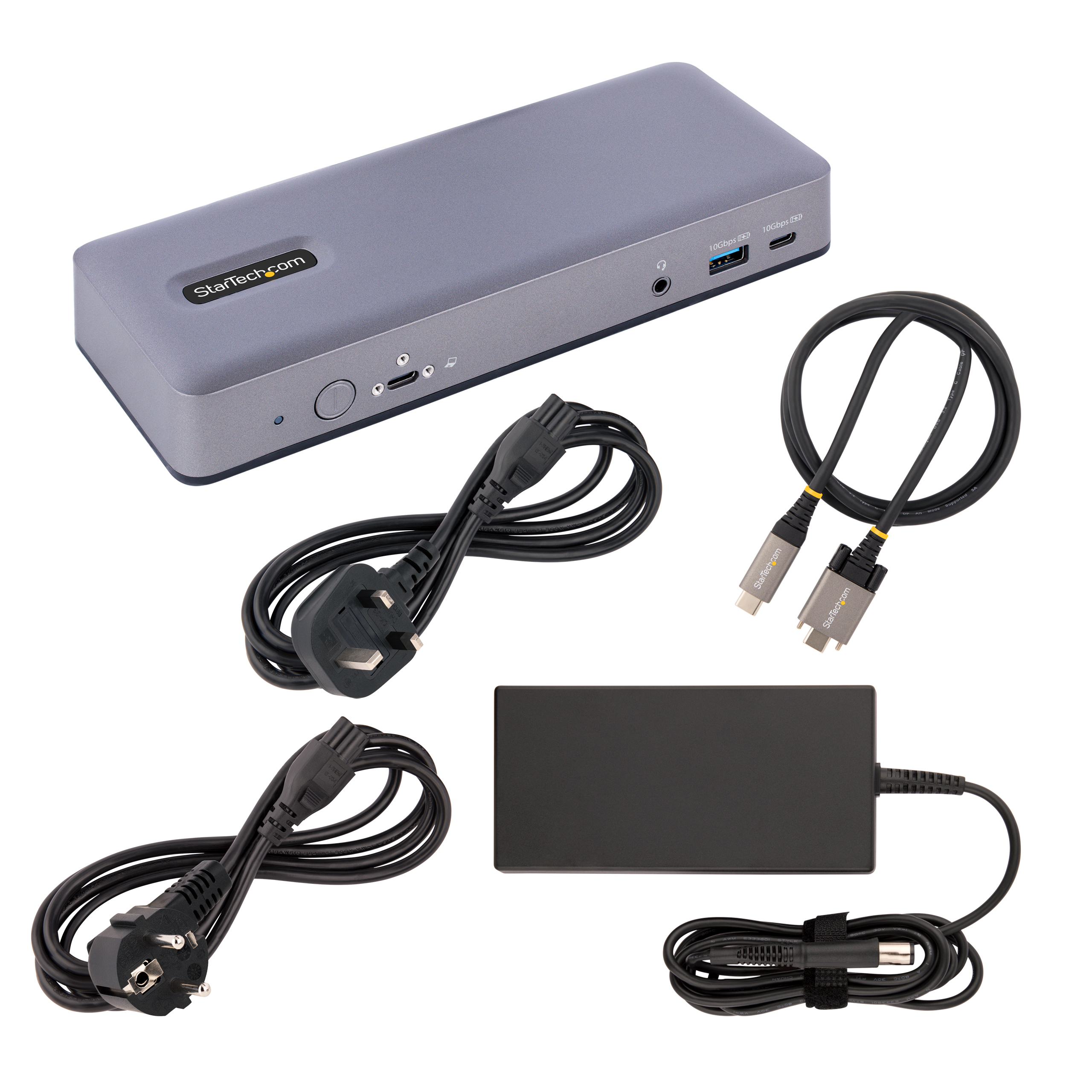

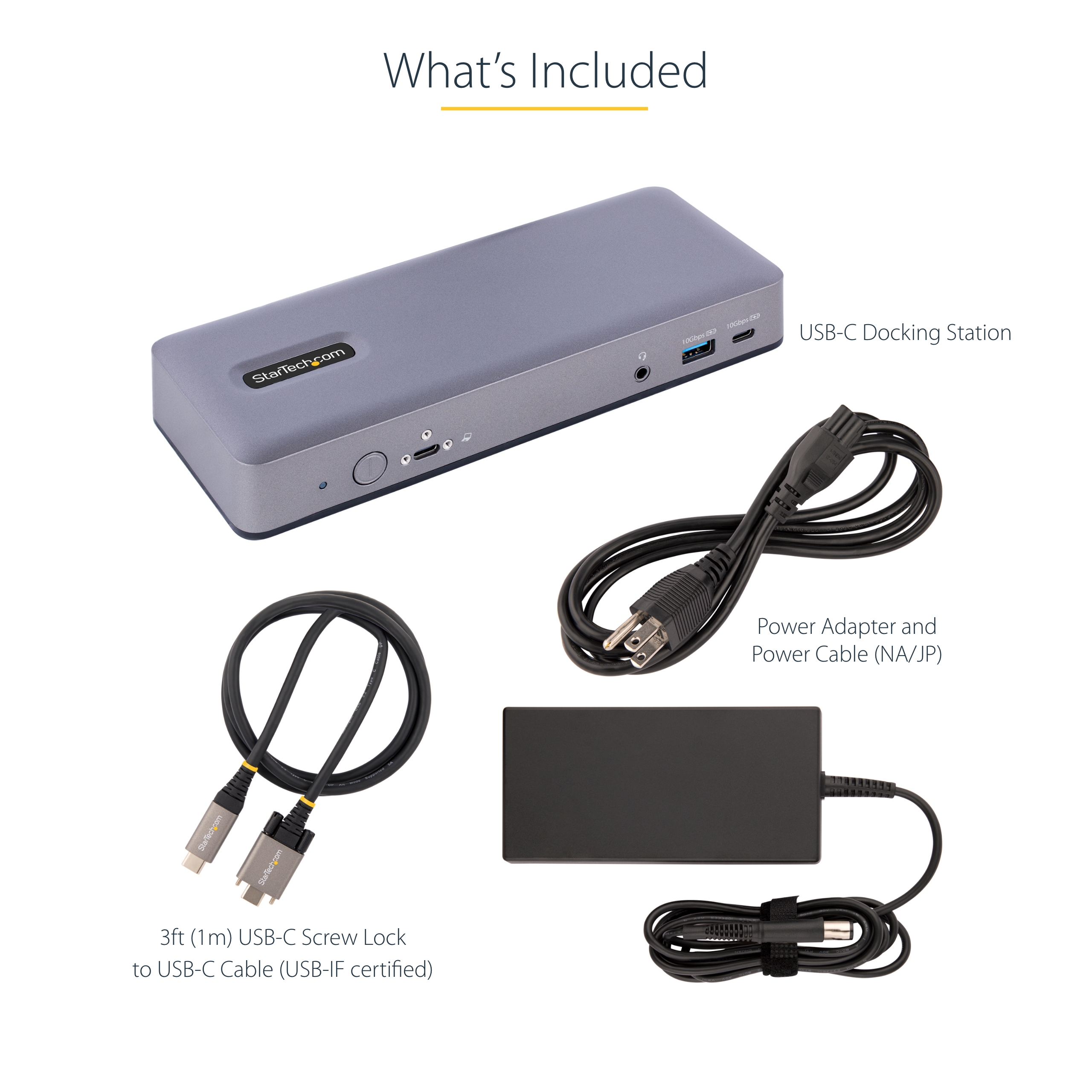

Carton Depth (mm) 487 Carton Height (mm) 328 Carton Quantity 10 Carton Weight Gross (g) 11044 Included in Package - 1 - USB-C Docking Station
- 1 - 3 ft (1m) USB-C Screw Lock to USB-C Cable
- 1 - Power Adapter (NA/JP)
- 1 - Quick-Start Guide

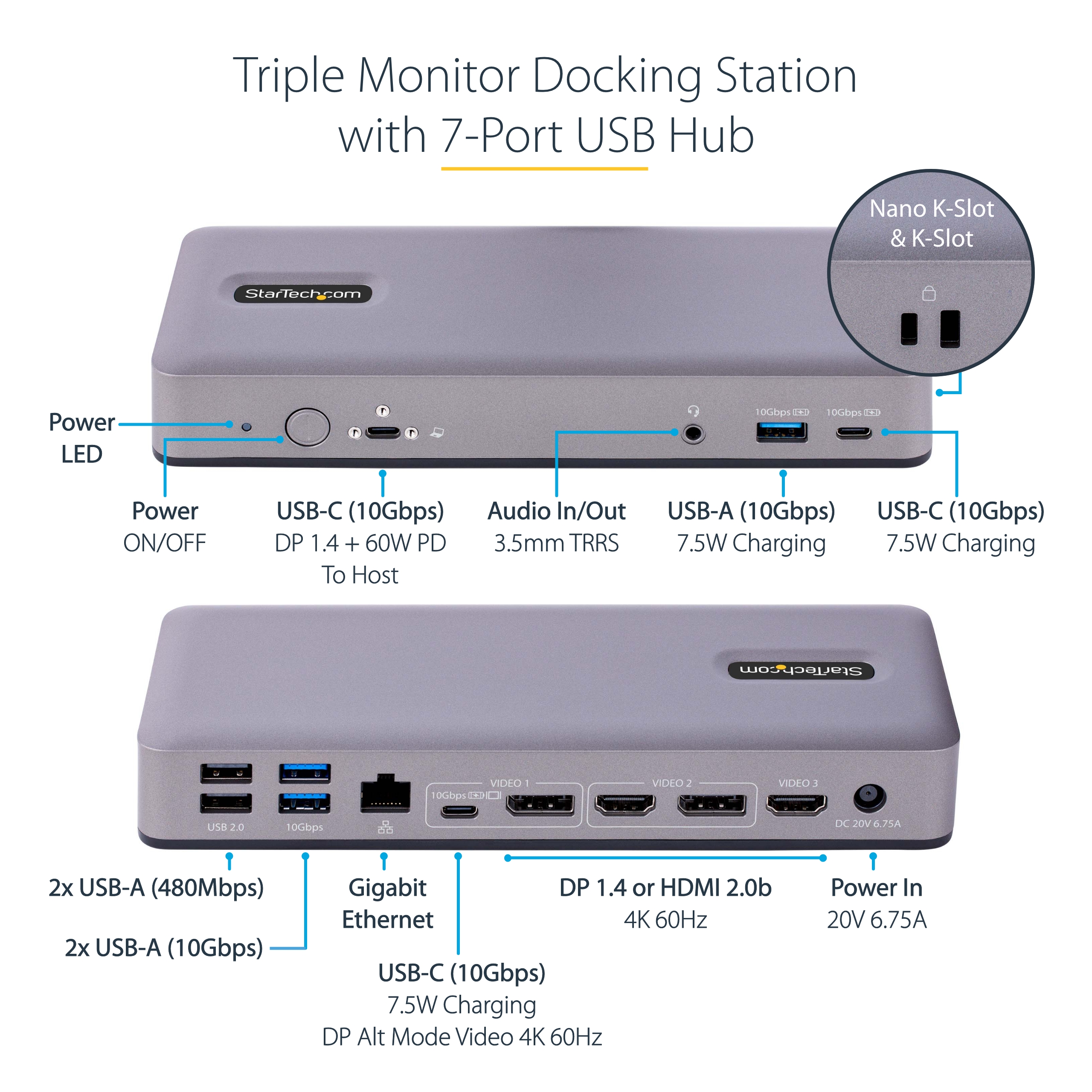

Package Depth (mm) 150 Package Height (mm) 94 Package Width (mm) 300 Package Quantity 1 Package Weight (g) 1036 Packaging Description USB-C 10Gbps Triple Monitor Dock - Chromebook Certified Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (10Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-C Dual-Mode DP++ (10Gbps, 7.5W / DP Alt-Mode) Connector 4 (Quantity) 1 Connector 5 DisplayPort Connector 5 (Quantity) 2 Connector 6 HDMI Connector 6 (Quantity) 2 Connector 7 RJ-45 Connector 7 (Quantity) 1 Connector 8 3.5mm (3 Conductors, TRS) Connector 8 (Quantity) 1 Host Connector 1 USB-C Dual-Role (10Gbps, 4.5W / 100W PD Input) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Required Artwork Due Date 2022-05-20 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-09-06 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,JP,US Primary Technology - DisplayPort 1.4
