DK31C3MNCRUE
USB-C Triple Video Dock Certified for Works with Chromebook
USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name USB-C Triple Video Dock Certified for Works with Chromebook Product Number DK31C3MNCRUE UPC 065030898133 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) USBC Chromebook Dock Product Title (Short) USB-C Docking Station, 4K, Chromebook Product Title (Medium) USB-C Docking Station, Triple/Dual 4K, 7x USB Hub, PD, GbE, works w/ Chromebook Product Title (Standard) USB-C Docking Station, HDMI/DP/DP Alt Mode USB-C Dock, Triple/Dual 4K, 7x USB Hub, 60W PD, GbE, WWCB certified, TAA Product Title (Long) USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock - 3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio - Works With Chromebook certified - TAA Product Title (AMZ) USB-C Docking Station - Triple 4K30 / Dual 4K60 - DP Alt Mode/DP/HDMI - 7-Port USB Hub - PD 3.0 - GbE - Audio - K-Slots - Works With Chromebook - Multi-Monitor USB-C Dock , TAA Title Ingram (Part 1) USB C DOCKING STATION UNIVERSAL Title Ingram (Part 2) Multi Monitor WWCB Chromebook Dock Website Product Headline USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE Bullet 1 SECURE & EASY SETUP: Ideal for Enterprise deployment; Includes front screw lock host port and 3.3ft (1m) locking USB Type-C cable, automatic driver installation, front Power/Mode button, K-Slot & Nano slot for anti-theft security, plus mounting holes Bullet 2 WORKS WITH CHROMEBOOK CERTIFIED: WWCB certified, for guaranteed compatibility with USB-C, Thunderbolt™ 4 Chromebooks; Features auto-updates to firmware through ChromeOS for max performance, compatibility, and security Bullet 3 FLEXIBLE MULTI-MONITOR OUTPUTS: MST based video supports extended dual-4K 60Hz monitors with HDMI 2.0b, DisplayPort 1.4, and USB-C video outputs, triple 4K 30Hz, or single 5K 60Hz (DP 1.4 HBR3); Ideal for use with USB-C monitors (portable or desktop) Bullet 4 FULL-FEATURED: 7-Port USB Hub (2x USB-A 10Gbps, 1x USB-A 10Gbps w/BC 1.2 charging, 1x USB-C 10Gbps, 2x USB-A 480Mbps, 1x USB-C shared 10Gbps & DP Alt Mode video), 60W Power Delivery, Gigabit Ethernet, 3.5mm headset/audio port Bullet 5 TWO OPERATION MODES: Hold Power/Mode button for 4 sec to switch between two and four lane modes; Default four lane mode features 4K video performance with USB 2.0 480Mbps, while two lane mode features USB 3.2 Gen2 10Gbps throughput w/ 1080p video performance Bullets (Compact) Works With Chromebook (WWCB) certified USB-C Laptop Docking Station - MST based video for extended 4K dual/triple multi monitors - HDMI DisplayPort and USB-C video - 7x USB Hub - 60W USB PD - K-Slots - Auto firmware updates - 3ft Type-C locking cable Bullets (Consolidated) Works With Chromebook (WWCB) USB-C Laptop Docking Station - Multi-monitor via HDMI 2.0 DisplayPort 1.4 and USB-C Video Output - Port Replicator supports multimonitor video: Dual 4K 60Hz | Triple 4K 30Hz | Single Display 5K 60Hz (DP 1.4 HBR3 for max performance) - 7-Port USB Hub: 2x USB-A (10Gbps) | 1x USB-A/1xUSB-C (10Gbps w/BC 1.2) | 2x USB-A (480Mbps) | 1x USB-C (10Gbps or DP Alt Mode) - 3ft USB-C cable (screw-locking) - 60W PD - Chromebook Dock receives automatic firmware updates from Google Marketing Copy Marketing Copy (No HTML) Applications - Works With Chromebook (WWCB) certified and features guaranteed compatibility with ChromeOS devices like USB-C or Thunderbolt™ 4 Chromebooks

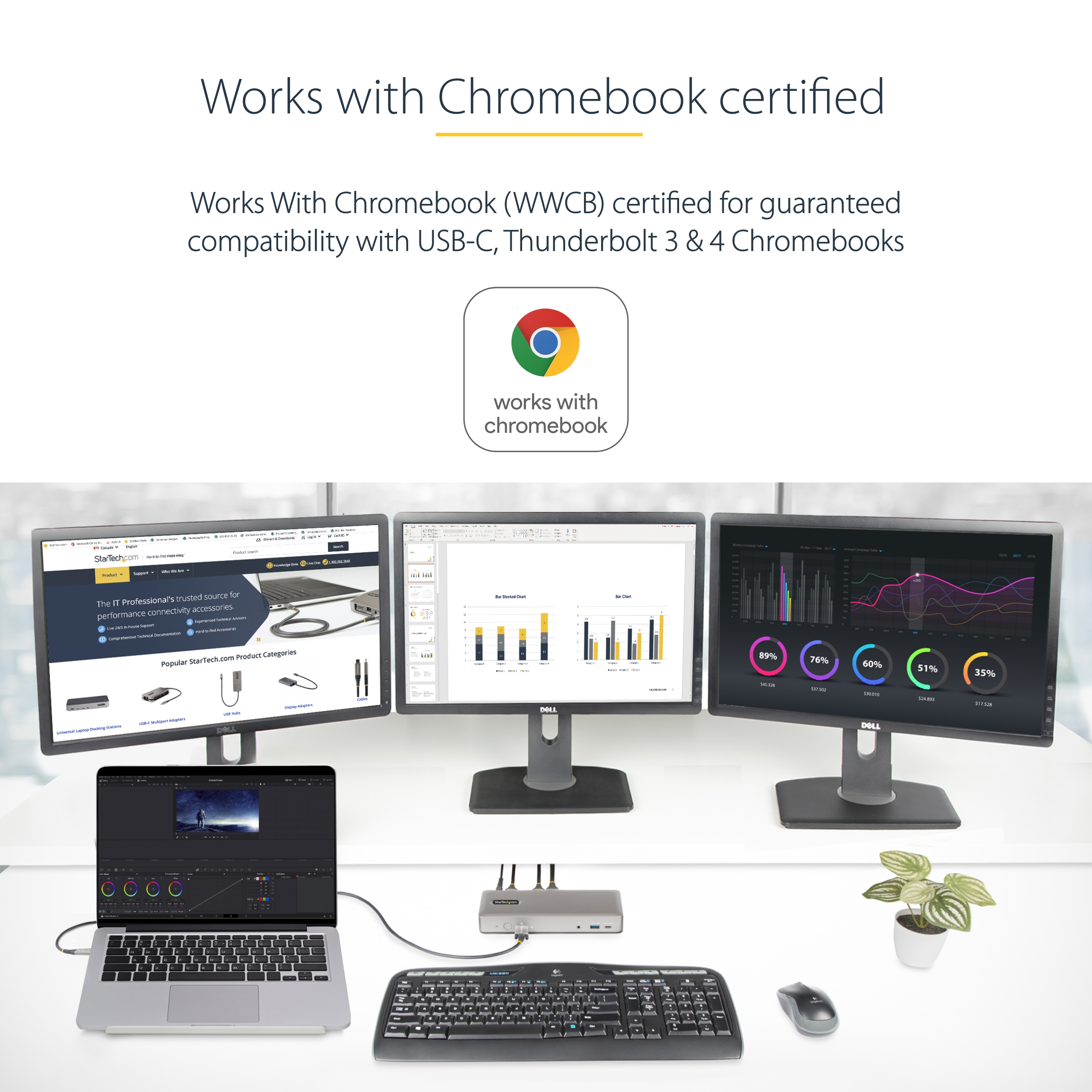

- Seamless operation with Chromebooks and automatic firmware updates through ChromeOS makes it ideal for IT setup and deployments
- Connect up to three external 4K 30Hz monitors for a triple-monitor setup
Website Search Keyword - usb c triple monitor dock
- usb c triple 4k dock
- usb c dock sd card reader
- usb c docking station triple monitor
- usb c docking station 100w pd
- triple 4k 60hz docking station
- usb 3.2 gen 2 dock
- 10gbps docking station
- usb c dp hdmi dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
Special Notes - Compatible with Chromebooks only.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure your host device's USB-C port supports USB Power Delivery and DP alt mode.
- A 4K-capable display is required to achieve 4096 x 2160p/3840 x 2160p resolution.
- A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) on the DP Alt-Mode USB-C port.
- USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1, and SuperSpeed USB 10Gbps.

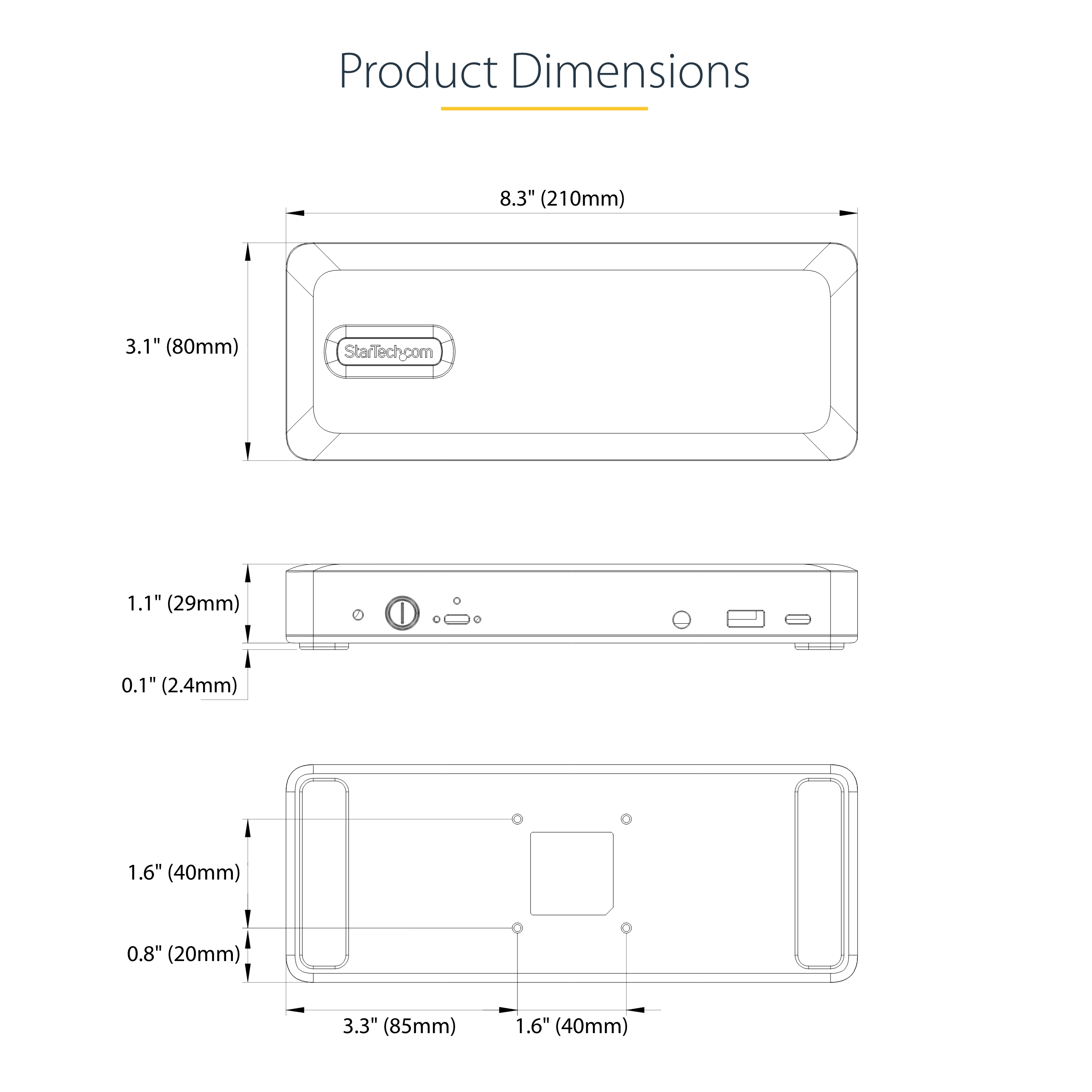

System and Cable Requirements Compatible with Chromebooks running ChromeOS and equipped with USB-C, TB3/TB4 (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery and DP alt mode). Accessory Products DOCK-NUC-VESA-MOUNT Input Current 2.37A Input Voltage 110V-240V AC Output Current 6.75A Output Voltage (V) 20V DC Power Consumption (In Watts) 135W Power Delivery 60W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Color Space Gray Humidity 0% to 95% Operating Temperature 0 to 40°C (32 to 104°F) Product Length (mm) 210.000 Product Width (mm) 80.000 Product Height (mm) 32.000 Product Weight (g) 275.000 Storage Temperature -20 to 70°C (-4 to 158°F) TAA Compliant Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) General Specifications - Video 1 USB-C port can perform charging and data transfer while paired DP output is displaying video
- 4 Video Lanes (4K): 480 Mbps
- 2 Video Lanes (1080p): 10 Gbps
Maximum Data Transfer Rate 10 Gbps Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility Chrome OS PXE Yes USB Speed - USB 3.2 Gen 2 (10Gbps)
- USB 2.0 (480Mbps)
USB Type and Rate - USB 10Gbps
- USB 2.0 (480Mbps)
Video Output Port - HDMI
- DisplayPort
- USB-C (DP Alt-Mode)

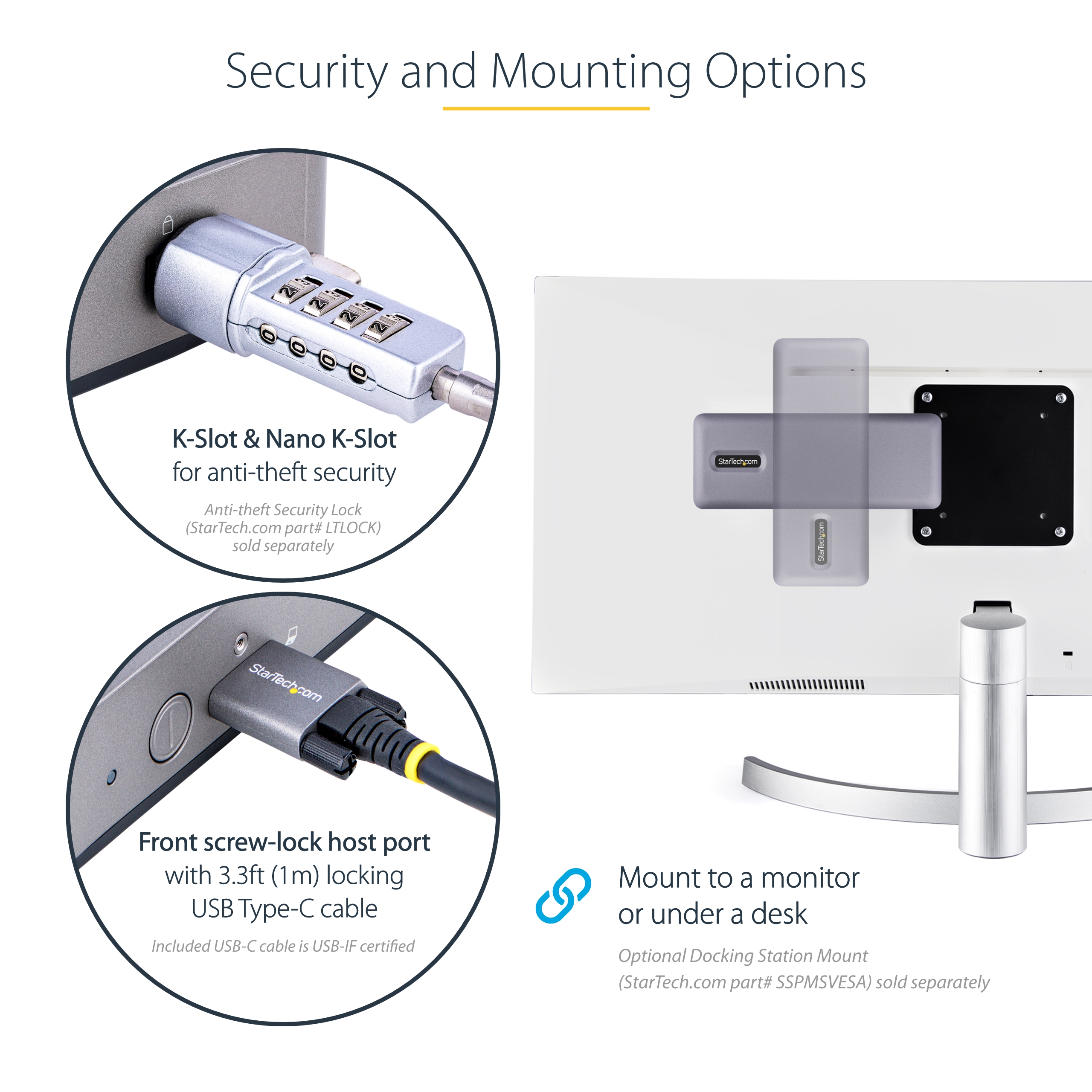

Video Transport Technology USB Graphics Bus Type USB-C Chipset ID Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port USB-C Industry Standards - DisplayPort 1.4
- HDMI 2.0b
- USB 3.2 Gen 2 (10 Gbps)
- USB-C Power Delivery 3.0 Specification

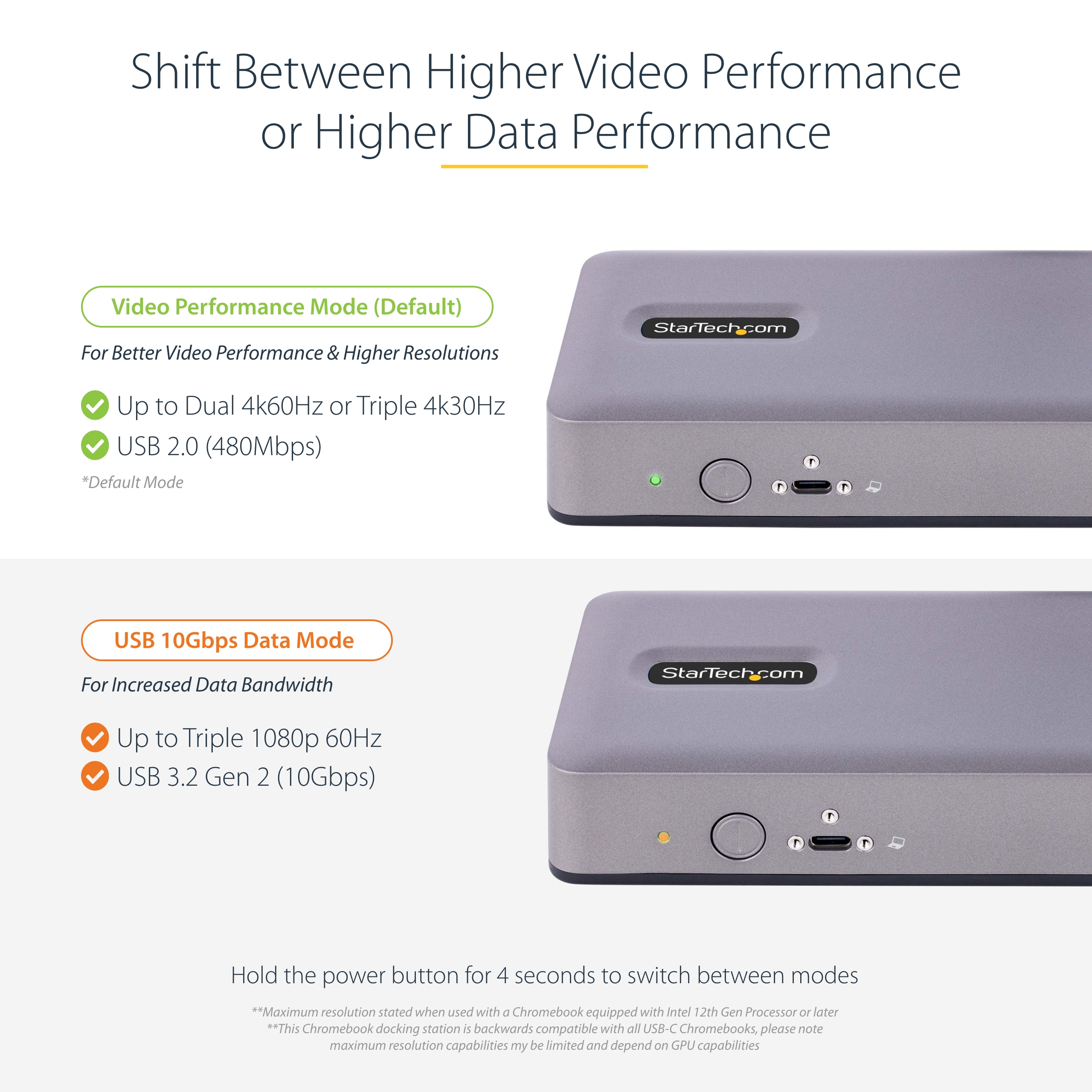

Interface/Bridge USB 10Gbps Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Power - Solid Green: ON in 4-Lane Mode (480 Mbps)
- 1 - Power - Solid Orange: ON in 2-Lane Mode (10 Gbps)
- 1 - Network Port - Yellow On: Link Detected
- 1 - Network Port - Yellow Flashing: Activity
- 1 - Network Port - Green On: 1Gbps
- 1 - Network Port - Yellow On: 100Mbps
Number of Battery Charge 1.2 Ports 1 Number of Displays 3 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
USB Port Type - USB-A
- USB-C

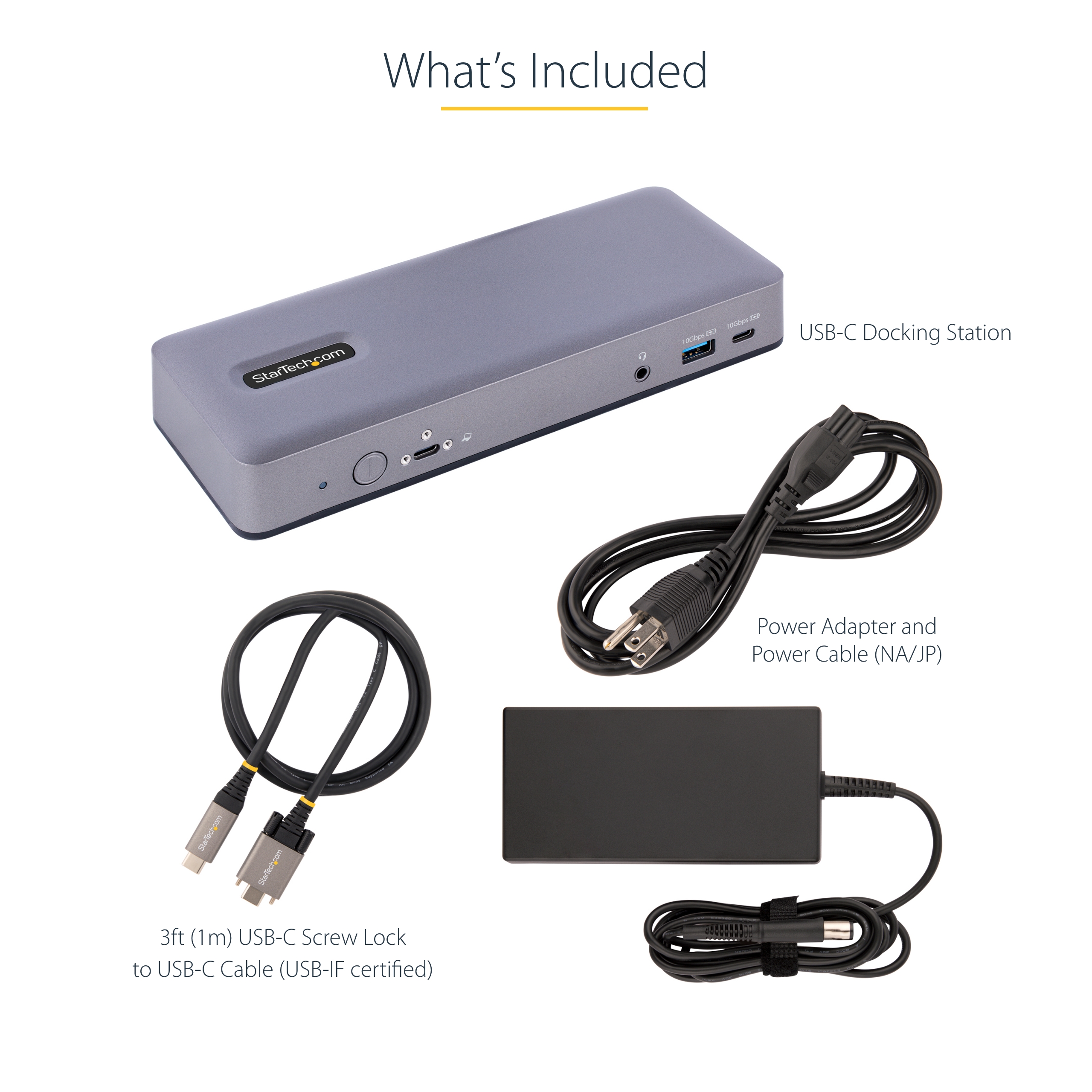

Carton Depth (mm) 310 Carton Height (mm) 314 Carton Quantity 10 Carton Weight Gross (g) 30000 Included in Package - 1 - USB-C Docking Station
- 1 - 3.3 ft (1m) USB-C Screw Lock Cable
- 1 - Power Adapter (UK/EU)
- 1 - Quick Start Guide
Package Depth (mm) 147 Package Height (mm) 90 Package Width (mm) 297 Package Quantity 1 Package Weight (g) 1030 Packaging Description USB-C 10Gbps Triple Monitor Dock - Chromebook Certified Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (10Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-C Dual-Mode DP++ (10Gbps, 7.5W / DP Alt-Mode) Connector 4 (Quantity) 1 Connector 5 DisplayPort Connector 5 (Quantity) 2 Connector 6 HDMI Connector 6 (Quantity) 2 Connector 7 RJ-45 Connector 7 (Quantity) 1 Connector 8 3.5mm (3 Conductors, TRS) Connector 8 (Quantity) 1 Host Connector 1 USB-C Dual-Role (10Gbps, 4.5W / 100W PD Input) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Required Artwork Due Date 2022-04-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-09-14 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK Primary Technology - USB 3.2 Gen 2 / 10Gbps
- DisplayPort 1.4
- Power Delivery
- HDMI 2.0 / 4K 60 Hz and HDR
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-05-13 Target Production Release 2022-05-20 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine Video Required
